LINE, BRAIDED STAINLESS STEEL, #4 DIA., 4FT. LENGTH, -4AN AND 1/8 in. NPTF FITTINGS

LINE, BRAIDED STAINLESS STEEL, #4 DIA., 4FT. LENGTH, -4AN AND 1/8 in. NPTF FITTINGS

$148.50

4ft hose length

  • 4ft hose length
  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
  • Maximum Operating Pressure – 3000 PSI
  • Burst Pressure – 12,000 PSI
  • -65 Degrees F to 450 Degrees F Operating Temperature Range
  • Includes 1/8″ NPT male to -4AN female straight, 1/8″ FPT Female to -4AN Male straight, 1/8″ NPT Female to 1/4″ NPT male straight, and -4AN to 1/8″ NPT female 90 degree fittings
SKU: BDHZ-3229 Category:

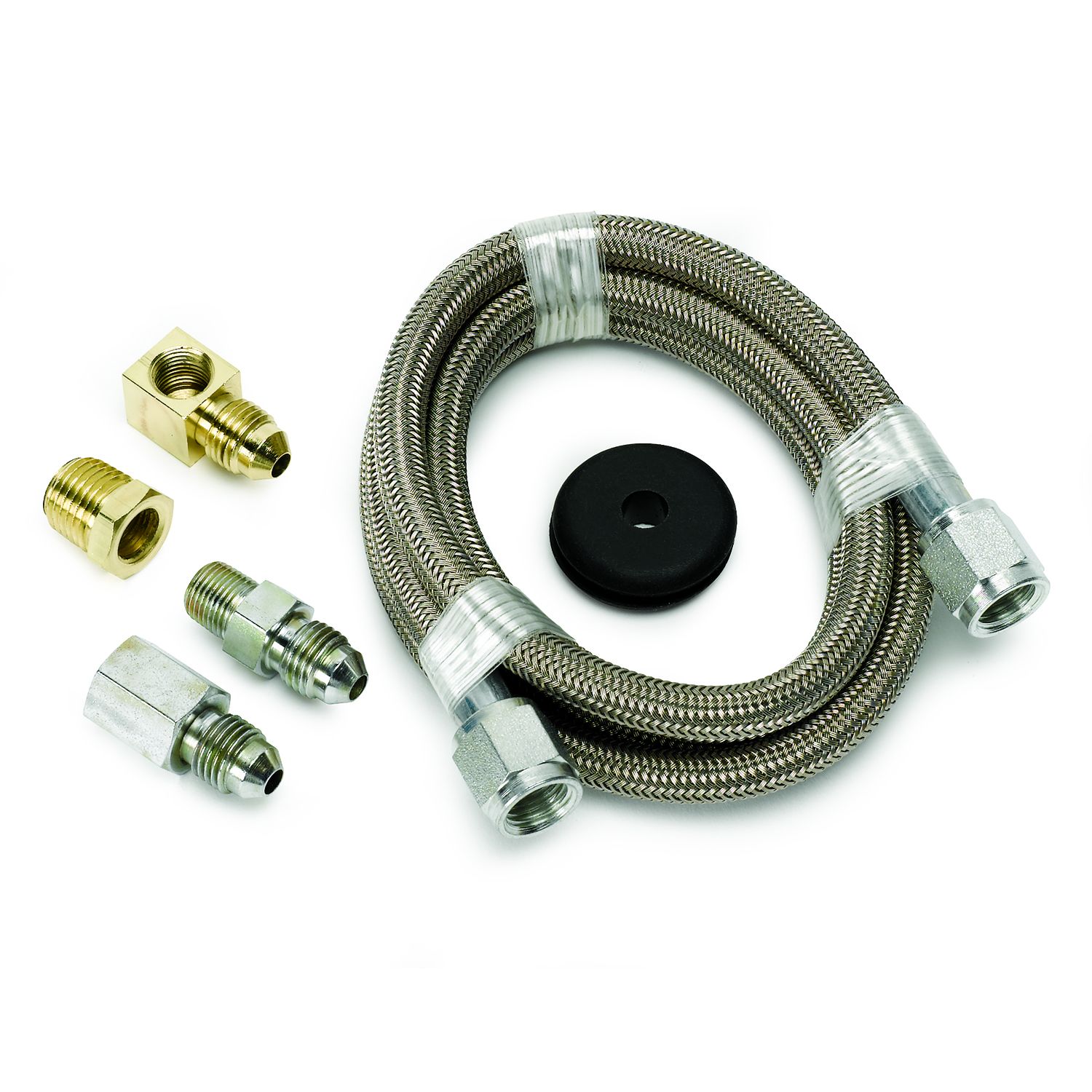

Includes 4ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

Additional Attributes:

GTIN: 00046074032295
Add-On: N/A

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 1 x 5.75 x 11.5 inches
Weight: 0.58 PG

Weight 0.26 kg
Dimensions 1 × 5.75 × 11.5 cm
