LOAD DISTRIBUTION PLATE (LDP) — GRAY

$168.75

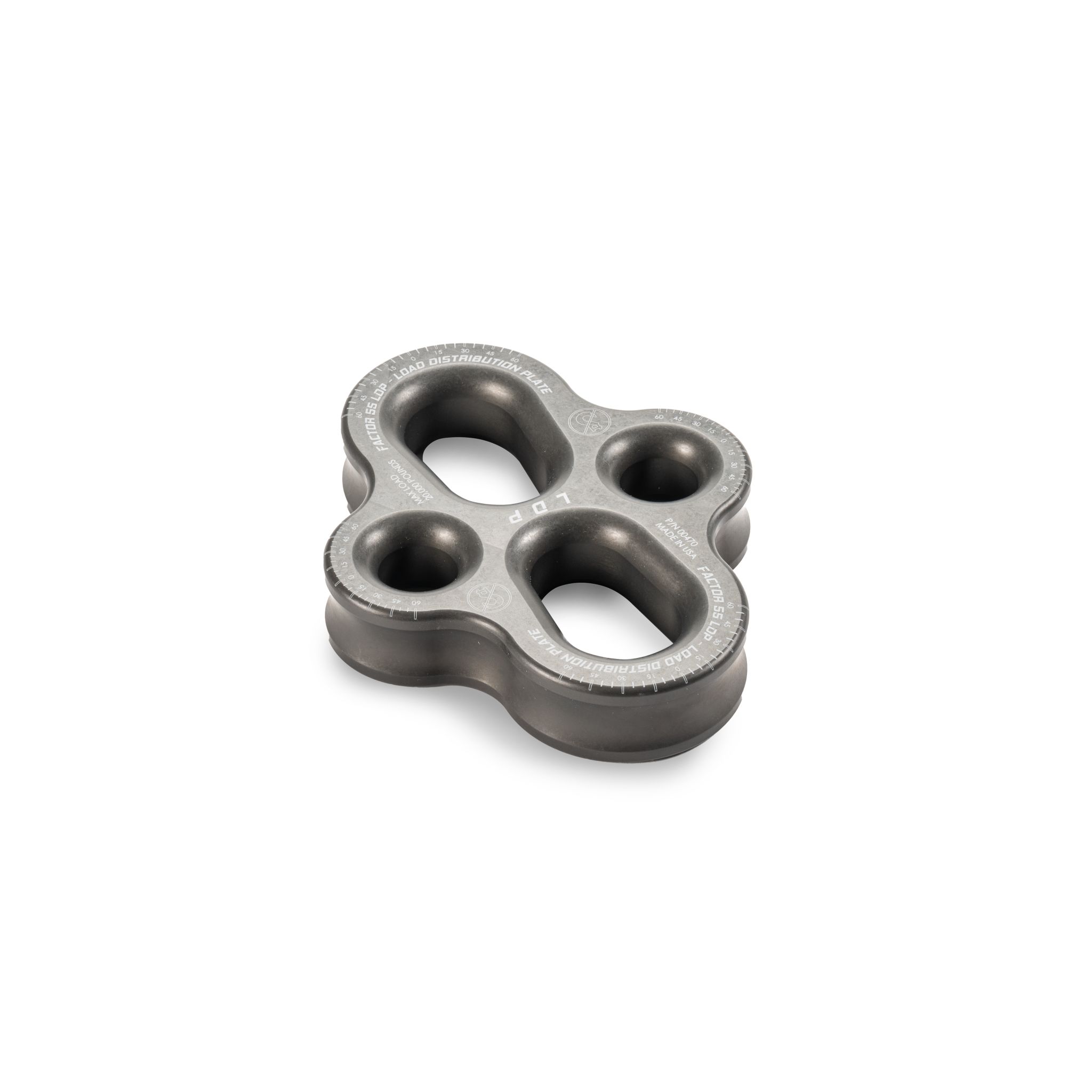

The Load Distribution Plate, LDP is a rigging plate designed for distribution of multiple loads and directions. Self-aligning shackle pin holes fit common ? shackles. Pear shaped holes permit ? and 7/8 shackle bodies to pass through.

  • Symmetric shape allows for common bridle tow configurations, Self-aligning shackle pin holes fit common ? shackles, Pear shaped holes permit ? and 7/8 shackle bodies to pass through
  • Precision machined from 6000 series Military Grade Aluminum, Military Specification Hard Anodized finish ( Mil-A-8625 F Type III Gray)
  • Working Load Limit 20,000 pounds; Minimum Breaking Strength 42,000 pounds
  • Laser engraved angle scale for sling multiplier estimates
  • Large smooth corner radii for soft shackle applications
  • Engineered, Tested, and Made In The USA
SKU: GGBW-00470-06 Category:

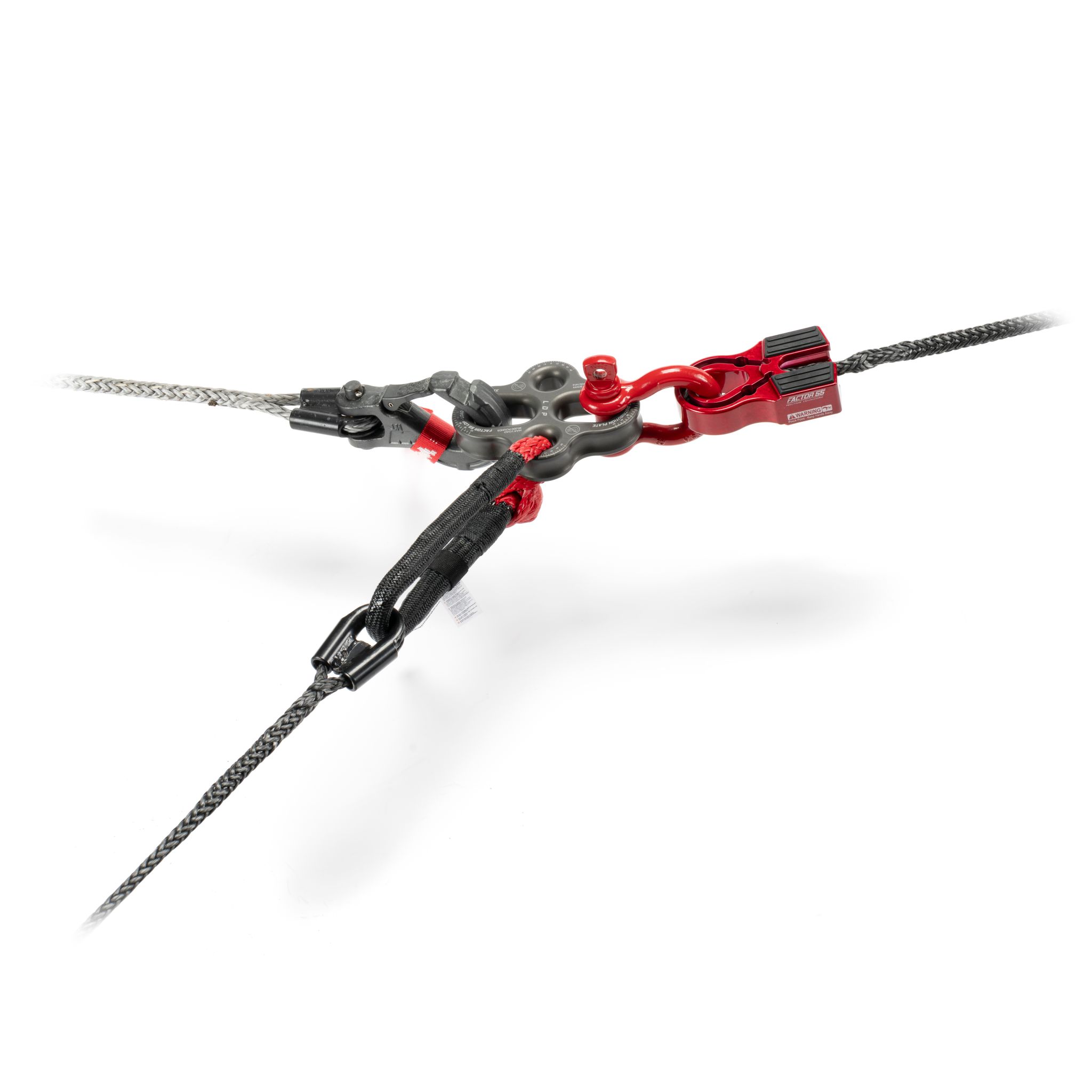

Load Distribution Plate ? LDP for advanced rigging situations. Designed for distribution of multiple loads and directions and provides a safe collection point for multiple winching applications. Prevents collecting multiple loads on a single shackle. Self-aligning shackle pin holes fit common ? shackles, pear shaped holes permit ? and 7/8 shackle bodies to pass through and symmetric shape allows for common bridle tow configurations.

Additional Attributes:

GTIN: 00012748097037
Color: GRAY
Finish: Hard Anodized
Material: 6061 Aluminum

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5 x 7 x 5 inches
Weight: 1.81 PG

Weight 0.82 kg
Dimensions 5 × 7 × 5 cm
