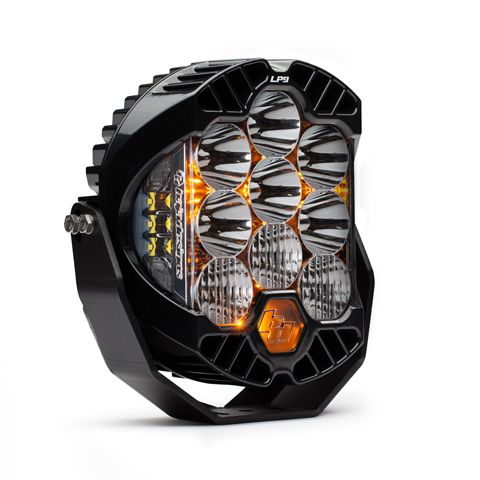

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
Additional Attributes:
GTIN: 00819314026619
Add-On: Accessories-328001-Rock Guard (Black)
Amperage Rating (A): 9
Average Rated Life (hr.): 49,930
Backlight Amperage Rating (A): 0.200
Backlight Wattage (W): 2.800
Beam Pattern: Driving/Combo
Bezel Material: Powder Coat Cast Aluminum
Brightness (Lumens): 12547
Depth (in.): 3.250
Description: Driving/Combo; Clear
Height (in.): 8
Housing Color: Black
Housing Material: Powder Coat Cast Aluminum
Length (in.): 8
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 1
Lighting Modes: High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity: 9
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Patent No.: 5,504,603
Product Type: LP9 Pro LED Light Pod
Prop 65 – Short Label: CR
Prop 65 Warning Label: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No: Yes
Secondary Amperage Rating (A): 1.520
Secondary Brightness (Lumens): 2302
Secondary Light Quantity: 6 LEDs
Secondary Lighting Technology: LED
Secondary Lighting Type: Integrated Peripheral Technology (IPT)
Secondary Wattage (W): 21
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Terminal Connector: DT06-4S Deutsch
Terminal Type: Mating Connector
Universal or Specific: Universal
Wattage (W): 124.200
Weight (lbs.): 6.500
Wiring Harness Included: No
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 12.000 x 10.000 x 8.000 inches
Weight: 6.500 PG
FGXX_320003-INS_001
