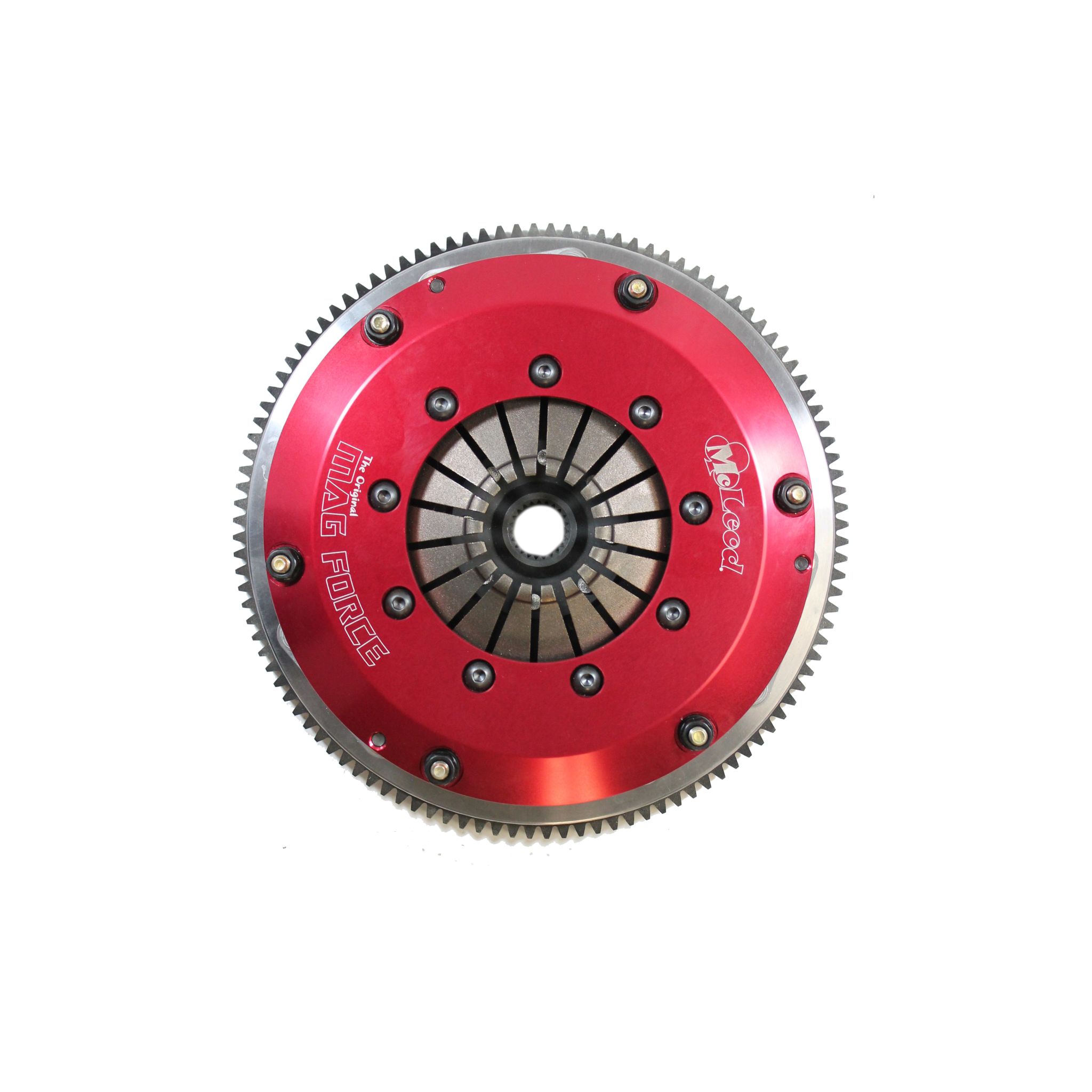

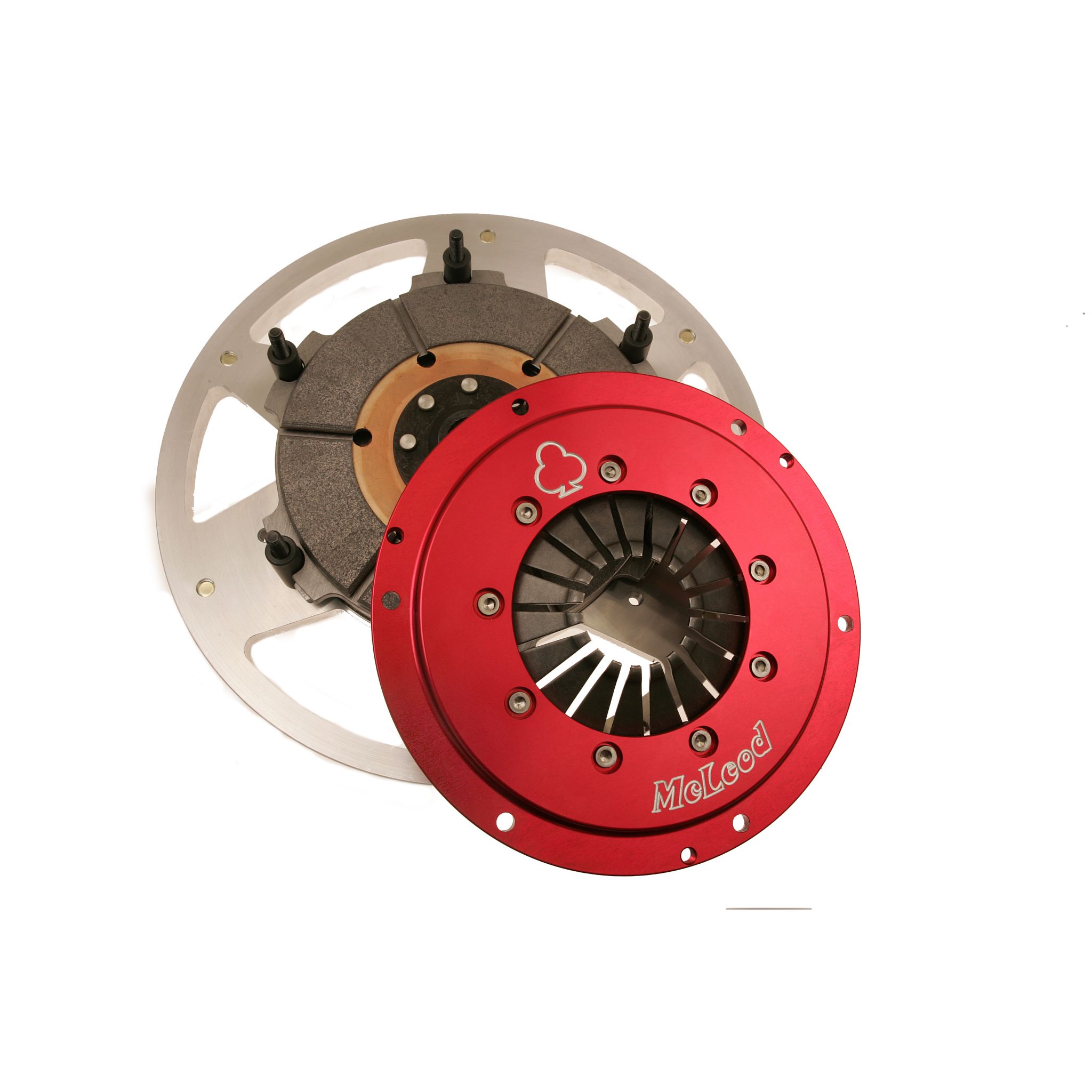

Mag Force – These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Additional Attributes:
GTIN: 00887753317537
Alignment Tool Included: Yes
Clutch Disc Quantity: 2
Clutch Usage: Performance
Counter Weight Kit if Required: 560222 (sold separately)
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 8.000
Disc Material: Sintered Iron
Disc Style: Full face
Engine Balance: Internal
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Hardware Included: Yes
Hub Style: Solid
Input Shaft Diameter (in.): 1.125
Input Spline Quantity: 26
Make: Chevrolet
Note: also fits 1991-2022 crate BBC 1pc Seal large crank flange
Pilot Bushing Included: No
Pressure Plate Style: Diaphragm
Quantity: Sold as a kit.
Rear Main Seal Style: 2-piece
Ring Gear Tooth Quantity: 168-tooth
Throwout Bearing Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 16 x 17 x 5.5 inches
Weight: 25 PG
