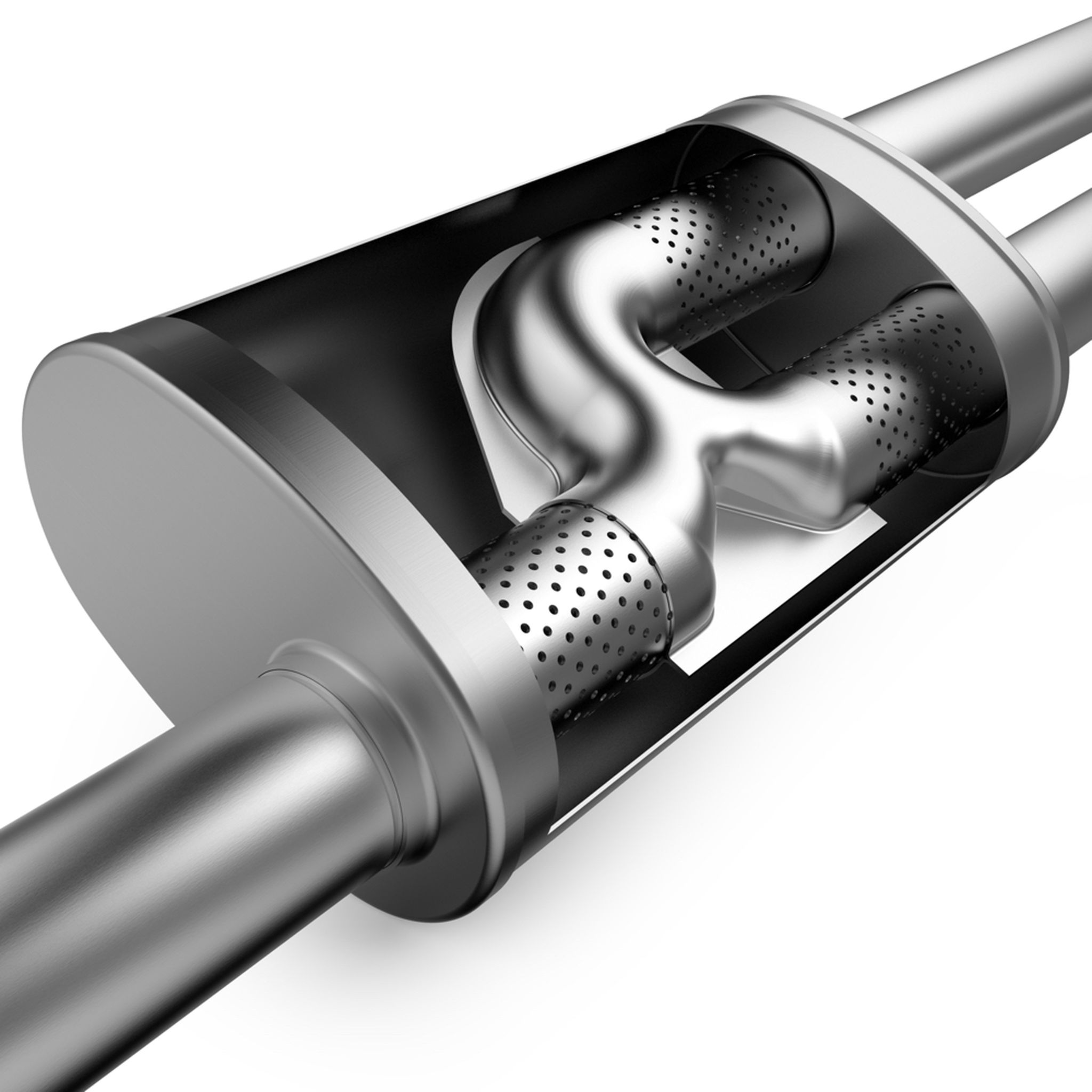

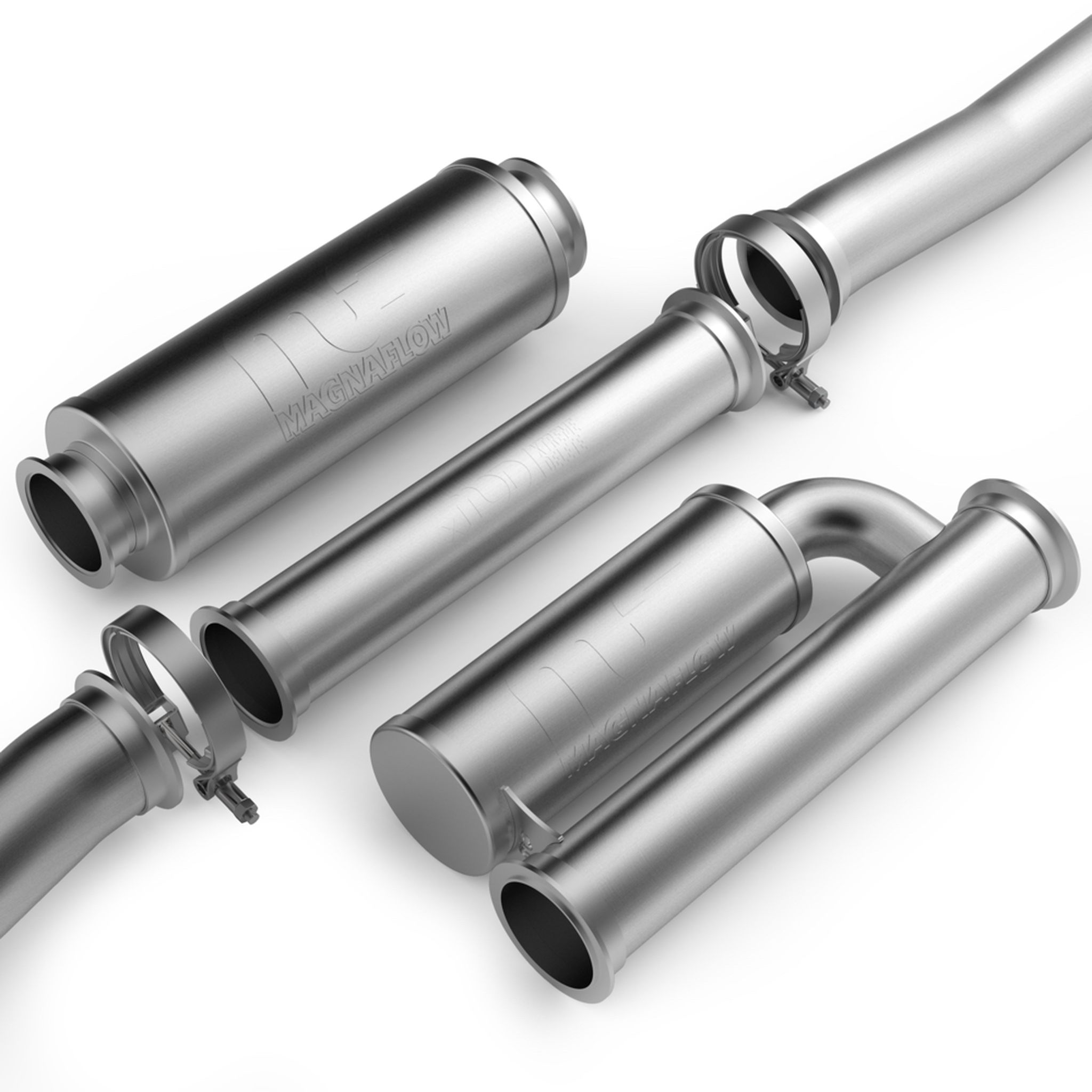

Configure your 2018-2023 Mustang GT Coupe for the sound you want, when you want it! MagnaFlow's premium performance exhaust offering, the xMOD Series, provides an unrivaled exhaust experience! The revolutionary MagnaFlow 2018-2023 Ford Mustang XMOD Series Cat-Back Performance Exhaust System 19535 offers a completely modular exhaust system with all the benefits a MagnaFlow premium exhaust is known for: lifetime warrantied stainless-steel construction, dyno-proven performance featuring straight-through mufflers and fast-flowing mandrel bent pipes. xMOD Muffler Modules for the Mustang offer MagnaFlow's proven straight-through Tru-X core design with a 4" x 9” oval by 14" long muffler, and now feature race bred v-band clamps for quick installation and removal. Easily switch from the deep, aggressive signature MagnaFlow exhaust note to the wild straight-pipe race car sound offered by the xMOD xTreme Delete Tru-X. xMOD xTreme Delete Tru-X for the Mustang comes equipped with the same race bred v-bands which allow removal of the Tru-X core muffler modules for that unmatched xMOD xTreme sound experience. PLEASE NOTE: While xMOD systems are 100% emissions legal, the use of xTreme Deletes combined with xTreme Bypass is recommended for track use only. Check local noise regulations for street legality. In addition to the xMOD variable sound and flow modules, this system incorporates MagnaFlow’s latest exhaust tuning advancement called No Drone Technology (NDT). MagnaFlow’s NDT, along with careful muffler design and placement, utilizes 1/4 wave passive noise cancellation to remove unwanted drone that can occur when creating a maximum performance, high flow exhaust system. xMOD systems retain the original equipment exhaust valve functionality. The NDT resonators are also attached with v-bands to offer the ability to remove or tune them if you have made substantial modifications to your powertrain.
Additional Attributes:
GTIN: 00888563154572
Exhaust Tip Length: 7.75
Exhaust Tip Shape: Round
Muffler (Center) Body Height: 4
Muffler (Front) Body Length: 14
Muffler (Front) Body Width: 9
Muffler (Rear Inner) Body Height: 2.5
Muffler (Rear Inner) Body Length: 26.625
Muffler (Rear Inner) Body Width: 2.5
Muffler (Rear Outer) Body Height: 5
Muffler (Rear Outer) Body Length: 8
Muffler (Rear Outer) Body Width: 8
Muffler (Front) Type: Straight-Through
Muffler (Rear Inner) Type: Tuned Chamber
Muffler (Rear Outer) Type: Straight-Through
Exhaust Tip Quantity: 4
Exhaust Tip Diameter: 4
Exhaust Tip Finish: Carbon Fiber
Exhaust Tip Material: Carbon Fiber
Muffler Type: Straight-Through;Tuned Chamber
Clamps Included: Yes
Valve Type: Actuated
Type: Cat-Back
Gasket Or Seal Included: Yes
Pipe Material: Stainless Steel
Hangers Included: Yes
Muffler Body Material: Stainless Steel
Muffler Quantity: 5
Inlet Type: Clamp-On
Valve Included: Yes
Mounting Bracket Included: No
Exit Style: Quad Split Rear
Main Piping Diameter: 3
Exhaust Tip Connection: Welded-On
Exhaust Tip Wall: Double Wall
Exhaust Tip Cut: Angle Cut
Exhaust Tip Edge: Rolled Edge
Exhaust Tip Resonated: No
Exhaust Tip Intercooled: No
Muffler Finish: Polished
Clamping Type: Band Clamp;V-Band Clamp
Muffler Body Height Position Center: 4
Muffler Body Height Position Rear Inside: 2.5
Muffler Body Height Position Rear Outside: 5
Muffler Body Length Position Front: 14
Muffler Body Length Position Rear Inside: 26.625
Muffler Body Length Position Rear Outside: 8
Muffler Body Width Position Front: 9
Muffler Body Width Position Rear Inside: 2.5
Muffler Body Width Position Rear Outside: 8
Muffler Type Position Front: Straight-Through
Muffler Type Position Rear Inside: Tuned Chamber
Muffler Type Position Rear Outside: Straight-Through
Prop 65 Y/N: No
Series: xMOD
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 49.0000 x 23.0000 x 18.5000 inches
Weight: 96.0000 PG
19535
