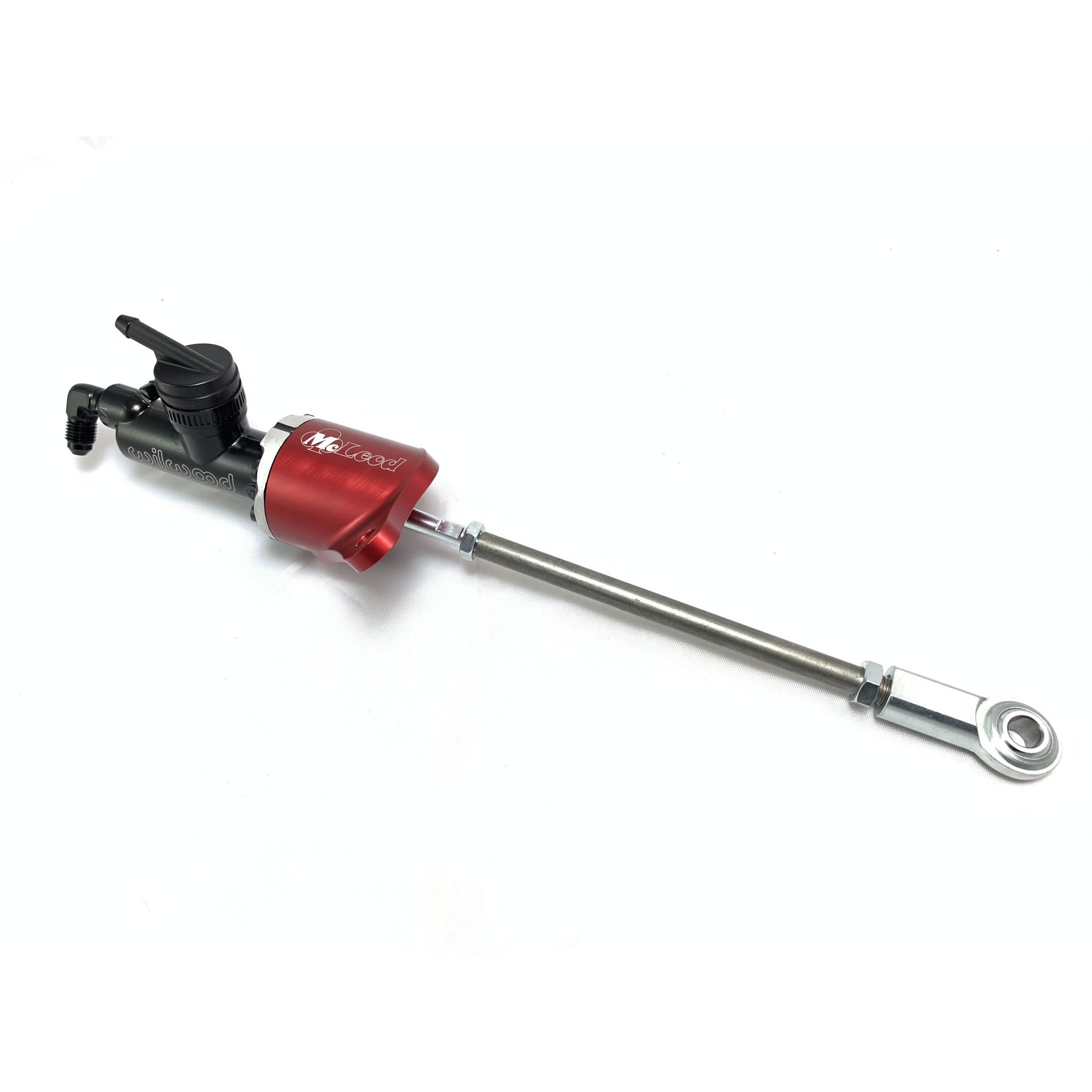

McLeod Racing 3/4" bore master cylinders are made exclusively by Wilwood Engineering. The compact remote mount clutch master cylinders are precision-machined from high-strength aluminum. They have been designed for limited space applications requiring the output capacity of a full size master cylinder. They can be mounted directly onto the master cylinder, or remotely mounted for more convenient service access. A 8 hole flange bolts to a proprietary McLeod Billet aluminum mounting flange to provide easy installation in any vehicle.
Additional Attributes:
GTIN: 00887753016799
Application: Universal
Area (in): 0.440
Finish: Black E- Coat
Master Cylinder Bore Size: 0.750
Material: Aluminum
Outlets: 1
Rod Thread: 5-16In.-24
Stroke: 1.12In.
Type: Single Outlet
Volume (cu in): 0.49
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 13.25 x 14.5 x 3.25 inches
Weight: 3 PG
Wilwood Instructions
