MaxiFlash VCMI Kit
MaxiFlash VCMI Kit

MaxiFlash VCMI Kit

$4,320.00

  • MaxiFlash VCMI Vehicle Communication Interface, J2534 pass thru programmer, 4-channel oscilloscope, waveform generator, multimeter, and CAN-Bus tester
  • Compatible with the MaxiSYS Ultra and MaxiSYS MS919 diagnostic tablets
  • VCMI can be powered independently via its rechargeable lithium battery

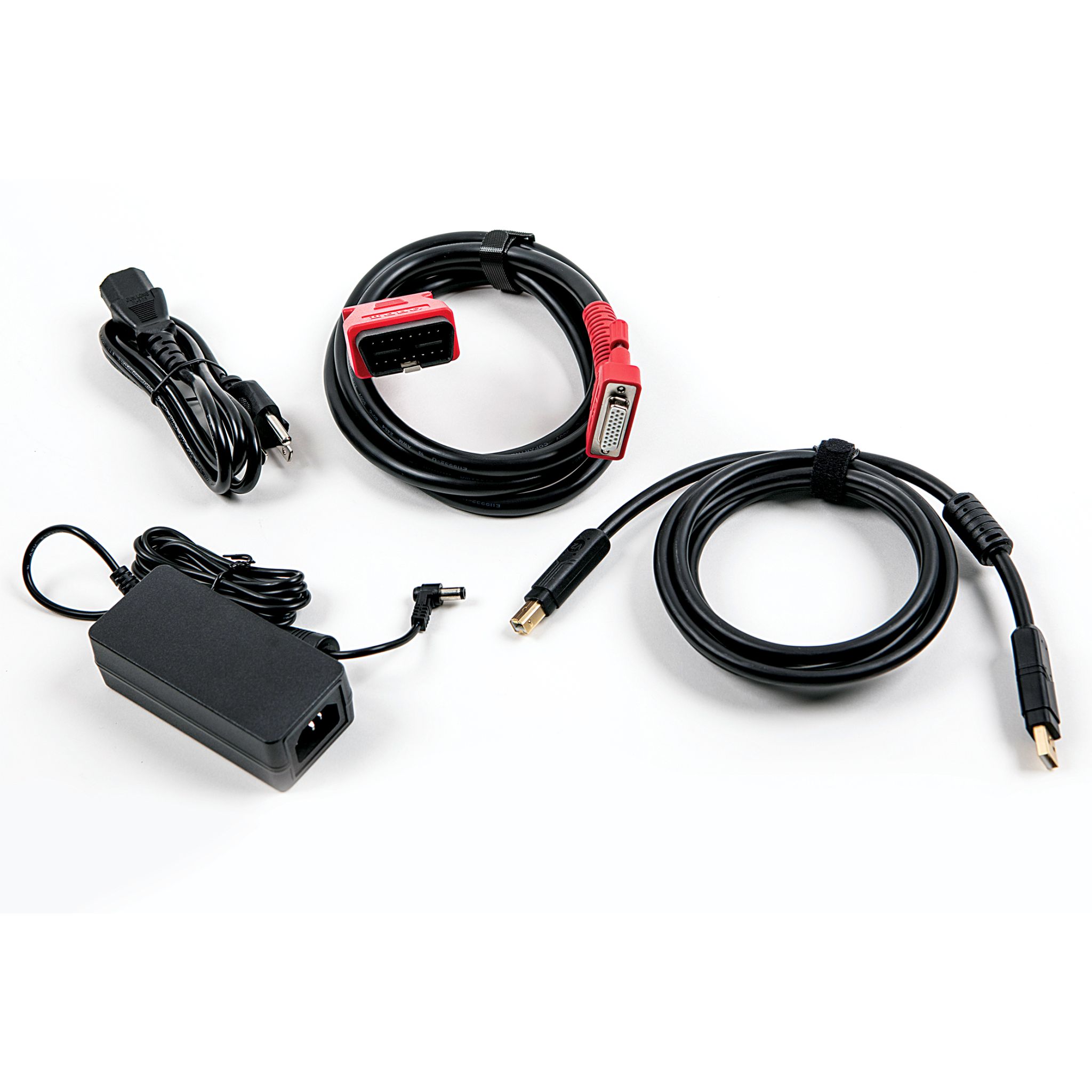

  • Includes OBDII Main Cable, AC/DC power supply, USB 2.0 cable
  • Includes Scope test leads (4 pcs), Multimeter test leads (2 pcs)
  • Includes Breakout Leads (6 pcs, 4 sizes: 0.6 mm, 1.5 mm, 2.3 mm and 2.8 mm)
  • Includes two Flexible Back-Pinning probes and five Back-Pinning probes (red, green, blue, yellow, black), 20 Back-Probe needles, two Probe screws
  • Includes two Large Dolphin clip, SA057 (red) and SA058 (black), and two small Crocodile clips, SA059 (red) and SA060 (black)
  • Includes two 20:1 passive Attenuators and plastic tool box to store smaller kit pieces
SKU: DLRX-MFVCMIKIT Category:

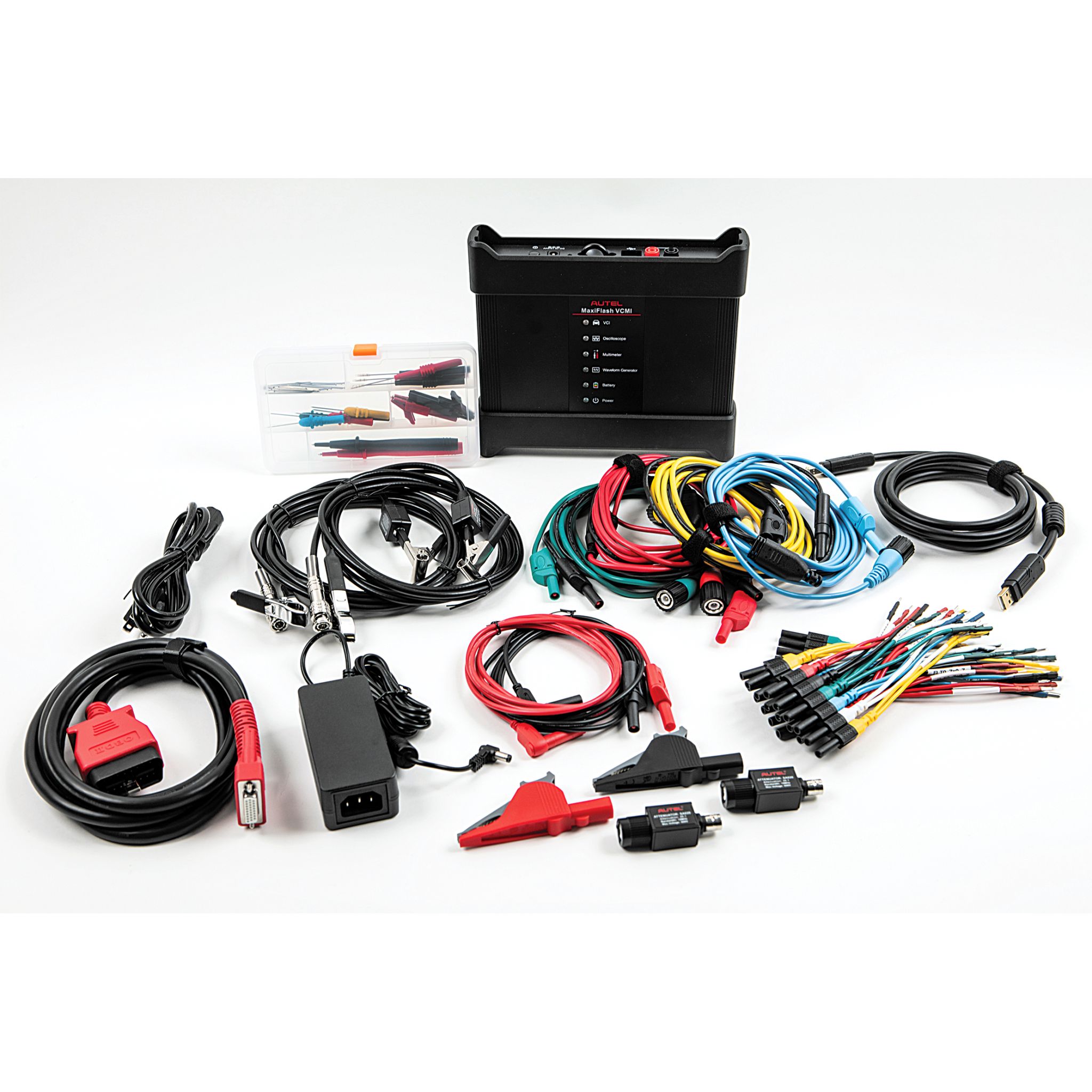

MaxiFlash VCMI Kit, compatible with the MaxiSYS Ultra and MaxiSYS MS919 diagnostic tablets, includes VCMI capable of acting as vehicle communication interface (VCI), J2534 pass-thru programming device, multimeter, 4-channel oscilloscope, waveform generator and CAN-Bus tester plus operating and power cables, probes, leads and attenuator to perform measurements. Includes OBDII main cable, AC/DC power supply, USB 2.0 cable, Scope test leads, Multimeter test leads, Flexible and standard Back-Pinning probes, large Dolphin and small Crocodile clips, Attenuators and plastic tool box for small kit pieces. Includes one-Year Limited Warranty.

Additional Attributes:

GTIN: 00849438014001
EAN: 6937357214726
Prop 65 Yes/No: N

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 15 x 10 x 5.5 inches
Weight: 9.35 PG

Weight 4.24 kg
Dimensions 15 × 10 × 5.5 cm
