Mazda Miata Thermostatic Oil Cooler Kit, 1999-2005, Silver

Mazda Miatas love track days, but with hot laps come hot oil temperatures. High oil temps can be detrimental to a vast majority of engine components, and a fried piston ring can turn your fun track day and into a costly repair. NB Miatas come with a stock liquid-to-liquid oil cooler, which is sufficient for daily driving, but just doesn't cut it when it comes to more spirited driving. During testing, this Miata oil cooler kit dropped oil temperatures 10 F (5.6 C) when tested on a 65 mph highway cruise. This Miata oil cooler set-up is definitely going to come in handy when you're redlining your engine around the track. The design of the mounting bracket serves as ducting to channel air to the cooler, and it mounts the cooler away from the front bumper to save room for an intercooler. And who doesn't want an intercooler, a turbo, and other forced induction bits? Speaking of forced induction, turbos can also heat-up oil, which makes an oil cooler a vital addition to your boosted Miata. This Miata oil cooler kit features a billet aluminum thermostatic oil sandwich plate to ensure that your oil reaches optimum temperature before flowing to the cooler. Overcooled oil can be just as dangerous as overheated oil, making this feature especially important in colder climates. This Miata oil cooler kit also comes with pre-made stainless steel braided lines with durable -10AN fittings and the Mishimoto Lifetime Warranty, so you can depend on this cooler as much as you depend on your roadster.

Additional Attributes:

GTIN: 00748354024968
Install Difficulty: 3
OptionLabel: Silver Cooler, Thermostatic
SellingPoint01: Direct fit for the 1999-2005 Mazda Miata NB
SellingPoint02: Reduces oil temperatures by 10F (5.6C)

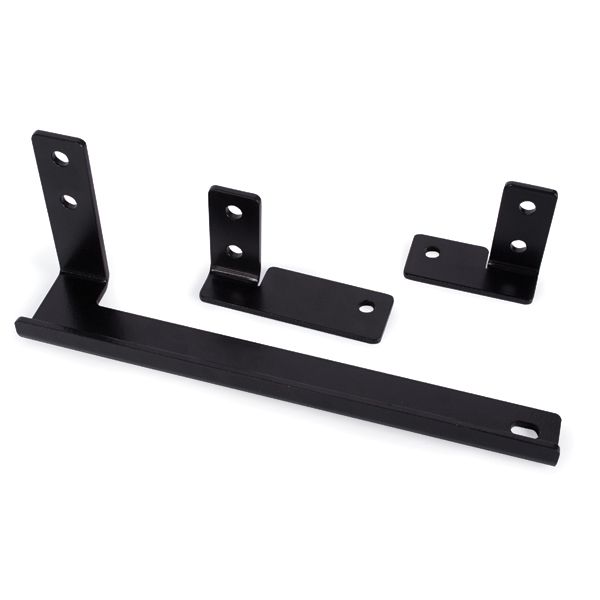

SellingPoint03: Mounting brackets also serve as ducting to channel air to cooler
SellingPoint04: Minimal pressure drop
SellingPoint05: Works with most aftermarket turbo kits
SellingPoint06: Pre-made stainless steel braided oil lines with durable -10AN fittings

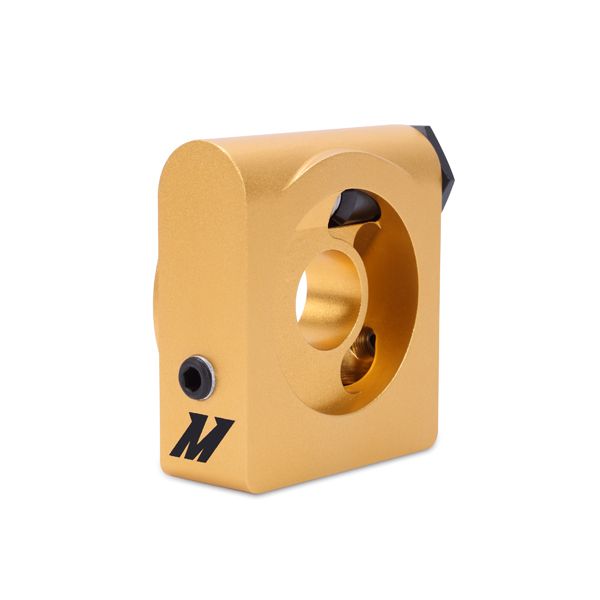

SellingPoint07: Billet aluminum thermostatic oil sandwich plate allows oil to reach optimum temperature
SellingPoint08: Cooler available in either Sleek Silver or Stealth Black
SellingPoint09: Increases oil capacity by 0.5 qt
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Chassis Codes: NB
TechSpec Core Construction: N/A
TechSpec Core Height (in): 2.76
TechSpec Core Length (in): 11
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 1.8L BP
TechSpec Fluid Capacity (qts): N/A

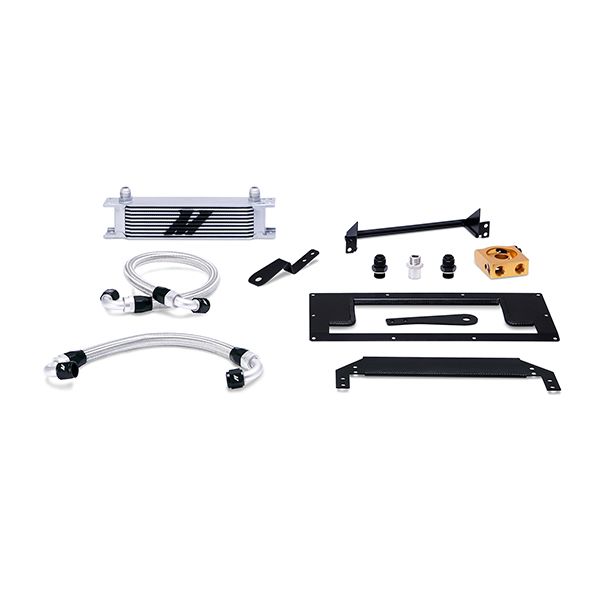

TechSpec Includes: Application Specific Mounting Brackets–Application Specific Oil Cooler Ducts–10-Row Oil Cooler–1ft Stainless Steel Braided Hose w/ 120 Degree -10AN Fittings–1ft 9.5in Stainless Steel Braided Hose w/ 90 Degree and 120 Degree -10AN Fittings–M20 Thermostatic Sandwich Plate–M20 Stainless Steel Sandwich Plate Adapter–M20 x -10AN Straight Fittings–Large O-ring–Mounting Hardware Set–Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Note: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft Do not exceed the maximum torque rating of 35 ft-lb—-The installation of this kit requires cutting the plastic undertray. OEM part number for plastic undertray is NA01-56-111F.—-During our testing, we had no issues with oil cooler damage, but if concerned, we recommend purchasing window screen or chicken wire to provide additional protection to the oil cooler core.
TechSpec Outlet: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 10

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 18 x 8 x 15 inches
Weight: 13 PG
