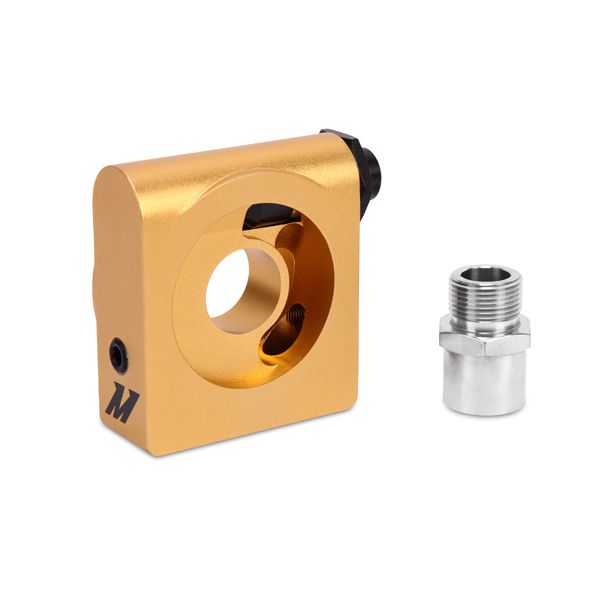

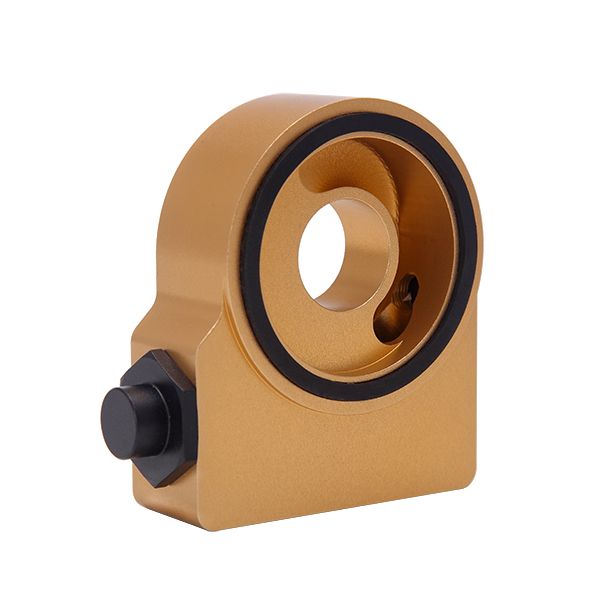

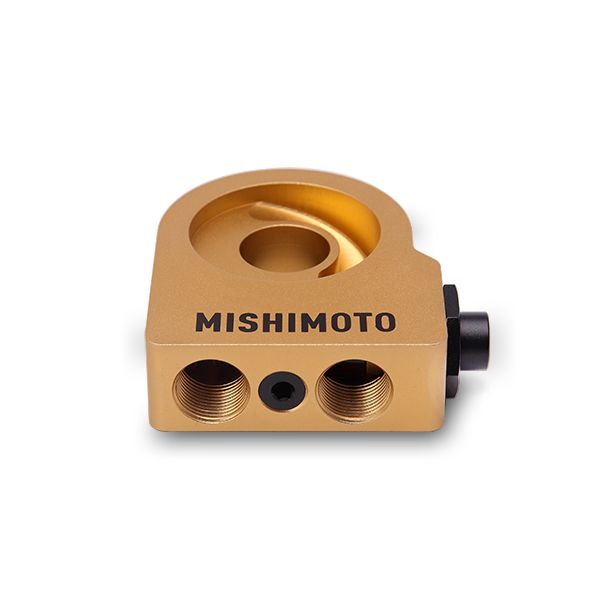

Mishimoto M22 X 1.5 Sandwich Plate with Rear-Mounted Thermostat

this provides improved warm-up while maintaining efficient cooling properties. Thanks to a small footprint and rear-mounted thermostat, the Mishimoto'sandwich plate can be installed in even the tightest engine bays where the exhaust or other engine components create strict space constraints. This sandwich plate includes two 1/8-inch NPT ports for use with temperature or pressure sensors. The included M22 X 1.5 sandwich plate adapter allows for fitment on various GM LSX vehicles and Ford V8's including the 4.6L, 5.4L, and Coyote 5.0L. For more specific fitment information, check our tech specs below! As with all our products, this sandwich plate includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Additional Attributes:

GTIN: 00748354010299
Install Difficulty: 2
SellingPoint01: Constructed from billet 6061 CNC-machined aluminum
SellingPoint02: Two 1/8-in NPT ports for sensors, oil feeds, etc
SellingPoint03: Built-in thermostat (185 F, 85 C)
SellingPoint04: Square O-ring design for superior sealing
SellingPoint05: M22 X 1.5 thread pitch fits numerous Ford and GM engines; see tech specs for specific details
SellingPoint06: Thermostat is interchangeable with alternate temperatures (160 F, 200 F) for additional fluid temperature regulation
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2008+ Chrysler/Dodge V8 Engines–1992+ Ford/Lincoln/Mercury 4.6L, 5.0L, 5.4L V8 Engines–1995+ Ford/Lincoln/Mercury 2.5L Engine–1995+ Ford/Lincoln/Mercury 3.0L (24V) Engine–1984-1987 Honda Civic / CRX–1986-1987 Acura Integra–1999+ Ford 6.8L V10 Engine
TechSpec Caution: It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): N/A
TechSpec Includes: Oil Sandwich Plate–Rubber O-ring–Built-in Thermostat–Stainless Steel Sandwich Plate Adapter, M22 x 1.5–Black 1/8-in NPT Plugs–Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Note: N/A
TechSpec Outlet: N/A
TechSpec Overall Height (in): 3.19
TechSpec Overall Length (in): 2.8
TechSpec Overall Width (in): 1.18
TechSpec Rows: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 6 x 4 x 2.5 inches
Weight: 1 PG
