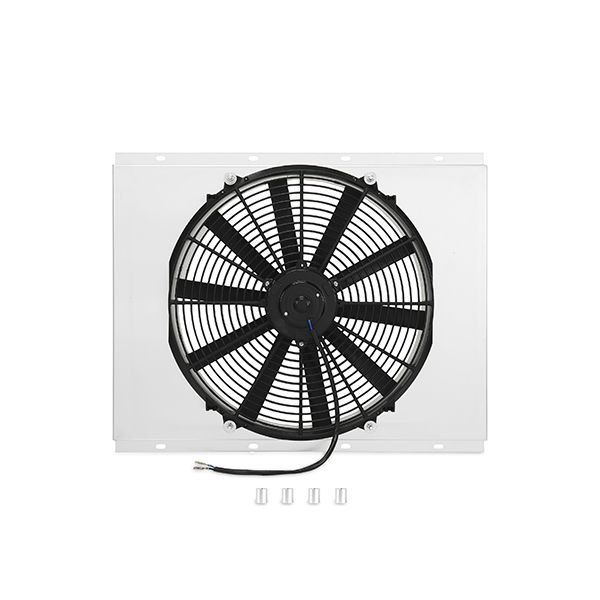

Mishimoto Pontiac Firebird Performance Aluminum Fan Shroud, 1967-1969

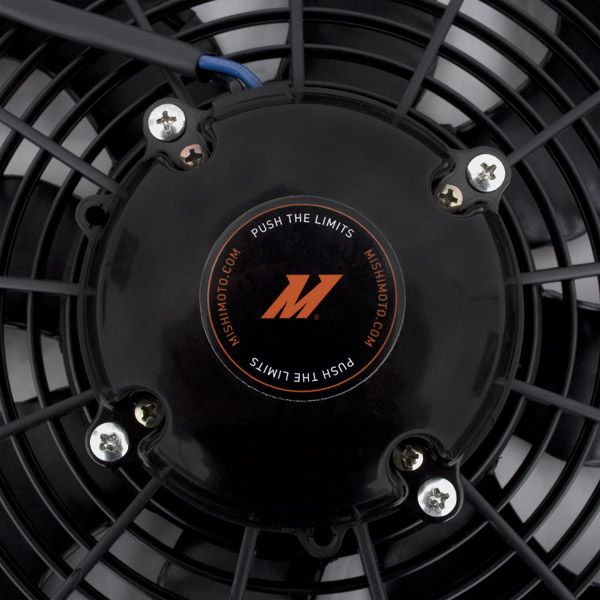

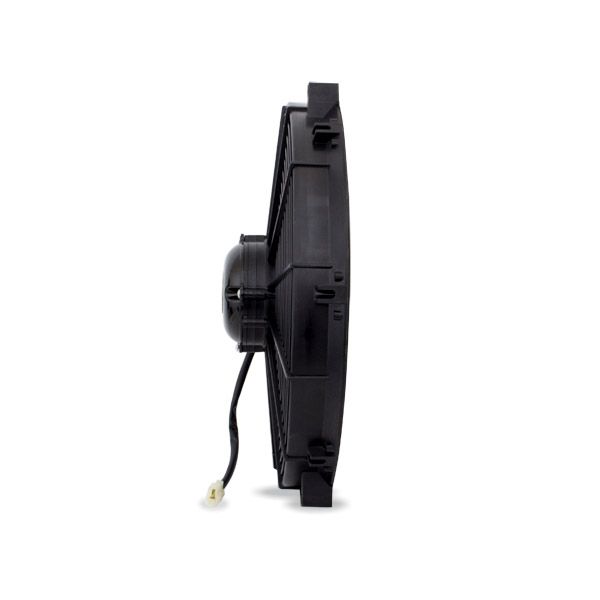

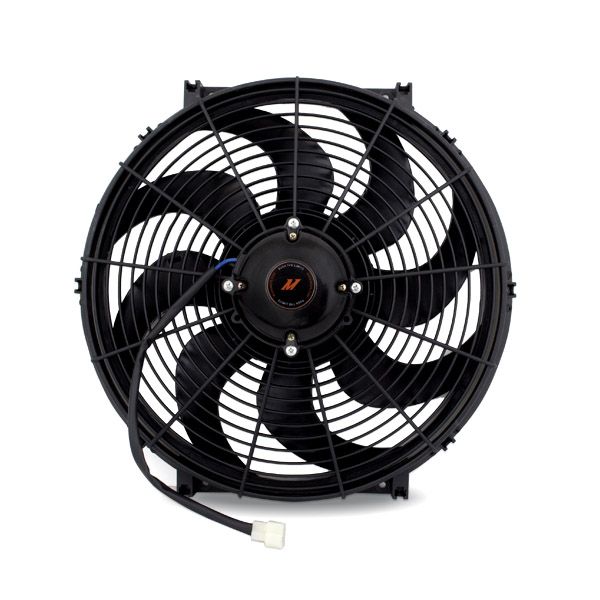

Keep your 1967-1969 Pontiac Firebird cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto's Pontiac Firebird Performance Radiator and includes a 16in high-flow electric fan that produces over 1850 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. As with all our products, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.

Additional Attributes:

GTIN: 00811580037726
Color: Silver
Finish: Brushed
Install Difficulty: 3
Installation Difficulty: 3
Material: Aluminum
OptionLabel: w/ Fan Controller
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: prop65_warning.jpg
Prop 65 Yes/No: Yes
SellingPoint01: Includes a high-flow 16-in electric fan, providing over 1850 cfm of airflow
SellingPoint02: All-aluminum construction
SellingPoint03: Optional fan controller provides complete control of coolant temperatures at idle
SellingPoint04: Designed to mate exclusively with Mishimoto’s Pontiac Firebird Performance Radiator
SellingPoint05: Replaces failure-prone stock mechanical fan
SellingPoint06: No cutting or bending of shroud required
SellingPoint07: Includes all mounting hardware for installation
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1967-1969 Pontiac Firebird 326ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8–1967-1969 Chevrolet Camaro 396ci (6.5L) V8
TechSpec CFM (Each Fan): 1850
TechSpec Chassis Codes: N/A
TechSpec Engine Codes: 326ci (5.3L) V8–350ci (5.7L) V8–396ci (6.5L) V8–400ci (6.6L) V8
TechSpec Height (in): 19.64
TechSpec Includes: (1) Aluminum Fan Shroud–(1) 16-inch Mishimoto Slim Electric Fan–(1) Adjustable Relay–(1) Push-In Radiator Temperature Probe–(1) 1/8-in NPT Temperature Sensor–(1) Wiring Harness–(16) Zip Ties–(4) Wire Straight Crimp Connectors–(1) Wire Butt Crimp Connector–(1) Wire Quick-Splice Connector–(4) Wire Ring Terminals–(2) Wire Spade Connectors–(1) In-line Mini Fuse Holder–(1) 40-in 10 AWG Wire–(1) 7-ft 12 AWG Wire–(1) 12-in Heat Shrink–Mishimoto Lifetime Warranty
TechSpec Length (in): 24
TechSpec Note: Electric fans already come attached to the shroud.—-Fans may require additional wiring.
TechSpec Weight (lbs): N/A
TechSpec Width (in): 3.69

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 27 x 6 x 21 inches
Weight: 11.5 PG
