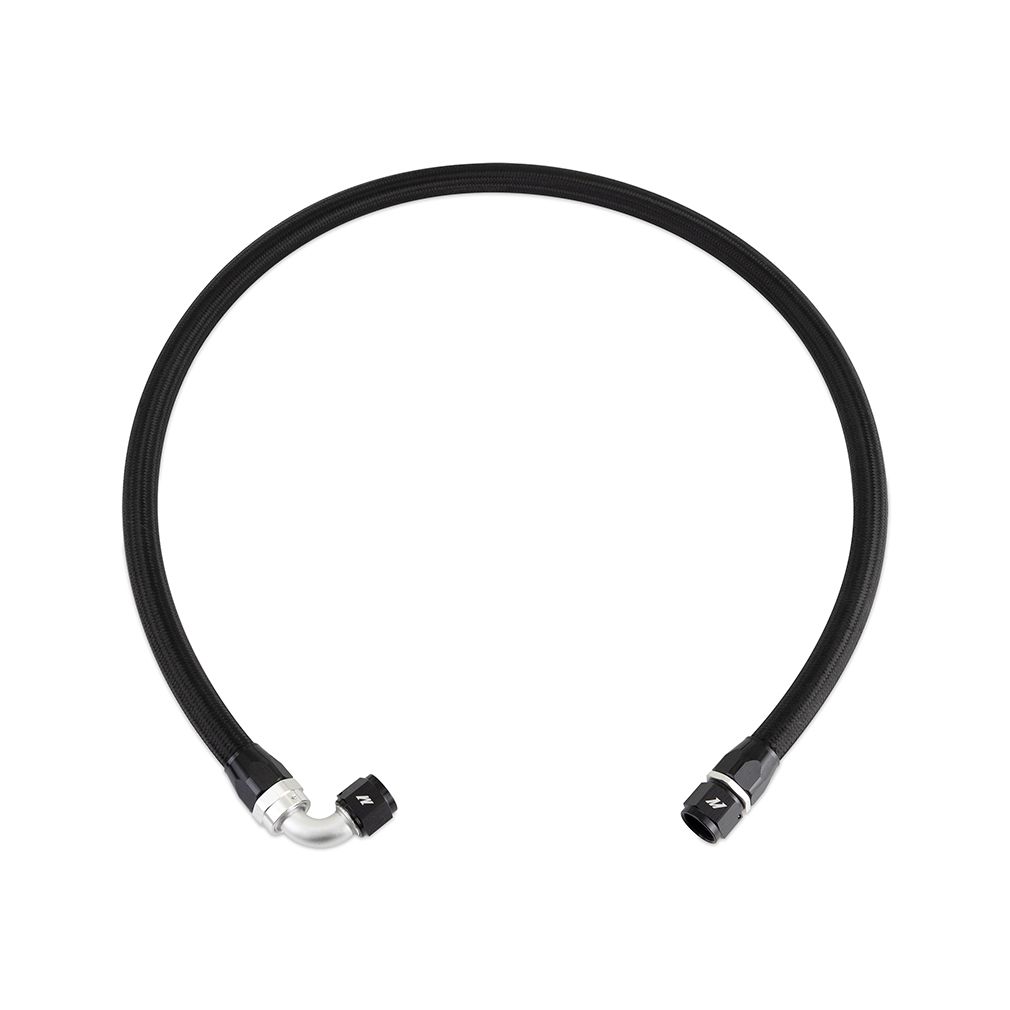

Nylon Wrapped Stainless-Steel Braided Hose, -10AN, 5ft

Extremely durable and flexible, this Mishimoto Braided Hose is an ideal addition to your vehicle. Whether you’re installing a turbocharger oil drain hose or adding an oil cooling system, these nylon-wrapped stainless-steel braided fluid hoses are available in multiple lengths to suit any application. In addition, each line includes pre-installed B-nut style 90-degree and straight -10AN fittings for leak-free operation. These Mishimoto -10AN lines feature a CPE rubber inner layer which provides a durable passageway for most fuels, oils, and engine coolants, while a woven stainless-steel inner jacket increases the pressure tolerance and durability. The nylon outer braid will not abrade soft materials such as plastic or aluminum in confined spaces. In addition, the black outer braid provides a very subtle, factory-like appearance. Our braided -10AN lines feature an operating temperature range from -10 degrees to 302 degrees and pressure rating of up to 1,000 PSI, making them applicable for most fluids or air passage systems on your vehicle. As with all our products, this Mishimoto Stainless-Steel Braided Line is covered by our Lifetime Warranty.

Additional Attributes:

GTIN: 00840197721056
Install Difficulty: 1
OptionLabel: 5ft
SellingPoint01: Chemical resistant CPE rubber core is compatible with petroleum-based fuel, diesel, oil, and coolant
SellingPoint02: Woven stainless-steel inner jacket for increased strength and pressure tolerance
SellingPoint03: Nylon outer braid prevents abrasion to soft materials such as plastic or aluminum
SellingPoint04: Includes pre-installed B-nut style 90 and straight -10AN fittings for leak-free operation
SellingPoint05: Black nylon outer braid provides a refined, factory-like appearance
SellingPoint06: Available in lengths from 3 to 6 feet
SellingPoint07: Operating temperature range from -10 degrees to 302 degrees
SellingPoint08: Maximum pressure rating of up to 1,000 PSI
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Compatible Fluids: Petroleum-Based Fuels–Engine Oil–Engine Coolant
TechSpec Fitting Angle: 90
TechSpec Inlet: -10AN
TechSpec Inner Material: CPE
TechSpec Max Fluid Pressure (PSI): 1000
TechSpec MaxFluidTemperature (F): 302
TechSpec Note: N/A
TechSpec Outlet: -10AN
TechSpec PurchaseIncludes: (1) Pre-Assembled -10 AN Line–Mishimoto Lifetime Warranty

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5 x 5 x 5 inches
Weight: 1 PG
