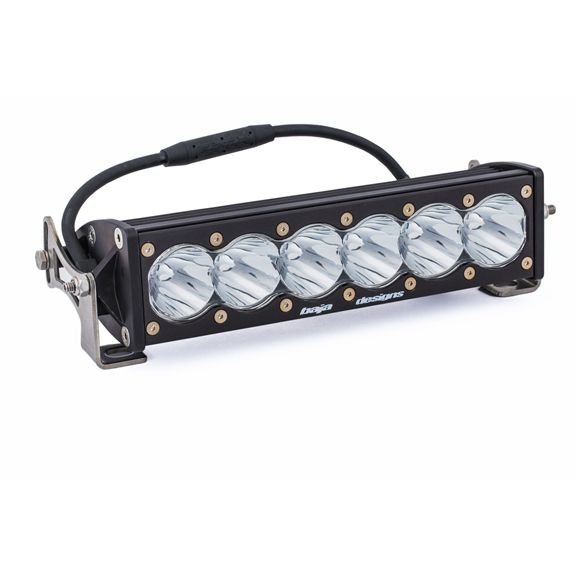

OnX6+ Straight LED Light Bar

The Baja Designs OnX6+ LED light bar is the pinnacle of off-road lighting. Integrating our trademarked high-speed spot reflectors along with our next-generation LED technology for increased performance and versatility with superior efficiency, the OnX6+ is ready to illuminate the trails or take you to the win at the Baja 1000. The OnX6+ is offered in multiple sizes ranging from 10-inch bars providing 10,817 total raw lumens to 50-inch bars that push out 39,430 total raw lumens illuminating lighting zones 1, 2, 3, 4 simultaneously while pushing into zone 5. Vertical adjustments can be made and locked in, offering the best beam pattern in front of the vehicle no matter where it is mounted. Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure. Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions. Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with our uService technology. Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application. When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: Wiring harness not included. Please use 640115 = OnX6+ 10-20in. 640119 = OnX6+ 30-50in. NOTE: * 50in OnX6+ doesNOThave a Hi-Lo Function, The light bar is pre-dimmed.

Additional Attributes:

GTIN: 00853774007917
Add-On: Accessories-458113-Lens Kit (Spot; Clear)
Amperage Rating (A): 7.700
Average Rated Life (hr.): 49,930
Beam Pattern: Spot
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 10,817 (High); 9,230 (Low)
Depth (in.): 4.290
Description: Straight; Spot; Clear
Height (in.): 2.690
Housing Color: Black
Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Length (in.): 10
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 1
Lighting Modes: High Beam/Low Beam
Lighting Quantity: 6
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Description: Mounting Brackets
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: OnX6+ 10 Inch LED Light Bar
Prop 65 – Short Label: CR
Prop 65 Warning Label: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No: Yes
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Universal or Specific: Universal
Wattage (W): 106.260
Weight (lbs.): 4.250
Wiring Harness Description: Hi-Low Dongle
Wiring Harness Included: No

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16.000 x 5.000 x 7.000 inches
Weight: 5.000 PG

PDF:

FGXX_451001-INS_001
