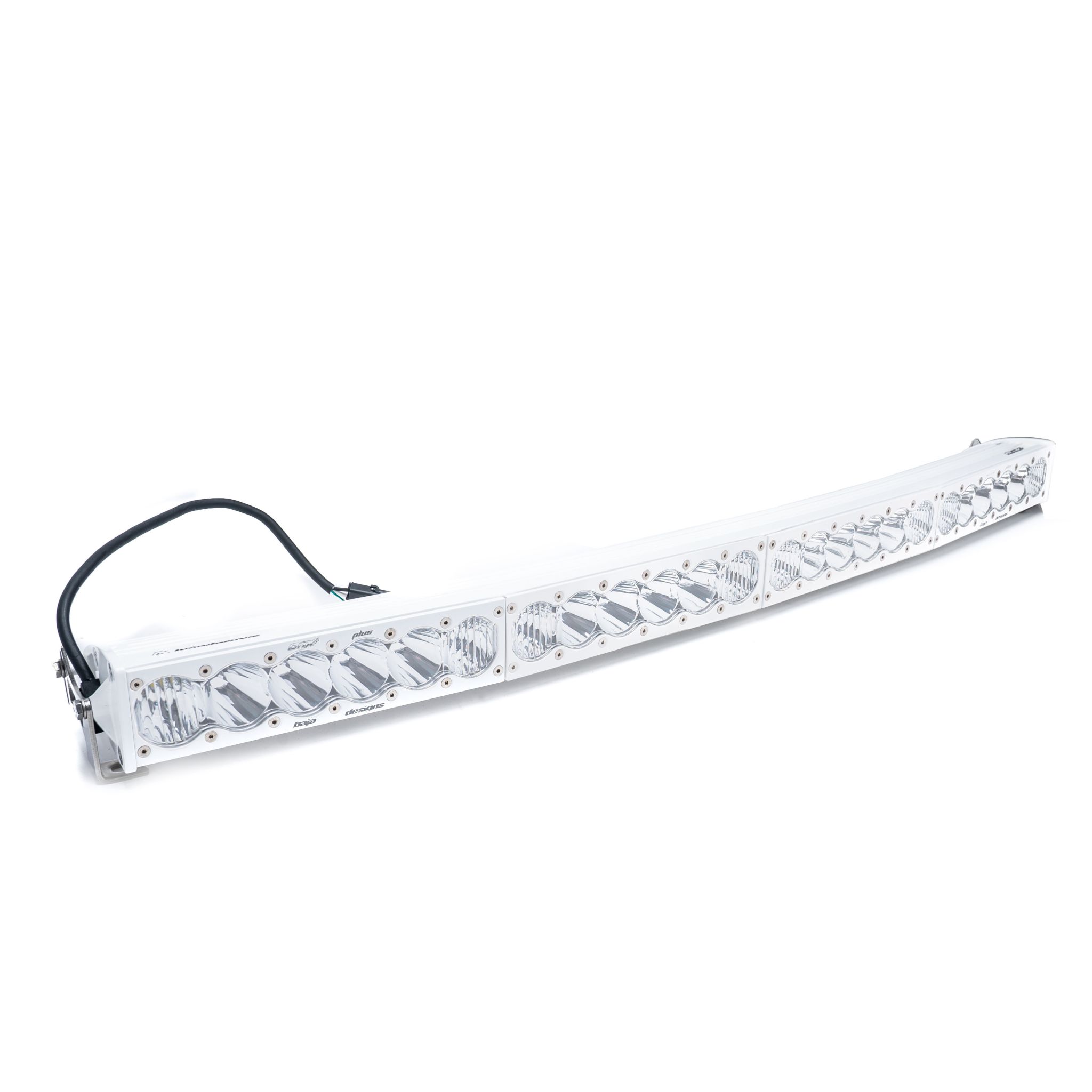

OnX6 White Arc LED Light Bar

The OnX6+ white LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Additional Attributes:

GTIN: 00810031741038
Amperage Rating (A): 26.8 (High); 22.4 (Low)
Average Rated Life (hr.): 49,930
Beam Pattern: Driving/Combo
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 39,220 (High); 32,760 (Low)
Depth (in.): 4.29
Description: Arc; Driving/Combo; Clear
Height (in.): 2.69
Housing Color: White
Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Length (in.): 40
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 1
Lighting Modes: High Beam/Low Beam
Lighting Quantity: 24
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Description: Mounting Brackets
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: OnX6+ 40 Inch Arc LED Light Bar
Prop 65 – Short Label: CR
Prop 65 Warning Label: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No: Yes
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Universal or Specific: Universal
Wattage (W): 340 (High); 284 (Low)
Weight (lbs.): 15.05
Wiring Harness Description: Hi-Low Dongle
Wiring Harness Included: No

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 48.000 x 8.000 x 8.000 inches
Weight: 15.000 PG

PDF:

FGXX_524003WT-INS_001
