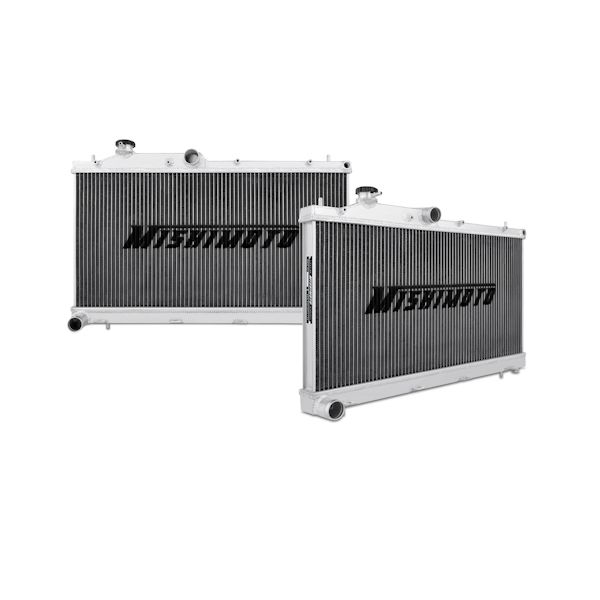

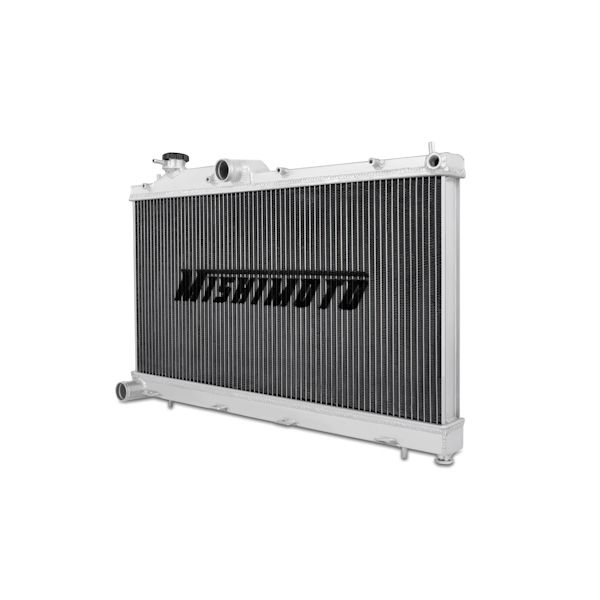

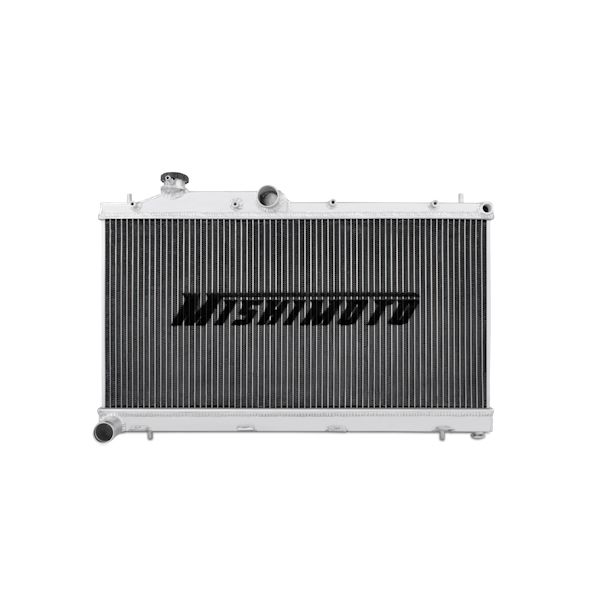

The Mishimoto performance aluminum radiator for the 2008-2014 Subaru WRX/STI is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto 2008-2014 Subaru WRX/STI radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
Additional Attributes:
GTIN: 00748354798852
Install Difficulty: 3
SellingPoint01: Direct fit for the 2008-2019 Subaru WRX/STI
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.65-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

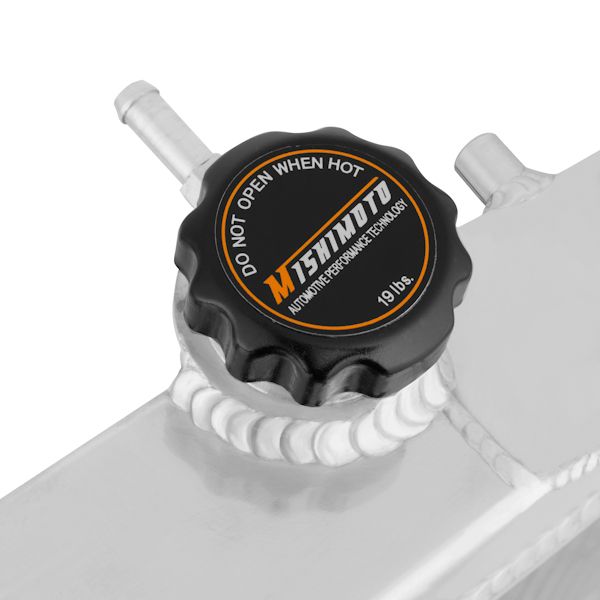

SellingPoint07: Includes high-pressure 1.3 bar radiator cap designed for Subaru applications with non-directional sticker
SellingPoint08: Second radiator cap is included for use on expansion tank
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2008-2014 Subaru WRX–2008-2019 Subaru STI–2009-2013 Subaru Forester XT–2005-2009 Subaru Outback XT–2005-2009 Subaru Legacy GT
TechSpec Chassis Codes: GE–GH
TechSpec Core Height (in): 13.39
TechSpec Core Length (in): 27.08
TechSpec Core Thickness (in): 1.65
TechSpec DPI: 13091/13093
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: EJ255–EJ257
TechSpec Fluid Capacity (gal): 2.21
TechSpec Includes: Mishimoto Radiator–Mishimoto Radiator Cap–Overflow Nipples – 2–Magnetic Drain Plug–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.54
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.—-Caution:–The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two-way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.—-It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.—-Use small fitting for:–2008-2009 Subaru WRX–2008-2019 Subaru STI—-Use large fitting for:–2010-2014 Subaru WRX–2005-2009 Subaru Legacy GT–2005-2009 Subaru Outback XT–2009-2013 Subaru Forester XT
TechSpec Outlet (in): 1.54
TechSpec Overall Height (in): 21.8
TechSpec Overall Length (in): 28
TechSpec Overall Width (ins): 2.15
TechSpec Rows: 2
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 5 x 22 x 31 inches
Weight: 18 PG
