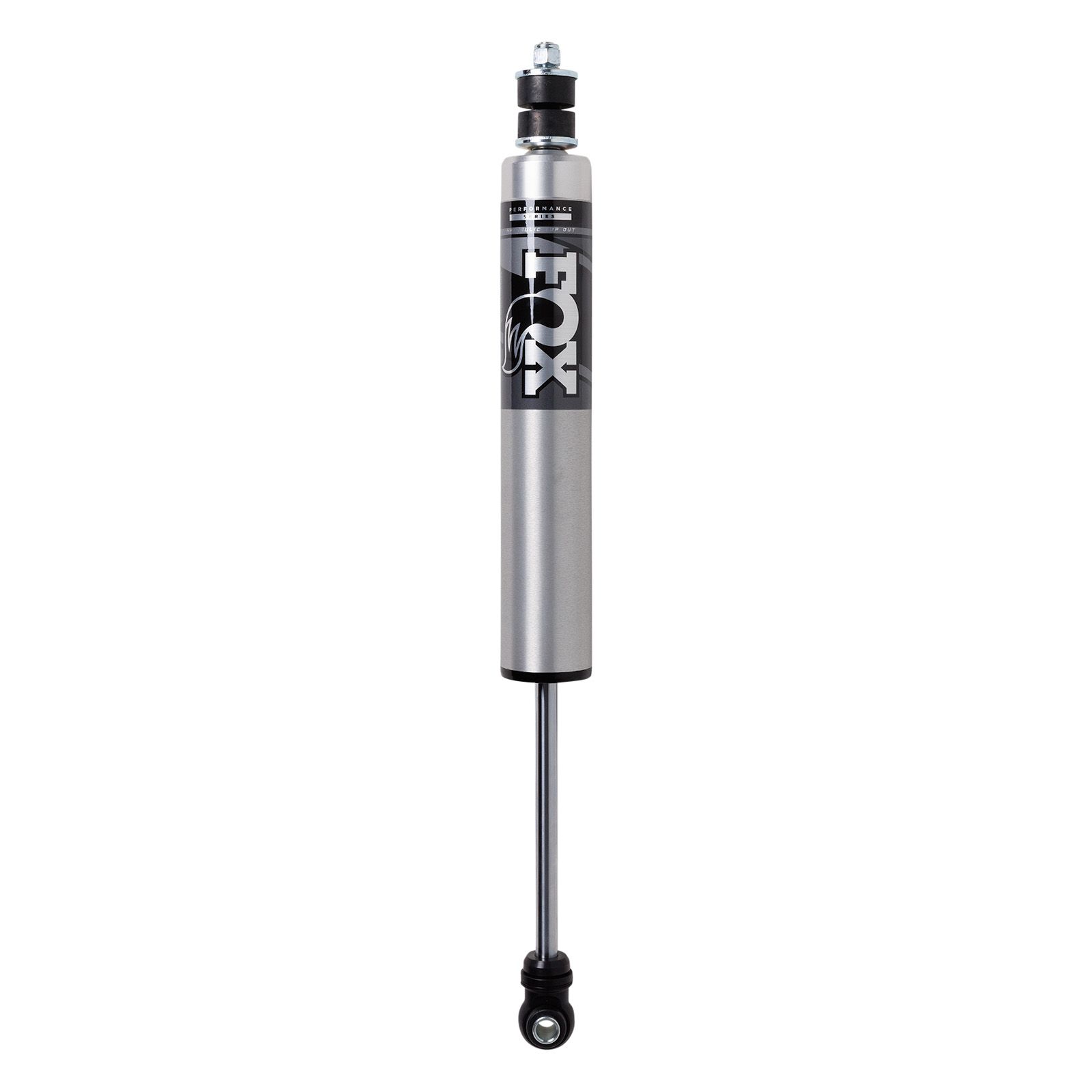

PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK

$556.79

Application specific valving to maximize performance.

2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston
Corrosion resistant
Application specific tune
Fully rebuildable and re-tunable

SKU: BKTK-987-24-050 Category: Suspension Shock Absorber

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Additional Attributes:

GTIN: 00692878900737
Body Diameter (in): 2.5
Body Material: Aluminum
Bottom Mount: Eyelet
California Proposition 65: ! WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Compressed Length (in): 19.00
Extended Length (in): 30.36
Fox Catalog: TRUCK
Label Name: 13-ON Ram 3500, Rear, 2.5 Truck PS, IFP, 0-3” Lift, HTO
Prop 65 Y/n: Y
Reservoir Type: Internal Floating Piston
Series: Performance
Top Mount: Stem
Travel (in): 11.36
Type: Smooth Body
