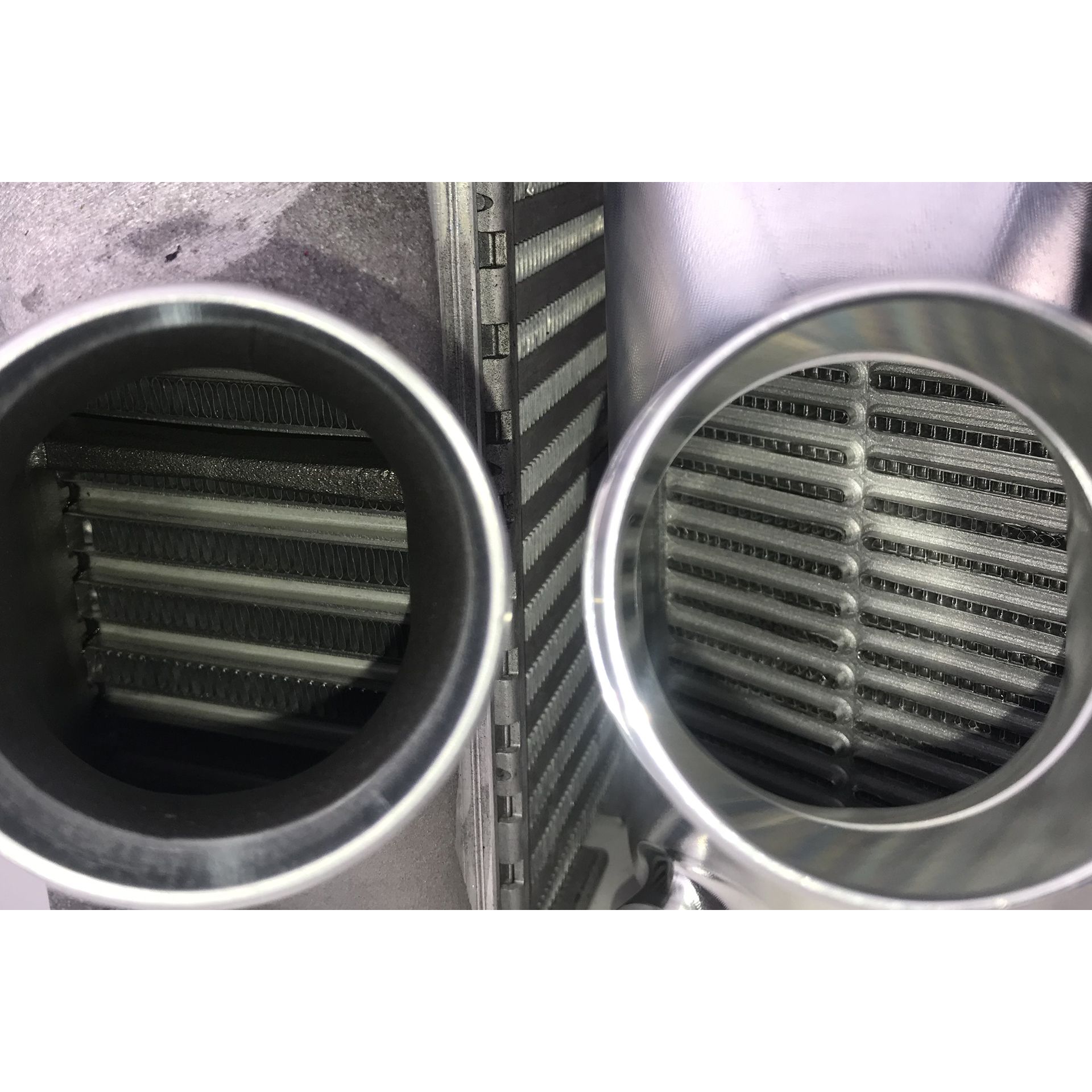

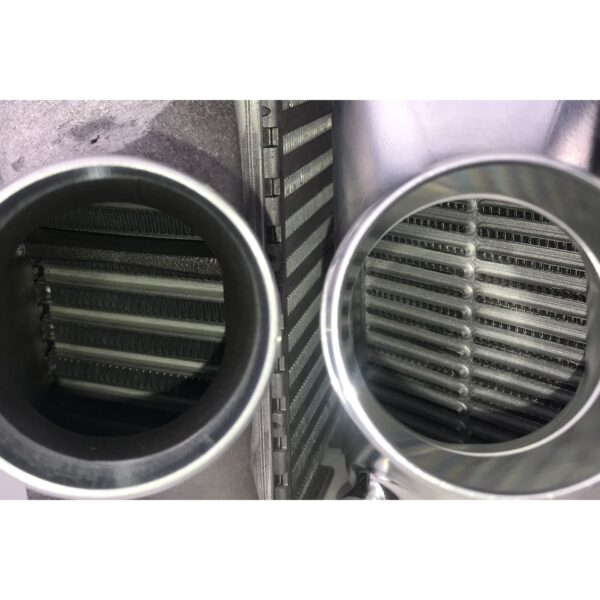

The advantage of a rolled tube core is the rounded edge which allows airflow to travel around the tube face and into the intercooler core for maximum airflow and heat dissipation (Compared to the OEM flat face tube which scatters airflow when contacting the tube face). Both the OEM intercoolers and the CSF by PWR upgraded performance intercoolers are designed around 87mm thick cores with 103mm wide side channel end plates. This allows for a true plug-and-play "drop-in fit" installation that requires absolutely no modifications to install, and does not require trimming of the expensive OEM carbon fiber air ducts.
Additional Attributes:
GTIN: 00710353081662
Color: Raw Billet Aluminum
Core Color: Raw Aluminum
Core Material: Aluminum
Core Row Quantity: 2
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Billet Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Type: Air-to-Air
Universal Or Specific Fit: Specific
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 15 x 24 inches
Weight: 26 PG
