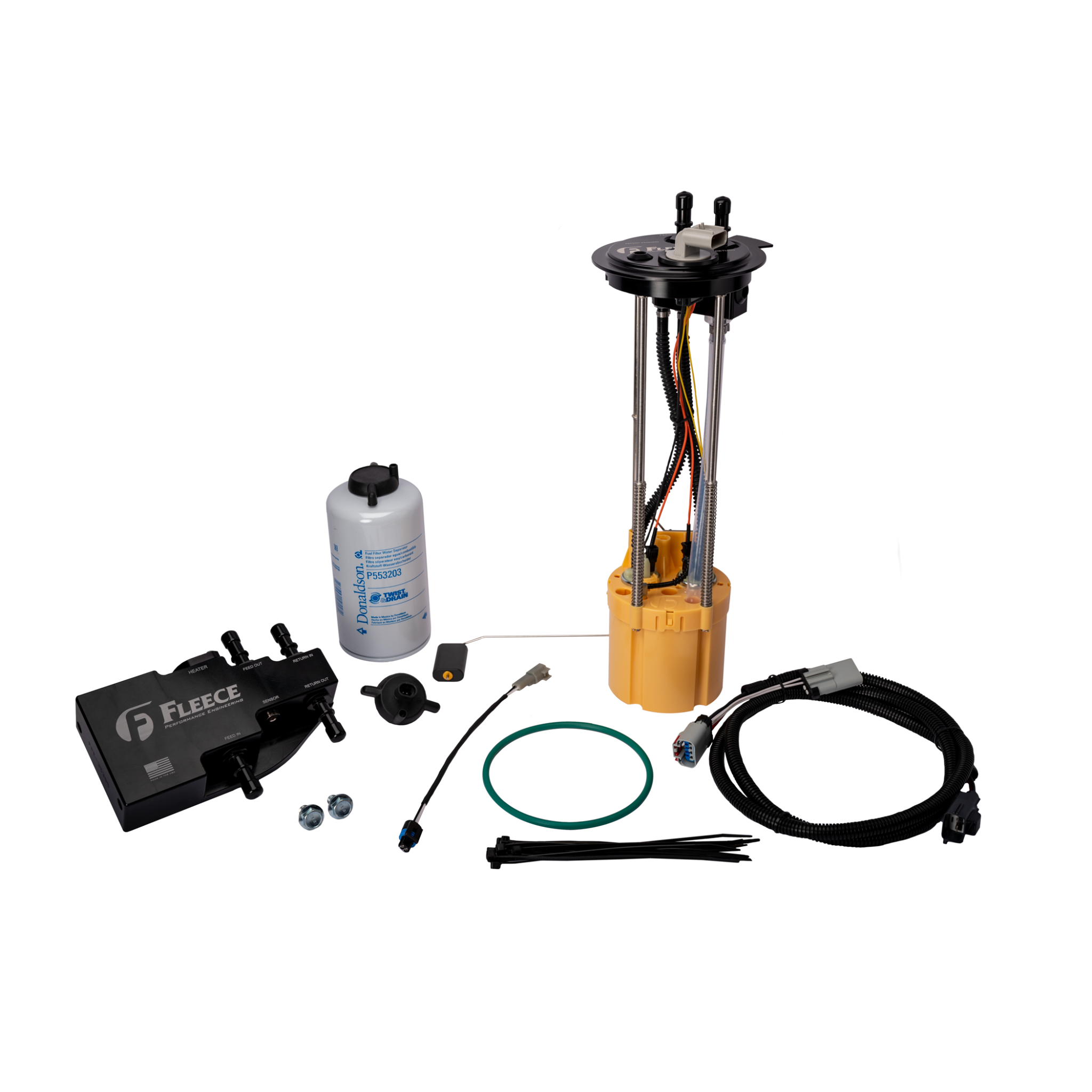

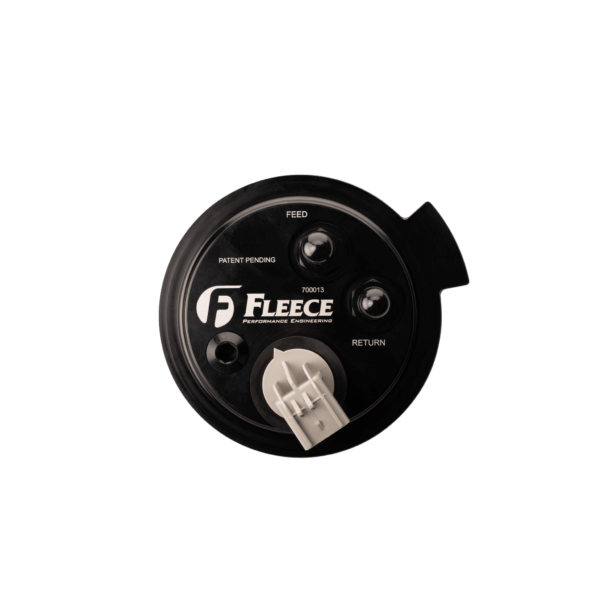

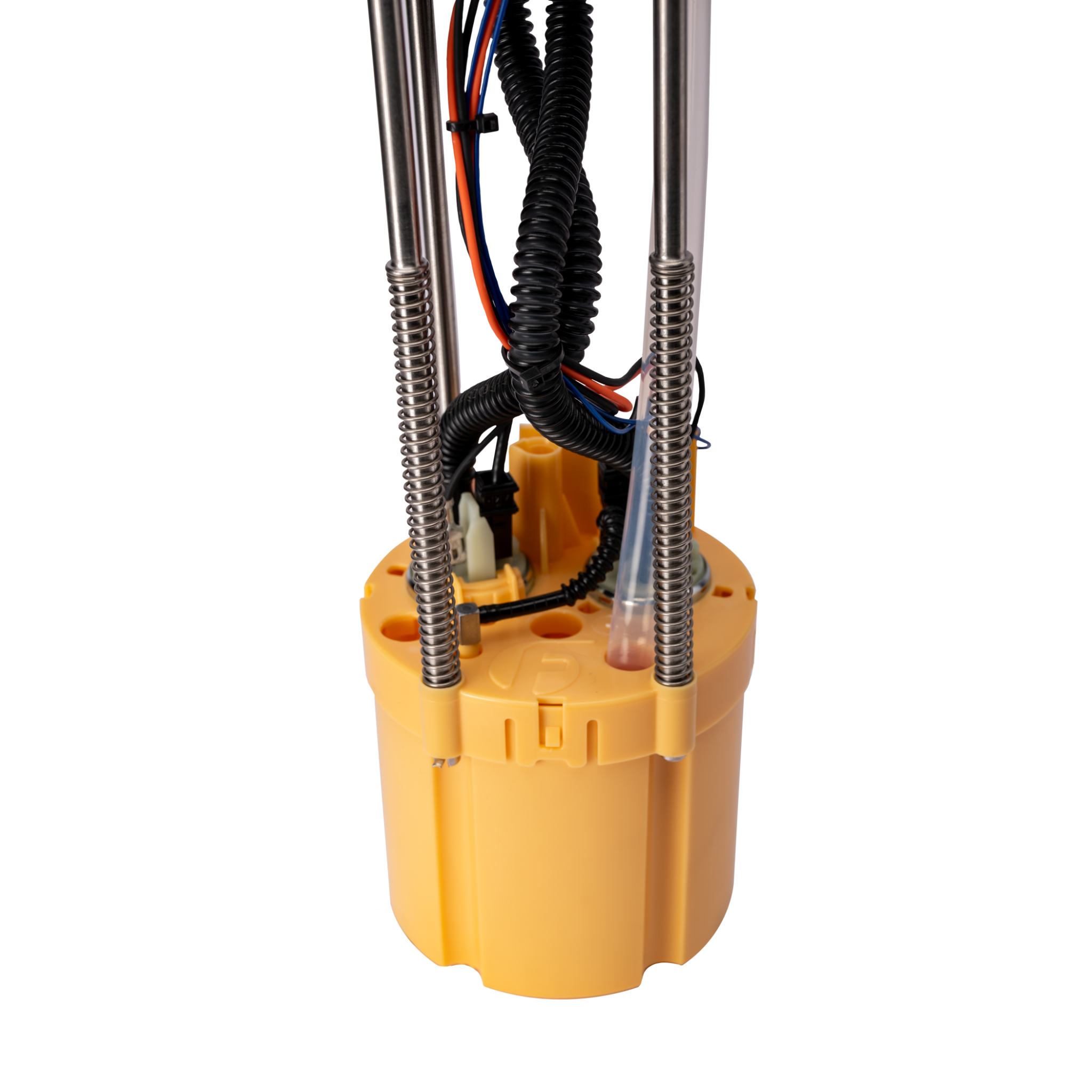

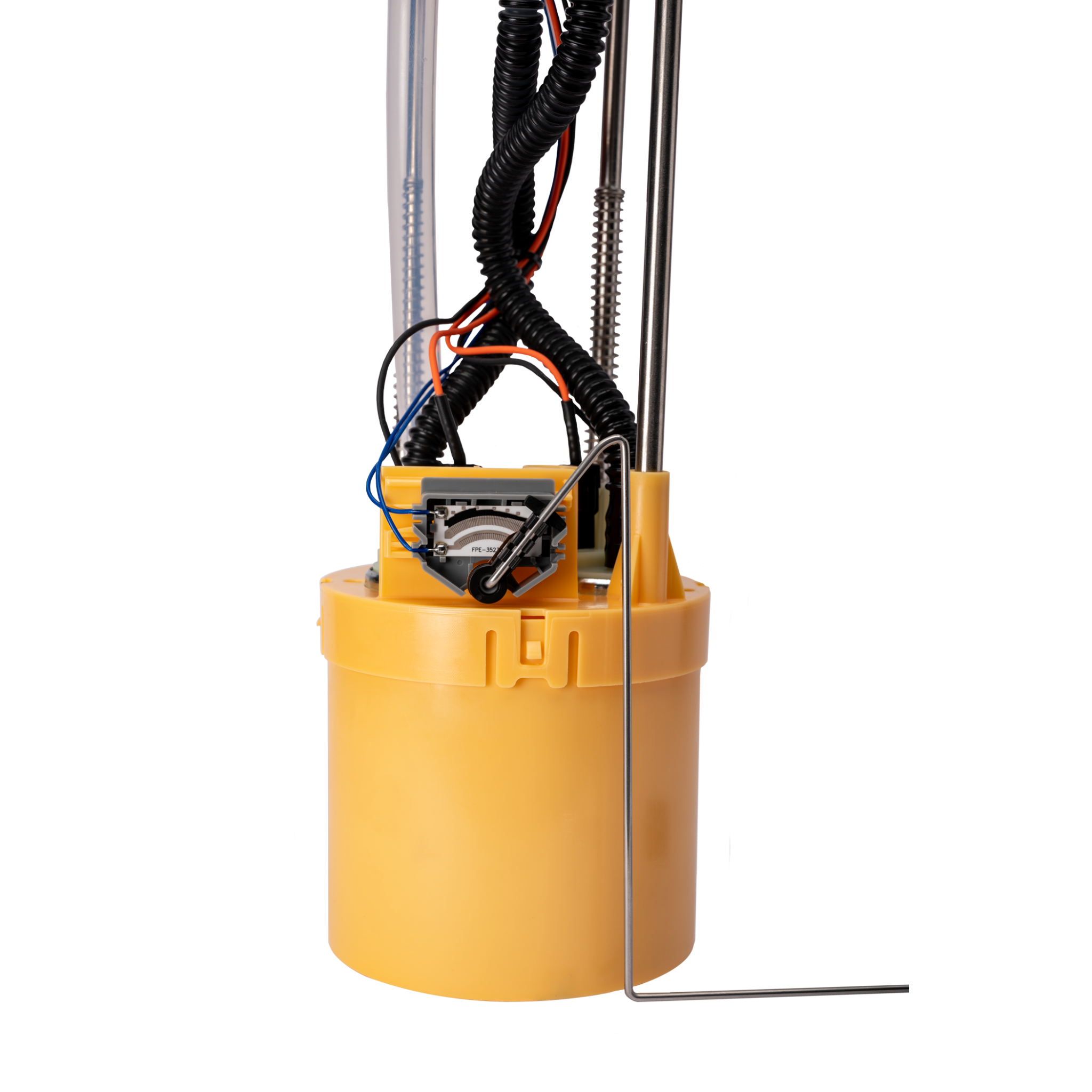

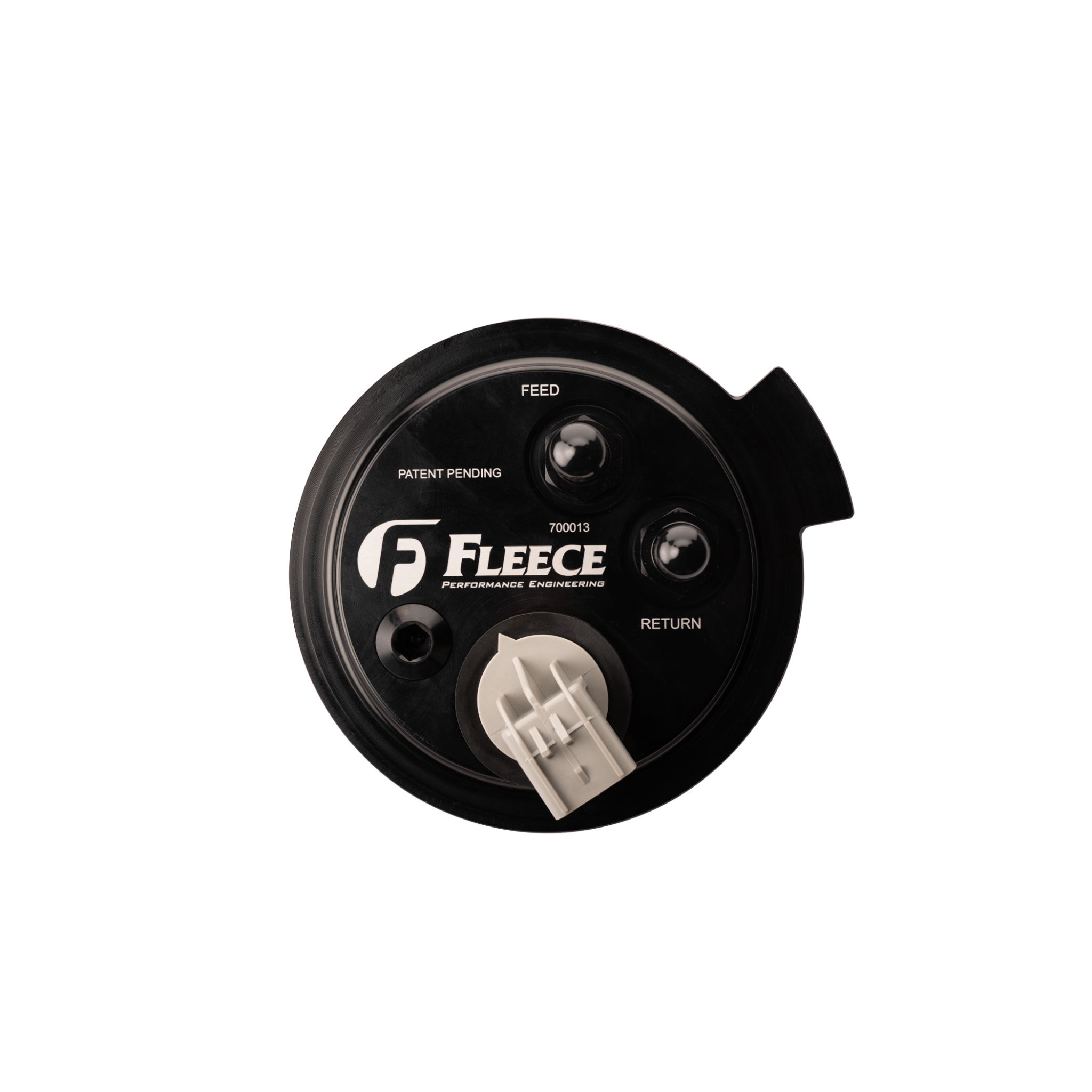

This kit requires no cutting, splicing, or modification of the existing fuel lines, harness, or fuel tank and retains all factory diagnostic functionality. Aftermarket Capable: Want the benefits of the in-tank pump but need to run your own fuel lines? The pump outlet and return are threaded to accept a -8 O-ring fitting (3/4"-16 thread). This product has also been tested and verified with 2011-2016 trucks equipped with and S&S Diesel Motorsort DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit. Kit includes: PowerFlo Lift Pump with integral fuel level sender Filter base with Donaldson (P/N P553203) and provision for optional fuel heater (4 micron rating at 99% efficiency) Water-in-fuel sensor Chassis wiring harness and WIF sensor extension harness Fuel sending unit tank O-ring Mounting hardware Cross-Reference: Year FPE Part Number Replaces FORD OE Part Number 2011-2016 FPE-FMC-1116-SB BC3Z-9A299-A 2011-2016 FPE-FMC-1116-LB BC3Z-9A299-G Application Notes Operating pressure of: 65-70 psi at idle This product has been tested and verified to work with 2011-2016 trucks equipped with an S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit. This product has been confirmed to fit Titan and S&B aftermarket fuel tanks.
Additional Attributes:
GTIN: 00670875719286
Add On Items: FPE-FMC-UHFA-1123
Prop 65 Yes/No: YES
Extended Information:
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 23 x 11 x 13 inches
Weight: 20 PG
FPE-2023-109_FPE-PF-FMC-1116-SB_LB
