PROJECT X - GHOST BOX (1 KEYPAD + 4 MODULES)

Battery Power Distribution Box

PROJECT X – GHOST BOX (1 KEYPAD + 4 MODULES)

$1,518.73

PROJECT X – Ghost Box (1 Keypad + 4 Modules)

Fully Customizable Ecosystem – The PROJECT X Ghost Box allows you to create a fully customizable ecosystem using our PROJECT X app. Create lighting scenes, preset colors, control groups, timers and more.

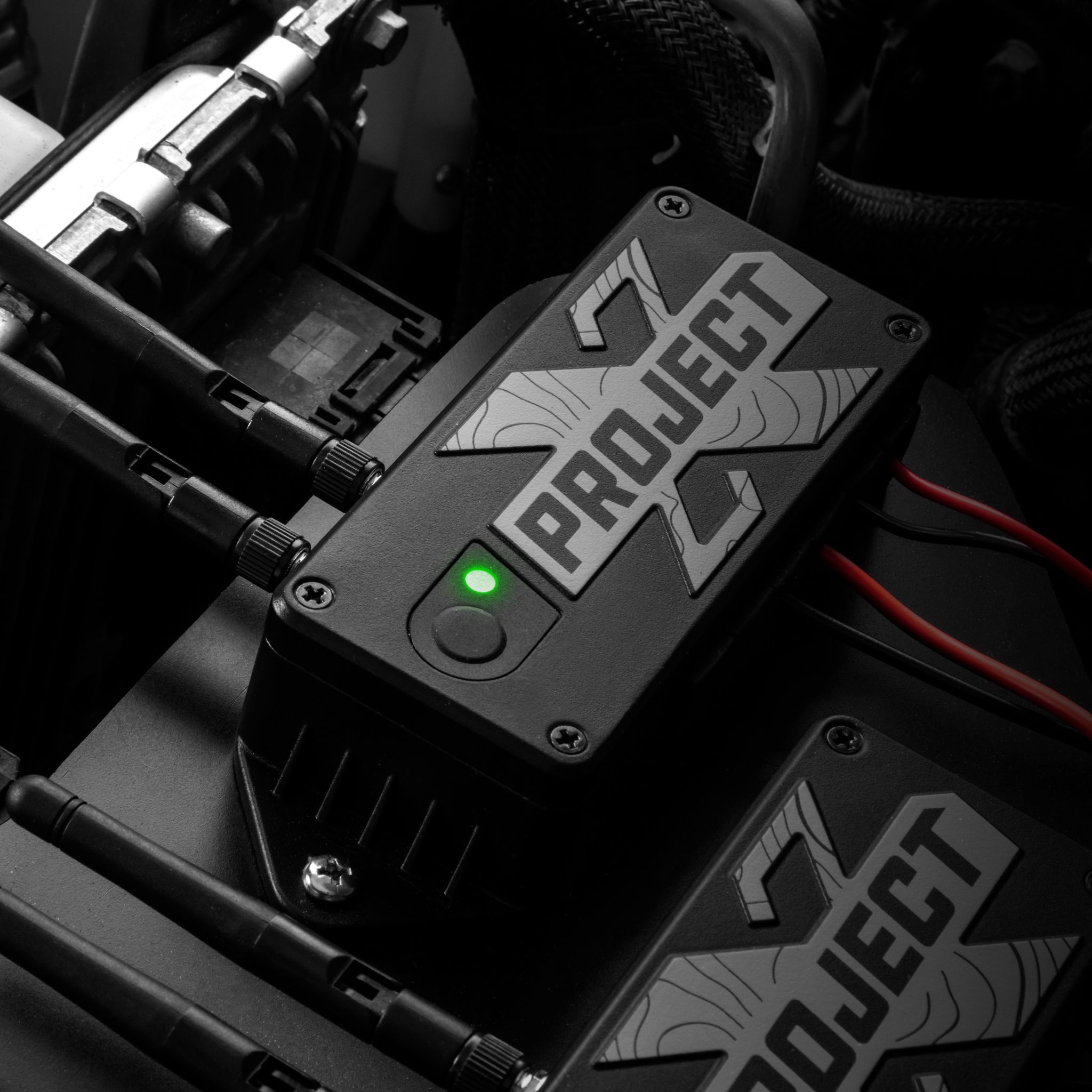

Make Any Accessory Smart – Add your Ghost Box control module to any accessory power harness to wirelessly integrate it into the PROJECT X ecosystem

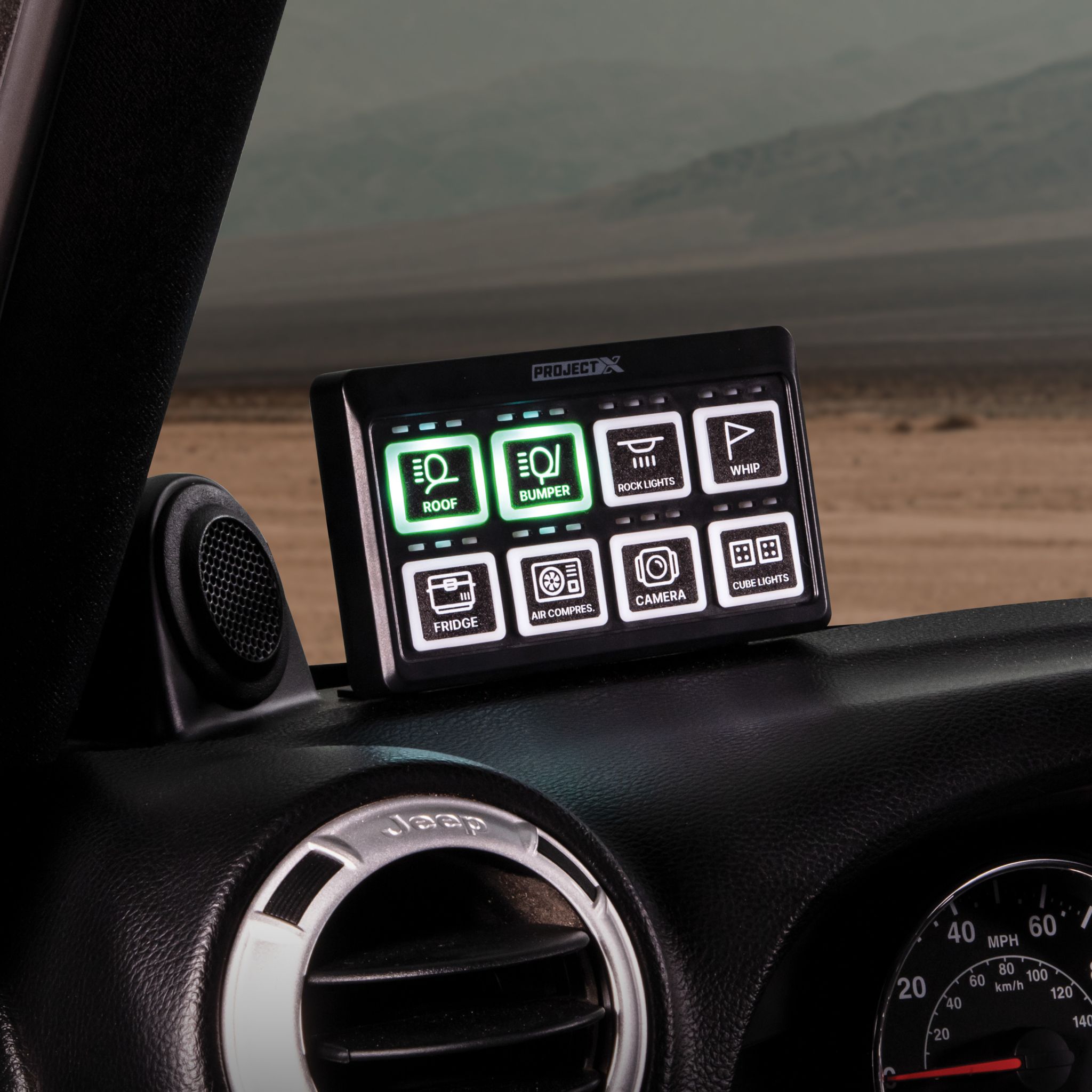

Wireless Control – Wirelessly connect all your Ghost Box control modules to your control pad via 2.4GHz RF Wireless without having to route wires into your cab – simply tap the control pad to power and go!
Wired Reliability, Wireless Freedom – Utilizing both Bluetooth and RF Wireless, the Ghost Box system gives you a reliable connection to your vehicle accessories ensuring your control is never severed.
Dual Circuit – Each module features a 2-circuit setup with a 20 amp and 40 amp circuit to give you multiple options for accessory control.
Easy to Pair – Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem.
Expand your control – Add up to 24 control modules across your vehicle, trailers and other equipment to link your system together as needed.

SKU: JBSX-GB538823-1 Category: Battery Power Distribution Box

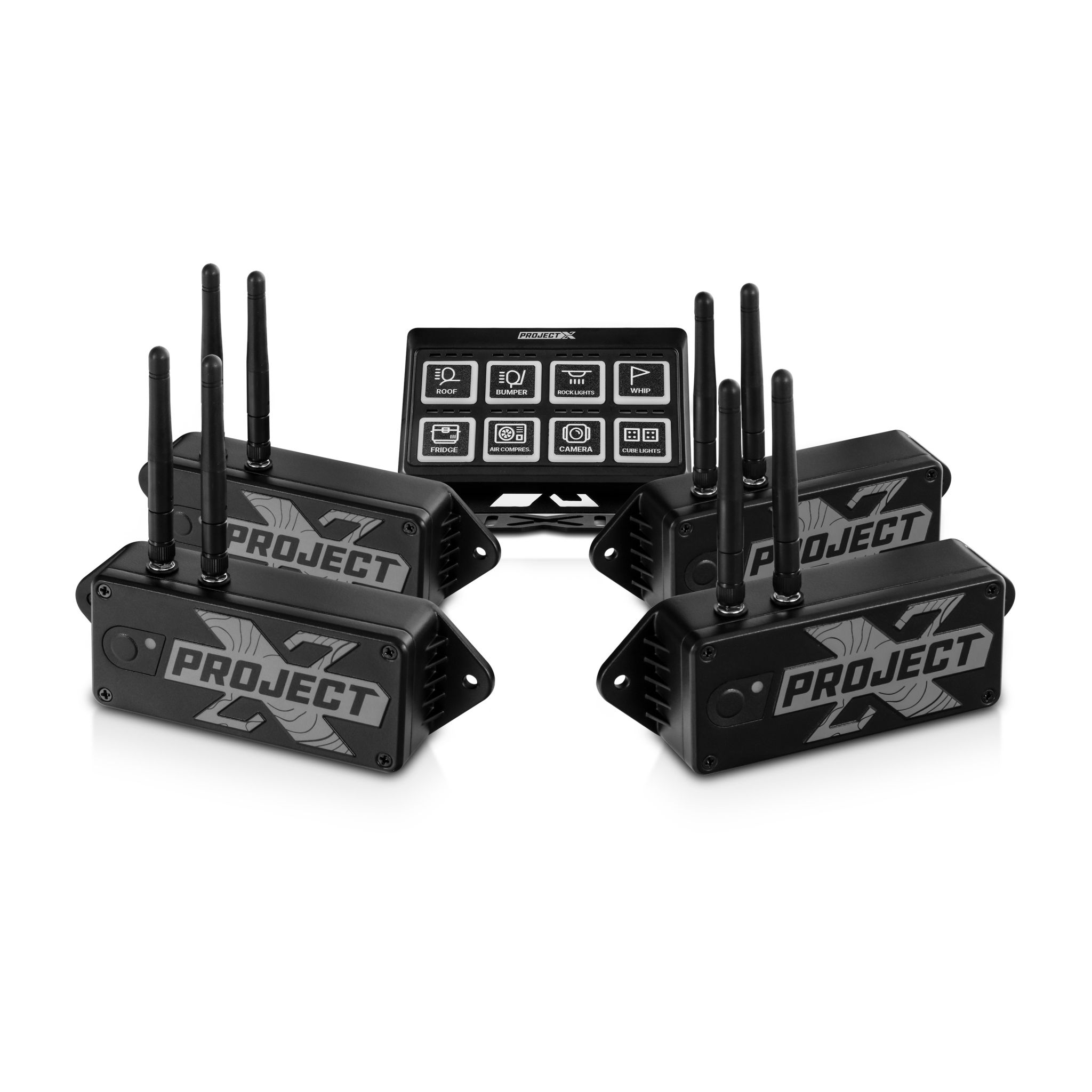

Accessory control redefined – The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience. The fully expandable system includes 4 two-circuit control modules that wirelessly communicate to a control keypad which you can program via the PROJECT X app. Control a single module for an easy accessory install, or create a large ecosystem across your vehicles, trailers and equipment. Create presets you can incorporate across all of your accessories and set up timers, scenes, and much more. With the PROJECT X Ghost Box we make it easy to Connect with the Wild.

Additional Attributes:

GTIN: 00840005388235
Voltage: 12
Mounted Weight: 4
Housing Material: Aluminum diecast
Terminal Quantity: 24
Housing Color: Black
Amperage Rating: 60
Add-On: GB538825-1
Circuit Terminal Gender: Female
Circuit Terminal Quantity (Per Module): 6 Terminals: Input Positive, Input Negative, Output 1 Positive, Output 1 Negative, Output 2 Positive, Output 2 Negative,
Circuit Terminal Type: Screw Terminal
Connector Quantity (Keypad): 1
Connector Type (Keypad): RJ45
Control Method: Keypad or App (IOS & Android)
Hardware Included: Yes
Hardware Material: Stainless
Height – Control Module with Antennas: 6.3 IN
Height – Control Module without Antennas: 1.4 IN
Height – Keypad: 2.9 IN
Input Voltage Range: 9-16V DC
Keypad Included: Yes
Keypad Wiring Harness Included: Y
Length – Control Module: 6.7 IN
Length – Keypad: 2.9 IN
Maximum Current (Keypad): 0.075 Amps @ 12V DC
Maximum Wattage (Keypad): 0.9 Watts @ 12V DC
Maximum Wire Size: 8 AWG
Mounting Hole Quantity: 2 per Module
Number of Circuits (Per Module): 2
Number of Circuits (Total): 8
Operating temperature: -22F to 149F
Output Maximum Current (Control Module): Circuit 1: 20 Amps @ 12V DC, Circuit 2: 40 Amps @ 12V DC
Output Maximum Wattage (Control Module): 480 Watts @ 12V DC
Prop 65 – Long Label: WARNING: This product can expose you to chemicals including DEHP and DINP, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 – Short Label: CR = WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Warning Chemical Listing: DEHP, DINP
Prop 65: Y
Storage Temperature: -40F to 185F
TLE: PROJECT X – Ghost Box (1 Keypad + 4 Modules)
Universal Or Specific Fit: Universal
Waterproof Rating: IP64
Weight – Keypad: 0.5 LBS
Weight – Per Control Module: 0.5 LBS
Width – Control Module: 3.4 IN
Width – Keypad: 0.7 IN
Wireless Frequency: 2.4GHz RF Wi-Fi & Bluetooth 5.0
Wireless Range (Bluetooth): 33 Feet without interference or obstruction
Wireless Range (RF Wi-Fi): 98.4 Feet without interference or obstruction

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14.8 x 2.5 x 12.8 inches
Weight: 4.2 PG

PDF:

GB538823_1 Ghost Box Kit_Instructions

Weight	1.91 kg
Dimensions	14.8 × 2.5 × 12.8 cm
