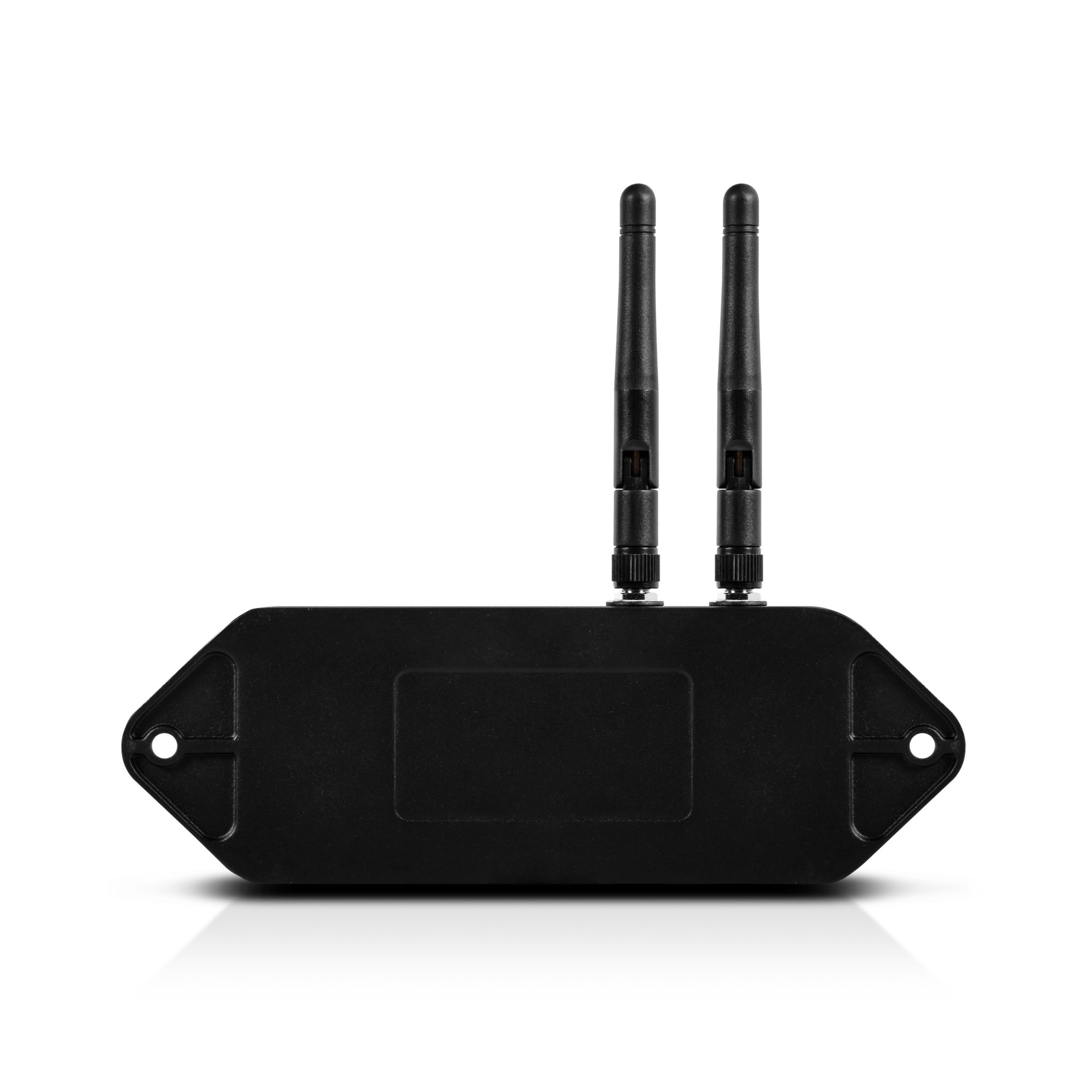

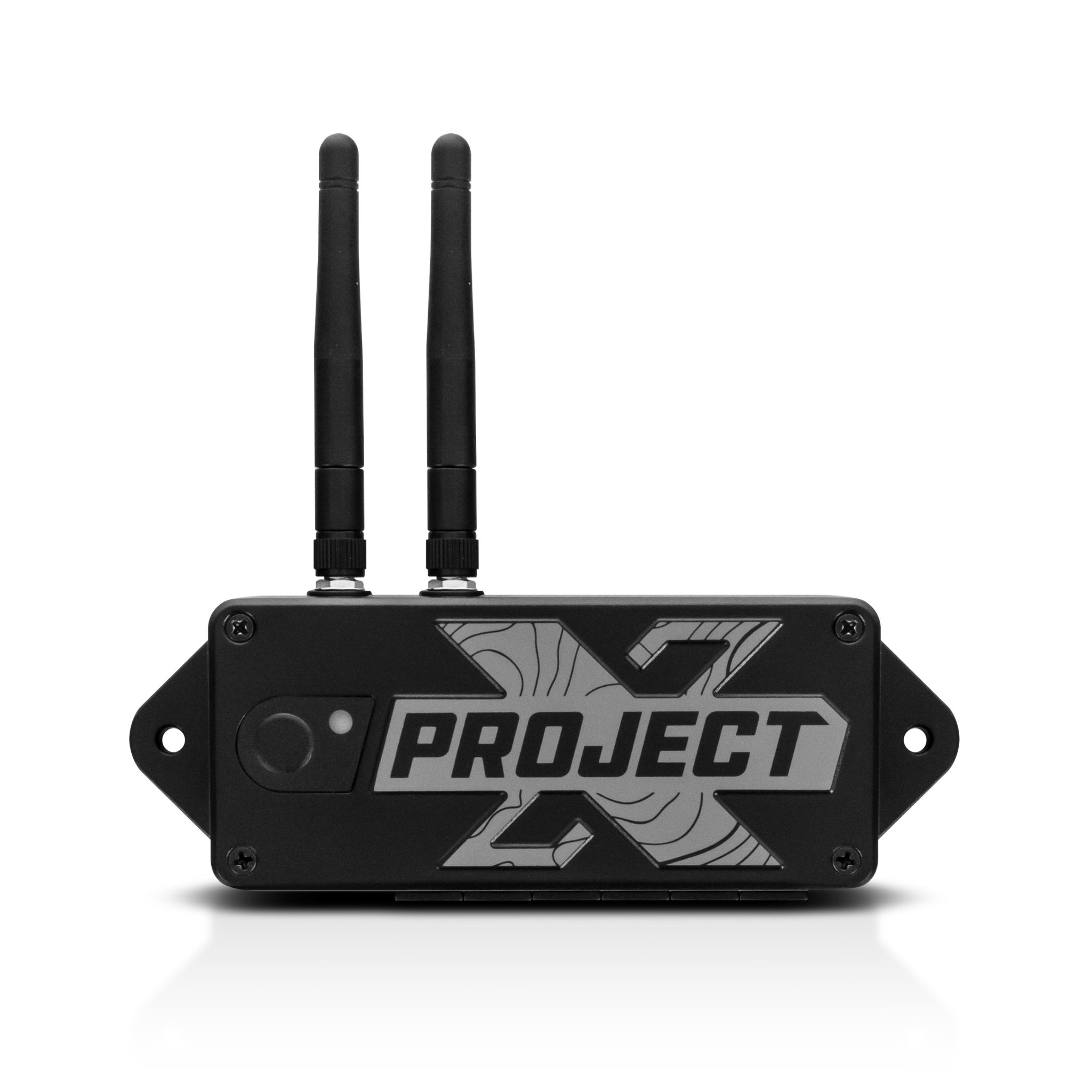

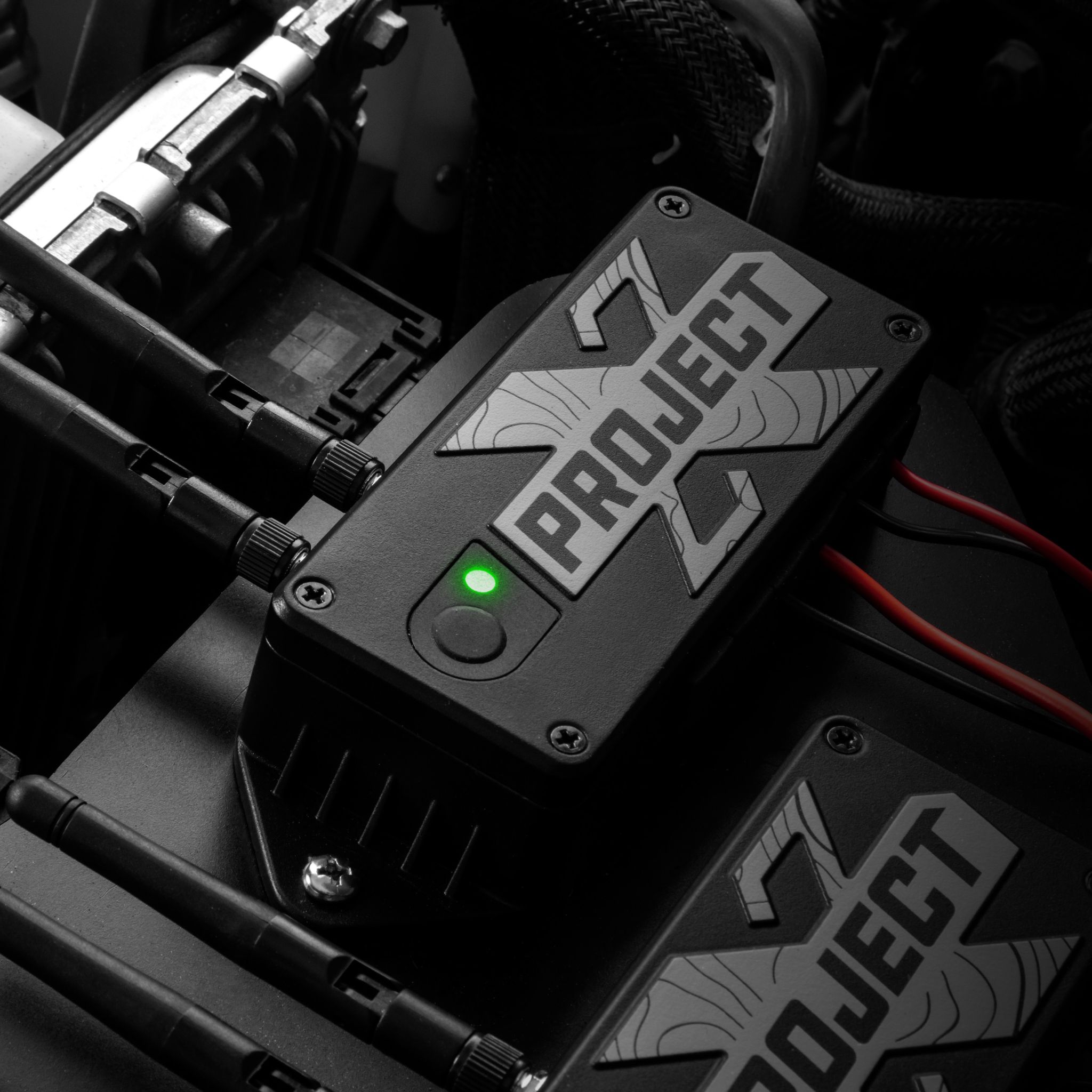

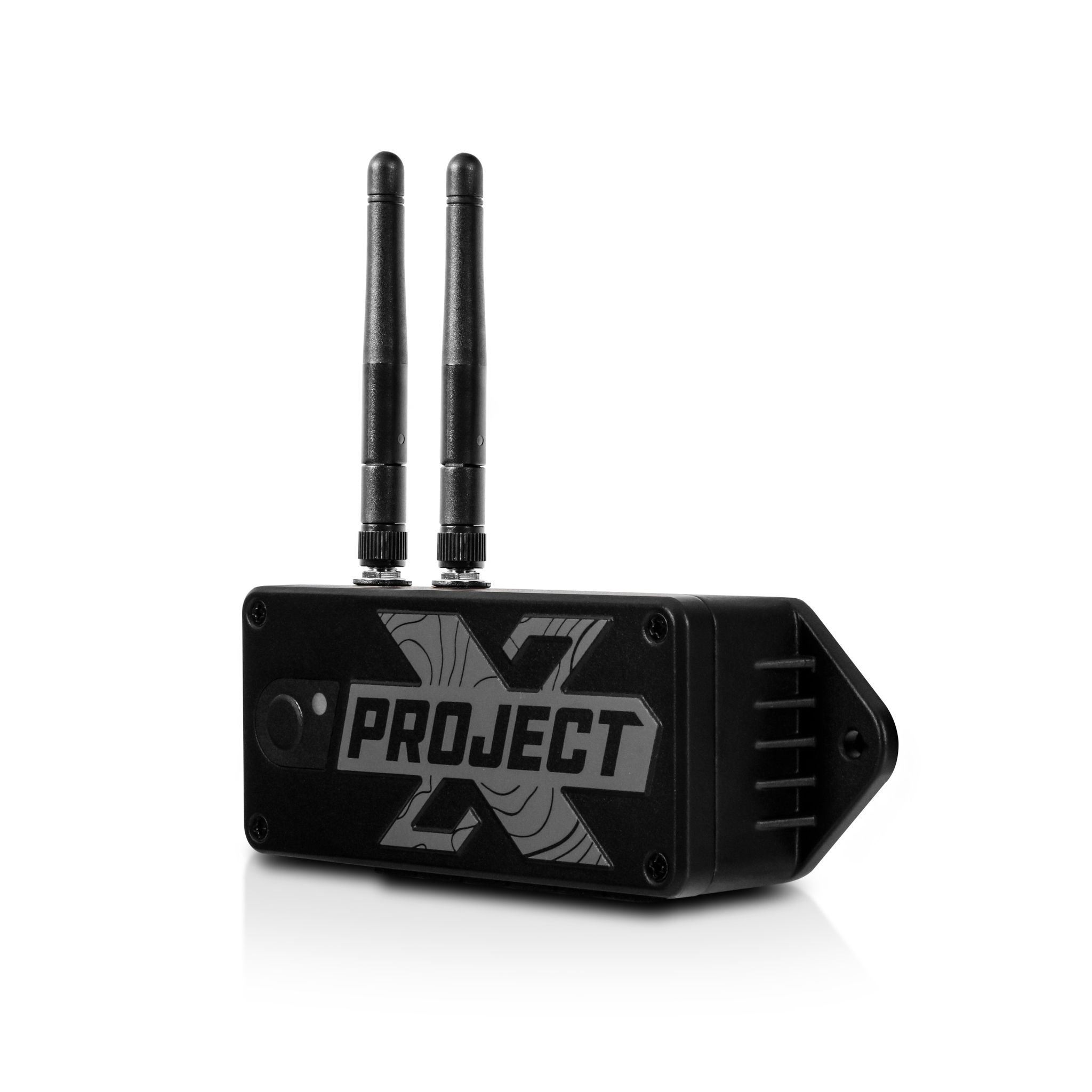

Accessory control redefined – The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience. The fully expandable system includes a two-circuit control module that wirelessly communicates to the PROJECT X app or to an optional con trol keypad which can be programmed via the PROJECT X app as well. Control a single module for an easy accessory install, or create a large ecosystem of Ghost Box connected accessories across all your vehicles, trailers and equipment. Create presets you can incorporate across all of your accessories and set up timers for maximum functionality. With the PROJECT X Ghost Box we make it easy to Connect with the Wild.
Additional Attributes:
GTIN: 00840005388259
Voltage: 12
Mounted Weight: 4
Housing Material: Aluminum diecast
Terminal Quantity: 6
Housing Color: Black
Amperage Rating: 60
Add-On: GB538824-1
Circuit Terminal Gender: Female
Circuit Terminal Quantity (Per Module): 6 Terminals: Input Positive, Input Negative, Output 1 Positive, Output 1 Negative, Output 2 Positive, Output 2 Negative,
Circuit Terminal Type: Screw Terminal
Control Method: Keypad or App (IOS & Android)
Hardware Included: Yes
Hardware Material: Stainless
Height – Control Module with Antennas: 6.3 IN
Height – Control Module without Antennas: 1.4 IN
Input Voltage Range: 9-16V DC
Keypad Included: No, Not needed but sold separately.
Length – Control Module: 6.7 IN
Maximum Wire Size: 8 AWG
Mounting Hole Quantity: 2 per Module
Number of Circuits (Per Module): 2
Number of Circuits (Total): 2
Operating temperature: -22F to 149F
Output Maximum Current (Control Module): Circuit 1: 20 Amps @ 12V DC, Circuit 2: 40 Amps @ 12V DC
Output Maximum Wattage (Control Module): 480 Watts @ 12V DC
Prop 65 – Long Label: WARNING: This product can expose you to chemicals including DEHP and DINP, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 – Short Label: CR = WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Warning Chemical Listing: DEHP, DINP
Prop 65: Y
Storage Temperature: -40F to 185F
TLE: PROJECT X – Ghost Box (1 Keypad + 4 Modules)
Universal Or Specific Fit: Universal
Waterproof Rating: IP64
Weight – Per Control Module: 0.5 LBS
Width – Control Module: 3.4 IN
Wireless Frequency: 2.4GHz RF Wi-Fi & Bluetooth 5.0
Wireless Range (Bluetooth): 33 Feet without interference or obstruction
Wireless Range (RF Wi-Fi): 98.4 Feet without interference or obstruction
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 8.5 x 2.5 x 4.5 inches
Weight: 0.5 PG
GB538825_1 Single Ghost Box Module_Instructions
