PROJECT X – Ghost Box (1PC Keypad only)

$236.23

PROJECT X – Ghost Box (1PC Keypad)

  • Maximum Function, Minimum Hassle – The PROJECT X Ghost Box keypad allows you to expand your Ghost Box ecosystem to wirelessly control up to 8 connected accessories with a physical switch
  • RGB Backlit – Individually customize each button with their own unique RGB colors through the PROJECT X App
  • Wireless Control – Wirelessly connect all your Ghost Box control modules to your control pad via 2.4GHz RF Wireless without having to route wires into your cab – simply tap the control pad to power and go!
  • Easy to Pair – Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem.
  • Expand your control – Add up to 24 control modules across your vehicle, trailers and other equipment to link your system together as needed.
SKU: JBSX-GB538824-1 Category:

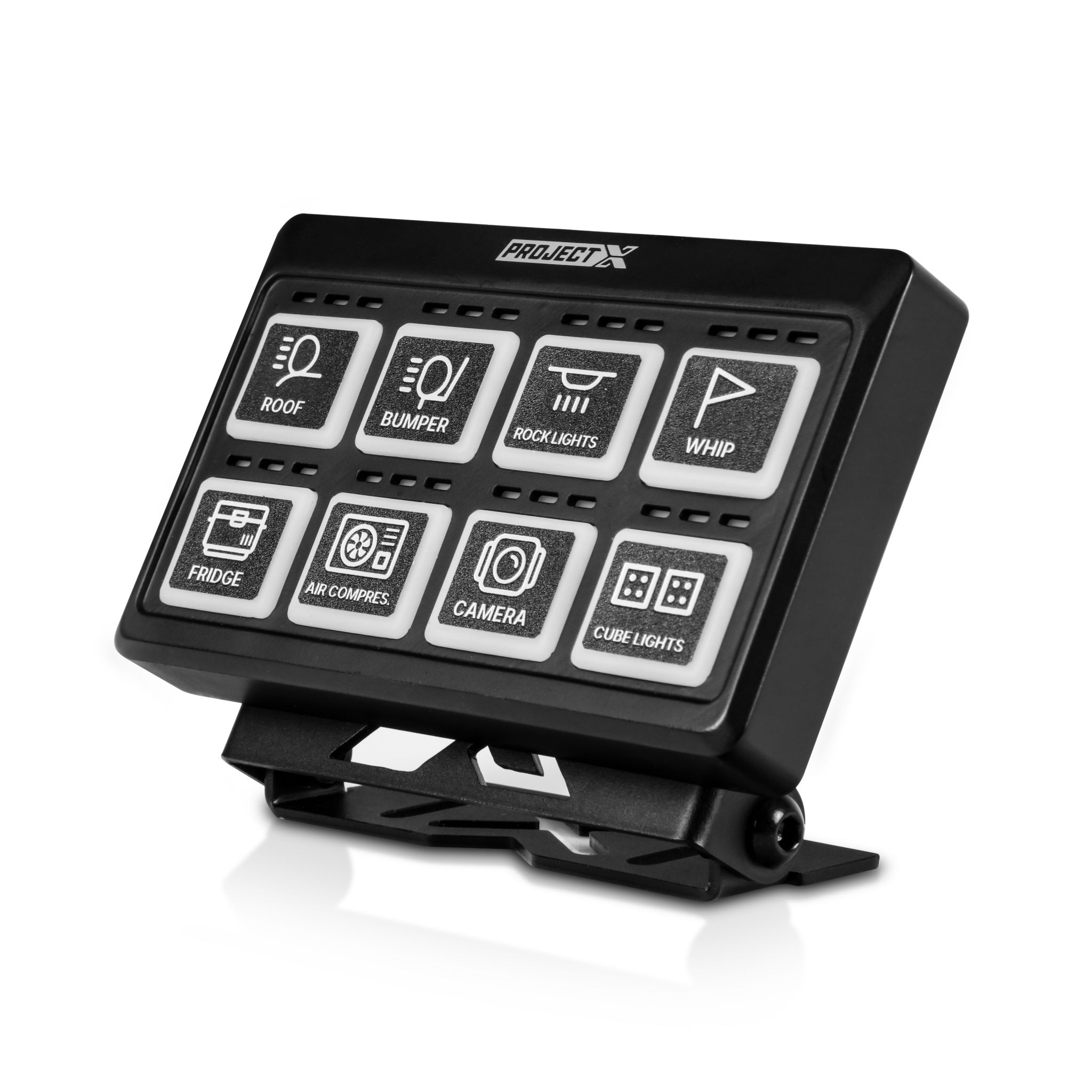

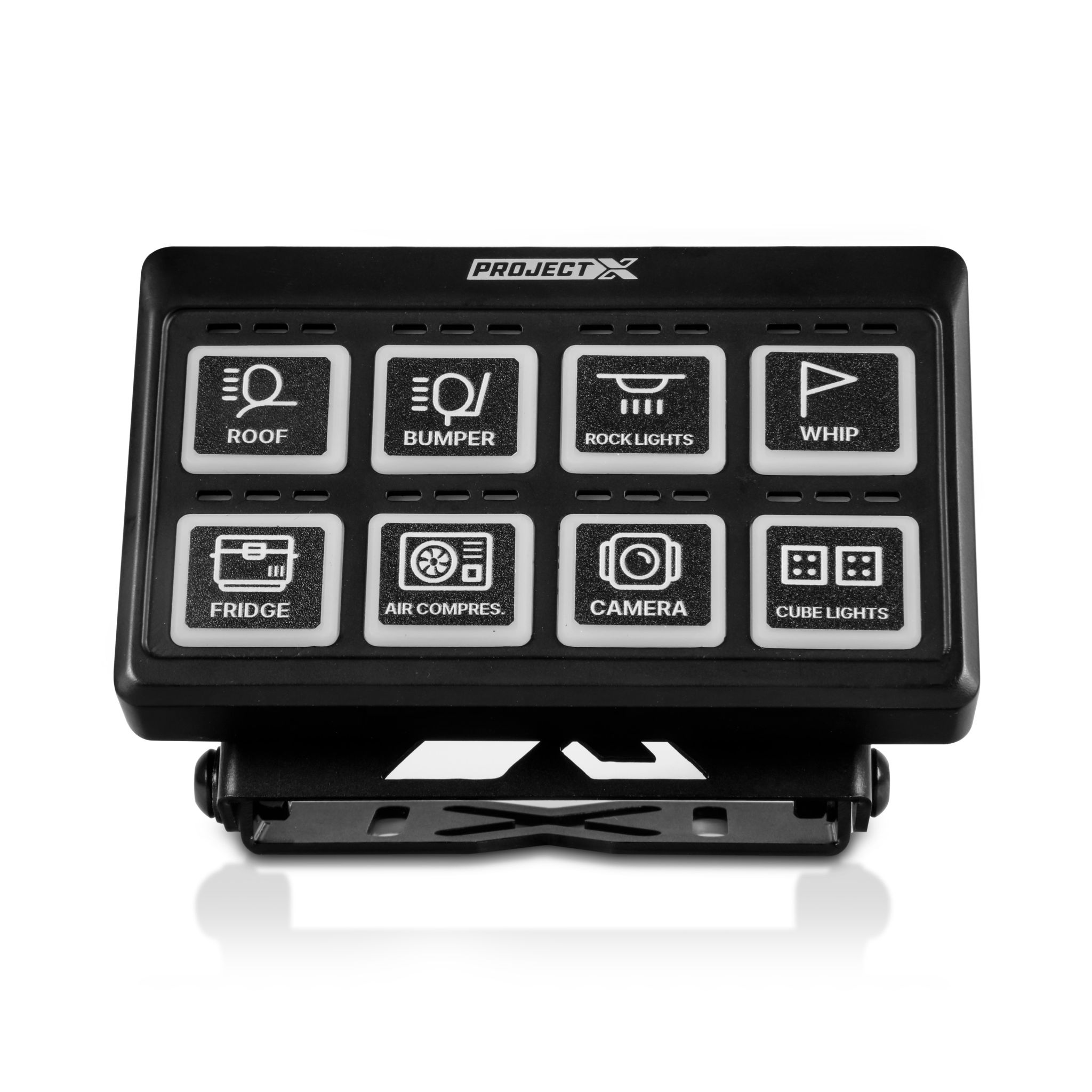

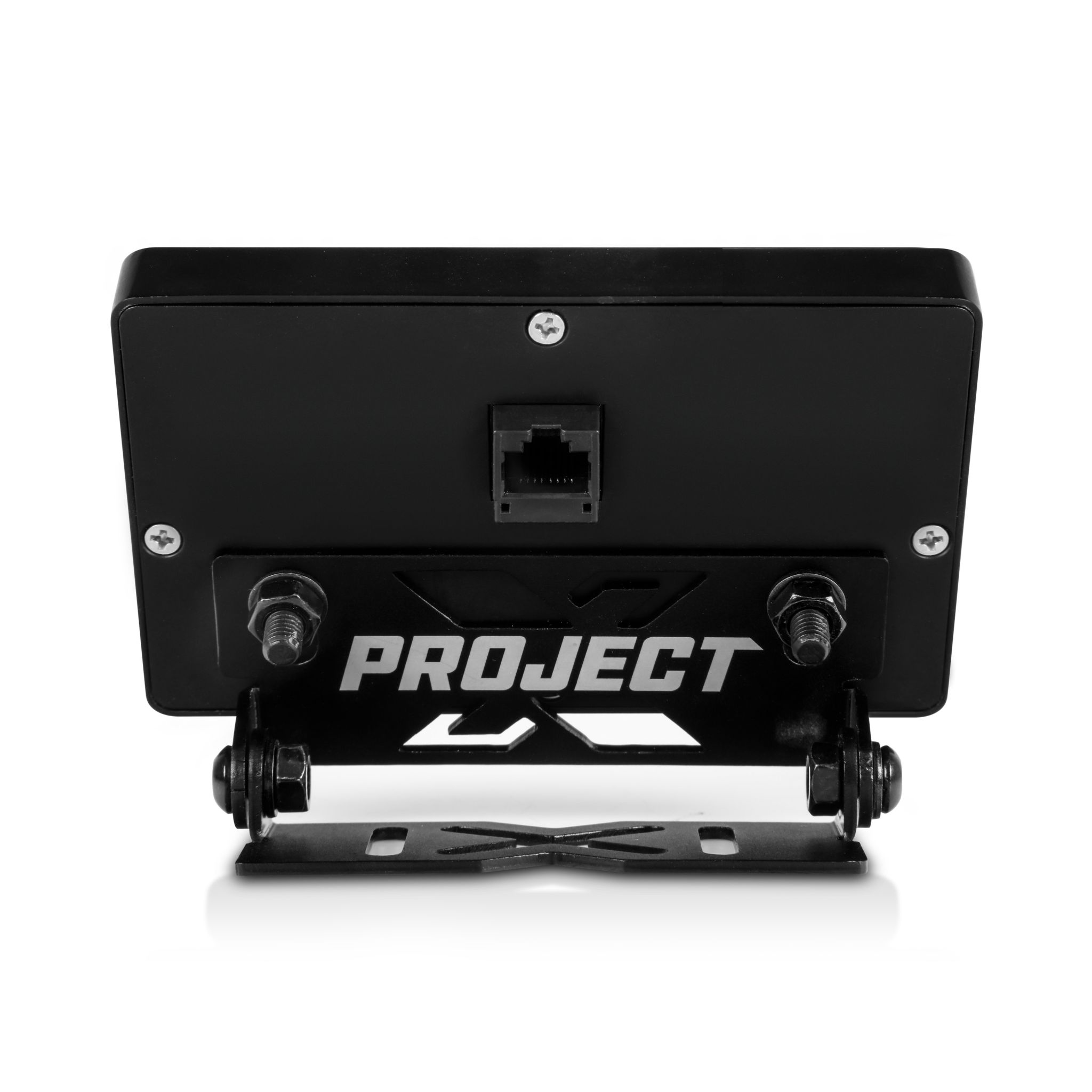

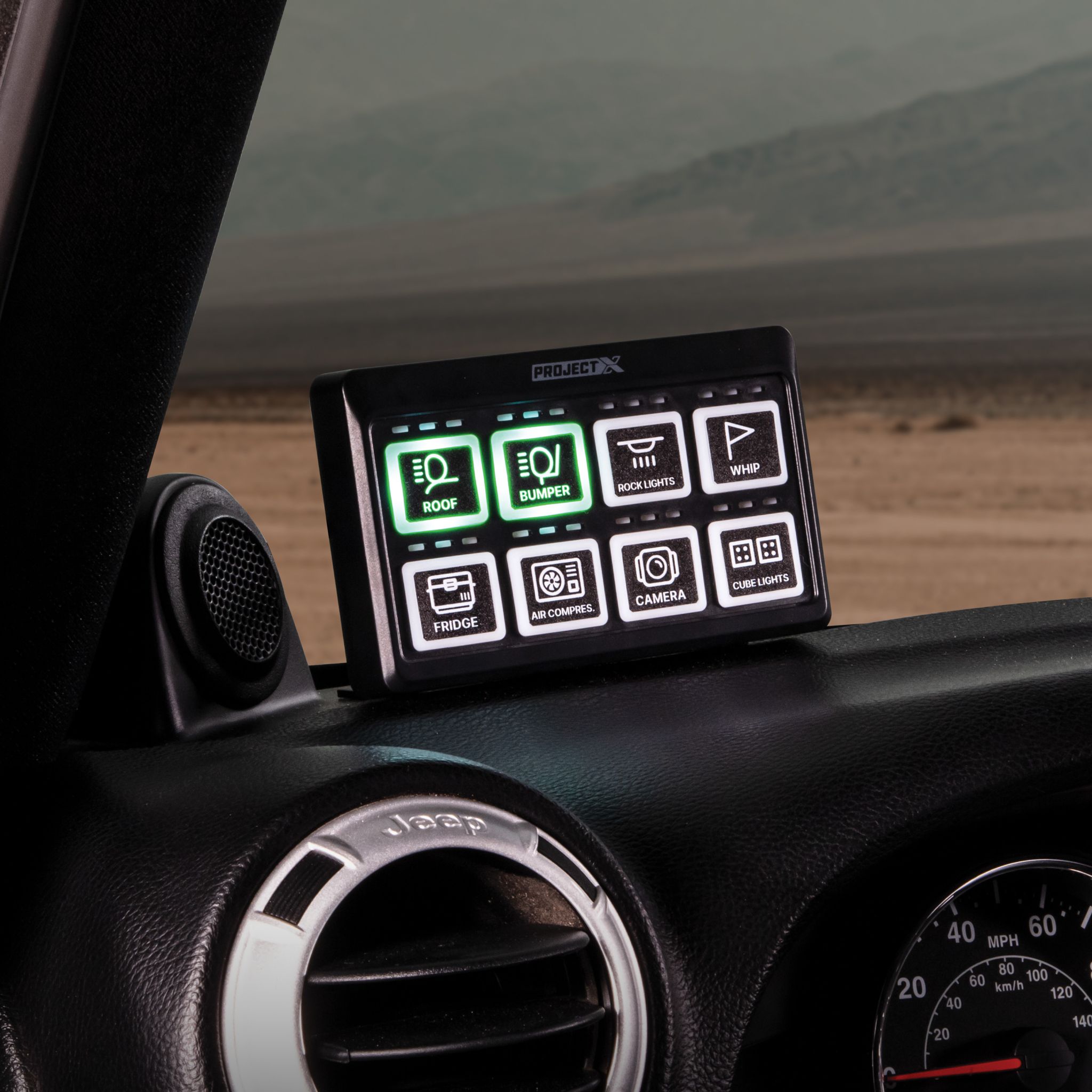

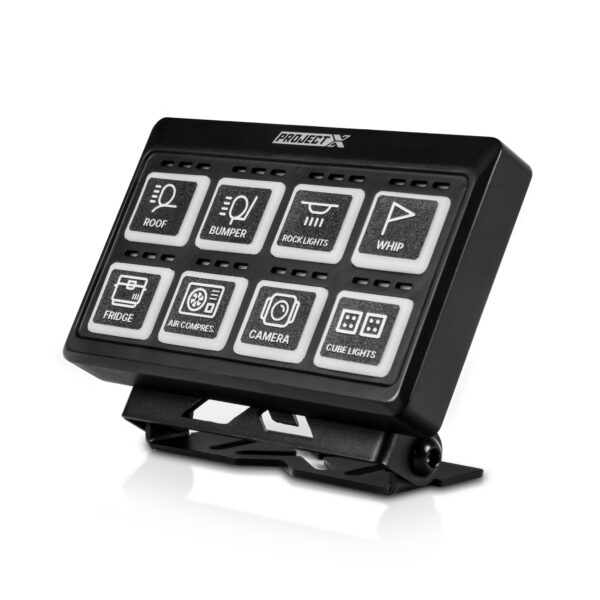

Expand the functionality of your PROJECT X Ghost Box by adding the wireless control keypad. Install this keypad anywhere in your vehicle to wirelessly control your Ghost Box connected accessories with the touch of a button. The keypad comes with eight (8) LED backlit switches, a mounting bracket with universal bolt patterns for your interior or windshield and requires only a single cable to function. The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch b oxes, creating a totally customizable and wirelessly controlled experience.

Additional Attributes:

GTIN: 00840005388242
Voltage: 12
Length: 4.8
Mounted Weight: 0.5
Width: 0.7
Height: 2.9
Grade Type: Performance
Mounting Hole Quantity: 2
Housing Material: Plastic
Terminal Quantity: 1
Housing Color: Black
Add-On: GB538825-1
Amperage Rating: 60
Connector Quantity (Keypad): 1
Connector Type (Keypad): RJ45
Control Method: App (IOS & Android)
Hardware Included: Yes
Hardware Material: Stainless
Height – Keypad: 2.9 IN
Input Voltage Range: 9-16V DC
Keypad Wiring Harness Included: Y
Length – Keypad: 2.9 IN
Maximum Current (Keypad): 0.075 Amps @ 12V DC
Maximum Wattage (Keypad): 0.9 Watts @ 12V DC
Notes: Must be used with a Ghost Box Control Module.
Operating temperature: -22F to 149F
Prop 65 – Long Label: WARNING: This product can expose you to chemicals including DEHP and DINP, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 – Short Label: CR = WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Warning Chemical Listing: DEHP, DINP
Prop 65: Y
Storage Temperature: -40F to 185F
TLE: PROJECT X – Ghost Box (1PC Keypad only)
Universal Or Specific Fit: Universal
Waterproof Rating: IP64
Weight – Keypad: 0.5 LBS
Width – Keypad: 0.7 IN
Wireless Frequency: 2.4GHz RF Wi-Fi & Bluetooth 5.0
Wireless Range (Bluetooth): 33 Feet without interference or obstruction
Wireless Range (RF Wi-Fi): 98.4 Feet without interference or obstruction

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 8.5 x 2.5 x 4.5 inches
Weight: 0.5 PG

PDF:

Weight 0.23 kg
Dimensions 8.5 × 2.5 × 4.5 cm
