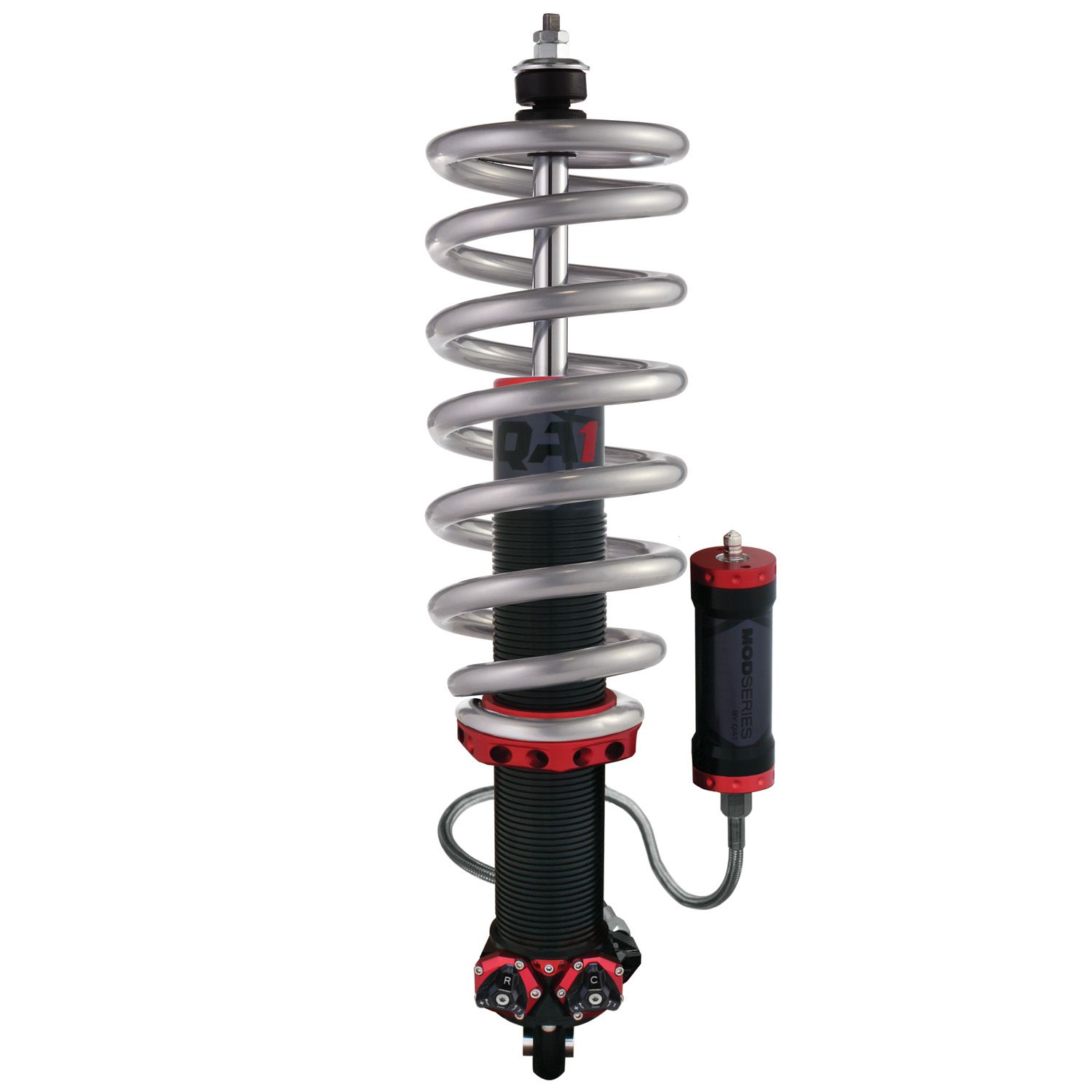

QA1 Shock Absorber and Coil Spring Assembly MG507-10350C

$3,224.73

MOD Series double adjustable with low speed bleed stock mount shock kit, remote canister. Compressed height of 9.63", extended height of 14.5". Includes 10" large tapered flat spring with rating of 350.

  • 4-way adjustable high and low speed bleed
  • QuickTune Technology: dry modular valve packs that can easily be swapped out
  • Valve packs shock can quickly and easily be revalved without interrupting the oil path or opening the shock up for debris and air contamination
  • Remote or piggyback canister mounting options
  • 100% dyno tested and serialized
  • Made in the USA
SKU: BJGM-MG507-10350C Category:

soft or firm compression and rebound valve packs also available. Once the desired valving is in place, the unique double adjustable design, with adjustable low-speed bleed, allows for fully independent control over the compression and rebound characteristics. With all these adjustability options, the MOD Series shock achieves an expansive force curve capability and an unprecedented level of tunability. The shock also features mounting adjustability to accommodate a variety of vehicles and mounting configurations. The nitrogen-charged canister is available in a piggyback or remote configuration for ease of installation in tight areas, and the base eyelet is indexable, so you can unbolt it and reattach it at the angle you need for the best shock and canister placement. Like all QA1 shocks, the MOD Series shock is 100% dyno tested and serialized and proudly made in QA1's Lakeville, Minnesota facility.

Additional Attributes:

GTIN: 00806990154866
Manufacturer Part Number: MG507-10350C
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
UPC: 806990154866

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 29.125 x 14.125 x 9.125 inches
Weight: 26.34 PG

Weight 11.95 kg
Dimensions 29.125 × 14.125 × 9.125 cm
