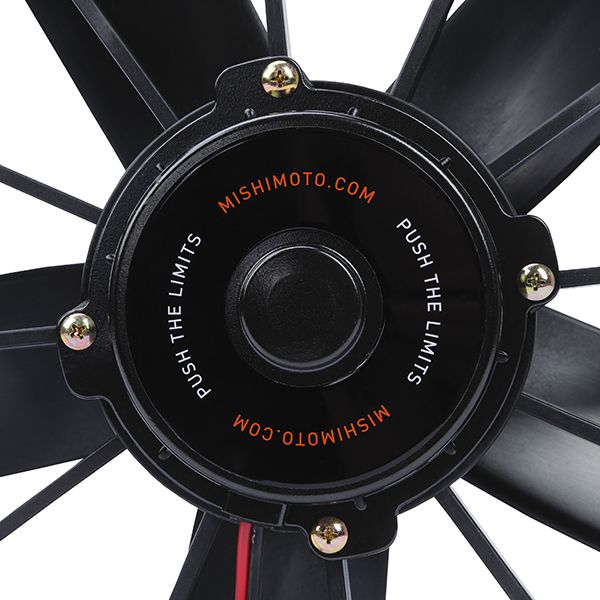

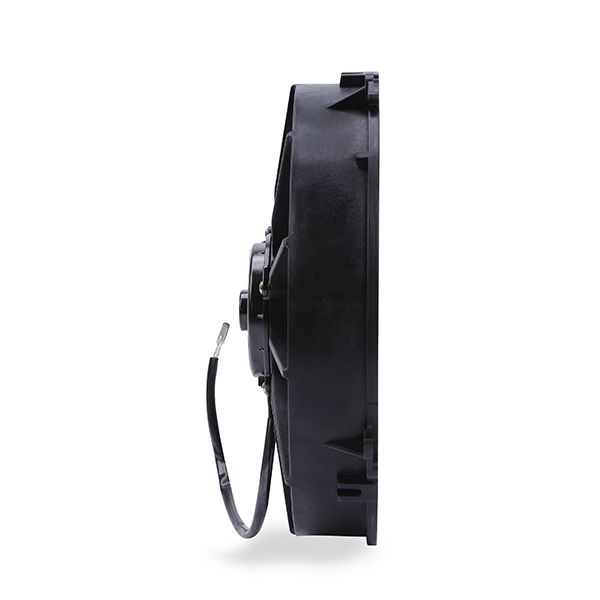

Race Line, High-Flow Fan, 11in

Provide your radiator with the maximum amount of airflow with our new 11in Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 1700 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.

Additional Attributes:

GTIN: 00748354011869
Install Difficulty: N/A
SellingPoint01: High-flow fan provides increased airflow
SellingPoint02: Compact design with a housing diameter of 12-in and an overall thickness of 3.70-in provides sufficient clearance in the engine
SellingPoint03: Universal fitment

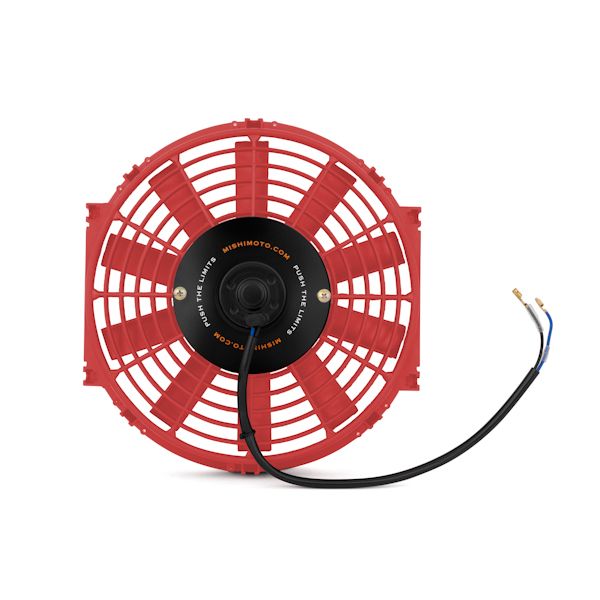

SellingPoint04: Many sizes available
SellingPoint05: Mishimoto Lifetime Warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Airflow Direction: Pull
TechSpec Amp Draw (Running): 11
TechSpec Amp Draw (Start): N/A
TechSpec Applications: N/A
TechSpec Blade Style: Straight
TechSpec CFM: 1700
TechSpec Depth (in): 3.85
TechSpec Diameter (in): 11

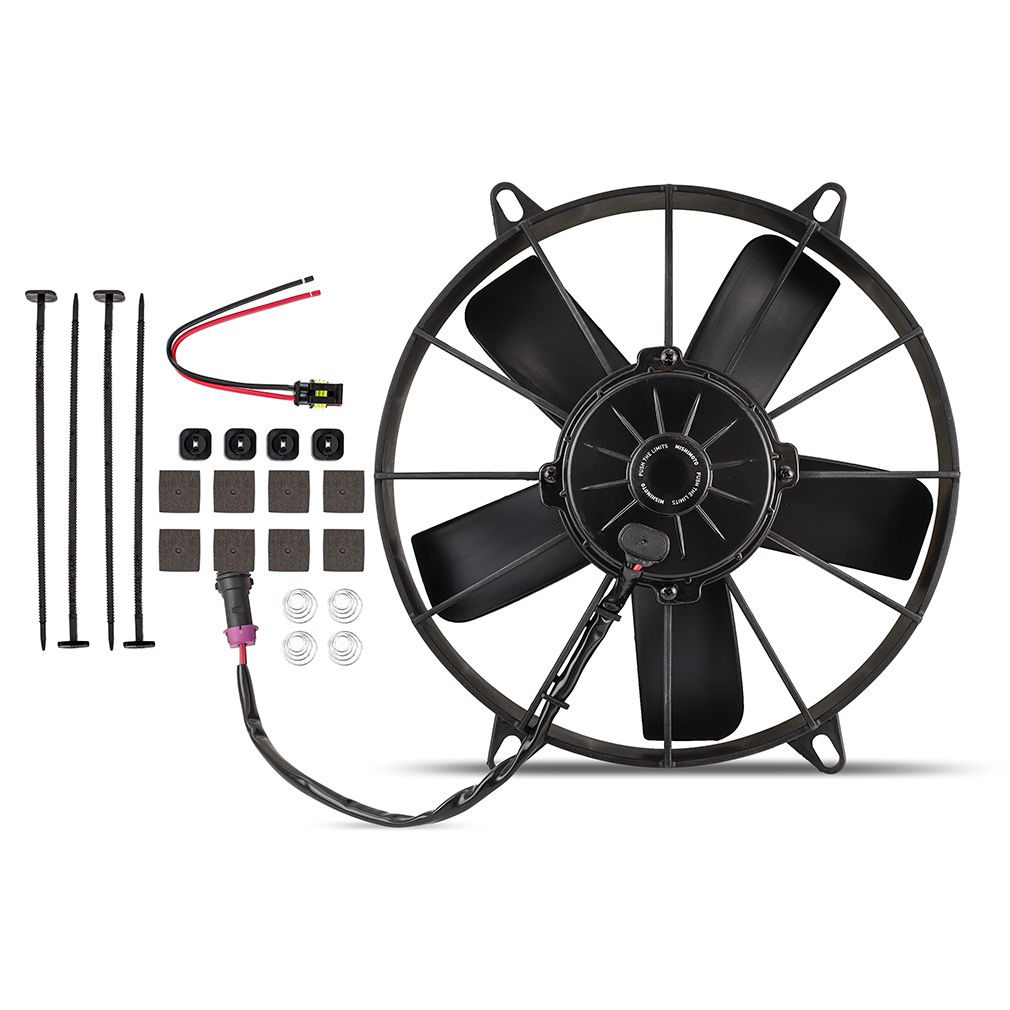

TechSpec Includes: (1) Mishimoto Fan–Mounting Kit:–(4) Heavy-Duty Plastic Fasteners–(8) Adhesive Foam Protective Pads–(4) Dampening Springs–(4) Fastener End Connectors–Mishimoto Lifetime Warranty
TechSpec Installation Notes: Mishimoto recommends the use of a fan shroud for optimal operation. — Reversing polarity can enable pusher functionality, but the original design optimization for puller configuration may limit performance. Long-term effects of this configuration are uncertain.
TechSpec Reversible?: True
TechSpec RPM: 2900
TechSpec Wiring Connection: Female Snap-Plug Terminal

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13 x 4.5 x 13 inches
Weight: 5.8 PG
