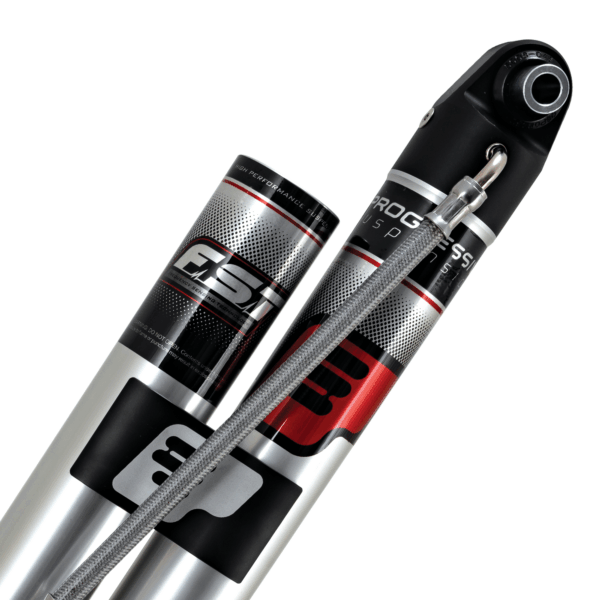

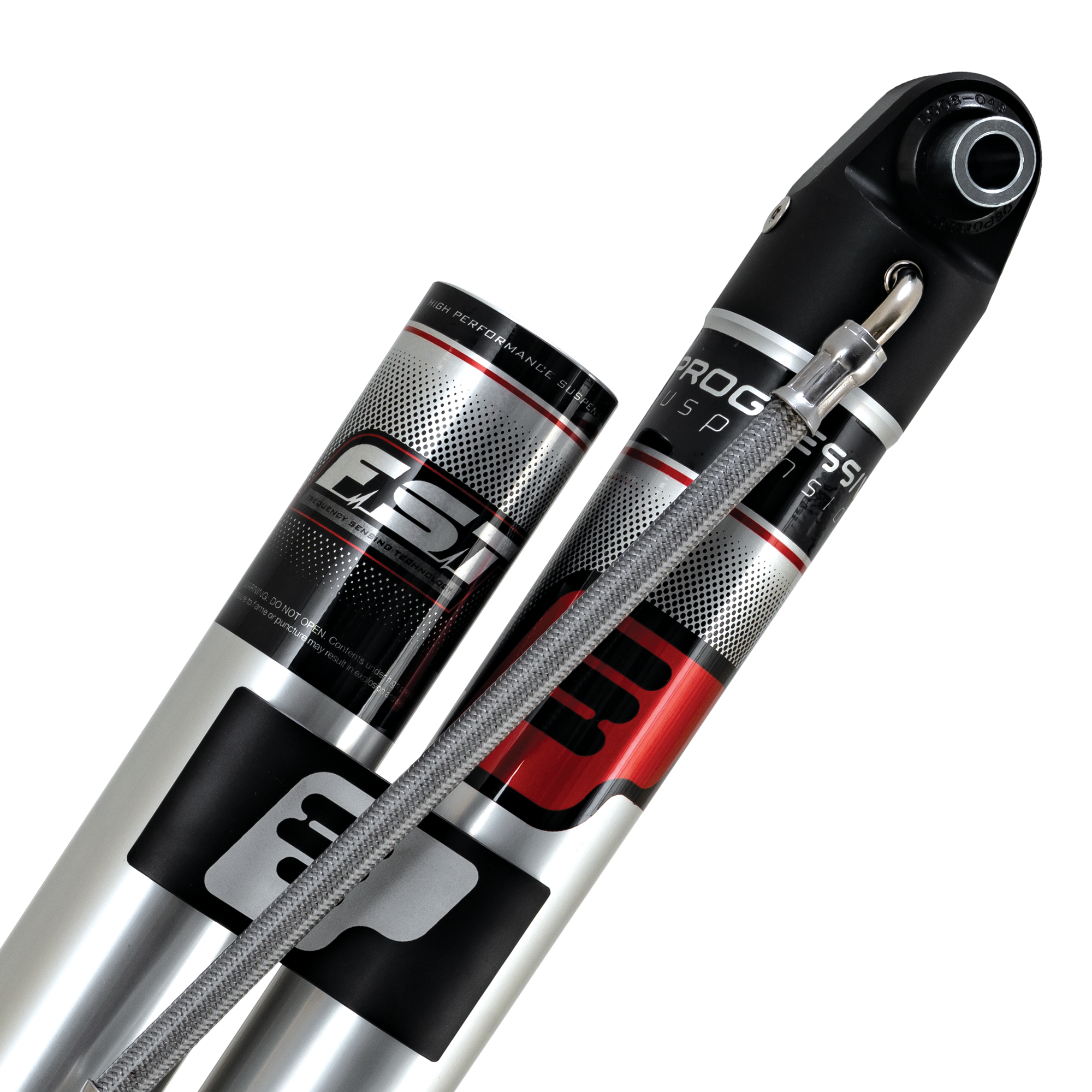

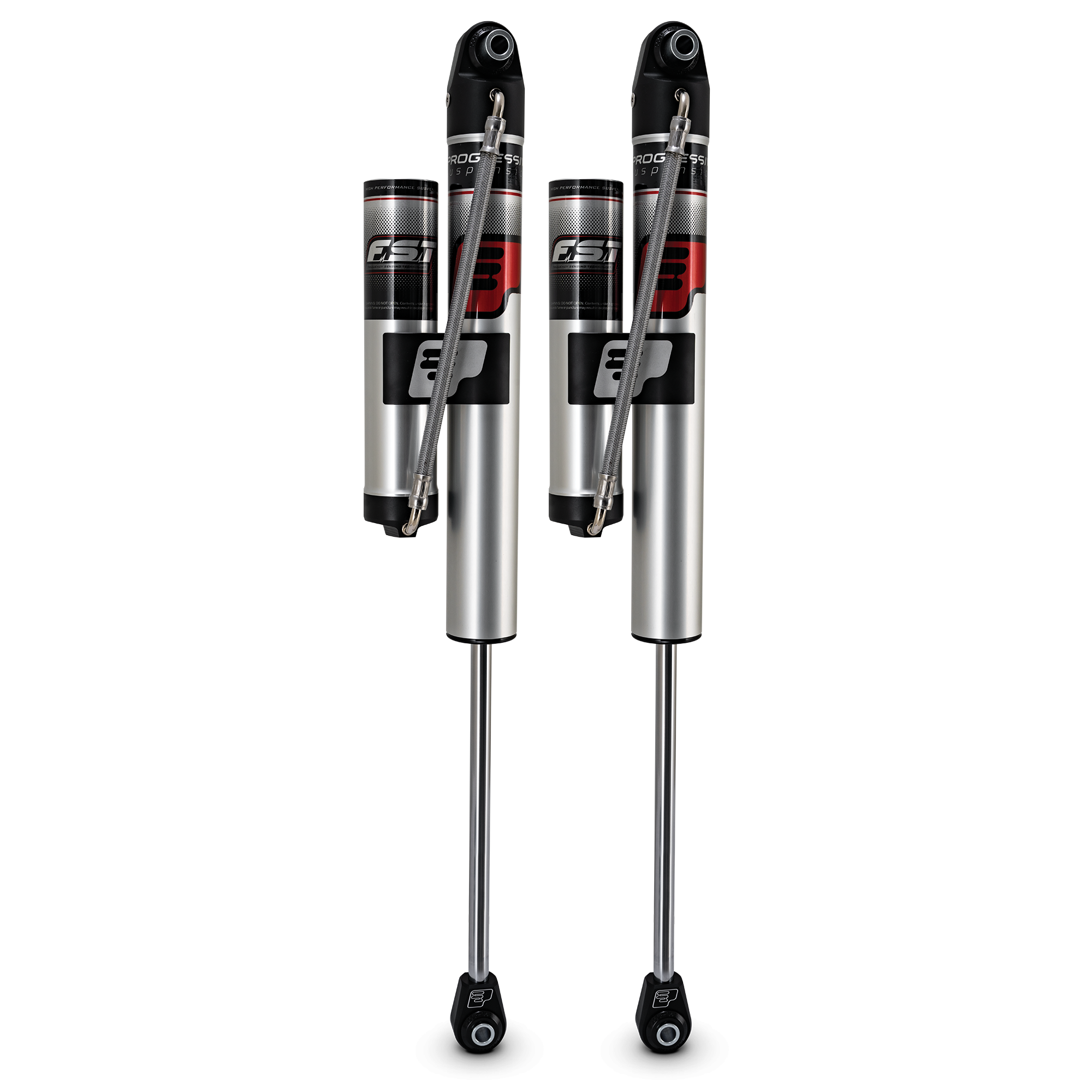

Rear Pair – STR 47 Series 2.0 Remote Reservoir – 07-18 WRANGLER (JK) 1.5″-3.0″

Our F.S.T. piston assembly takes the guess work out of damping curve tuning. Spend more time driving and less time tuning for specific scenarios. With this technology, there is no need for external adjustments or the hassle of learning to tune. Frequency Sensing Technology shines in its ability to adapt & overcome.

Additional Attributes:

GTIN: 00850045320935
Body Material: 46.0mm extruded 6061-T6 aluminumum tubes
Body Plating: Polished and anodized tube for a superior look and corrosion resistance.
Bottom Mount Type: Eyelet
Bushings: High performance urethane bushings for increased durability and handling
Compressed Length (in): 15.2
Extended Length (in): 24.45
Piston: State of the art high flow multipiece FST piston
Prop 65 Warning: Warning: Cancer and Reproductive Harm – www.p65Warnings.ca.gov
Prop 65 Yes/No: Yes
Reservior Spec: 46.0mm precision bored 6061-T6 Aluminum anodized tube
Seals: One piece seal with separate double lipped dirt excluder
Shaft Specs: 16.0mm hard chrome high carbon alloy steel rod
Top Mount Type: Eyelet
Travel Length (in): 9.25
Valving: Application specific valving tuned simultaneously with FST

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: PR
Dimension: 27 x 6 x 3.25 inches
Weight: 14 PG
