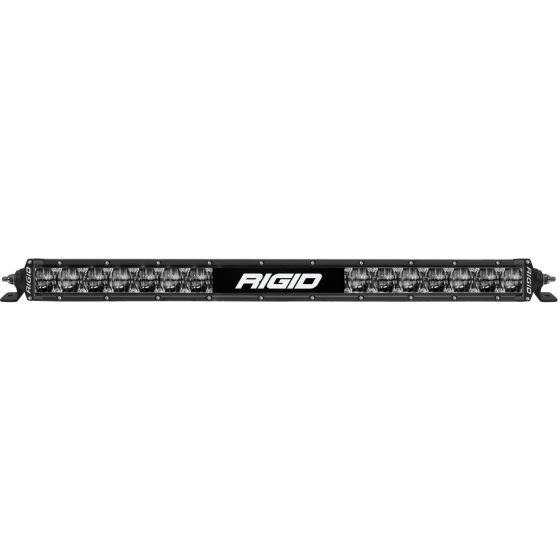

Off-road auxiliary lighting is one thing, but everyone knows that it's important to have lighting that is also safe and legal for on-road use. RIGID's SAE Compliant Fog Lights and Auxiliary High Beam Driving Lights allow them to be used on-the-road and not just off-road. RIGID created the proprietary output spread and height with the new patented Clarilux(TM) optic system. The color temperature of these LEDs was carefully chosen to be a perfect range of pure daylight to penetrate the night for superior clarity on the road. These SAE Compliant lights project long-range high intensity light while drawing very little power and provide up to 50,000 useful hours. As an added function, the SR-Series SAE compliant lights offer Amber backlighting. This feature can be ran independently, or in tandem with the forward projecting LEDs. The low profile design includes a High-Grade Aluminum Alloy Housing with a custom designed oversized heat sink to keep the LEDs running cooler, brighter and longer. Combine this with the strength of a polycarbonate lens
Additional Attributes:
GTIN: 00849774033827
A = LUX at 10 Meters: 342.6
Amp Draw: 6.8
B = Beam Distance with 1 LUX: 185.1
C = Beam Distance with .25 LUX: 370.2
Field Horizontal (Measured in Degrees): 68.7
Field Vertical (Measured in Degrees): 10.2
Lighting Family: SR-Series
Number of LED’s: 28
Peak Beam Intensity (cd): 34,263
Product Family: Fog Lights
Product Weight: 5.3
Prop 65 Yes/No: No
Raw Lumens: 8,253
test series: Universal Fit
Watts: 95
What’s In The Package: SR-Series 20 Inch Dual Function SAE Auxiliary High Beam Driving Lights with Amber Backlight, two black powder coated L-shape brackets, mounting Hardware, wiring harness
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Released
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 6 x 25.3125 x 6 inches
Weight: 8.7 PG
11-12870-B_RIGID-SAE_SR_SERIES-INSTALLATION
