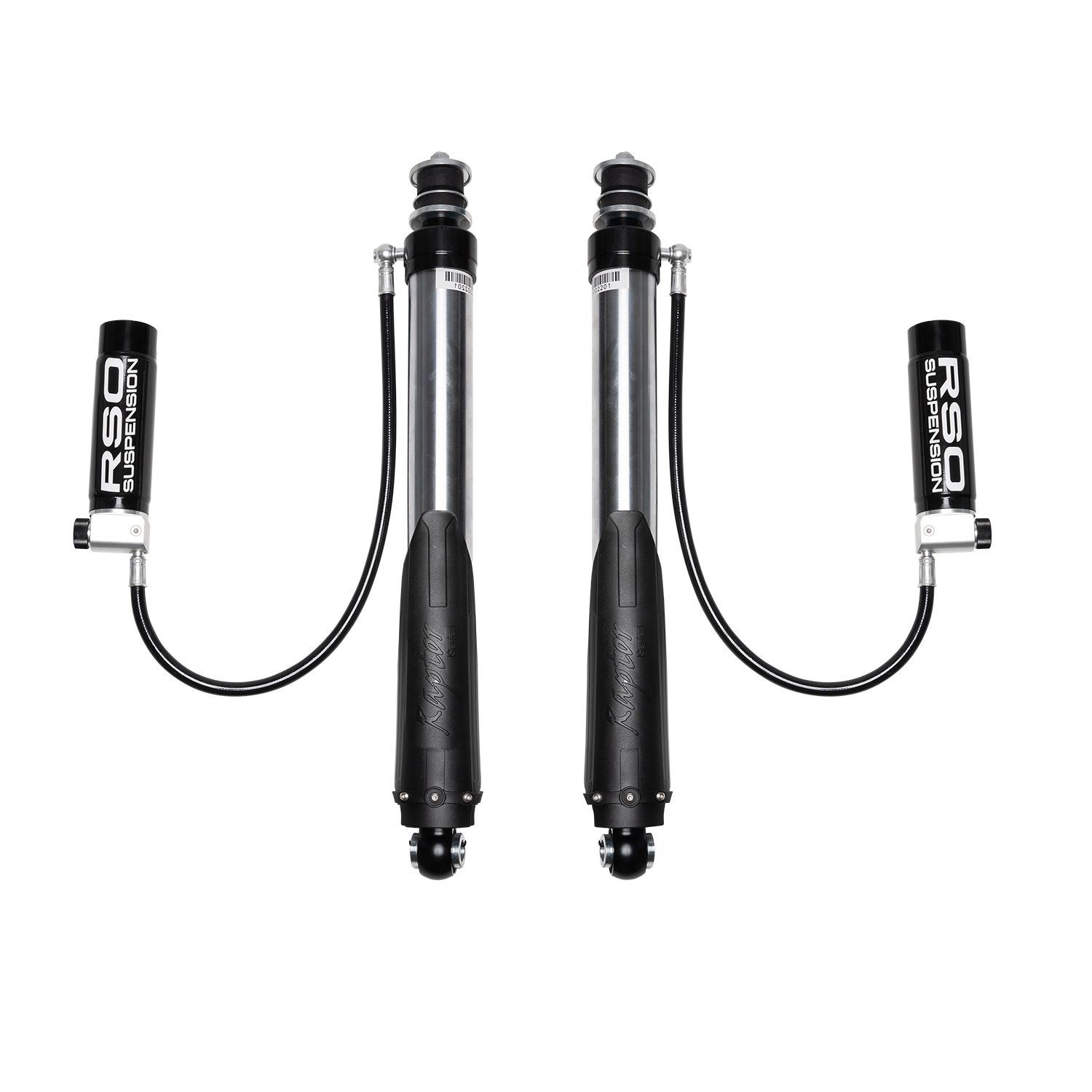

RSO Suspension – 170107-452400 – Front 2.5 Adjustable Compression and Rebound Remote Reservoir Shocks 0-3in Lift – 07-18 Jeep Wrangler JK/JKU

$2,193.73

RSO Front 2.5 Adjustable Compression and Rebound Remote Reservoir Shocks 0-3in Lift – 07-18 Jeep Wrangler JK/JKU

ACR shocks provide hand adjustable compression levels (soft or firm) as well as rebound adjustability for ultimate suspension tuning
Increased on and offroad comfort while increasing suspension travel and handling
2.5in steel body with Polished 3/4in steel shafts protected by the included high impact resistant ABS rock guards and heat-treated steel spherical bearings offer strength and durability
External remote reservoir with PTFE Lined Stainless steel braided tubing and hardened rubber UV coating hose allows for increased oil and nitrogen capacity reducing heat and shock fade. Race-developed high flow piston design
Direct replacement for stock and aftermarket lift kits. Vehicle specific fitment to ensure that the part is right for your vehicle including vehicle specific reservoir mounts. Backed by a Limited 1 Year Manufacturer warranty

SKU: DTLV-170107-452400 Category: Suspension Shock Absorber

RSO Suspension Adjustable Compression and Rebound (ACR) Shocks with remote reservoir provide improved suspension damping while increasing on and offroad driving comfort. They feature hand adjustable compression levels as well as adjustable rebound for the off-roader that is serious about their suspension tuning. These 2.5in smooth bore machined alloy bodies give maximum corrosion resistance. The 3/4in steel shafts and heat-treated steel spherical bearings offer strength and dependability and are protected by large high impact resistant ABS rock guards. Its external reservoir allows for increased oil and nitrogen capacity giving greater heat dissipation, increasing performance, and eliminating shock fade. Using large PTFE Lined Stainless steel braided tubing and hardened rubber UV coating hoses keeps the reservoir close to the frame away from any moving components. Experience for yourself the incredible performance and precise control that RSO Suspension’s new compression and rebound adjustable shocks deliver.

Additional Attributes:

GTIN: 00813443029015
Adjustable Compression: Yes
Cylinder Finish: Powder Coated
Rod Diameter: 0.86
Body Color: Silver
Color: Silver
Finish: Powder Coated
Shaft Material: Steel
Cylinder Material: Steel
Type: Telescopic
Mounting Hardware Included: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Extended Length: 25.5
Shock Absorber Rod End Measuring Point: 9.25
Shock Absorber Body End Measuring Point: 12.25
Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
Upper Mount Type: T-Bar
Boot Included: No
Gas Charged: No
Cylinder Color: Silver
Body Diameter: 2.5
Body Material: Steel
Adjustable Rebound: Yes
Dust Shield Included: Yes
Dust Shield Material: Plastic
Remote Reservoir: Yes
Bladder(s) Included: No
Strut Mount Insulator(s) Included: No
Coil Spring Insulator(s) Included: No
Damping Adjustment Type: Manual
Includes Bump Stop: No
Hydraulic Lockout: No
Lift Height: 0-3
Position: Front
Product Video URL Link: https://youtu.be/lzsqZTeWHm0
ProductImage1 URL Link: https://www.cyc-engineering.com/cdn/shop/files/170107-452400_P1.jpg
ProductImage2 URL Link: https://www.cyc-engineering.com/cdn/shop/files/170107-452400_P2.jpg
ProductImage3 URL Link: https://www.cyc-engineering.com/cdn/shop/files/170107-452400_P3.jpg
ProductImage4 URL Link: https://www.cyc-engineering.com/cdn/shop/files/170107-452400_P4.jpg
ProductImage5 URL Link: https://www.cyc-engineering.com/cdn/shop/files/170107-452400_P5.jpg
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Warning Label: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No: Yes
Reservoir Mount Style: Remote

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: PR
Dimension: 32 x 12 x 6 inches
Weight: 28 PG

Weight	12.7 kg
Dimensions	32 × 12 × 6 cm
