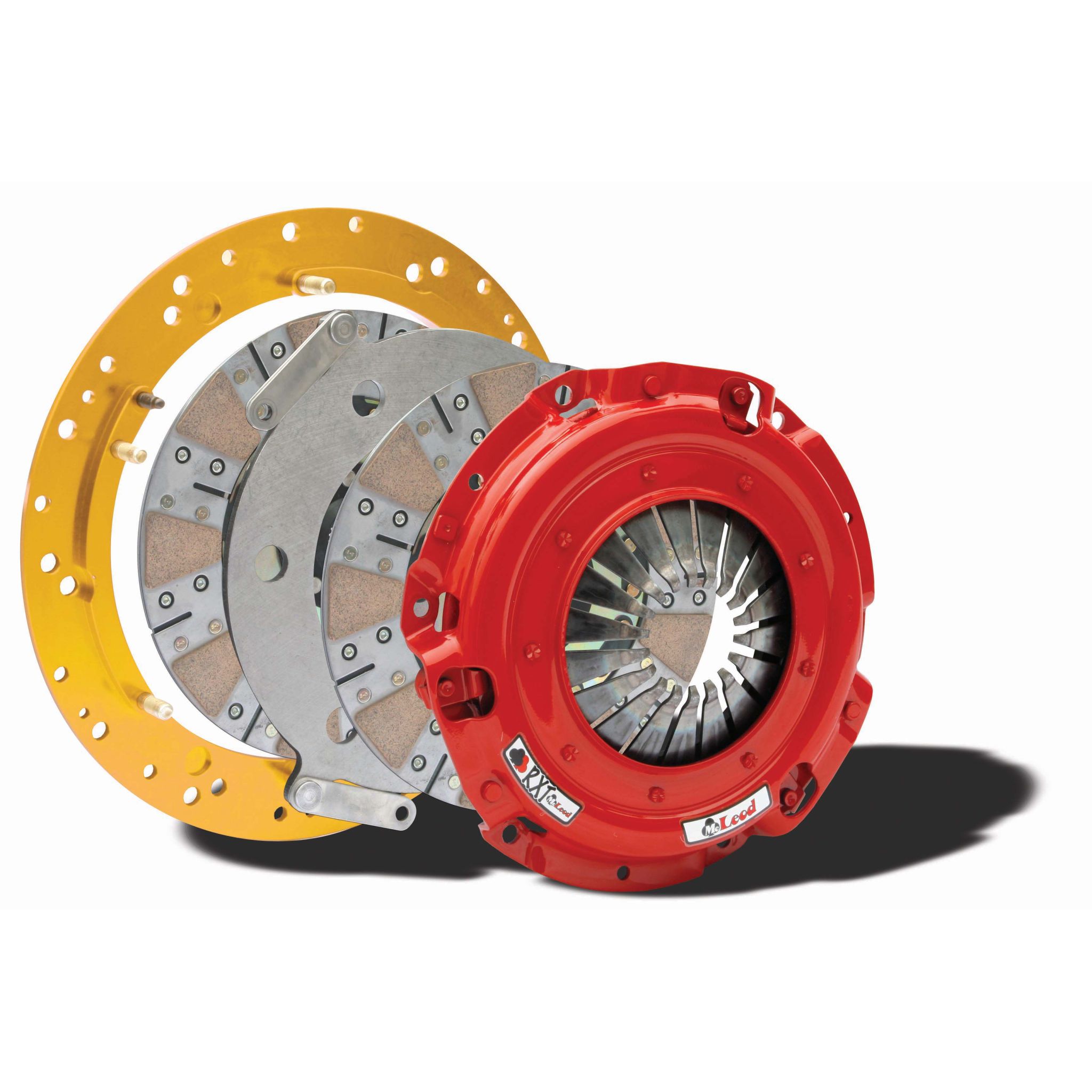

RXT 1200: Metric Ring: Ford Mustang 2001.5-10 Ford 4.6L: 1-1/16 x 10

McLeod RXT 1200 – Rated up to 1200 HP, this twin disc clutch is Intended for the high horsepower street/strip fan. This clutch can handle serious horsepower and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT 1200 is what you’ll need! This series of clutches comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

Additional Attributes:

GTIN: 00887753019134
Alignment Tool Included: Yes
Clutch Disc Quantity: 2
Clutch Patterns: 11″ GM LS-X With Dowel Pin; 11″ Ford Modular with Dowel Pins
Clutch Usage: Performance
Disc Diameter (in.): 9.688
Disc Material: Ceramic
Disc Style: Segmented
Flywheel Fitment: For use with Ford Modular/GM LS-X
Flywheel Included: No
Hardware Included: Yes
Horsepower Rating: 1200
Hub Style: Solid
Input Shaft Diameter (in.): 1.063
Input Spline Quantity: 10
Make: Ford
Note: Crank relief must be 6.250″ or smaller for correct disc to flywheel contact. Will NOT fit Ford w/9 Bolt Pattern.
Pilot Bushing Included: No
Pressure Plate Style: Diaphragm
Quantity: Sold as a kit.
Throwout Bearing Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16 x 17 x 5.5 inches
Weight: 23 PG

PDF:

Important_Clutch_Installation_Hints
