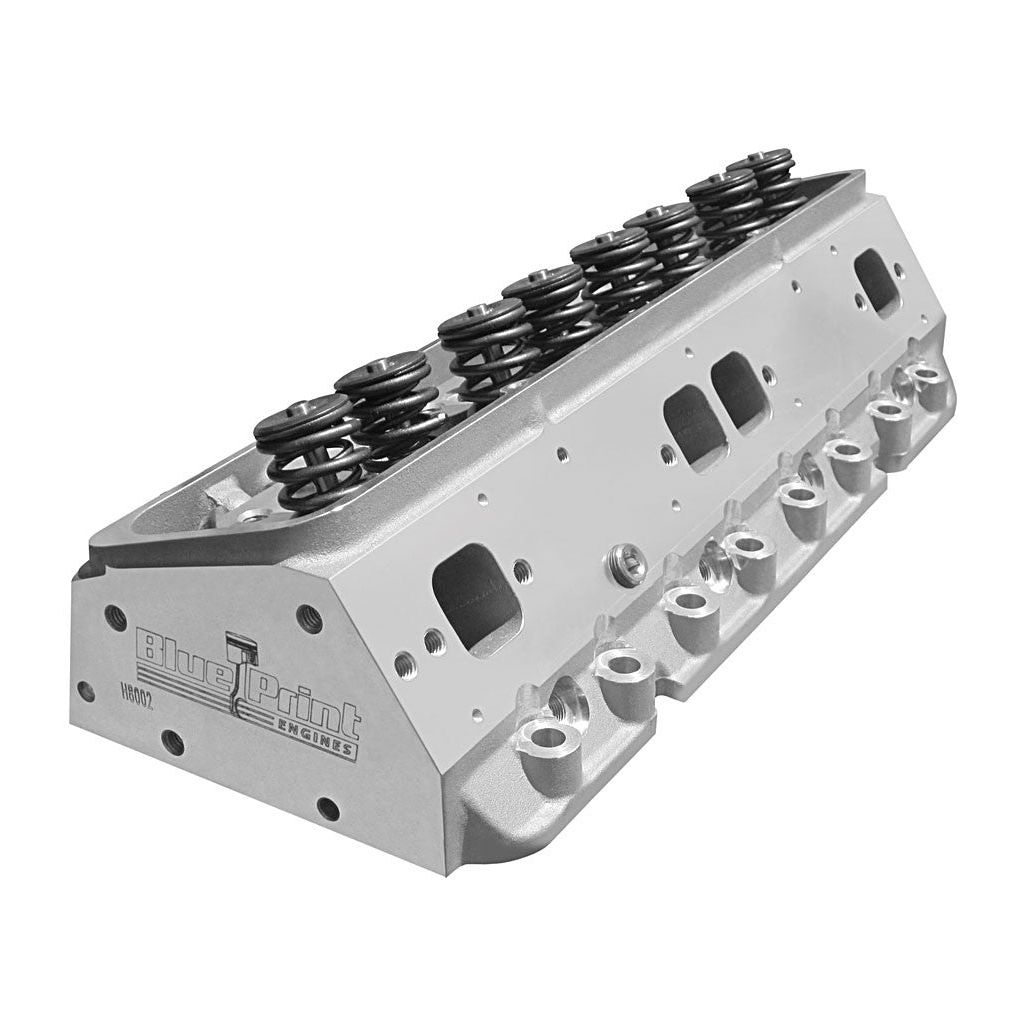

SB CHEVY ALUMINUM CYLINDER HEAD – 195CC – ASSEMBLED (SOLD INDIVIDUALLY)

SB Chevy Aluminum Cylinder Head 195cc Assembled Sold Individually

Additional Attributes:

GTIN: 00887753744678
Accessory Bolt Holes Drilled: Yes, 3/8 -16 in.
Camshaft Style: Hydraulic Roller
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
Combustion Chamber Volume (cc): 64cc
Cylinder Head Color: Natural
Cylinder Head Material: Aluminum
Cylinder Head Style: Assembled
Damper Spring Included: Yes
Exhaust Port Location: Raised .500
Exhaust Port Shape: Square
Exhaust Runner Volume (cc): 75cc
Exhaust Valve Angle: 23
Exhaust Valve Diameter (in.): 1.600 in.
Exhaust Valves Included: Yes
Guide plate Pushrod Size: 5/16 in.
Guide plates Included: Yes
Heat Crossover: No
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Runner Volume (cc): 195cc
Intake Valve Angle: 23
Intake Valve Diameter (in.): 2.020 in.
Intake Valves Included: Yes
Lock Style: 7 Degree
Locks Included: Yes
Machined for O-Ring: No
Manufacturer’s Part Number: H8002S
Maximum Valve Lift (in.): 0.575 in.
Notes: Uses 3/4 in. reach gasket seat spark plug. Heads are drilled to accept both early style (12 bolt) and late style (8 bolt/Vortec) intake manifolds.
Number of Springs Per Valve: Dual
Oiling Style: Through Pushrod
Outside Diameter of Outer Spring (in.): 1.437 in.
Quantity: Sold Individually
Retainer Material: Chromoly Steel
Retainers Included: Yes
Rocker Arm Nut Thread Size: 7/16 in. x 20
Rocker Arm Nuts Included: No
Rocker Arm Studs Included: Yes
Rocker Arms Included: No
Spark Plug Style: Straight
Steam Holes Drilled: No
Valve Cover Mounting Style: Perimeter Bolt
Valve Guide Material: Manganese Bronze
Valve Guides Included: Yes
Valve Seat Machine Style: 3-Angle
Valve Seat Material: Chrome Nickel
Valve Seats Machined: Yes
Valve Springs Included: Yes
Valve Stem Seal Style: Viton® Fluoroelastomer
Valve Stem Seals Included: Yes

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22 x 10 x 8 inches
Weight: 30 PG
