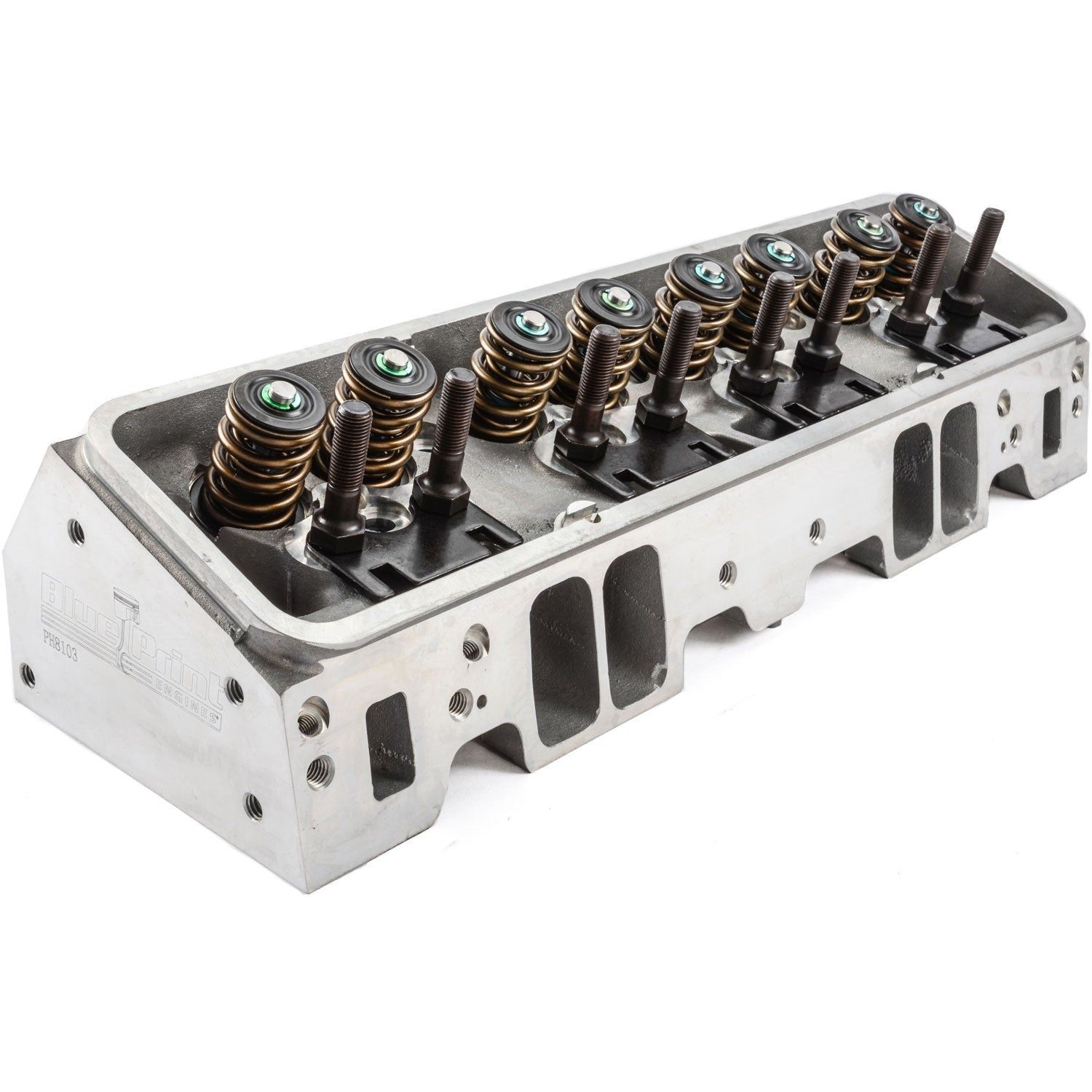

SB Chevy Aluminum Cylinder Head 220cc Assembled
Additional Attributes:
GTIN: 00887753744258
Accessory Bolt Holes Drilled:: Yes
Camshaft Style:: Hydraulic Roller
CNC-Machined Combustion Chamber:: No
CNC-Machined Intake Runner:: No
Combustion Chamber Volume (cc):: 64cc
Cylinder Head Color:: Natural
Cylinder Head Material:: Aluminum
Cylinder Head Style:: Assembled
Damper Spring Included:: Yes
Exhaust Port Location:: Raised .500
Exhaust Port Shape:: Square
Exhaust Runner Volume (cc):: 67cc
Exhaust Valve Angle:: 23
Exhaust Valve Diameter (in.):: 1.600 in.
Exhaust Valves Included:: Yes
Guide plate Pushrod Size:: 5/16 in.
Guide plates Included:: Yes
Heat Crossover:: No
Intake Port Location:: Standard
Intake Port Shape:: Rectangular
Intake Runner Volume (cc):: 220cc
Intake Valve Angle:: 23
Intake Valve Diameter (in.):: 2.080 in
Intake Valves Included:: Yes
Lock Style:: 7 degree
Locks Included:: Yes
Machined for O-Ring:: No
Manufacturer’s Part Number:: HP8103
Maximum Valve Lift (in.):: .650 in.
Notes:: Will not fit 1986-1991 Chevrolet Corvette. Uses 3/4 in. reach gasket seat spark plug
Number of Springs Per Valve:: Dual
Oiling Style:: Through pushrod
Outside Diameter of Outer Spring (in.):: 1.295 in.
Quantity:: Sold Individually
Retainer Material:: Chromoly steel
Retainers Included:: Yes
Rocker Arm Nut Thread Size:: 7/16 x 20
Rocker Arm Nuts Included:: No
Rocker Arm Studs Included:: Yes
Rocker Arms Included:: No
Spark Plug Style:: Straight
Steam Holes Drilled:: No
Valve Cover Mounting Style:: Center and Perimeter bolt
Valve Guide Material:: Manganese bronze
Valve Guides Included:: Yes
Valve Seat Machine Style:: 5-angle
Valve Seat Material:: Chrome nickel
Valve Seats Machined:: Yes
Valve Springs Included:: Yes
Valve Stem Seal Style:: Viton® Fluoroelastomer
Valve Stem Seals Included:: Yes
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 22 x 10 x 8 inches
Weight: 30 PG
