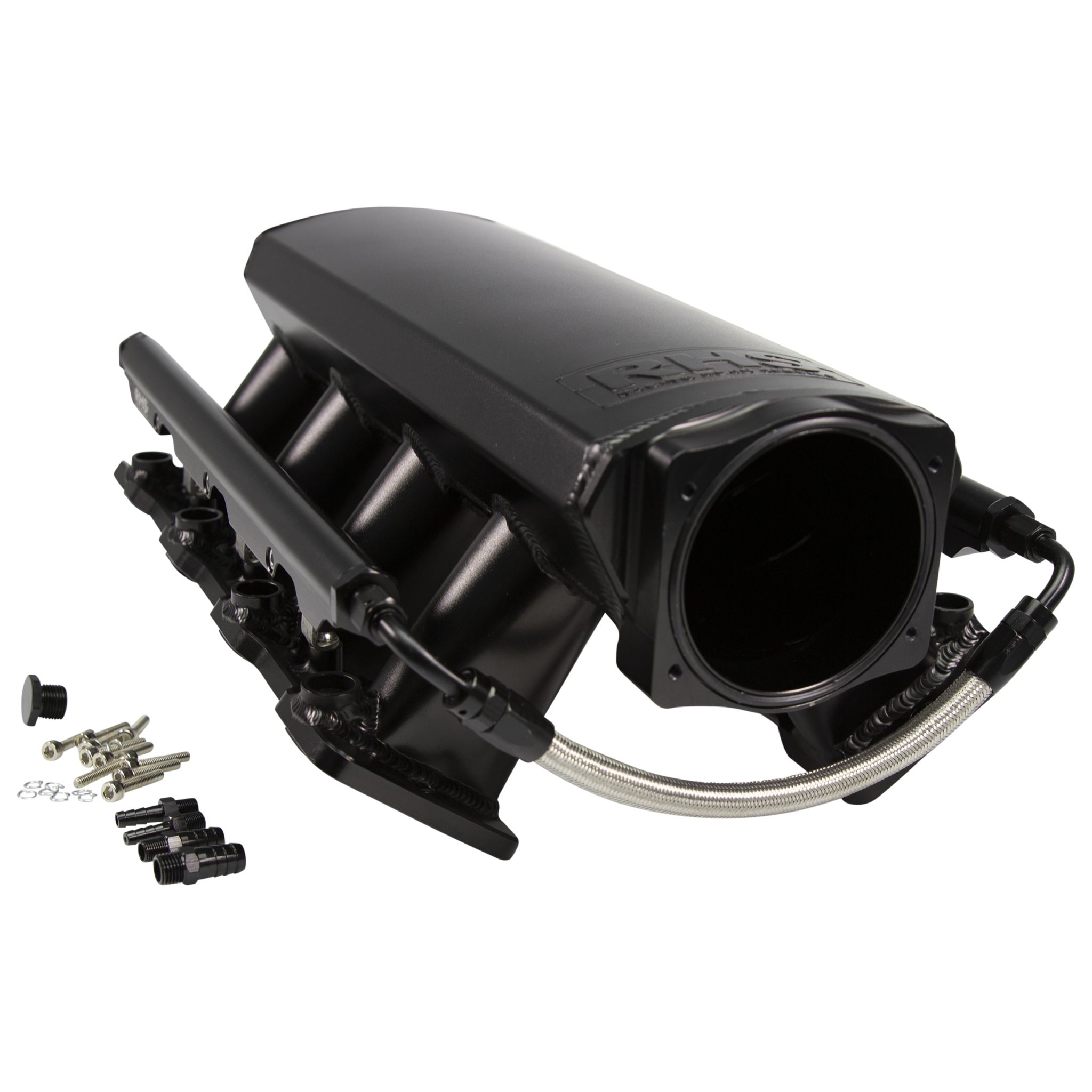

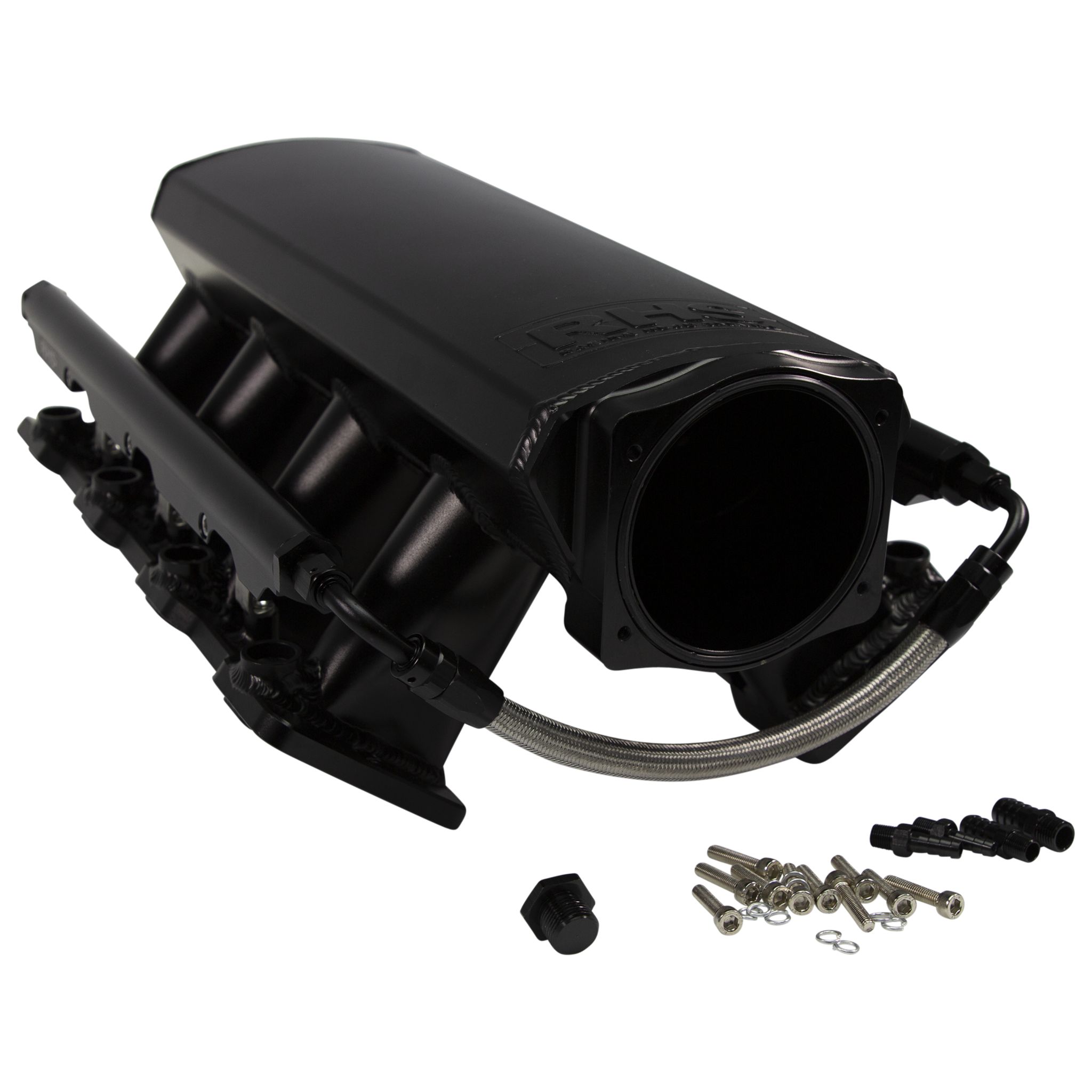

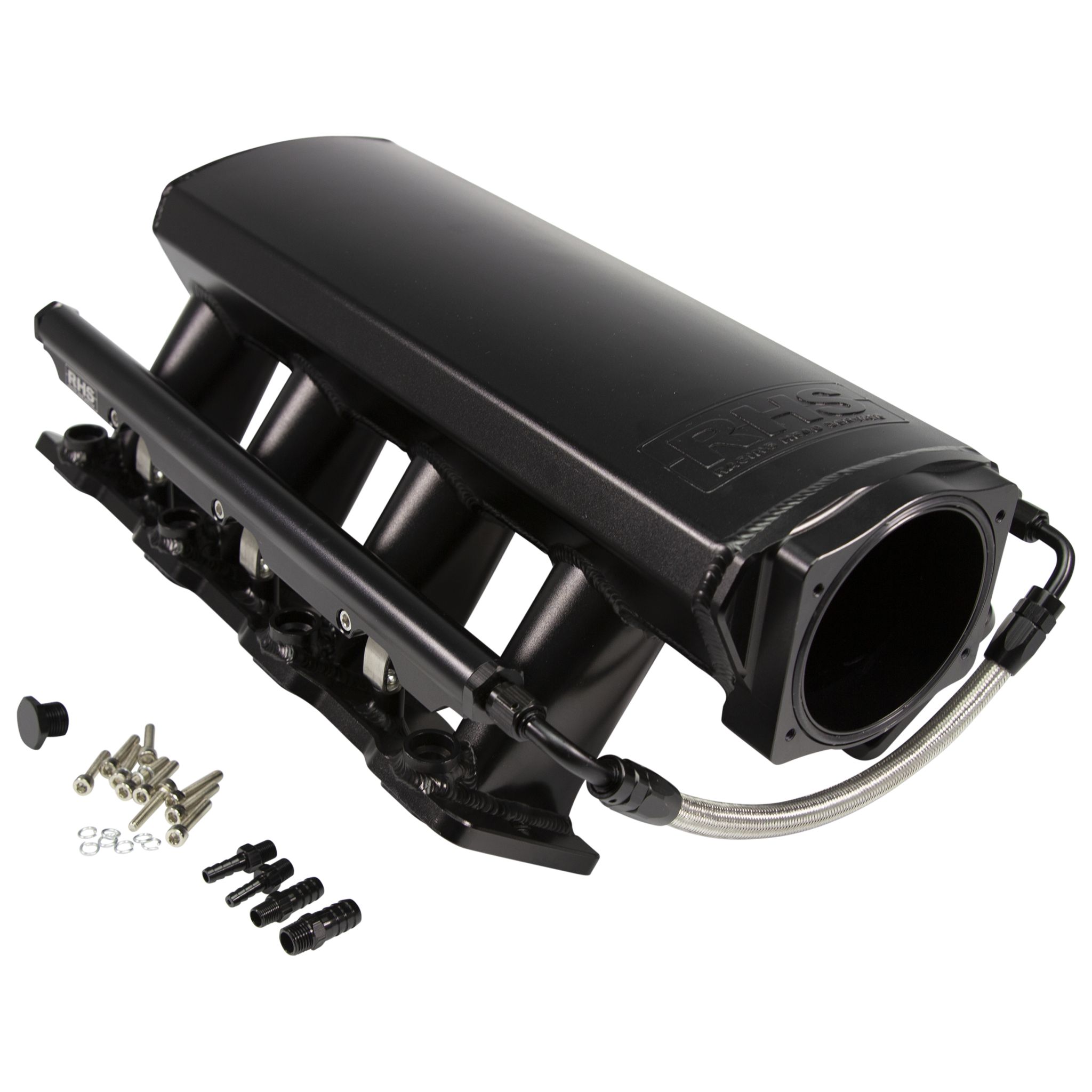

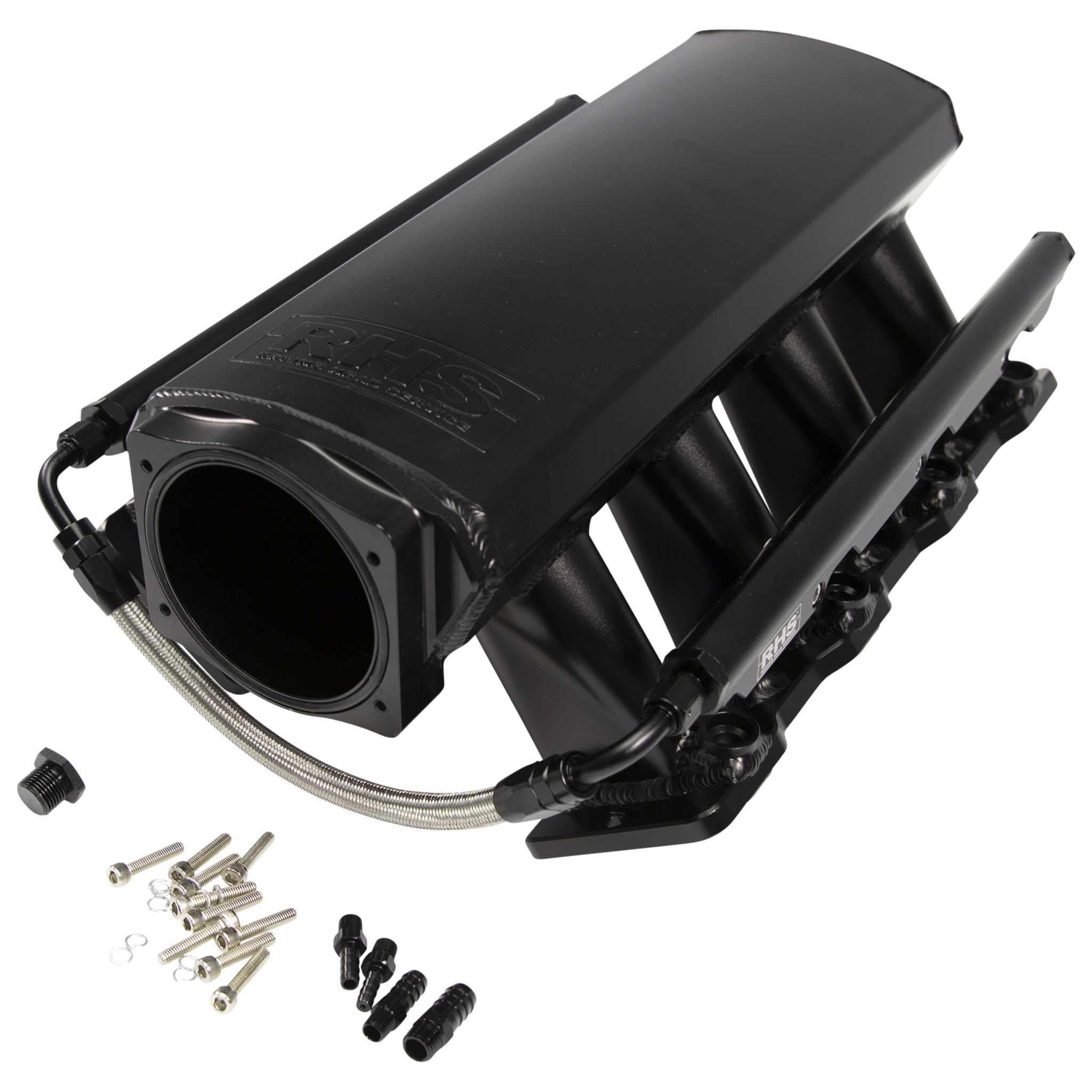

The RHS Sheet Metal Intake features a black anodized textured finish for a unique high-end appearance. Scalloped fuel rails (included) further set this intake apart. The RHS Sheet Metal Manifold doesn't just look good, it helps your engine achieve its peak potential, whether you're building a high RPM screamer or a boosted powerhouse.
Additional Attributes:
GTIN: 00036584403876
Boost Capable?: Yes
Center Maximum Height: 8.267
CNC Ported: No
Color: Textured Black Anodize
Compatible with FAST Big Mouth Throttle Bodies?: Yes
Compatible with FAST Modular Runner System?: No
EGR Provision?: No
Engine Family/Fitment: GM LS Gen III/IV Cathedral Port
Front Maximum Height: 8.267
Fuel Injector Pocket ID: 0.54
Fuel Rail Mounting Thread: M6
Includes Fuel Injectors?: No
Includes Fuel Rail Mounting Brackets?: Yes
Includes Fuel Rails?: Yes
Includes Intake to Engine Mounting Hardware?: Yes
Intake Port Fitment: Cathedral (LS1)
Intake Port Seals Included?: Yes
Intake Style: Fabricated Sheet Metal
Material: Aluminum
Maximum Recommended Boost Pressure: 45
New or Remanufactured: New
Nitrous Bungs?: No
Rear Maximum Height: 8.267
Recommended Fuel Injector O-Ring O.D.: 0.574
Recommended Fuel Injector Profile: EV1/EV6 (LS1/LS6 or LS2)
Removable Intake Runners?: No
RPM Operating Range: 2500-7500
Throttle Body Mounting Hole Bolt Attachment Number: 4
Throttle Body Mounting Hole Inside Diameter: 102
Throttle Body Mounting Hole Outer Diameter: 115.6
Upper to Lower Intake Seals Included?: N/A
Extended Information:
Emissions : EPA Eligible
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 27.75 x 16.5 x 9.75 inches
Weight: 23 PG
