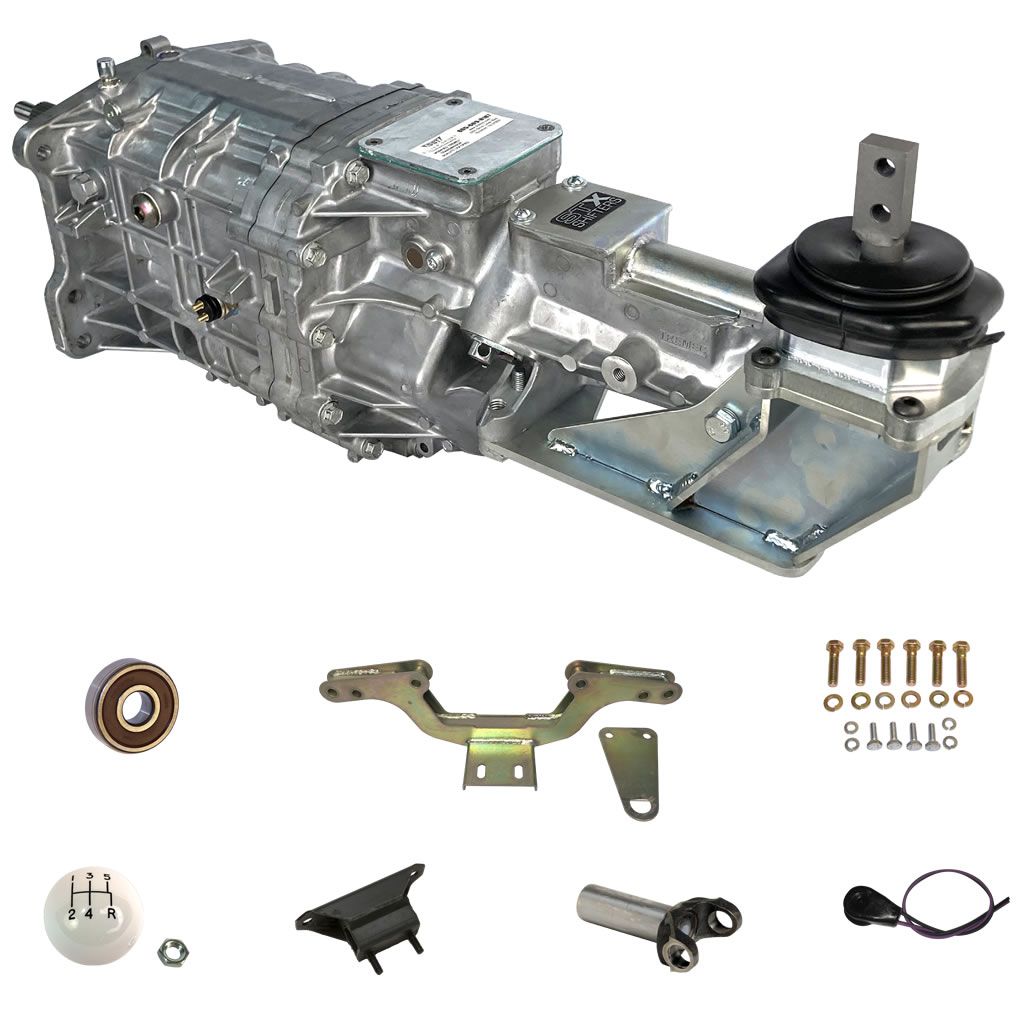

Silver Sport Transmissions EasyFit Kits are designed to be the perfect start to your TREMEC TKX installation. The kits are tailored with a vehicle specific shifter position and components to make your installation easy and less costly. The TKX is fitted with an offset STX Shifter®, Silver Sport Transmissions exclusive short throw shifter. The kit comes with a transmission mount, steel crossmember, reverse light harness, pilot bushing, slip yoke, and required hardware. • Gear Ratios – 2.87, 1.89, 1.28, 1.00, 0.68, 2.56R • 600 lb-ft Torque Rating • 26 Spline Count Input Shaft • STX Shifter – Short throw shifter • Steel Crossmember • Quality tested with a 12-month factory warranty
Additional Attributes:
GTIN: 00887753832696
Backup Light Connector Harness Included: Yes
Bell Housing Included: No
Box 1 Height: 17
Box 1 Length: 34
Box 1 Weight: 128 LBS
Box 1 Width: 14
Box 2 Height: 1
Box 2 Length: 9
Box 2 Weight: 0.1 LBS
Box 2 Width: 4
Case Material: Aluminum
Console Shift Plate Included: No
Crossmember Included: Yes
Crossmember Material: Steel
Fifth Gear Ratio: 0.68:1
First Gear Ratio: 2.87:1
Fourth Gear Ratio: 1.00:1
Input Shaft Diameter: 1.125
Input Shaft Quantity: 26
Mounting hardware Included: Yes
Number of Gears: 5
Output Shaft Quanitity: 31
Pilot Bushing Included: Yes
Pilot Bushing Material: Steel
Pilot Bushing Type: Roller
Quantity: Sold as a kit.
Second Gear Ratio: 1.89:1
Shifter Ball Included: No
Shifter Included: Yes
Speedometer Cable and Gear Included: No
Third Gear Ratio: 1.28:1
Transmission Included: Yes
Transmission Mount Included: Yes
Transmission Mount Type: Rubber
Transmission Tunnel Patch Included: No
Yoke Included: Yes
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 9 x 4 x 1 inches
Weight: 0.1 PG
MAM-01001E MOPAR E _ LATE B-BODY TKX Installation Manual_Rev0
