Speedtech Suspension Subframe 10231

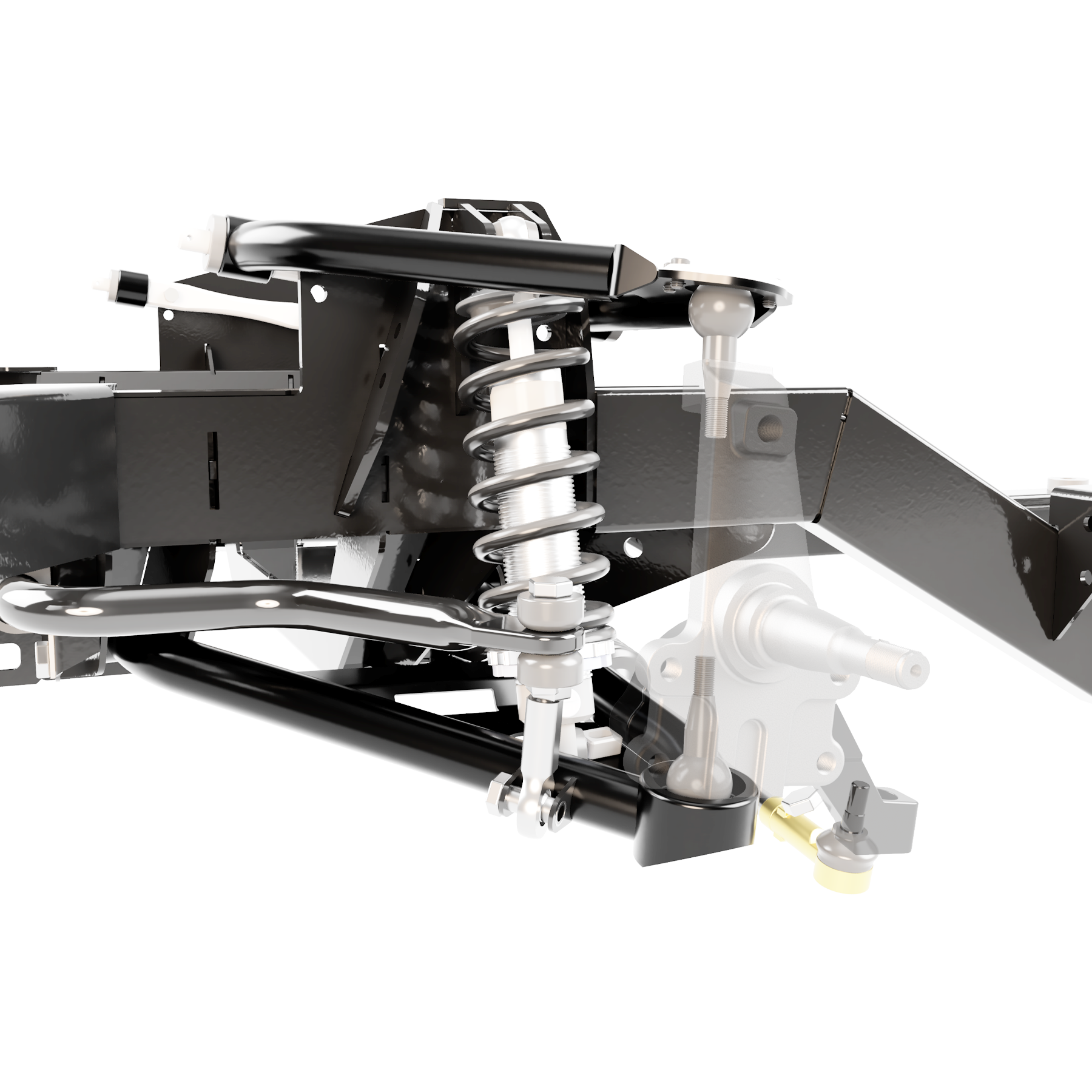

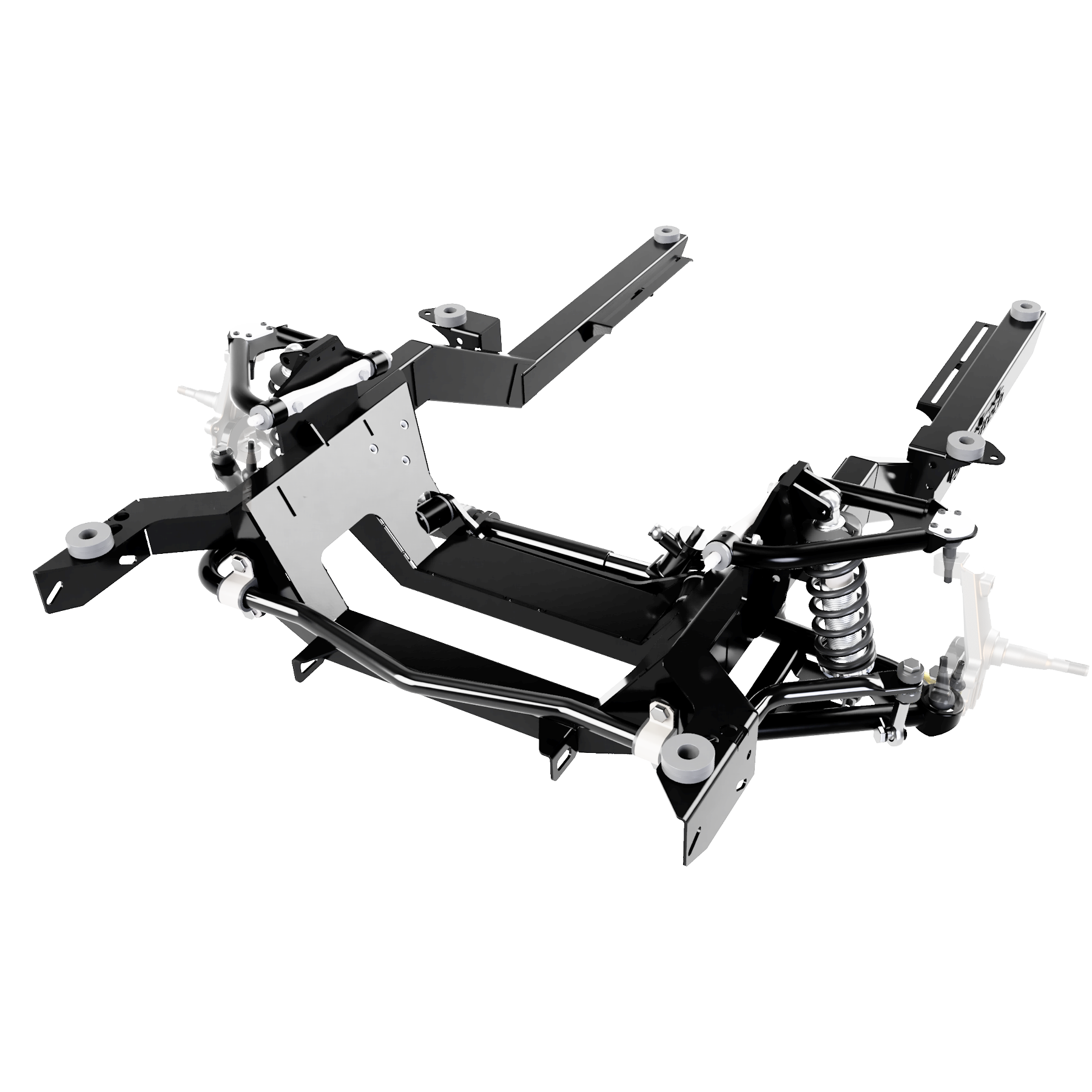

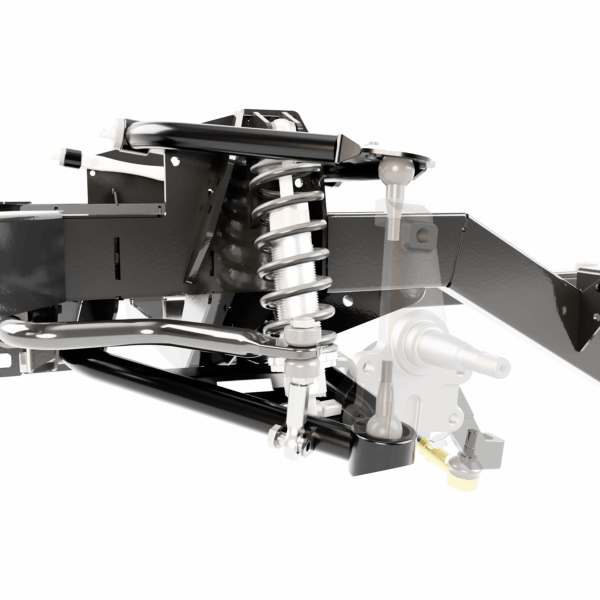

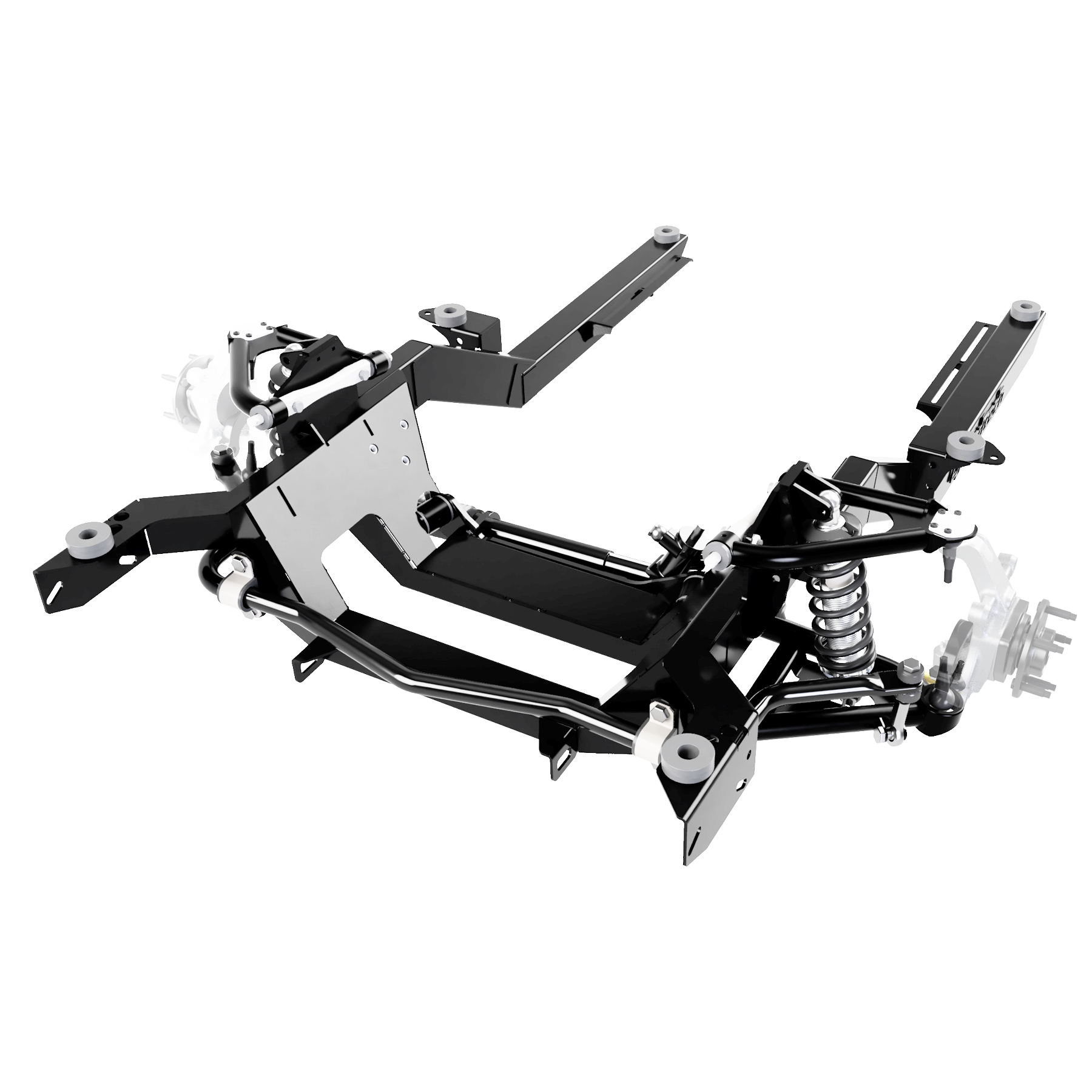

Upgrade your first gen GM F or X-Body with the Speedtech Performance Pro Touring Subframe with Rack and Pinion Steering. This subframe is designed to handle all driving conditions with ease, making it ideal for daily driving, and autocross. The box welded construction and tabbed through frame gusseting provide added torsional rigidity, while the fully adjustable wheel alignment and improved geometry for better grip during cornering allow for a customizable driving experience. The package includes custom designed upper and lower control arms, a durable power rack and pinion steering and QA1 adjustable coil over shocks.

PRO TOURING FRONT SUBFRAME FEATURES AND BENEFITS:
• Bolt in installation
• Boxed construction welded frame and cross members for added torsion rigidity
• Full steering angle with no tire rub with 275mm wide tire
• Improved motion ratio for faster shock response and more precise control
• Increased shock length providing more suspension travel
• Improved front geometry delivers better feeling of being connected to the road from the driver seat
• Excellent system for street, autocross & track days
• Adjustable ride heights to meet your vision for styling the car exactly the way you want it

PRO TOURING FRONT SUBFRAME INCLUDES:
• LS Engine Mounts
• Pro Touring Subframe
• Custom designed upper and lower control arms with high clearance to accommodate wide wheels
• Power rack and pinion steering
• QA1 adjustable coil over shocks and 550lb/in springs
• Tuned, adjustable, front sway bar for street, pro-touring/auto cross and road course
• Fully adjustable transmission cross member that will accommodate all engine and transmission combinations
• Powder coated satin black

Additional Attributes:

GTIN: 00806990175595
California Proposition 65: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 77 x 49 x 29 inches
Weight: 550 PG
