Our ExtReme subframe kit provides you a world class driving experience from your classic Chevy II. The kit is specifically designed to update your car to our ExtReme Front Sub Frame. This front suspension package will update your car’s comfort and performance to be more like a modern car with precise control and excellent driver feedback at the steering wheel.
Excellent system for street, autocross & track days. Ride heights to meet your vision for styling the car exactly the way you want it.
EXTREME FRONT SUBFRAME FEATURES AND BENEFITS:
• Bolt in installation
• Accommodates 295/30/18 front tire with full steering
• Boxed construction welded with tabbed through frame and cross members for added torsion rigidity
• Speedtech Performance Chassis and Sub Frames come exclusively with forged 7075 aluminum ExtReme spindles
• 78% motion ratio for faster shock response and more precise control
• Increased shock length providing more suspension travel
• Virtually zero bump steer, .005” over the full travel of the system
• 30 +/- 3 deg of steering angle
• Our exclusive system provides optimum Ackerman for up to 20% more inside tire grip when cornering
• 3-piece Chromoly tubular splined sway bar standard, optional spring rates
EXTREME SUBFRAME INCLUDES:

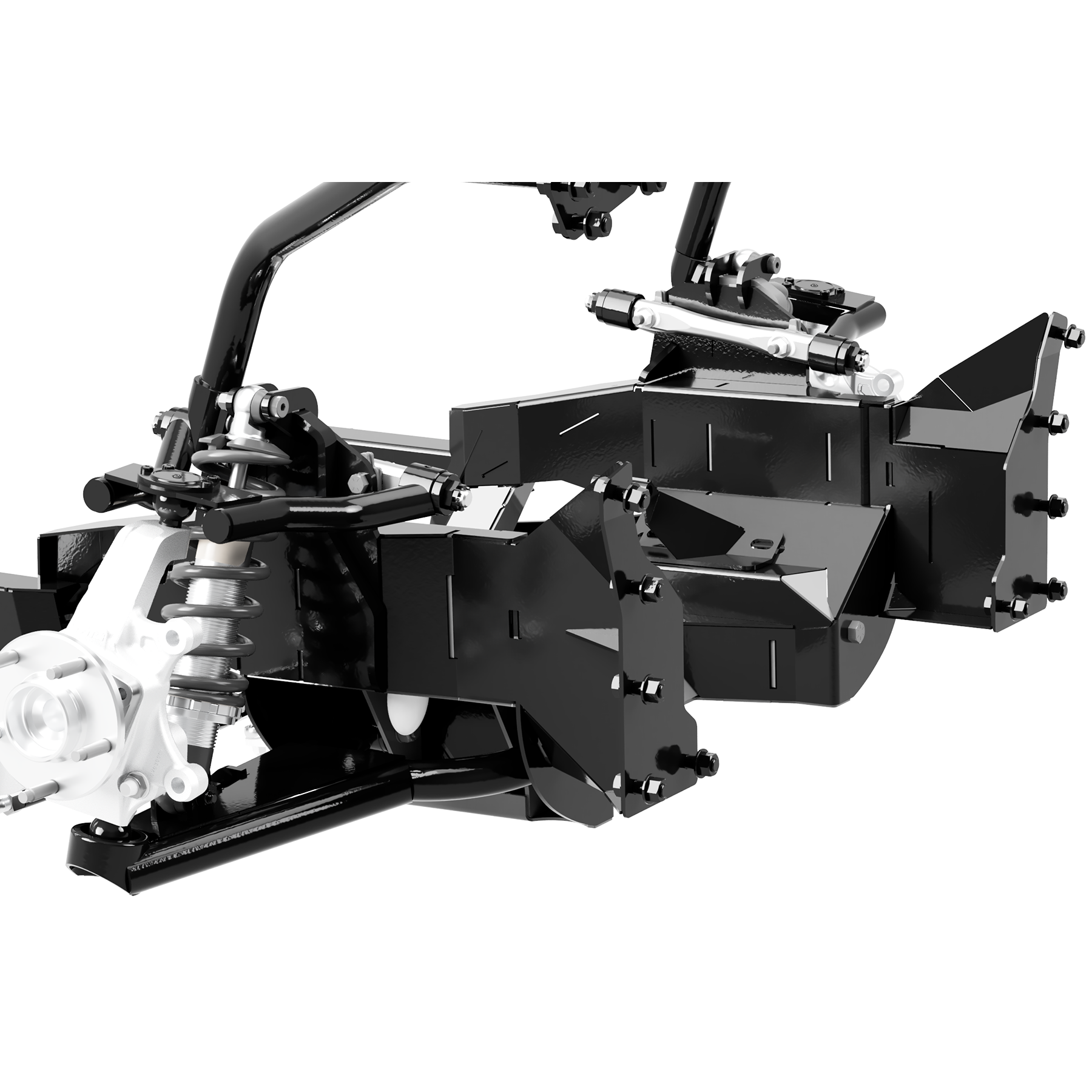

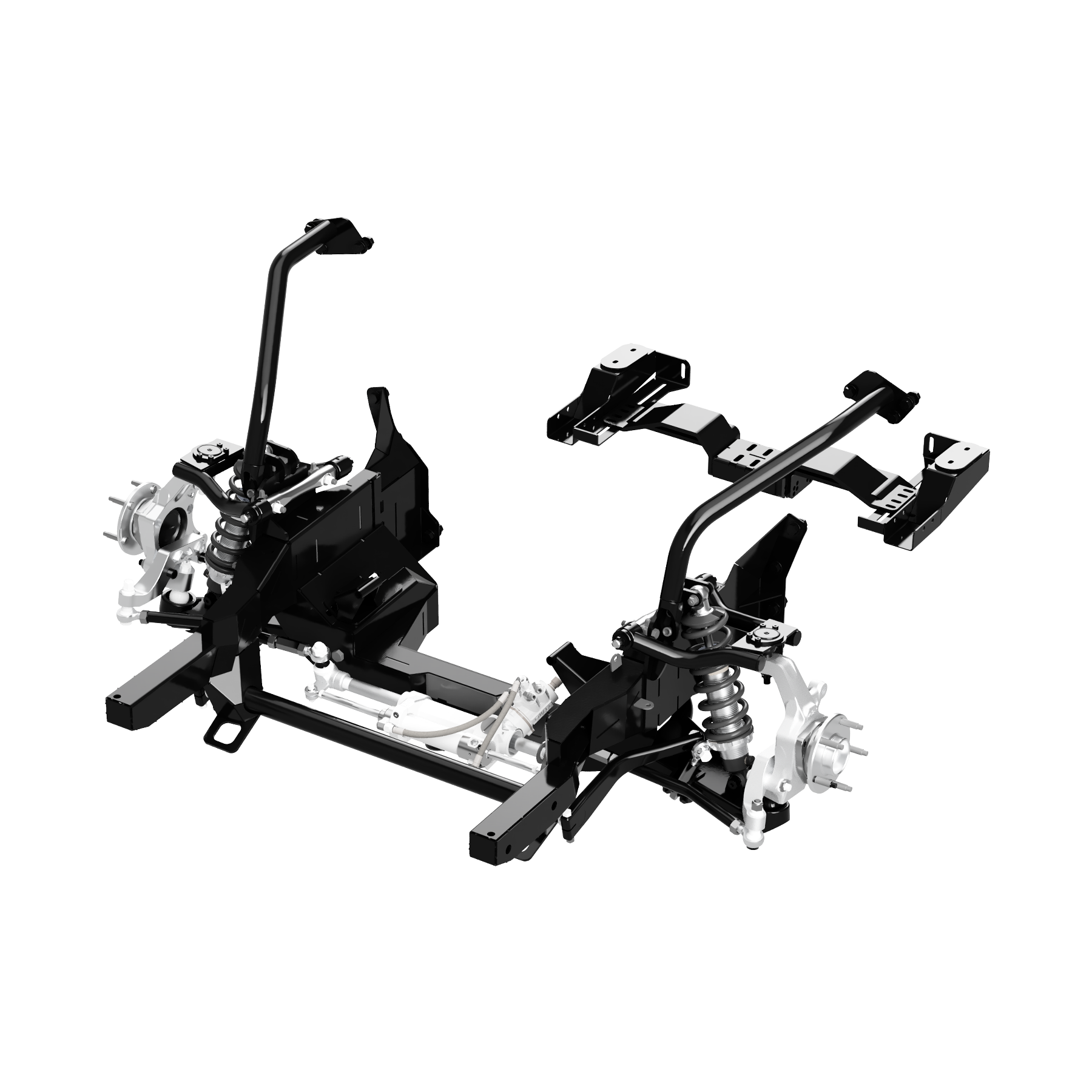

• ExtReme front subframe
• Custom geometry upper and lower control arms with high clearance to accommodate wide wheels
• Durable Sweet Mfg. dual power rack and pinion steering
• QA1 double adjustable coilover shocks and 450lb/in springs
• Tuned, adjustable, splined front sway bar
• Exclusive ExtReme forged spindles with C7 hubs and maintenance sealed free bearing
• Engine stands for LS engine
• Fully adjustable transmission cross member that will accommodate all engine and transmission combinations
• Satin black powder coated
Additional Attributes:
GTIN: 00806990175649
California Proposition 65: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Extended Information:
Emissions : 4
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 77 x 49 x 29 inches
Weight: 550 PG
