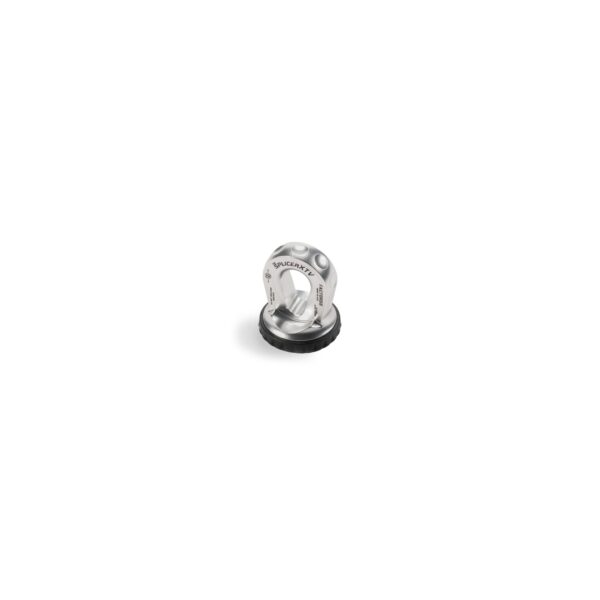

SPLICER XTV 3/16-1/4" SYNTHETIC ROPE SPLICE-ON SHACKLE MOUNT -- SILVER
SPLICER XTV 3/16-1/4" SYNTHETIC ROPE SPLICE-ON SHACKLE MOUNT -- SILVER

SPLICER XTV 3/16-1/4″ SYNTHETIC ROPE SPLICE-ON SHACKLE MOUNT — SILVER

$104.63

The Splicer XTV is the world?s first splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad for UTV/ATV

  • The unique machined rope passage provides a tough outer barrier to protect against rope impact and abrasion as well as UV exposure protection.
  • EPDM rubber guards are attached with four barbed tips and protects fairleads and prevents rattling
  • Works with common ?? and 5/8? shackles (pin and bow end), soft shackles up to 7/16?, and the pin-end of ?? shackles
  • Compatible with synthetic ropes up to 5/16″ in diameter
  • Engineered, Tested, and Made in USA ? Patent Pending
SKU: GGBW-00355-05 Category:

THE SPLICER XTV Splice on thimble for UTV/ATV winches. The world?s first splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad for UTV/ATV. The unique machined rope passage provides a tough outer barrier to protect against rope impact and abrasion as well as UV exposure protection. Unlike the Factor 55 ProLink XTV and UltraHook XTV shackle mount products, The Splicer XTV requires synthetic rope splicing knowledge. We recommend either the locking Brummel Splice or Long Bury Splice. Due to the splice-on design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds minimum bend radius requirements to provide full breaking strengths of synthetic winch lines used.

Additional Attributes:

GTIN: 00012748096412
Color: SILVER
Finish: Bright Dip Anodized
Material: 6061 Aluminum
Tubing Diameter: 00383

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 4 x 4 x 4 inches
Weight: 0.56 PG

Weight 0.25 kg
Dimensions 4 × 4 × 4 cm
