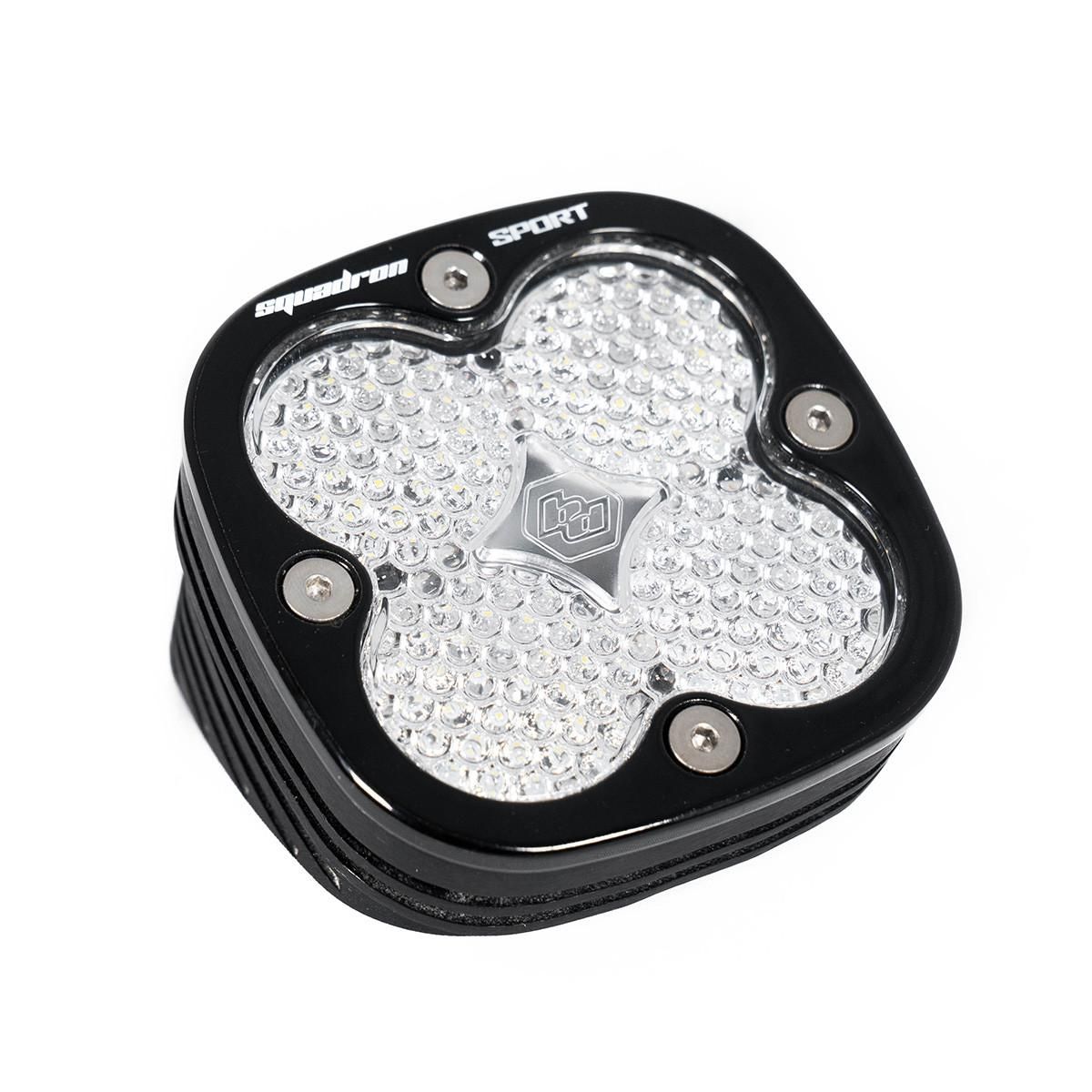

The Squadron Sport angled mount LED auxiliary light produces an impressive 3,162 lumens at 30 watts making it ideal for near field, side/backup, or scene lighting applications. Paired with our work/scene lens, this light is ideal for mounting on the side of a vehicle or trailer and gives a usable work light for camp, pit, or any work area that needs illumination.The 25-degree angledhousing is perfect for the side of trailers or any application where you need an angled mount solution for auxiliary lighting. The angled flush mount allows you to easily mount to a flat surface by only drilling three small holes. The light comes with all the necessary hardware to make installation straightforward. Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117 (Squadron 2-Light Max Wiring Harness 150w). USPTO Reg No. 5,766,659
Additional Attributes:
GTIN: 00819314024882
Add-On: Accessories-668001-Rock Guard (Black)
Amperage Rating (A): 2.200
Average Rated Life (hr.): 49,930
Beam Pattern: Work/Scene
Bezel Material: Powder Coated Cast Aluminum
Brightness (Lumens): 3162
Depth (in.): 2.770
Description: Angle Mount; Work/Scene; Clear
Height (in.): 3.070
Housing Color: Black
Housing Material: Powder Coated Cast Aluminum
Length (in.): 3.070
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 1
Lighting Modes: Beam
Lighting Quantity: 4
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: Squadron Sport Angle Mount LED Light Pod
Prop 65 – Short Label: CR
Prop 65 Warning Label: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No: Yes
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Wattage (W): 30.360
Weight (lbs.): 0.750
Wiring Harness Included: No
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 6.000 x 6.000 x 6.000 inches
Weight: 5.000 PG
FGXX_552006-INS_001
