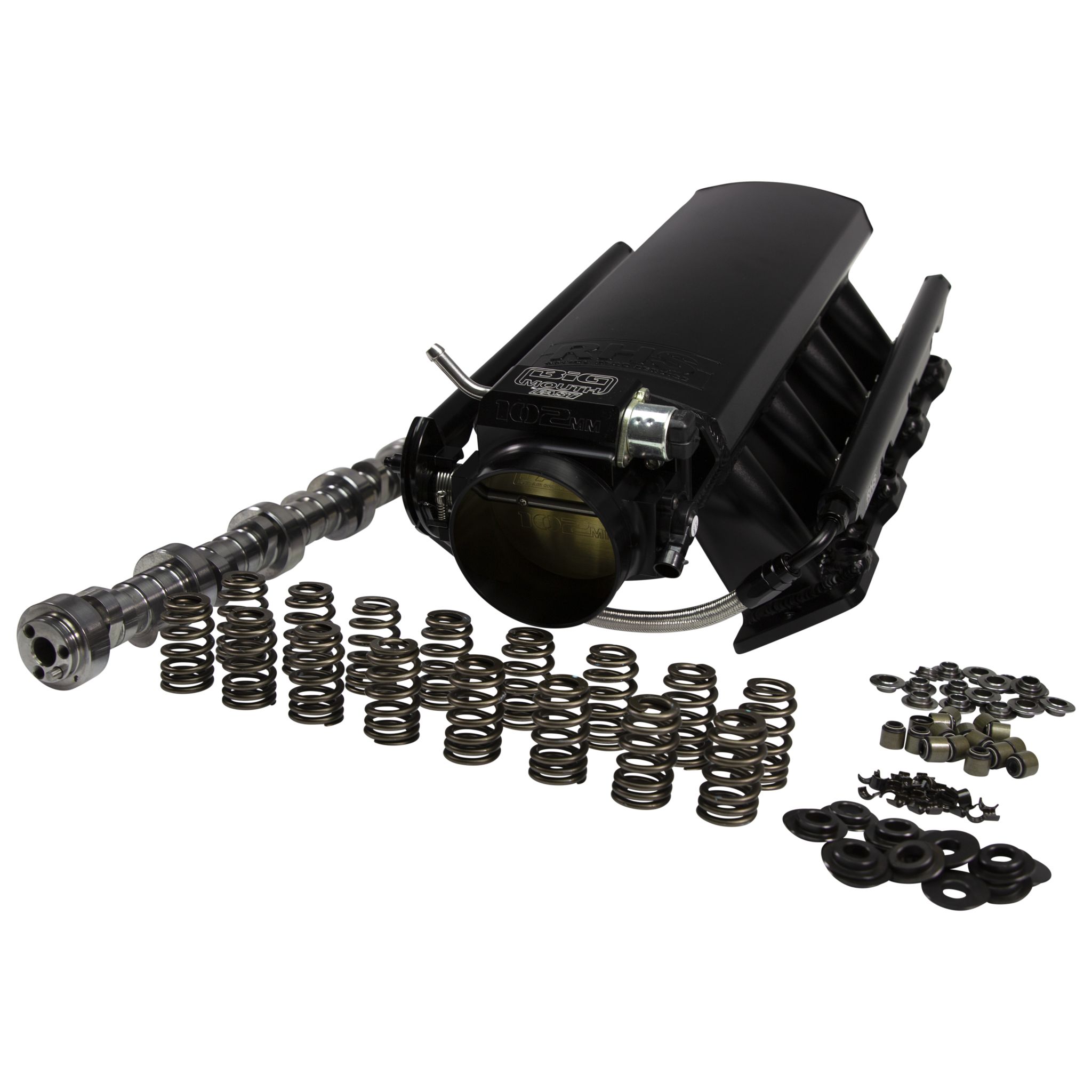

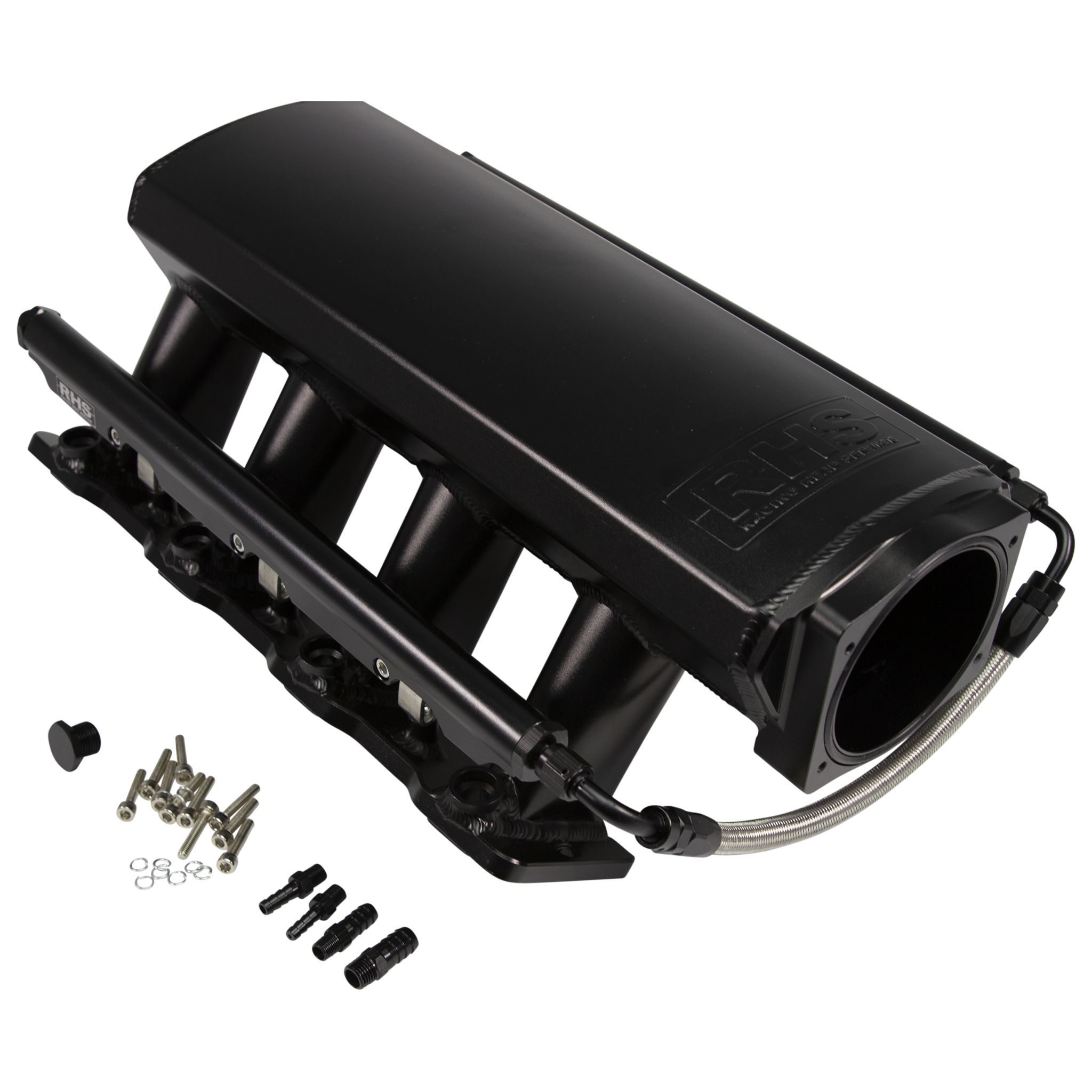

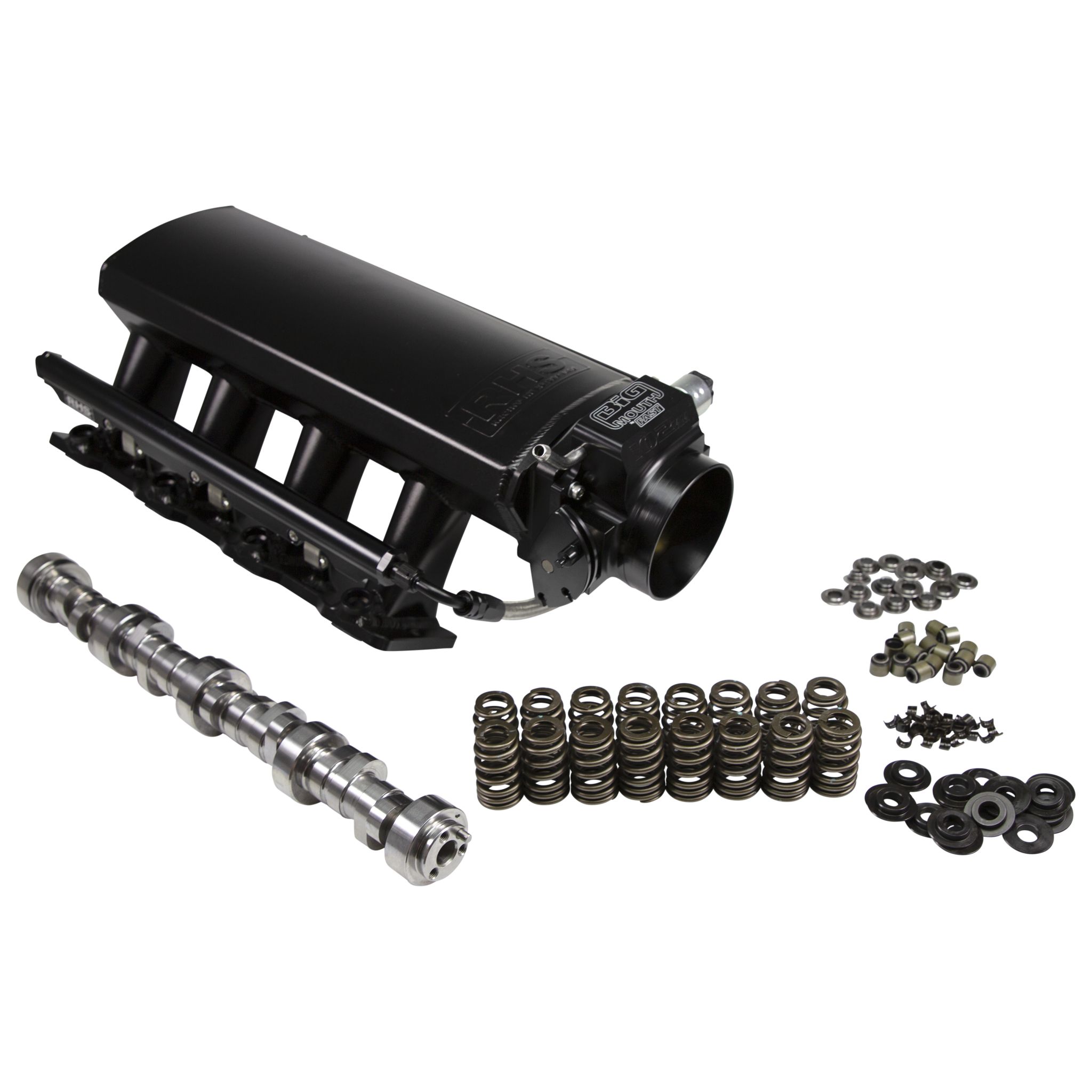

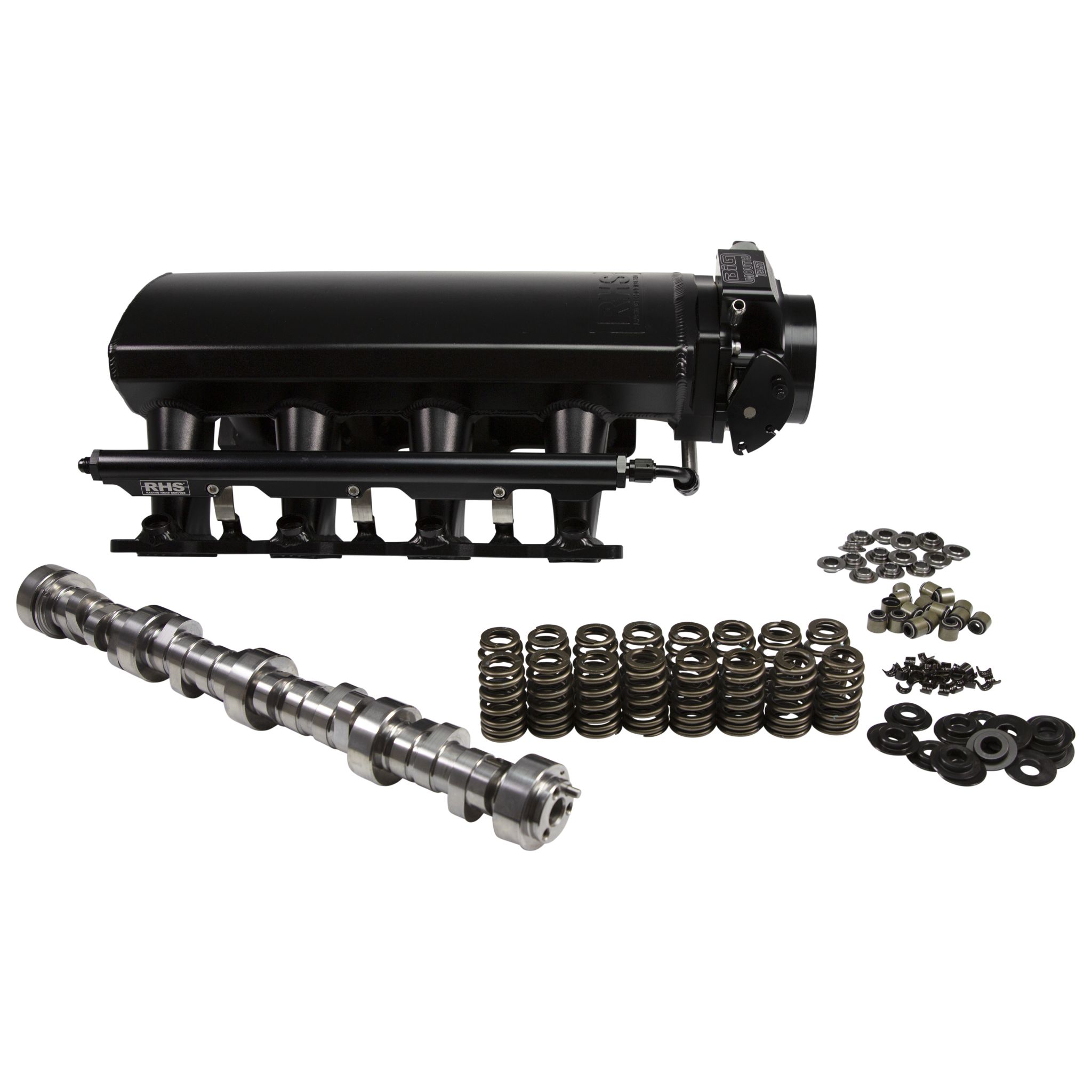

RHS Induction Packages maximize horsepower and torque gains for your GM LS1 Cathedral Port engine. Including our high quality black anodized sheet metal intake, fuel rails along with custom COMP Cams camshaft and beehive valve spring kit, these kits remove all the guesswork, delivering serious gains without the hassle.
Additional Attributes:
GTIN: 00036584403913
Camshaft Included: Yes
Damper Spring Included: No
Exhaust Advertised Duration: 304
Exhaust Duration at .050″ Lift: 243
Fuel Delivery Style: Multiport – MPI
Fuel Rails Included: Yes
Gaskets Included: Yes
Guideplate Pushrod Size: No
Guideplates Included: No
Injectors Included: No
Intake Advertised Duration: 294
Intake Duration at .050″ Lift: 233
Intake Finish: Textured Black Anodize
Intake Manifold Included: Yes
Intake Manifold Name: RHS Sheet Metal Intake
Intake Material: Aluminum
Intake Port Shape: Cathedral Port/LS1/2/6
Intake Style: Fabricated Sheet Metal
Lifters Included: No
Lock Style: Stock Beadlock
Locks Included: Yes
Number of Springs Per Valve: 1
Outside Diameter of Outer Spring (in): 1.077 in./1.282 in.
Pushrods Included: No
Required Injector Size/Footprint (LS1/LS3/LS2): LS1
Retainer Material: Steel
Retainers Included: Yes
Rocker Arm Nuts Included: No
Rocker Arm Studs Included: No
Rocker Arms Included:: No
Throttle Bolt Style (3 or 4 Bolt): 4
Timing Chain and Gears Included: No
Valve Covers Included: No
Valve Lift with Factory Rocker Arm Ratio: .575/.575
Valve Springs Included: Yes
Valve Stem Seal Material: Stock
Valve Stem Seal Style: Hat
Valve Stem Seals Included: Yes
Extended Information:
Emissions : EPA Eligible
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 28.5 x 18.5 x 19 inches
Weight: 42.2 PG
