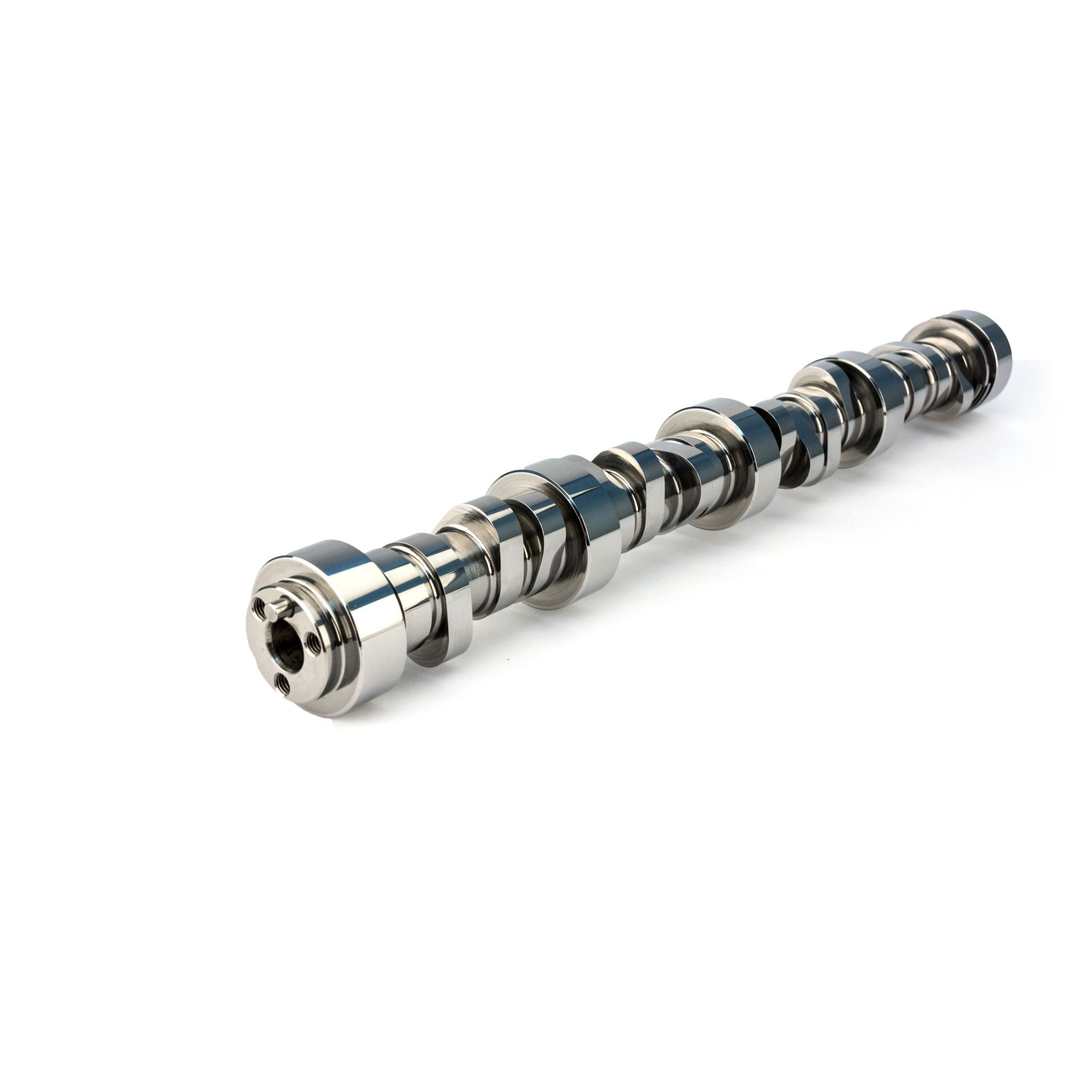

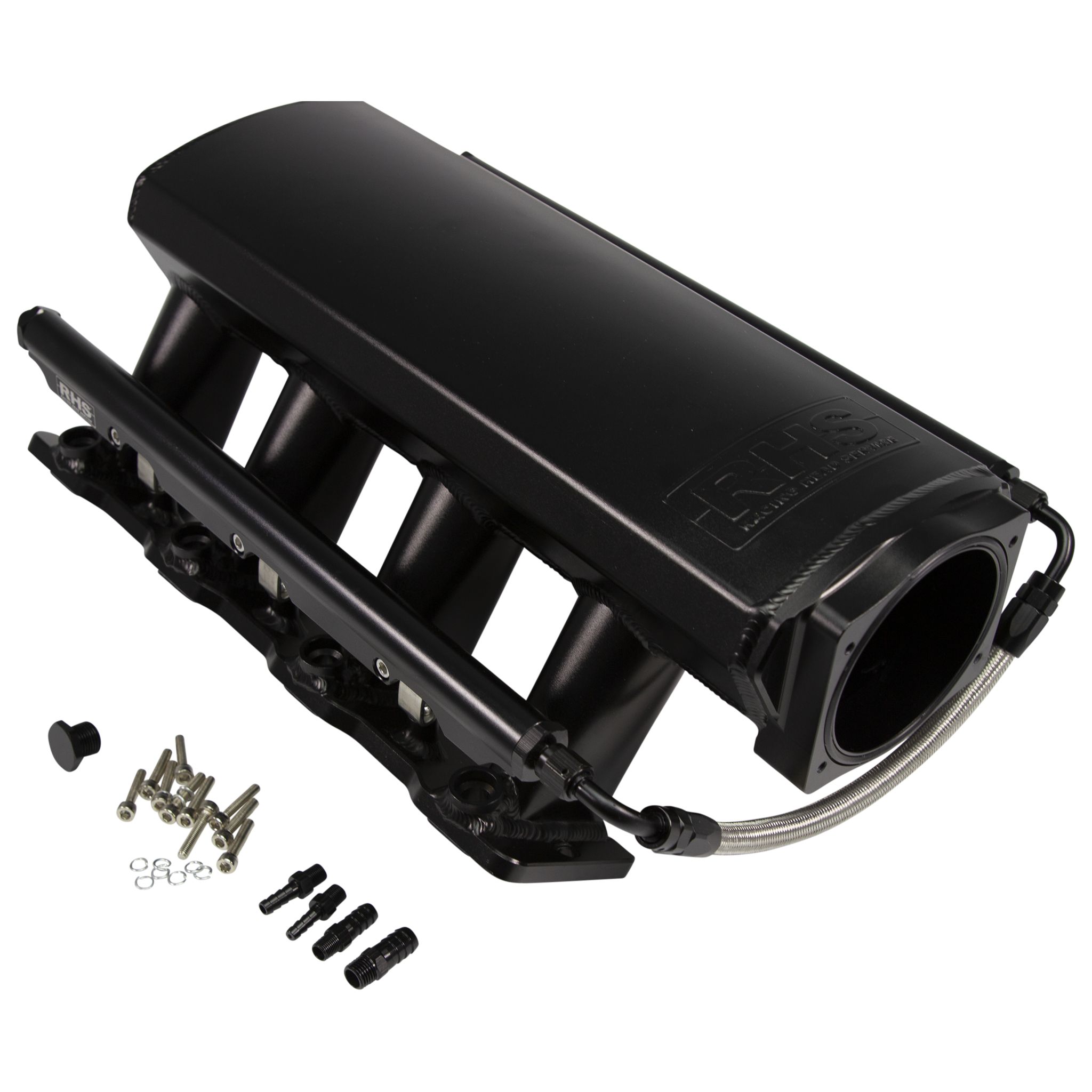

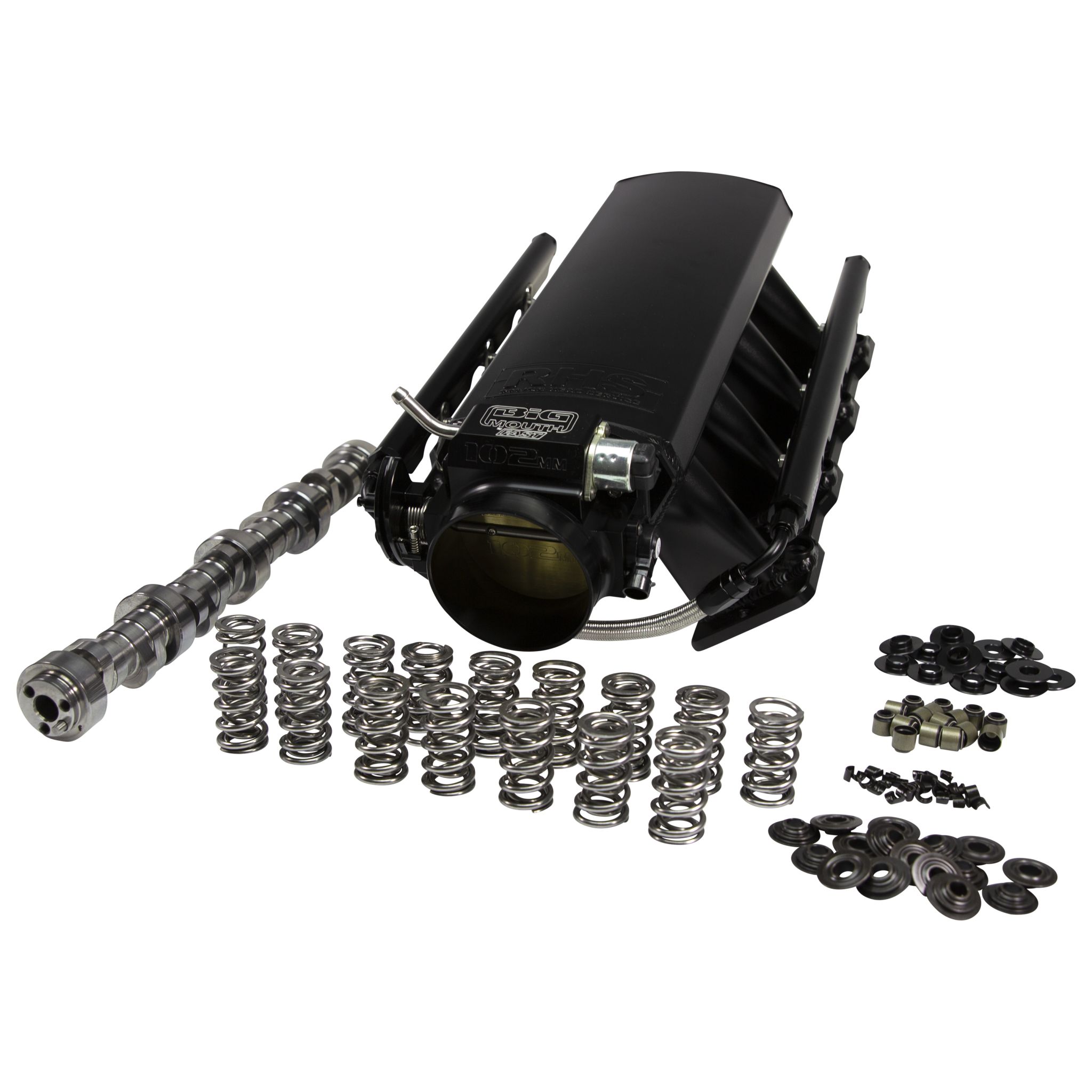

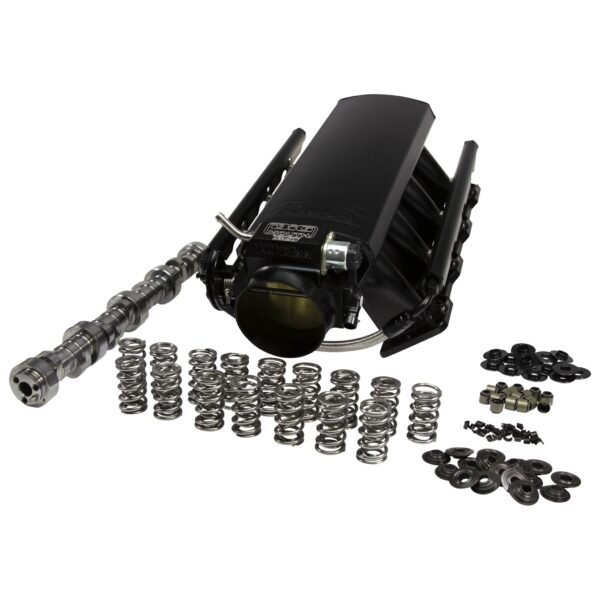

RHS Induction Packages maximize horsepower and torque gains for your GM LS1 Cathedral Port engine. Including our high quality black anodized sheet metal intake, fuel rails along with custom COMP Cams camshaft and beehive valve spring kit, these kits remove all the guesswork, delivering serious gains without the hassle.
Additional Attributes:
GTIN: 00036584403890
Camshaft Included: Yes
Damper Spring Included: No
Exhaust Advertised Duration: 292
Exhaust Duration at .050″ Lift: 237
Fuel Delivery Style: Multiport – MPI
Fuel Rails Included: Yes
Gaskets Included: Yes
Guideplate Pushrod Size: No
Guideplates Included: No
Injectors Included: No
Intake Advertised Duration: 286
Intake Duration at .050″ Lift: 231
Intake Finish: Textured Black Anodize
Intake Manifold Included: Yes
Intake Manifold Name: RHS Sheet Metal Intake
Intake Material: Aluminum
Intake Port Shape: Cathedral Port/LS1/2/6
Intake Style: Fabricated Sheet Metal
Lifters Included: No
Lock Style: Stock Beadlock
Locks Included: Yes
Number of Springs Per Valve: 2
Outside Diameter of Outer Spring (in): 1.32
Pushrods Included: No
Required Injector Size/Footprint (LS1/LS3/LS2): LS1
Retainer Material: Steel
Retainers Included: Yes
Rocker Arm Nuts Included: No
Rocker Arm Studs Included: No
Rocker Arms Included:: No
Throttle Bolt Style (3 or 4 Bolt): 4
Timing Chain and Gears Included: No
Valve Covers Included: No
Valve Lift with Factory Rocker Arm Ratio: .605/.610
Valve Springs Included: Yes
Valve Stem Seal Material: Stock
Valve Stem Seal Style: Hat
Valve Stem Seals Included: Yes
Extended Information:
Emissions : EPA Eligible
Life Cycle Status: Proposed
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 28.5 x 18.5 x 19 inches
Weight: 42.2 PG
