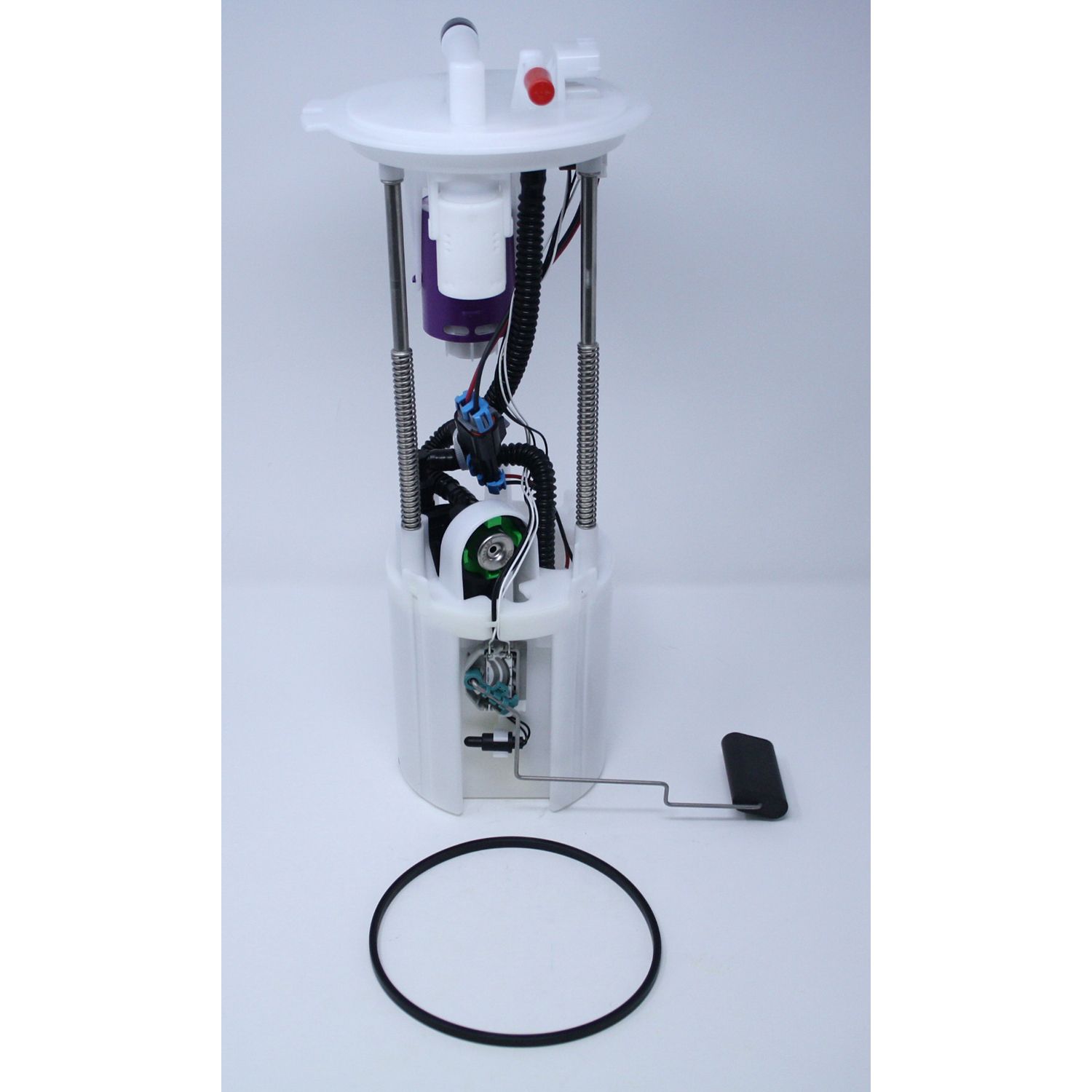

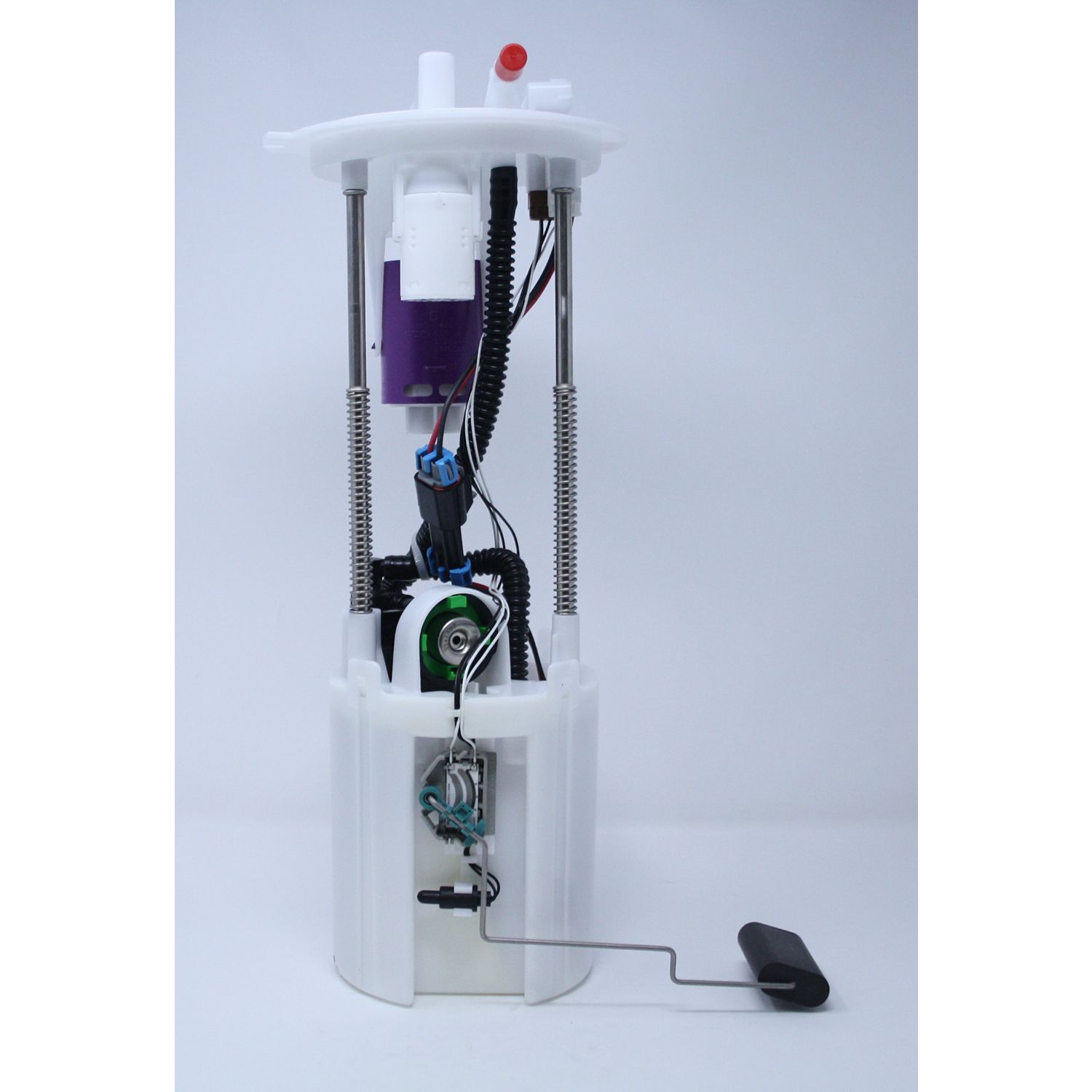

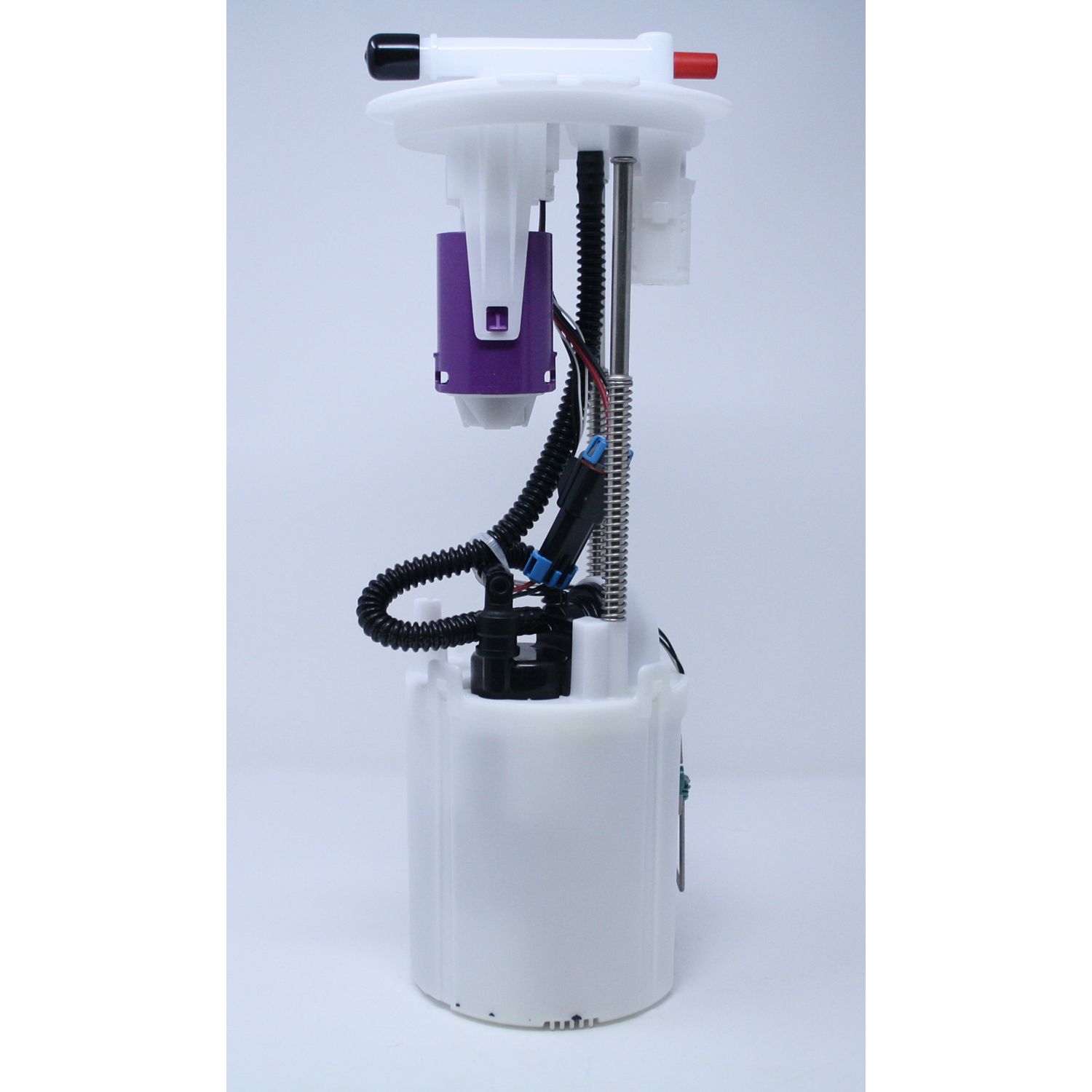

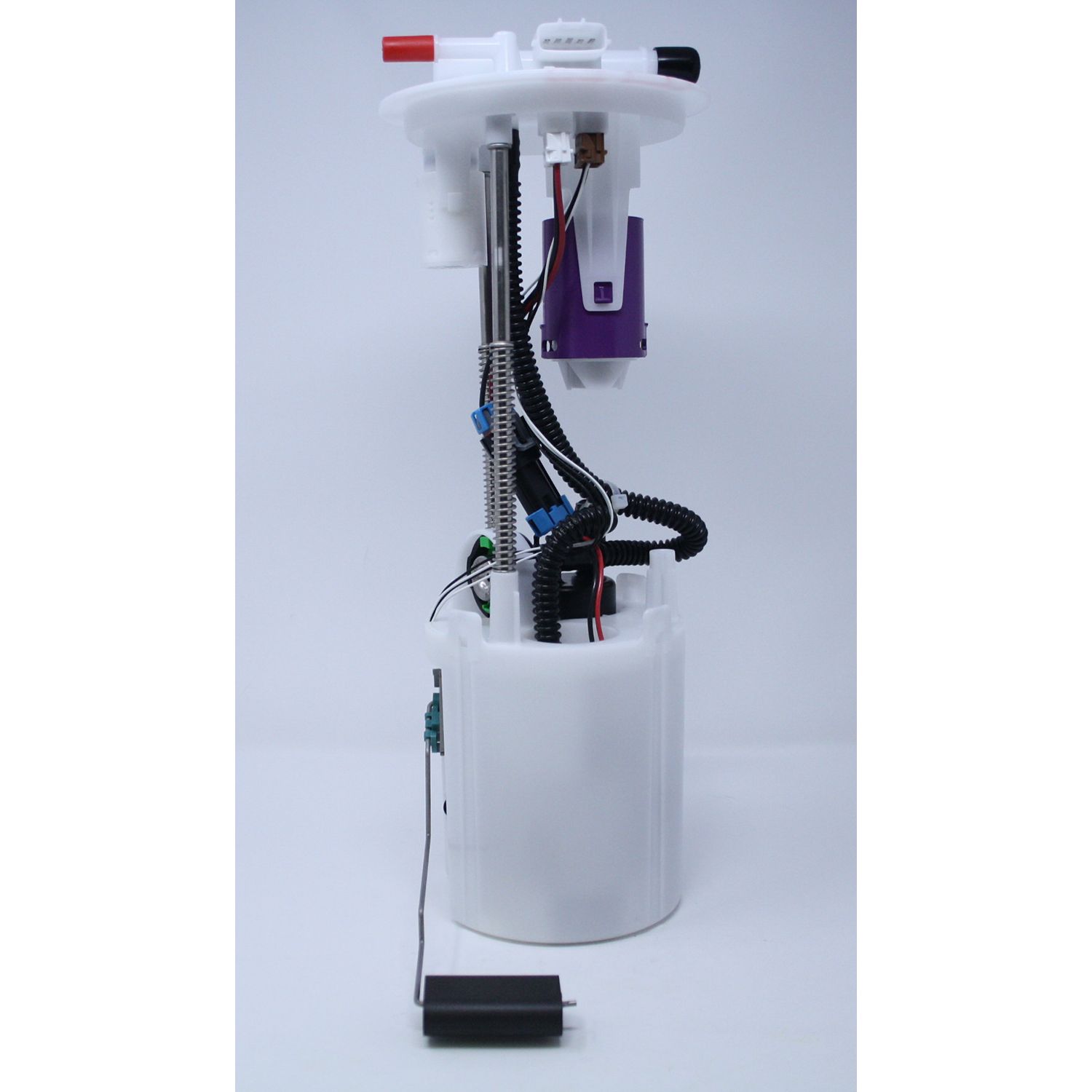

TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel modules deliver the feed you need for the power you demand. These modules deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. Complete drop-in module assemblies with a high performance fuel pump with filtration, level-sensing and storage. Featuring OE-like fit similar to a traditional replacement module but with high performance flow. Modules designed for use in a wide variety of vehicles from sports cars to pick-ups. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotives Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.
Additional Attributes:
GTIN: 00086235532714
Fuel Sending Unit Included: Yes
Outlet Outside Diameter: 9.525
Voltage: 13.5
Fuel Type: Flex
Regulator Included: Yes
Maximum Pressure: 50
Mounting Hardware Included: No
Height: 355.6
Universal Or Specific Fit: Specific
Grade Type: Performance
Gasket Or Seal Included: Yes
Installation Warnings: Yes
Top Mount Diameter: 133.5
Lock Ring Included: No
Strainer Included: Yes
Outlet Type: SAE Quick Connect
Fuel Filter Included: No
In Tank or External: In Tank
Resistance Ohms Empty: 81.8
Resistance Ohms Full: 4.9
Internal Or External Strainer: Internal
Wire Harness Included: No
Pump Design: Gear pump
Average Current Draw: 16.41
Fuel Tank Pressure Sensor Included: No
Minimum Flow Rating: 54
Average Flow Rating: 54.1
Pump Type: Electric
Engine Horsepower Value: 550+
Harmonized Tariff Code: 8413301000
Installation Instructions Included: Yes
Nafta Code: B
Operating Pressure UOM: PS
Operating Pressure Value: 50
Prop 65 – Long Label: WARNING: This product can expose you to lead. For more information, visit www.P65Warnings.ca.gov
Prop 65 – Short Label: WARNING: This product contains a chemical known to the State of California to cause cancer.
Prop 65 Image: Prop 65 lead warning.jpg
Prop 65 Yes/No: Y
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 18.88 x 13 x 8.38 inches
Weight: 4.91 PG
1470652_1470632
