The Subaru Ascent, Outback XT, and Legacy XT are the definition of what a fun daily driver should be. Comfy and spacious on the inside, with the heart of a rally legend under the hood. From the family hauling capability of the Ascent to the off-road poise of the Outback, and the on-road comfort of the Legacy, each has an individual style. But they all share one strength: the powerful, 2.4L turbocharger FA24 under their hood that's just begging for upgrades. One upgrade that's sure to bring your 2019+ Ascent or 2020+ Legacy XT/Outback XT to the next level is the Mishimoto performance top-mount intercooler. This top mount intercooler lets your FA24 breathe all the cool boost it could ever want.—-We've completely revamped the stock plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. A pre-drilled, tapped, and plugged 1/8-NPT port allows you to easily add temp or boost pressure sensors.—-This kit includes everything needed for installation and the black powder-coat finish matches any color scheme. With our Mishimoto Lifetime Warranty, you can go anywhere and do anything knowing your Subaru and Mishimoto have your back.
Additional Attributes:
GTIN: 00840197719527
Install Difficulty: 1
OptionLabel: Black
SellingPoint01: Direct fit for 2019+ Subaru Ascent/2020+ Legacy XT and Outback XT

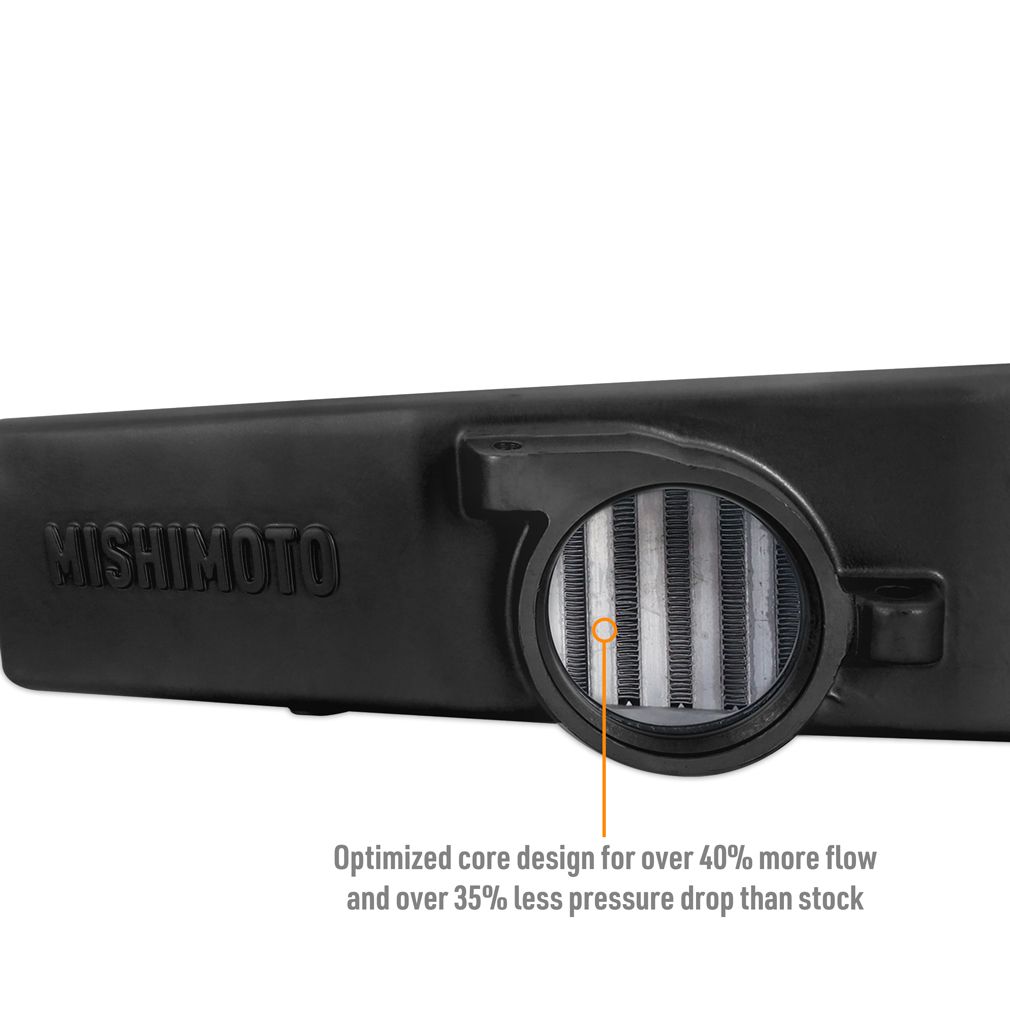

SellingPoint02: Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
SellingPoint03: 88 percent increase in core volume for improved cooling efficiency
SellingPoint04: Lowers outlet temps to less than 10 degrees over ambient for safe performance
SellingPoint05: 35.7 percent less pressure drop than stock means more boost makes it into the engine
SellingPoint06: 76 percent increase in fin surface area for superior heat transfer

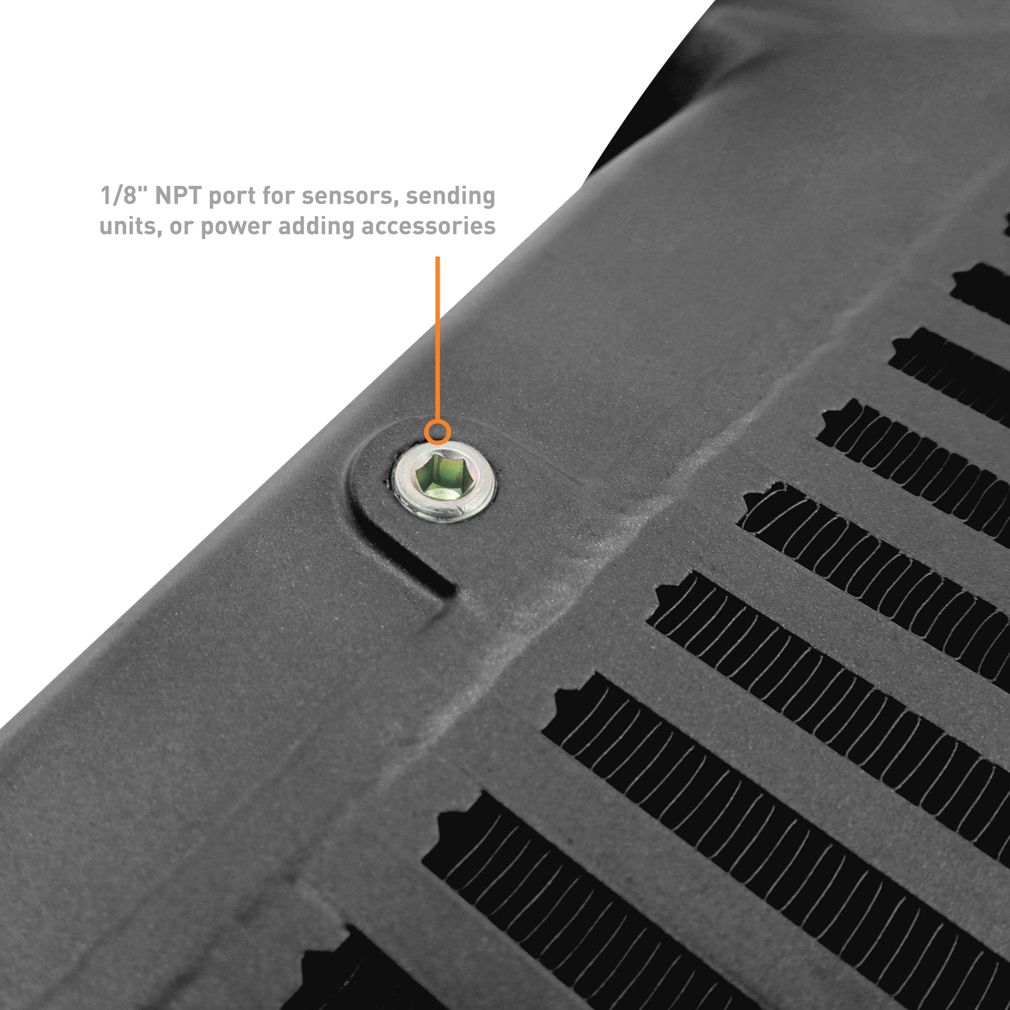

SellingPoint07: Cold-side tank include 1/8-NPT port for boost or temp sensors
SellingPoint08: Cast aluminum end tanks reduce failure points for high boost applications
SellingPoint09: Includes everything needed for installation
SellingPoint10: Black powder-coat finish matches any color scheme
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2019+ Subaru Ascent H4 2.4L Turbo– 2020+ Subaru Legacy XT H4 2.4L Turbo– 2020+ Subaru Outback XT H4 2.4L Turbo
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: VB
TechSpec Core Height (in): 7
TechSpec Core Length (in): 20.5
TechSpec Core Thickness (in): 4
TechSpec Core Type: Bar-And-Plate
TechSpec Engine Codes: FA24DIT
TechSpec Includes: (1) Mishimoto Performance Intercooler–Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: Upon removal of factory intercooler, inspect the OEM inlet gasket and replace with Subaru part number 21896AA150 if any areas appear damaged or warped.
TechSpec Maximum Recommended Boost Pressure (PSI): 100
TechSpec Maximum Recommended Horsepower: 600
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 12.96
TechSpec Overall Length (in): 24.51
TechSpec Overall Width (in): 4.38
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
Extended Information:
Emissions : CARB Eligible
Packaging:
Quantity of Each:
Package UOM:
Dimension: 26.25 x 14.75 x 8.25 inches
Weight: 29 PG
