TRANS-DAPT PERFORMANCE PRODUCTS, 1 IN. TALL, BILLET ALUMINUM THERMOSTAT HOUSING RISER WITH DUAL 3/8 IN. NPT WATER PORTS; FITS 1955-99 SB CHEVY AND 1966-90 BB CHEVY ENGINES- CLEAR ANODIZED

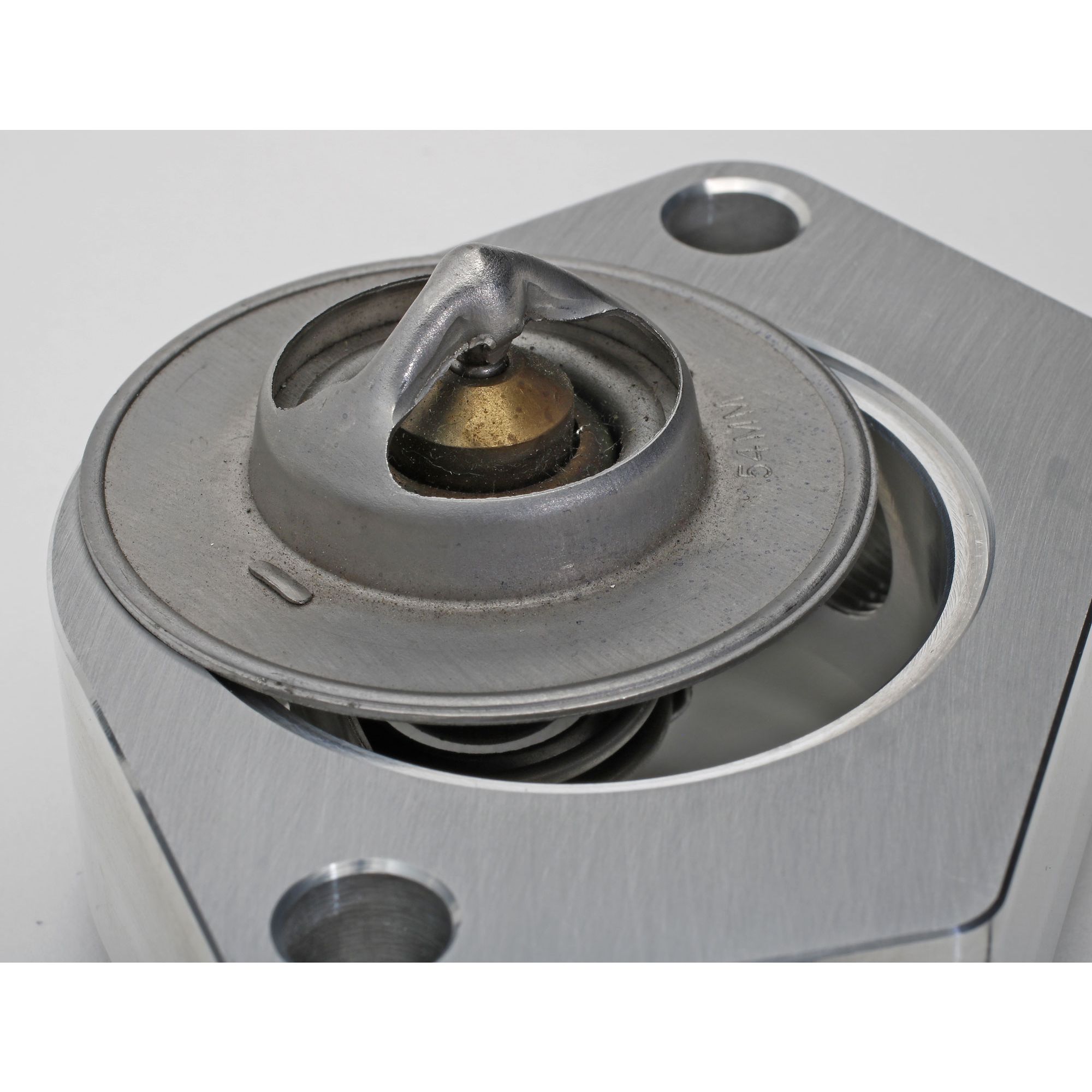

<p>Trans-Dapt Performance Products billet aluminum thermostat (water neck) risers can serve multiple functions. They are an easy way to create easy (easier) access to manifold or thermostat housing ports. They also facilitate the installation of a water temp sending unit, temperature gauge, or for adding lines to your intake manifold. Lastly, they are ideal for situations when the vehicle's radiator is positioned higher than the intake manifold.</p><p> Trans-Dapt CNC machines these risers from durable T6061 aluminum and clear anodizes them for longlasting looks. A captured o-ring is used to ensure a leakproof installation, and a recessed thermostat groove to allow the thermostat to sit flush with the sealing flange.</p><p>Each unit has two 3/8 in. NPT ports, and includes a pair of both 1/4 in. and 3/8 in. hosed barb fittings. 1 in. and 2in. models are available.</p>

Additional Attributes:

GTIN: 00086923061045
Bolt Hole Quantity: 2
Bolts/Studs Included: No
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov

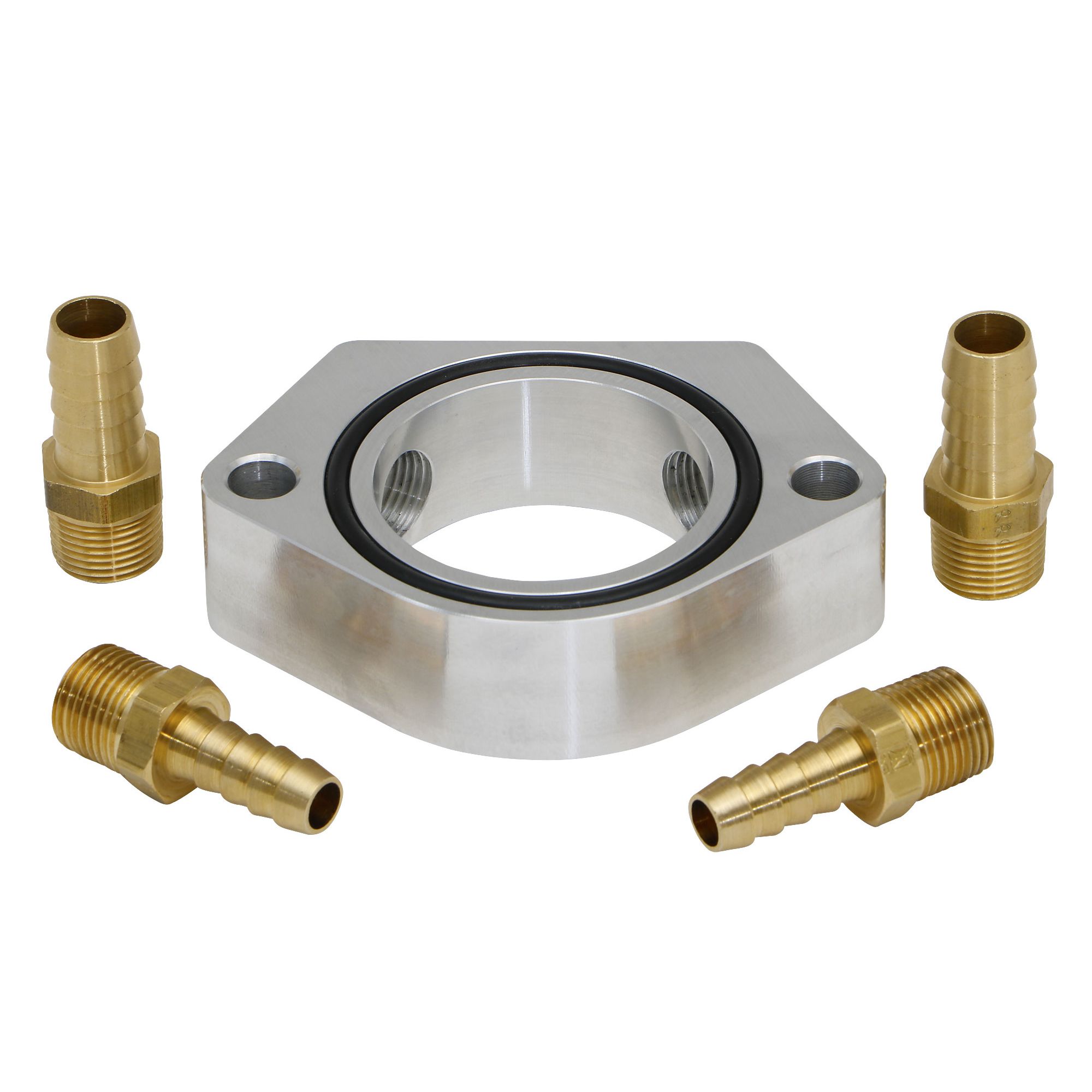

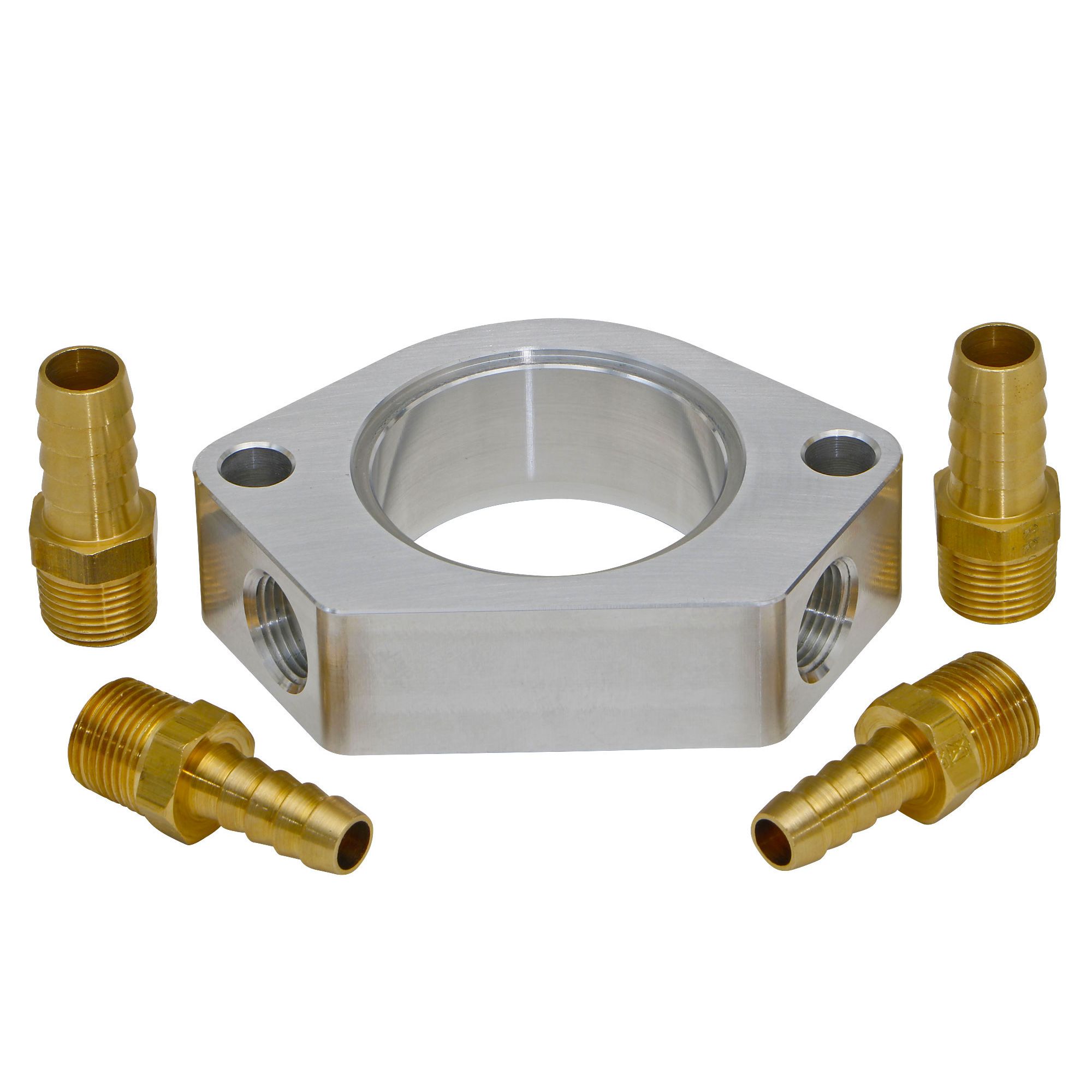

Contents: Billet Aluminum Riser, O-ring, 1/4 and 3/8 in. brass hose fittings (1 pair each)
Engine: CHEVY SB/BB V8 (early ’55-64)
Fastener(s) Included: No
Finish Type: Clear Anodized
Finish: Clear Anodized
Fitting Material: Brass
Fitting Quantity: 4
Fitting Thread: 3/8 in.-16
Gasket Or Seal Included: Yes
Height: 1 IN. TALL
Hose Connection Type: Push Lock
Hose ID: 1/4 in. or 3/8 in.
Installation Hardware Included: No
Material: Aluminum
Mount Hole Quantity: 2
Mounting Hardware Included: No
Neck Angle: N/A
O-Ring Included: Yes
Package Contents: Billet Aluminum Riser, O-ring, 1/4 and 3/8 in. brass hose fittings (1 pair each)
Photo Disclaimer: Actual product design, construction, or included components may vary.
Port Size: 3/8 in. NPT
Replacement O-Ring: 9285
Seal Type: O-RING Style
Spacer Thickness: 1 in.
Water Neck Included: No
Water Neck Seal Type: O-RING Style

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5 x 3.25 x 4.75 inches
Weight: 2 PG
