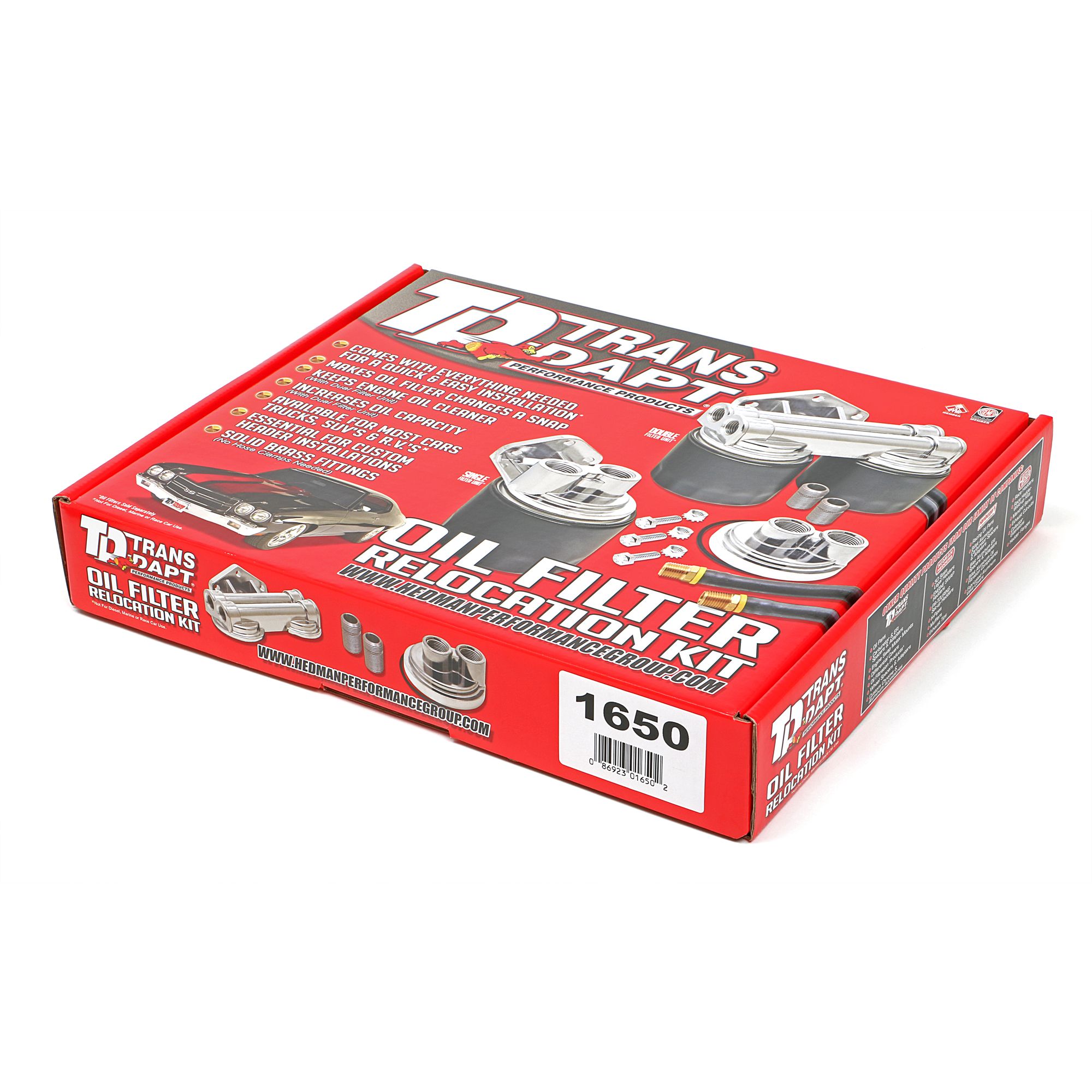

TRANS-DAPT PERFORMANCE PRODUCTS CAST ALUMINUM SINGLE OIL FILTER RELOCATION KIT; VERTICAL PORT, 90 (DEGREE) FILTER BYPASS; 2-1/2 IN. I.D., 2-3/4 IN. O.D. OIL FILTER FLANGE; 18MM X 1.5 NIPPLE

Additional Attributes:

GTIN: 00086923016502
Auxiliary Port: None
Bypass Mounting Style: Spin-On
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov

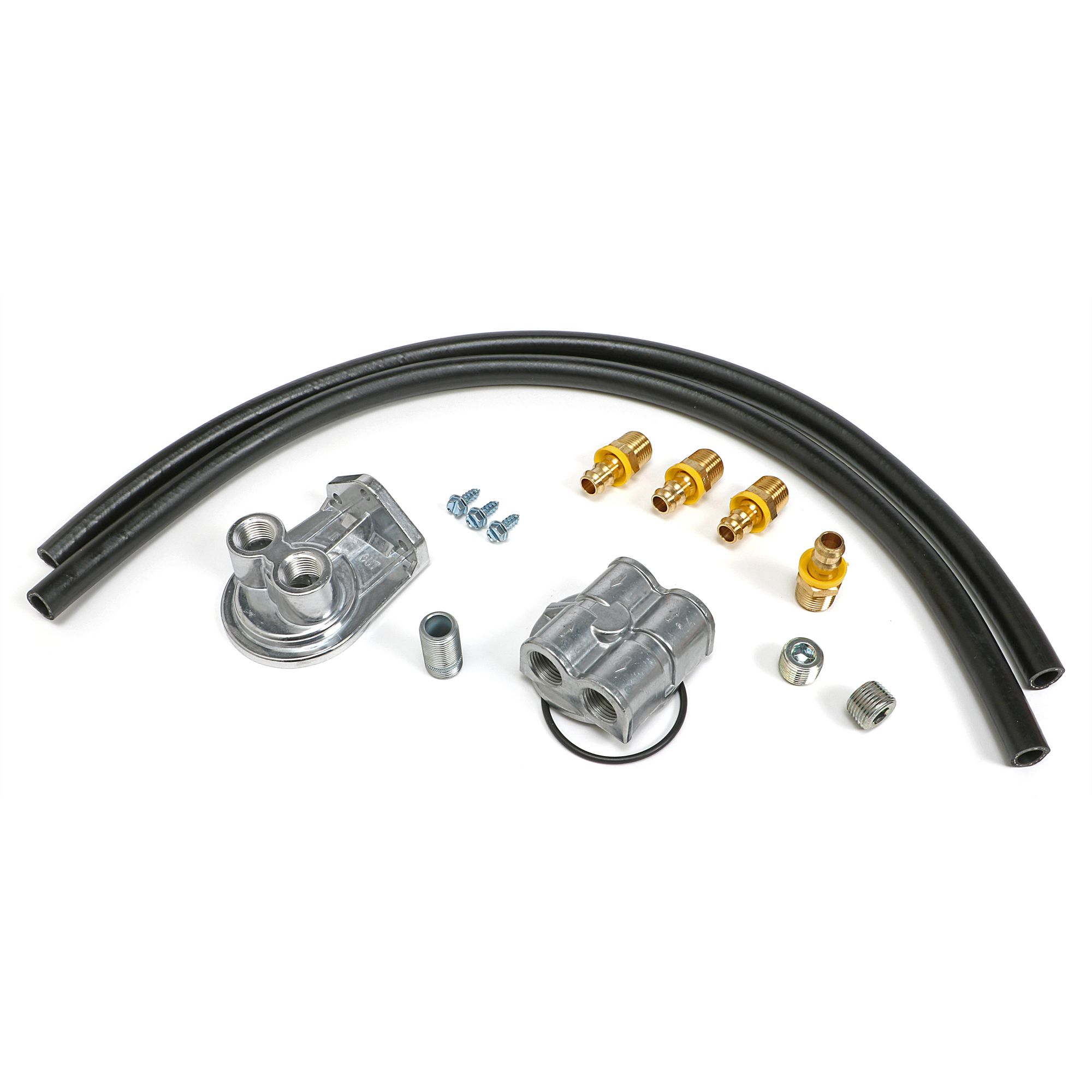

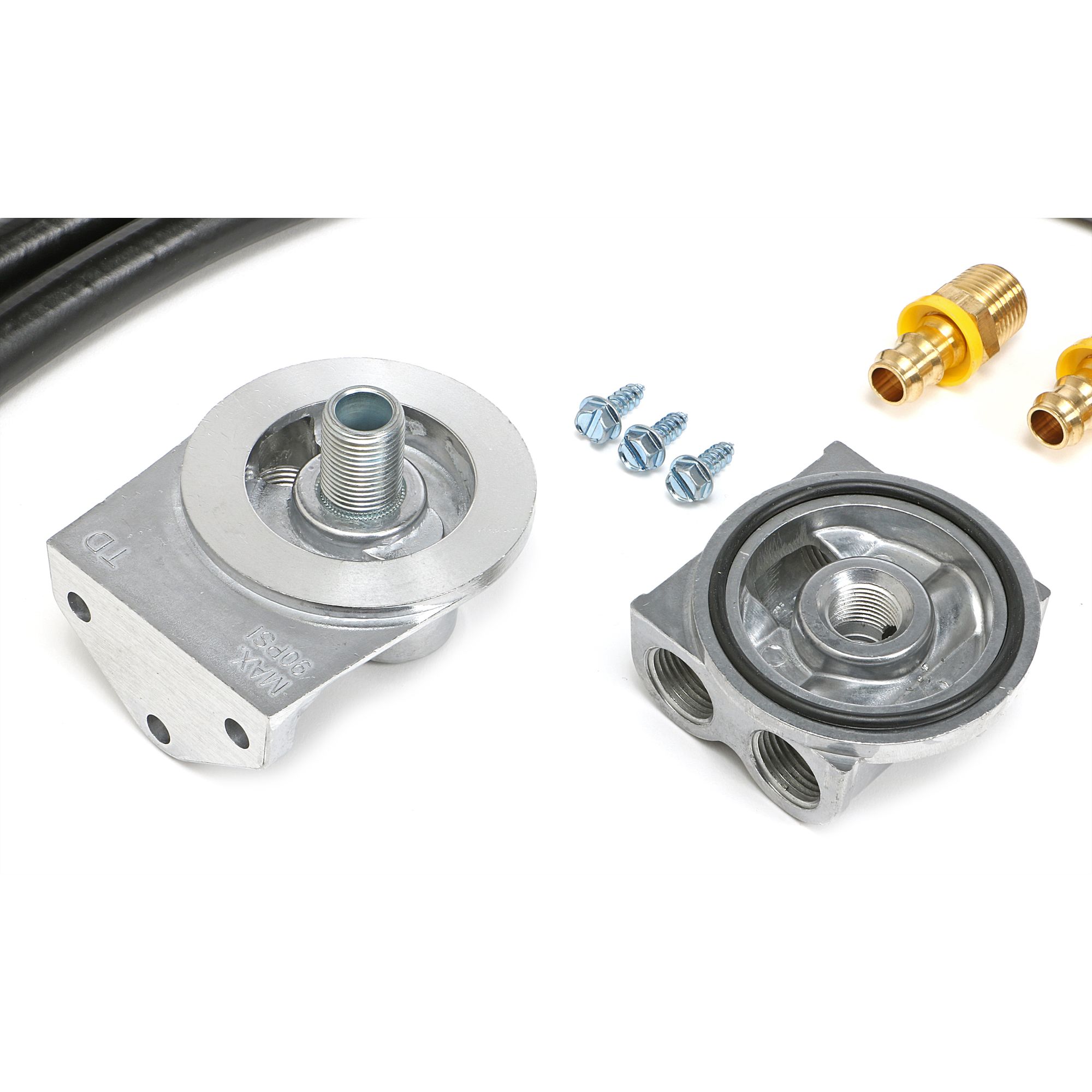

Contents: Filter Bypass Adapter, Remote Filter Base, Oil Lines, Fittings, Filter Nipple, Bypass o-ring
Filter Bypass Style: 90 Degree Port Filter Bypass
Filter Nipple Thread Size: 18mm x 1.5
Fitting Material: Brass
Fitting Quantity: 4
Fitting Type: Hose Barb
For Use On: CHEVY/GMC 4 CYLINDER & V6
Hose Connection Type: Push Lock
Hose Length: 30 in.
Kit Type: Single Filter Kits
Material: Cast Aluminum
Port Size: 1/2 in. NPT
Port Style: Vertical
Remote Base Filter Size: PH8A (or equivalent)
Replacement Nipple: 1034
Replacement O-Ring: 1042
VEHICLE Oil Filter Flange ID: 2-1/2 in.
VEHICLE Oil Filter Flange OD: 2-3/4 in.
VEHICLE Oil Filter Nipple Size: 18mm x 1.5

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 11.88 x 8.38 x 4 inches
Weight: 3.25 PG

PDF:

RelocationKitInstructions
