TRANS-DAPT PERFORMANCE PRODUCTS CHEVY V8 INTO 4WD S10/S15 FAMILY ENGINE SWAP KIT; STANDARD-DUTY UNCOATED HEADERS- FACTORY HEADS

Additional Attributes:

GTIN: 00086923440611
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: Yes
Baffled: Yes
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Capacity: 7 Qts.
Collector Attachment: 2-1/2 in.
Collector Bolts Included: Yes
Collector Size: 2-1/2 in.
Collector Style: BALL and SOCKET Style (Gasketless)

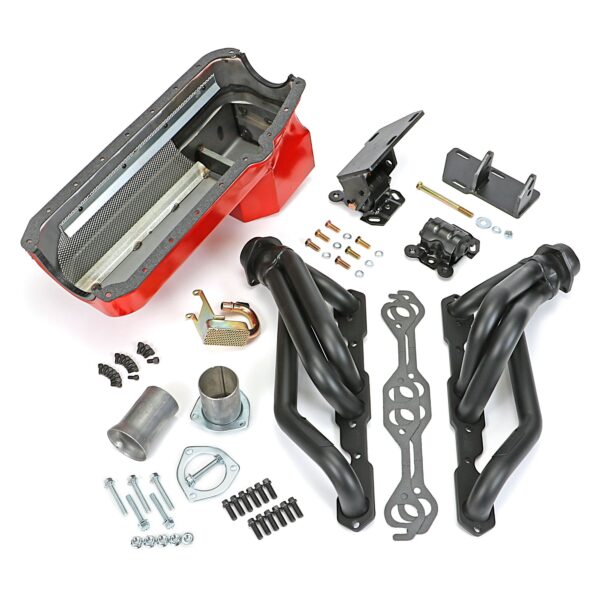

Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Crank Shaft Wiper Included: Yes
Cylinder Head: Factory Style
Dipstick Port: Yes
Drain Plug Included: Yes
Drivetrain: 4WD
Emissions Notes: Not legal for sale or use in California, or on pollution controlled vehicles.
Engine Notes: For 1955-79 SB Chevy engines with driver’s side dipstick only.
Engine: Chevy SB 283-400; ’55-79 (Gen 1)
Exhaust System Dia: 2-1/2 in.
Finish Type: These headers are uncoated.
Finish: Uncoated Headers
Flange Thickness: 0.3125 in.
Fluid Capacity: 7 Qt
Gasket Or Seal Included: Yes
Head Style: Factory Profile
Head Type: Factory Heads
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: Uncoated
Header Material: Mild Steel
Header Port Shape: Round
Header Style: Mid-Length Tube
IMPORTANT!: 4WD Vehicles ONLY!
Installation Hardware Included: Yes
Kicked Out: No
Manual Transmission – Column: No
Manual Transmission – Floor: Yes
Material: Mild Steel

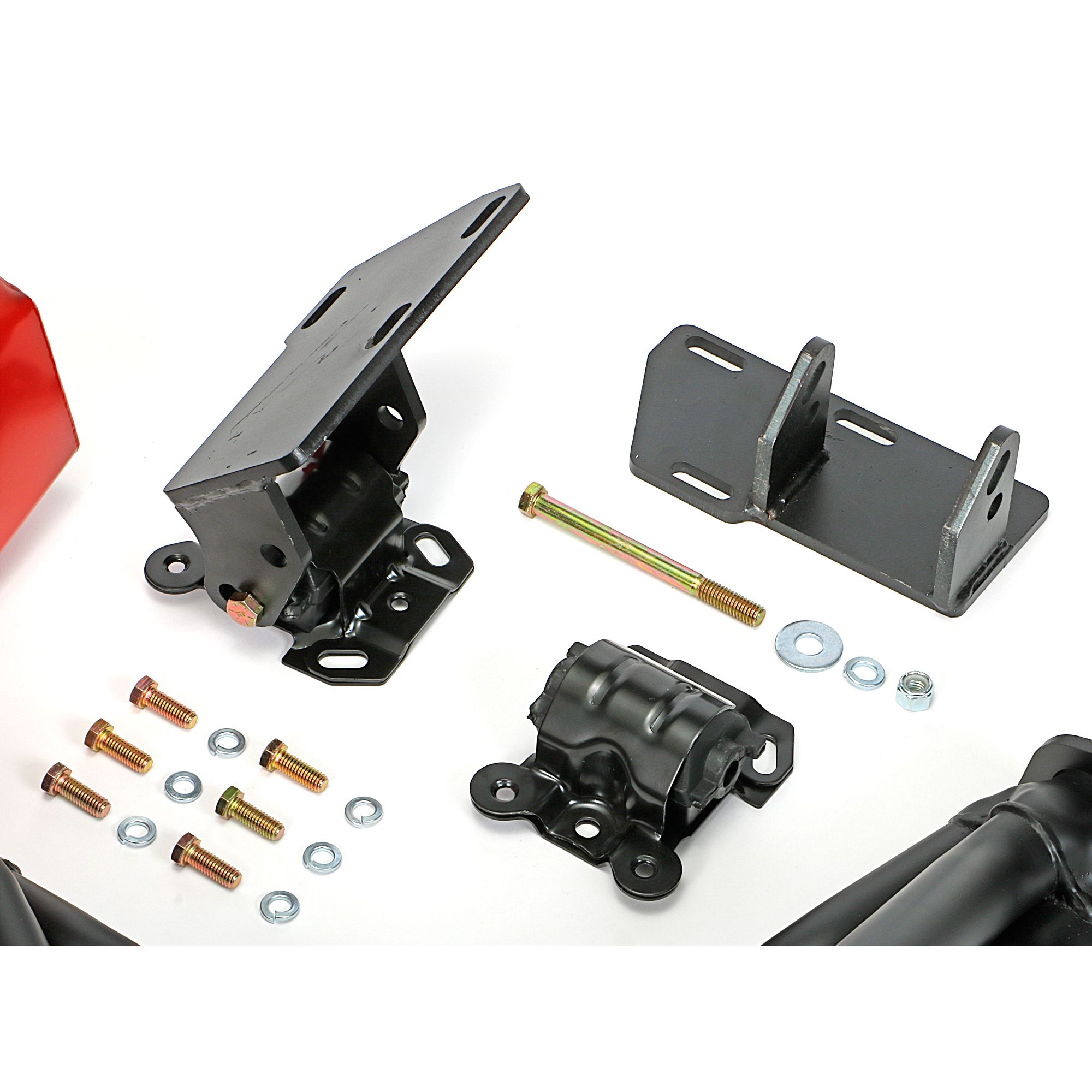

Motor Mounts Included: Yes
Mounting Hardware Included: Yes
O2 Provision: No
O2 Sensors Included: No
Oil Pan Bolts Included: Yes

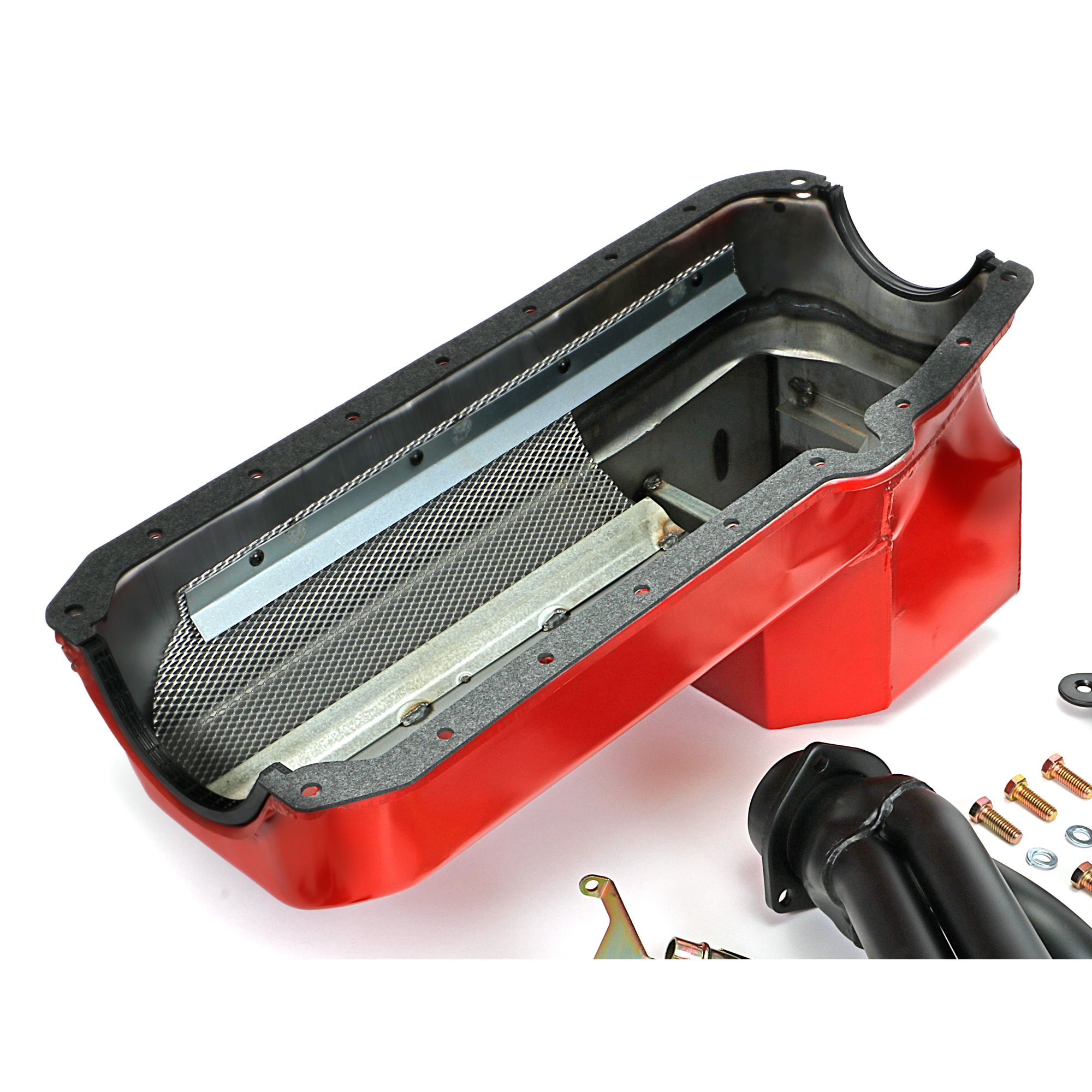

Oil Pan Capacity: 7 Qt. Capacity
Oil Pan Depth (in): 9.25 in.
Oil Pan Material: Steel
Oxygen Sensor Bung Included: No
Package Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Pan Capacity: 7 Qts.
Performance: Yes
Pickup #: 2509
Pickup Included: Yes
Port Shape: Round
Power Steering: Yes
Primary Tube Diameter (in): 1.50 in.
Primary Tube Gauge: 18g
Product Details: Engine swap kit for installing a 1955-78 SB Chevy engine into 1982-2004 4WD Chevy/GMC S10/S15 Trucks
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Head Flange Gasket: 27500
Sump Location: Rear
Sump Style: Wet Sump
Transmission Compatibility: Manual Transmission
Transmission Mount Type: Crossmember
Transmission Type: Manual Transmission
Tube Design: MID-LENGTH
Tube Diameter: 1-1/2 in.
Tube Material Thickness: 18g
Tube Size: 1-1/2 in.
Tuned: No
Vehicle Family: Chevy/GMC S10/S15 Family; 1982-04
Wheel Drive Type: 4WD
Windage Tray Included: Yes
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No

Extended Information:

Emissions : 3
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 27 x 14.5 x 21.25 inches
Weight: 48 PG
