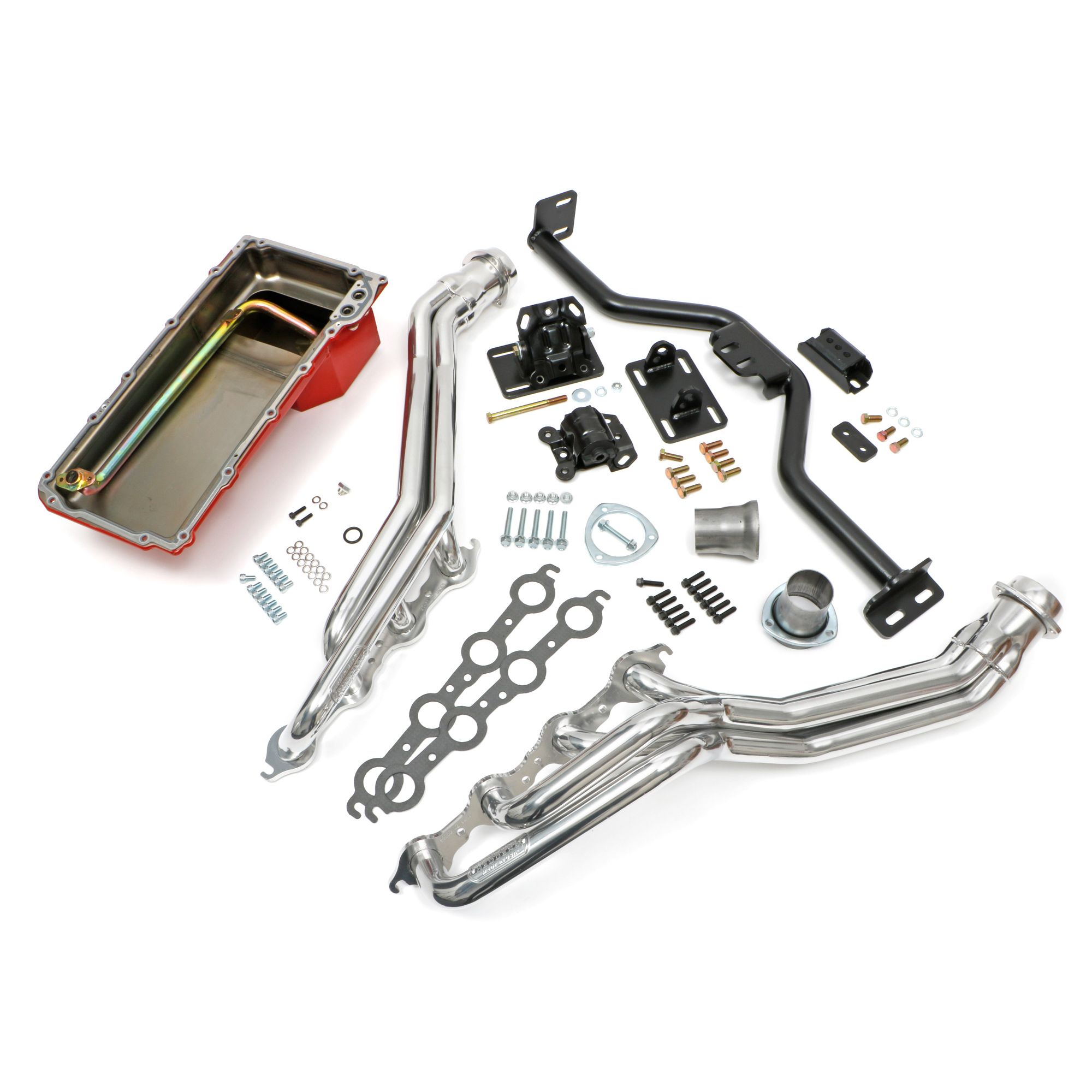

TRANS-DAPT PERFORMANCE PRODUCTS ENGINE SWAP IN A BOX KIT; CHEVY LS IN ’82-04 S10/S15 WITH 4L60E/70E; 1-1/2 IN. LONG TUBE HEADERS; 3 IN. BALL COLLECTOR; INCLUDES HEADERS, OIL PAN, ENGINE MOUNTS, TRANSMISSION CROSSMEMBER- HTC SILVER CERAMIC HEADERS

Additional Attributes:

GTIN: 00086923421641
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: Yes
Baffled: No
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Collector Attachment: Yes
Collector Bolts Included: Yes
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
Crank Shaft Wiper Included: No
Crossover Pipe Included: No
Cylinder Head: Factory Style
Dipstick Included: No
Dipstick Port: No
Drain Plug Included: Yes
Drain Plug Thread Size: 1/2 in.-20
Drivetrain: 2WD
Emissions Notes: Not legal for sale or use in California, or on pollution controlled vehicles.
Engine: Chevy LS Series
Exhaust System Dia: 3 in.
Finish: HTC Polished Silver Ceramic-Metallic
Flange Style: Standard
Flange Thickness: 0.375 in.
Gasket Or Seal Included: Yes
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: HTC Polished Silver Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Round
Header Style: Long Tube Header
Hedman Hedders Included: Yes
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Installation Hardware Included: Yes

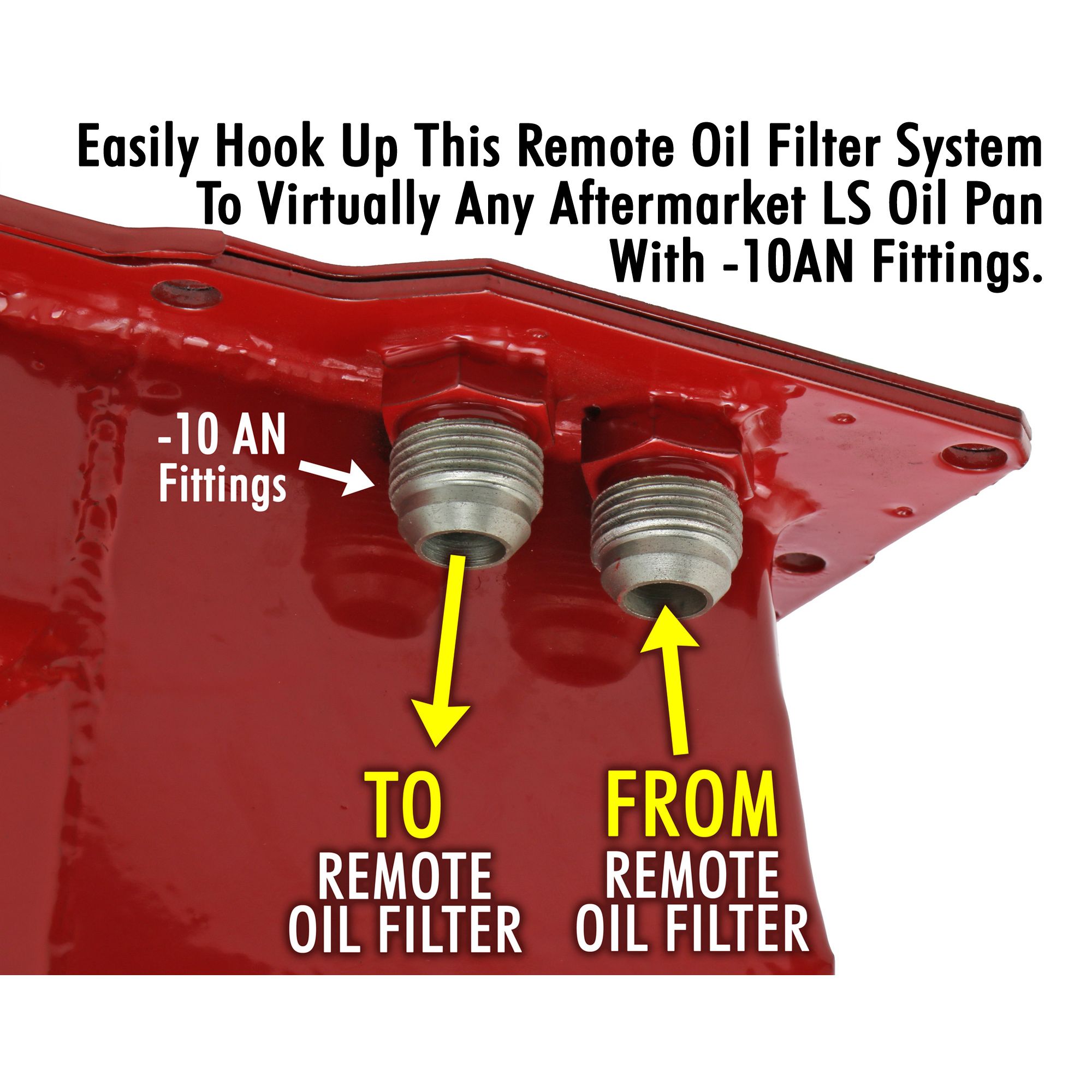

Installation Notes: Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter.
Kicked Out: No
Manual Transmission – Column: No
Manual Transmission – Floor: No
Material: Mild Steel
Motor Mounts Included: Yes
Mount Material: Steel
Mounting Bracket Included: Yes
O.E. Replacement: No
O2 Provision: No
O2 Sensors Included: No
Oil Pan Bolts Included: Yes

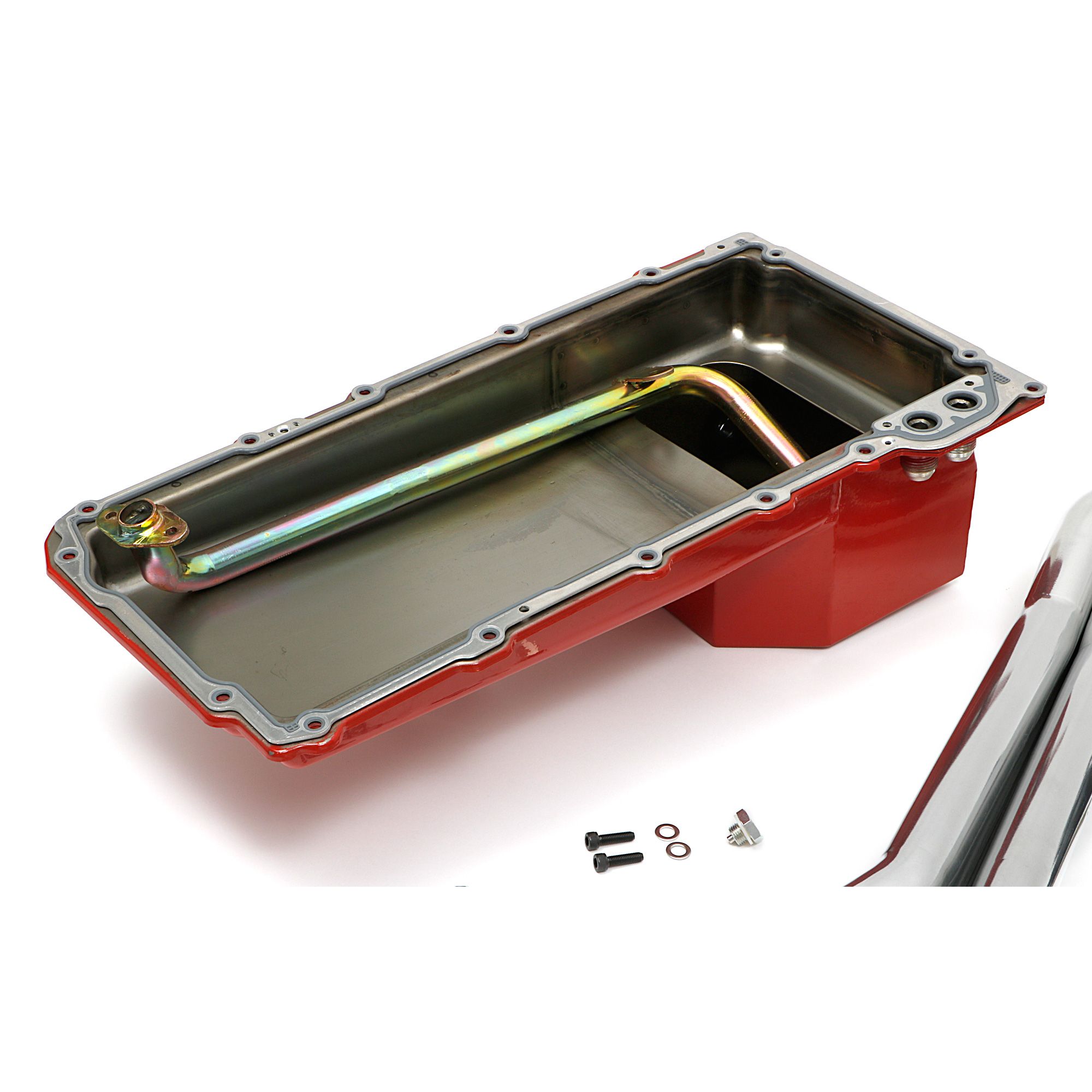

Oil Pan Capacity: 5 Qt. Capacity
Oil Pan Depth (in): 2 in. at front of Pan; 6 in. at Rear Sump
Oil Pan Finish: Red Painted
Oil Pan Included: Yes
Oil Pan Material: Steel
Oxygen Sensor Bung Included: No
Package Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
Pan Capacity: 5 Qts.
Performance: Yes
Pickup #: 2522
Pickup Included: Yes
Port Shape: Round
Power Steering: Yes
Primary Tube Diameter (in): 1.50 in.
Primary Tube Gauge: 16g
Product Details: Engine swap kit for installing an LS engine into 1982-04 S10
Product Type: Complete SWAP-IN-A-BOX Kits
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27470
Replacement Headers: 69056
Replacement Motor Mount Kit: 4516
Replacement Mount Pads: 4217
Replacement Oil Pan: 1108
Replacement Transmission Mount/Crossmember: 9719
Stroker Clearanced: No
Sump Location: Rear
Sump Style: Wet Sump
Transmission Compatibility: 4L60E
Transmission Mount Type: Crossmember
Transmission Type: Automatic Transmission
Tube Diameter: 1-1/2 in.
Tube Length: Long Tubes
Tuned: No
Variations: 42163, 42164, 42165
Vehicle Family: Chevy/GMC S10/S15 Family; 1982-04
Welding Required: No
Wheel Drive Type: 2WD
Windage Tray Included: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 48 x 21.5 x 22 inches
Weight: 75 PG
