TRANS-DAPT PERFORMANCE PRODUCTS ENGINE SWAP IN A BOX KIT; INSTALLS SB FORD (260-302W) IN ’83-97 FORD RANGER; 1-1/2 IN. MID-LENGTH TUBE HEADERS; 2-1/2 IN. BALL/SOCKET COLLECTOR; INCLUDES HEADERS, OIL PAN, ENGINE MOUNTS- HTC SILVER CERAMIC HEADERS

Additional Attributes:

GTIN: 00086923973621
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: Yes
Baffled: No
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Collector Attachment: Yes
Collector Bolts Included: Yes
Collector Size: 2-1/2 in.
Collector Style: Ball and Socket Flange

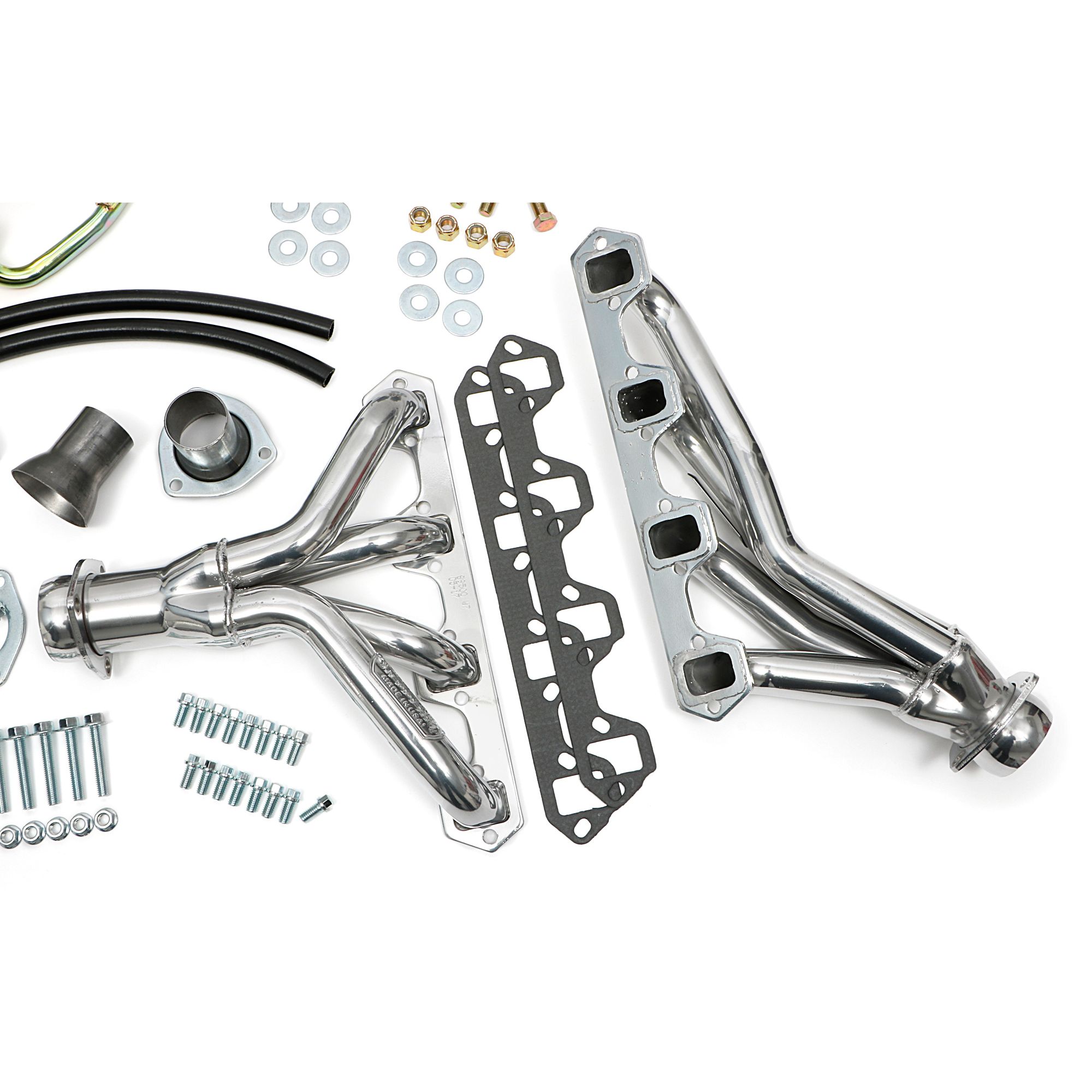

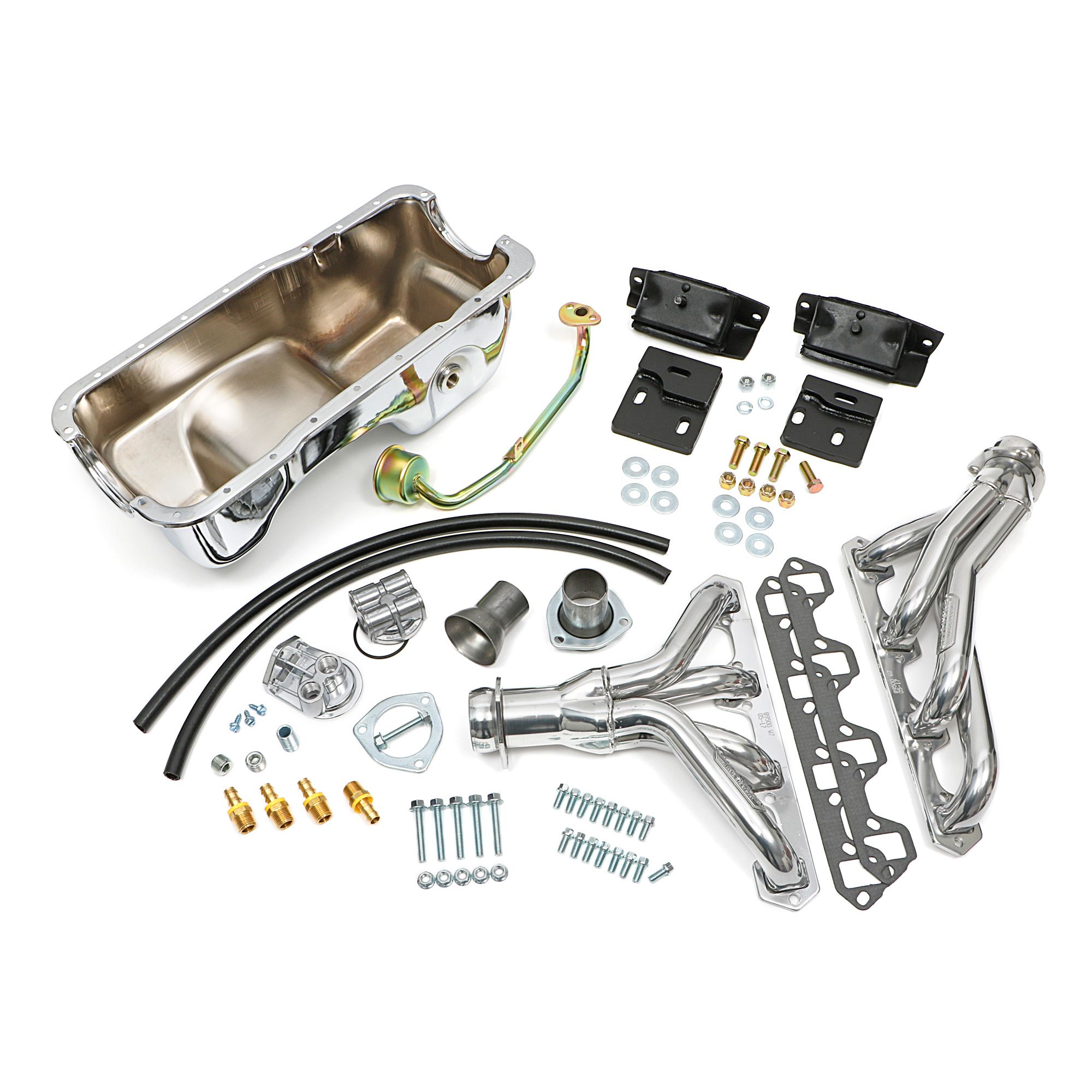

Contents: Headers; Engine Mounts; Oil Pan & pickup; Filter Relocation Kit; Gaskets; Hdwre
Crank Shaft Wiper Included: No
Crossover Pipe Included: No
Cylinder Head: Factory Style
Dipstick Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Drivetrain: 2WD
Emissions Notes: Not legal for sale or use in California, or on pollution controlled vehicles.
Engine: Ford SB 260-289-302W
Exhaust System Dia: 2-1/2 in.
Finish: HTC Polished Silver Ceramic-Metallic
Flange Style: Standard
Flange Thickness: 0.3125 in.
Gasket Or Seal Included: Yes
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: HTC Polished Silver Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Square
Header Style: Mid-Length Tube
Hedman Hedders Included: Yes
Hose Length: 30 in.
IMPORTANT!: 2WD Vehicles ONLY!
Installation Hardware Included: Yes
Kicked Out: No
Manual Transmission – Column: No
Manual Transmission – Floor: Yes
Material: Mild Steel
Motor Mounts Included: Yes
Mount Material: Mild Steel
Mounting Bracket Included: Yes
O.E. Replacement: No
O2 Provision: No
O2 Sensors Included: No
Oil Pan Bolts Included: No
Oil Pan Capacity: 4 Qt. Capacity
Oil Pan Depth (in): Stock Depth
Oil Pan Finish: Chrome
Oil Pan Included: Yes
Oil Pan Material: Steel
Oxygen Sensor Bung Included: No
Package Contents: Headers; Engine Mounts; Oil Pan & pickup; Filter Relocation Kit; Gaskets; Hdwre
Performance: Yes
Pickup #: 9755
Pickup Included: No
Port Shape: Square
Power Steering: Yes
Primary Tube Diameter (in): 1.50 in.
Primary Tube Gauge: 16g
Product Details: Engine Swap Kits for installing a SBF (260-302W) into a 1982-97 Ford Ranger.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27340
Replacement Headers: 89506
Replacement Motor Mount Kit: 9736
Replacement Oil Pan: 9754
Stroker Clearanced: No
Sump Location: Front
Sump Style: Wet Sump
Transmission Compatibility: C4
Transmission Mount Type: Crossmember
Transmission Type: Automatic Transmission
Tube Diameter: 1-1/2 in.
Tuned: No
Variations: 97361, 97362, 97363
Vehicle Family: Ford Ranger 1982-97
Welding Required: No
Windage Tray Included: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 26 x 15 x 21 inches
Weight: 51 PG
