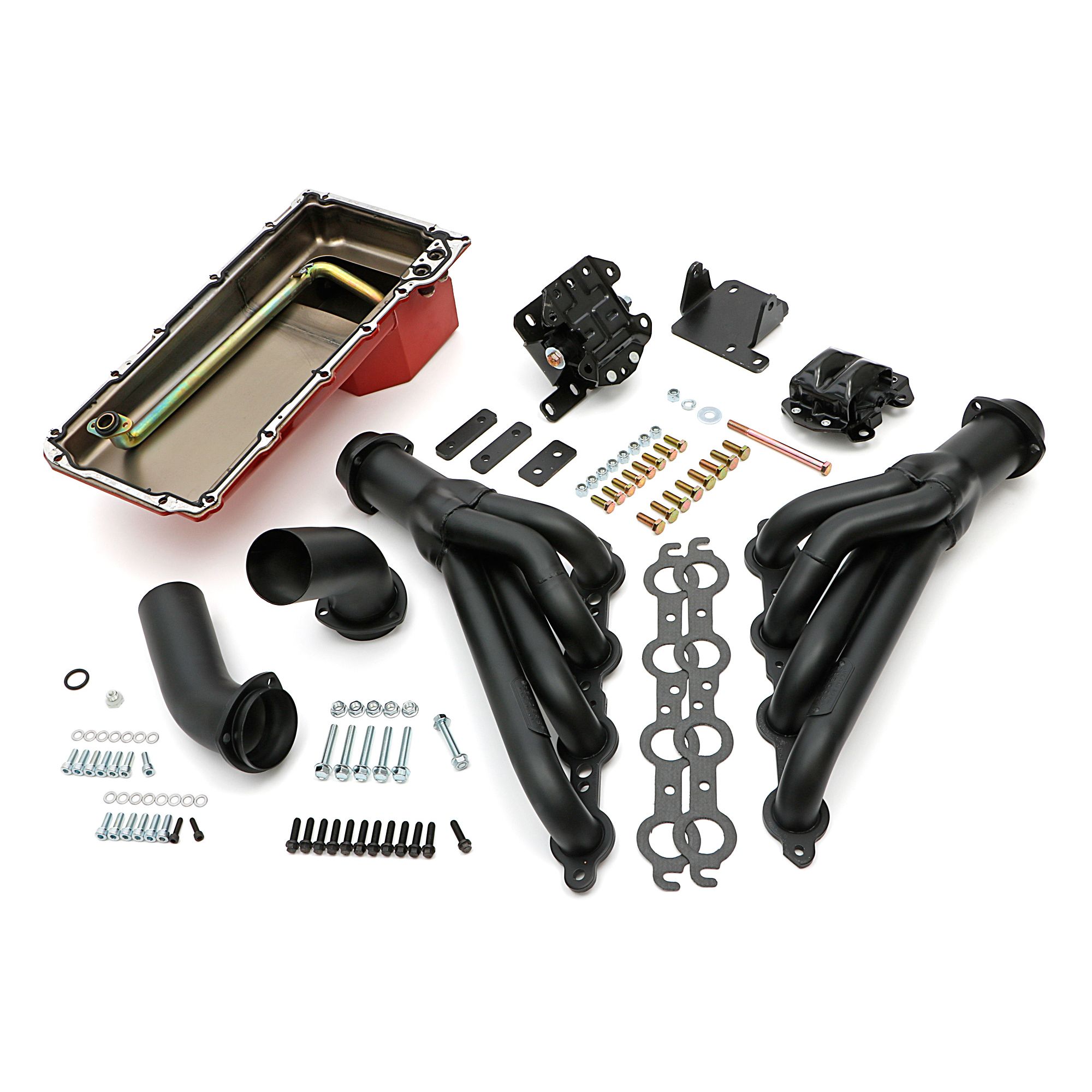

<p>Each member company of the Hedman Performance Group is a specialist in the field they serve. Hedman hedders specializes in headers, Trans-Dapt Engine/transmission swap mounts, and Hamburger's focuses on oil pans. Working together, the HP Group companies join as one to develop comprehensive kits that include everything you'll need to safely, and properly, fasten the donor LS engine to the vehicle's chassis. Sold as a single part number, purchasing complete engine swap kit ensures the products have been developed to work with each other, and takes the guesswork out of choosing swap products.</p><p>This standard-duty header Swap-In-A-Box Kit is developed specifically for installing an LS engine and TH350, TH400 or 700R4 transmission into 1968-72 GM A-Body passenger cars (i.e. Chevelle, El Camino, GTO, Cutlass, Skylark, 442 and others). This comprehensive kit includes a pair of BLACK-MAXX Satin-Black ceramic coated, mild steel, mid-Length headers with gaskets, bolts and exhaust adapters, a complete engine mount kit with hardware and rubber pads, LS swap engine oil pan with bolts, gaskets and special pick-up tube.</p><p>Kits with uncoated or polished-silver ceramic-coated headers are also available. Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.</p>
Additional Attributes:
GTIN: 00086923460145
Air Conditioning: Yes
Automatic Transmission – Column: Yes
Automatic Transmission – Floor: Yes
Baffled: No
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Chassis Compatibility: CHEVY ONLY. Buick, Pontiac, Olds models require frame kit #9596. Sold separately
Collector Attachment: Yes
Collector Bolts Included: Yes
Collector Size: 3 in.
Collector Style: Ball and Socket Flange
Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Crank Shaft Wiper Included: No
Crossover Pipe Included: No
Cylinder Head: Factory Style
Dipstick Included: No
Dipstick Port: No
Drain Plug Included: Yes
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Engine: Chevy LS Series
Exhaust System Dia: 2-1/2 in.
Finish: BLACK MAXX Satin Black Ceramic-Metallic
Flange Style: Standard
Flange Thickness: 0.375 in.
Gasket Or Seal Included: Yes
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: BLACK MAXX Satin Black Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Round
Header Style: Mid-Length Tube
Hedman Hedders Included: Yes
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Installation Hardware Included: Yes
Kicked Out: No
Manual Transmission – Column: No
Manual Transmission – Floor: No
Material: Mild Steel
Model/Trim Details: COUPE Models
Motor Mounts Included: Yes
Mount Material: Mild Steel
Mounting Bracket Included: Yes
O.E. Replacement: No
O2 Provision: No
O2 Sensors Included: No
Oil Pan Bolts Included: Yes
Oil Pan Capacity: 5 Qt. Capacity
Oil Pan Depth (in): 2 in. at front of Pan; 6 in. at Rear Sump
Oil Pan Finish: Red Painted
Oil Pan Included: Yes
Oil Pan Material: Steel
Oxygen Sensor Bung Included: No
Package Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Performance: Yes
Pickup #: 2522
Pickup Included: Yes
Port Shape: Round
Power Steering: Yes
Primary Tube Diameter (in): 1.75 in.
Primary Tube Gauge: 16g
Product Type: Complete SWAP-IN-A-BOX Kits
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27470
Replacement Headers: 68143
Replacement Motor Mount Kit: 4601
Replacement Oil Pan: 1108
Stroker Clearanced: No
Sump Location: Rear
Sump Style: Wet Sump
Transmission Compatibility: TH350
Transmission Type: Automatic Transmission
Tube Diameter: 1-3/4 in.
Tube Length: Mid-Length Tubes
Tuned: No
Variations: 46011, 46012, 46014
Vehicle Family: A-Body (GM) 1968-72
Welding Required: No
Windage Tray Included: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 39 x 22.25 x 22 inches
Weight: 58 PG
