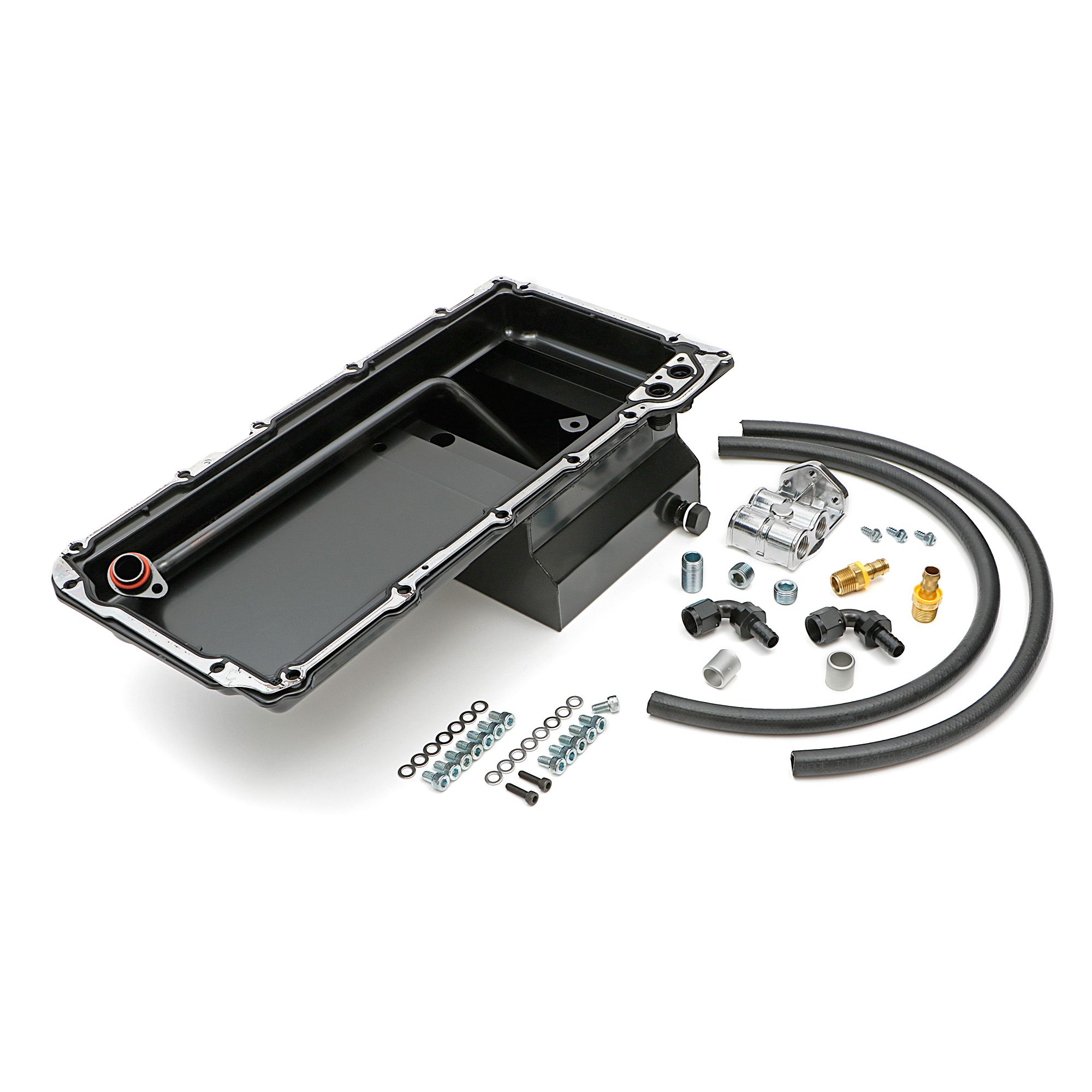

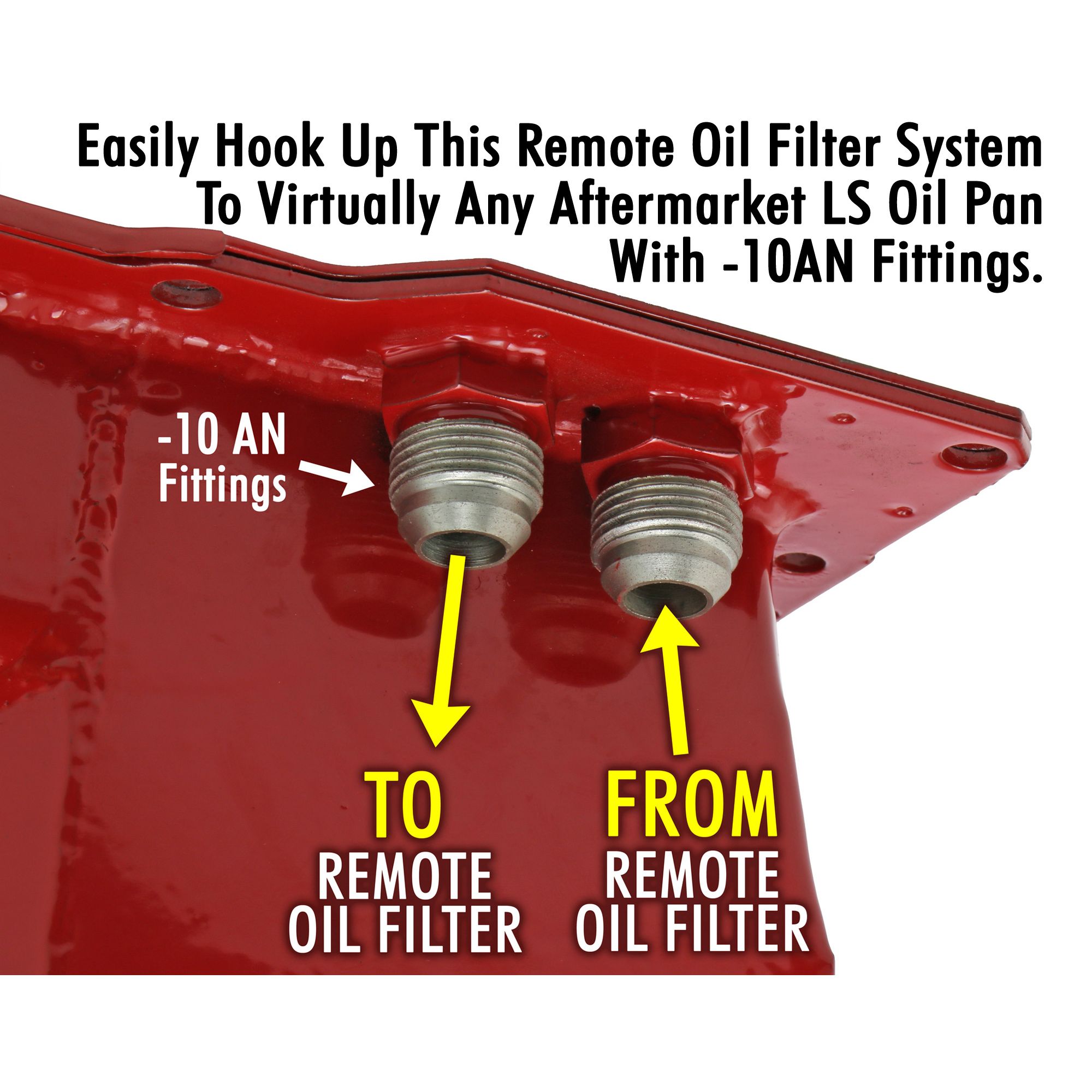

<p>When performing an LS engine swap into classic muscle cars and trucks, the use of an aftermarket, steel oil pan usually provides better, cross member, component and ground clearance than GM's factory, cast aluminum pan. The only hurdle with this swap is that GM integrated the oil filter mounting flange and passage ways into the factory cast pan. Remove the factory LS pan, and you lose a place to spin-on your oil filter.</p><p>This LS swap specific oil pan and filter relocation system combo kit eliminates this hurdle by including both a rear sump oil pan that clears the vehicle's cross member, and a complete oil filter relocation system that allows you to relocate the oil filter from the factory LS pan to the firewall, fenderwell or other easy to reach location on the vehicle.</p><p>The Black pan in this kit has kickouts that offer a 7 qt. capacity, and has two integrated -10AN fittings that you attach the 90 degree hose fittings to, then plumb the oil lines to the remote mount, cast aluminum filter base. The kit includes a special oil pump pickup tube designed specifically for the oil pan, a complete oil pan gasket set and mounting bolts.</p><p>The remote base is a single filter unit that has horizontal inlet (2) and outlet (2) ports, and includes 30" hoses, 4 hose fittings, filter nipple and 2 plugs for the unused ports. The multiple port design allows the remote base to be hooked up with both hoses to the left, right, or one on each side. Just plug the unused ports with the pipe plugs included in this kit. The only thing not included is a PH8A, or equivalent, oil filter.</p>
Additional Attributes:
GTIN: 00086923001812
Baffled: Yes
Bolts/Studs Included: Yes
Bypass Mounting Style: No Bypass Adapter
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Capacity: 7 Qts.
Color/Finish: ASPHALT BLACK
Color: BLACK
Construction: Stamped
Contents: Pan, Pickup,Remote Filter Base, Oil Lines, Fittings, Nipple, Gaskets & Hardware
Crank Shaft Wiper Included: No
Depth: 6 in. at Rear Sump
Dipstick Provision: No
Drain Plug Included: Yes
Drain Plug Thread Size: 1/2 in.-20
Engine Manufacturer: Chevrolet
Engine Notes: 4.8L, 5.3L, 6.0L GM LS Series Engines
Engine Oil Cooler Return Fitting: No
Engine: Chevy LS Series
Fastener(s) Included: Yes
Filter Bypass Included: No
Filter Bypass Style: No Bypass. Special LS Swap Pan Use
Filter Nipple Thread Size: 3/4 in.-16
Filtration Construction: CAST Aluminum
Finish Type: Electro-Deposit
Finish: ASPHALT BLACK
Fitting Material: Brass
Fitting Quantity: 4
Fitting Thread: -10 AN
Fitting Type: Hose Barb
Fluid Capacity: 7 Qt
Gasket Or Seal Included: Yes
Hardware Included: YES
Hose Connection Type: Push Lock
Hose ID: 1/2 in.
Hose Length: 30 in.
Hose Material: Flame Resistant Nitrile/Rubber
Hose OD: 0.75 in.
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Installation Hardware Included: Yes
Kicked Out: Yes
Kickout Position: Driver and passenger side
Kit Type: Oil Pan With LS Swap Filter Integration Kit
Length: 8-3/8 in.
Material: Steel
Mounting Hardware Included: Yes
Nipple Included: Yes
Oil Filter Compatibility: PH8A or Equivalent (or equivalent)
Oil Line Kit Included: Yes
Oil Pan Bolts Included: Yes
Oil Pan Capacity: 7 Qt. Capacity
Oil Pan Depth (in): 6 in.
Oil Pan Finish: Black
Oil Pan Material: Steel
Pan Capacity: 7 Qts.
Photo Disclaimer: Actual product design, construction, or included components may vary.
Pickup #: 2524
Pickup Included: Yes
Plug Included: Yes
Port Size: -10AN
Pressure Rating: 300 PSI
Product Type: Oil Pan / Filter Integration Kit Combos
Race Only: No
Remote Base Filter Size: PH8A (or equivalent)
Remote Base Included: Yes
Remote Filter Base Style: SINGLE Filter, Horizontal Port
Replacement Gasket Set: 4336
Replacement Nipple: 1034
Replacement Oil Pan: 0171
Single or Dual Filter: Single
Stroker Clearanced: No
Sump Dimensions: 6 in. Deep, 10.375 in. Wide, 8.375 in. Long
Sump Location: Rear
Sump Style: Wet Sump
Type: Oil Pan with Remote Filter Kit
Vehicle Family: A-Body (GM) 1964-67
Vehicle Specific Listings: LS Swap Oil Pan; 67-69 Camaro, 65-72 Chevelle, Nova
Width: 10-3/8 in.
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 25.5 x 12.5 x 10.5 inches
Weight: 15.25 PG
