Additional Attributes:
GTIN: 00086923011583
Bolt Hole Quantity: 3
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov

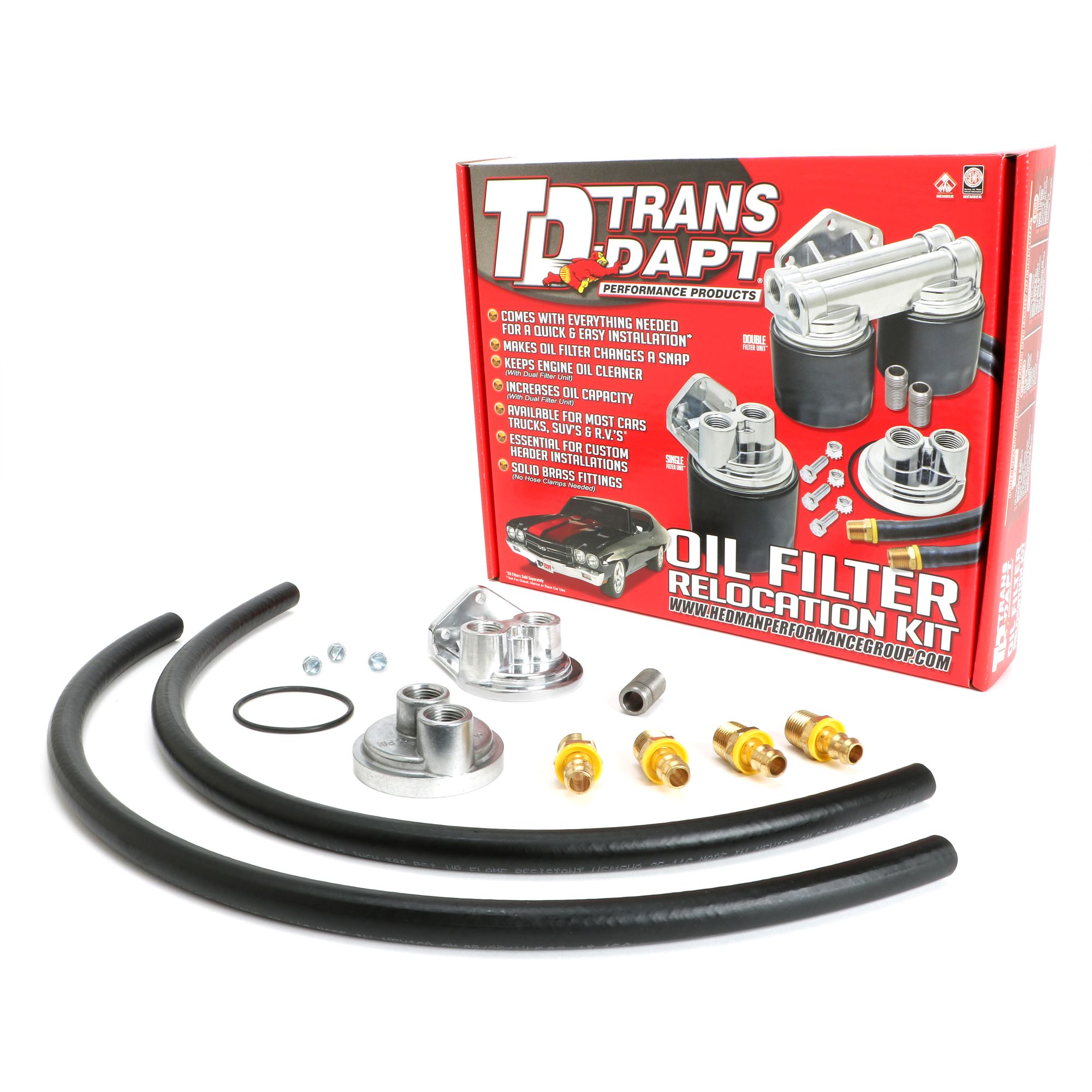

Contents: Oil Filter Bypass Adapter, remote single oil filter base, 2- 30 in. hoses,4 brass fittings, mounting Hardware & instructions
Filter Bypass Style: Standard Port Filter Bypass
Filter Nipple Thread Size: 20mm x 1.5
Fitting Finish: Raw
Fitting Material: Brass
Fitting Quantity: 4
Fitting Thread: 1/2 in. NPT
Fitting Type: Hose Barb
Hose Bust Pressure: 1200 psi
Hose Connection Type: Push Lock
Hose ID: 1/2 in.
Hose Length: 30 in.
Hose Material: Flame Resistant Nitrile/Rubber
Hose OD: 3/4 in.
Hose Temperature Range: -40 F to +212 F
Hose Thickness: 0.125 in.
Hose Type: Reinforced 1 Fiber Band
IMPORTANT!: NOT FOR DIESEL, MARINE OR RACE USE! See HAMBURGER’S Billet Filtration Components
Kit Type: Single Filter Kits
Material: Cast Aluminum
Materials: Cast Aluminum
Mount Material: Cast Aluminum
Notes: Single Oil Filter Relocation System; 2-1/2 in. I.D. and 2-3/4 in. O.D. Bypass Flange w/ 20mmX1.5 Threads
O.E. Replacement: No
Oil Filter Compatibility: FRAM PH8A, Trans-Dapt 1156 or Equivalent
Package Contents: Oil Filter Bypass Adapter, remote oil filter base, 2 hoses, 4 fittings, 4 hose ferrules mounting Hardware
Performance: Yes
Port Size: 1/2 in. NPT
Port Style: Vertical
Product Details: Fits engine blocks designed to accept oil filters with a 20mm X 1.5 thread and 2-5/8 in. diameter sealing o-ring.
Race Only: No
Remote Base Filter Size: PH8A (or equivalent)
Single or Dual Filter: Single
VEHICLE Oil Filter Flange ID: 2-1/2 in.
VEHICLE Oil Filter Flange OD: 2-3/4 in.
VEHICLE Oil Filter Nipple Size: 20mm x 1.5
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 11.88 x 8.38 x 4 inches
Weight: 3.38 PG
RelocationKitInstructions
