TRANS-DAPT PERFORMANCE PRODUCTS SWAP IN A BOX KIT-86-00 SBC INTO 82-04 2WD S10 W/HTC HEADERS-1 3/4 IN. TUBES

Additional Attributes:

GTIN: 00086923990802
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: Yes
Baffled: Yes
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Collector Attachment: 3 in.
Collector Bolts Included: Yes
Collector Size: 3 in.
Collector Style: 3-Bolt Gasket Style Flange

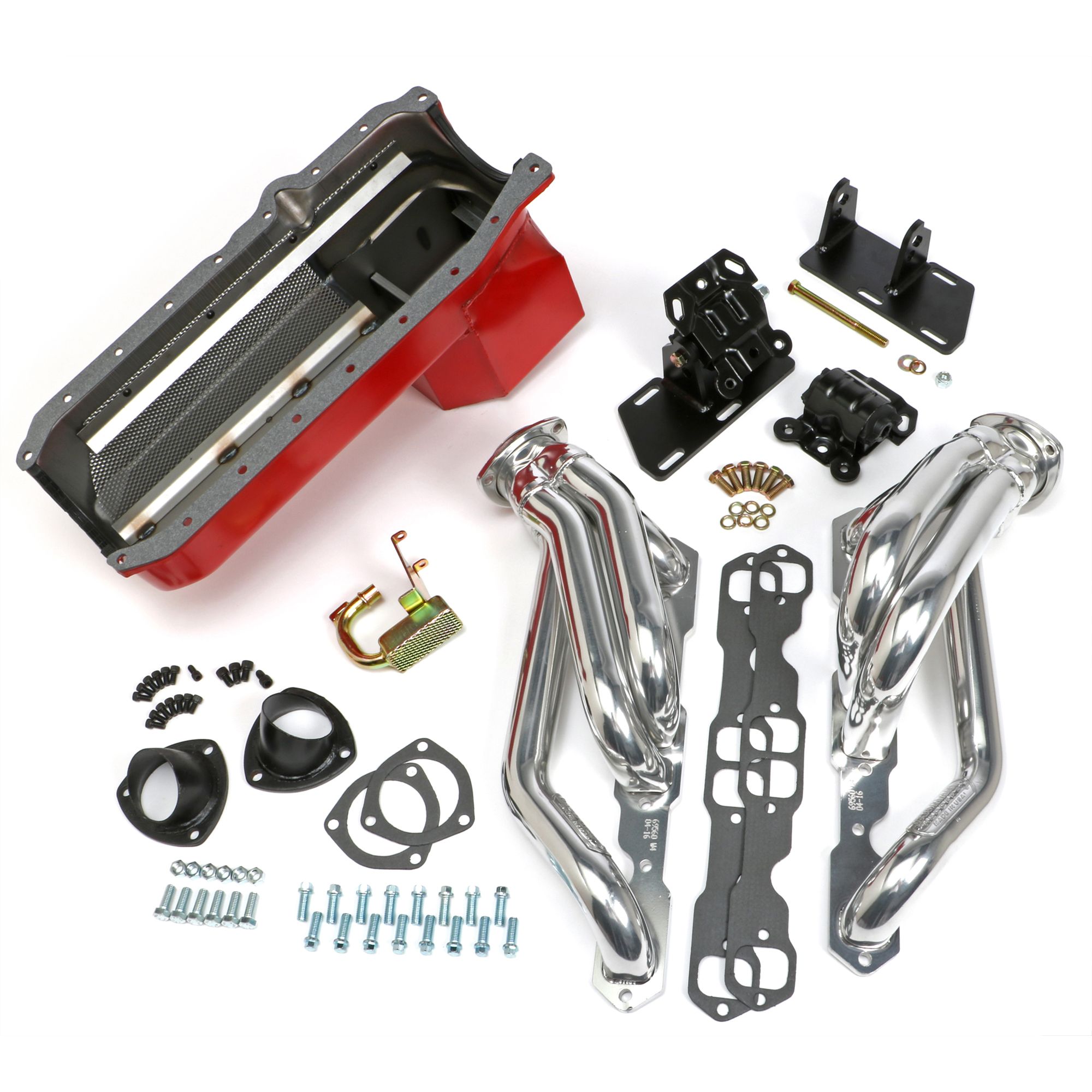

Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Crank Shaft Wiper Included: Yes
Cylinder Head: Factory Style
Dipstick Port: Yes
Drain Plug Included: Yes
Drivetrain: 2WD
Emissions Notes: Not legal for sale or use in California, or on pollution controlled vehicles.
Engine: Chevy SB 283-400; ’86-00 (passenger side dipstick)
Exhaust System Dia: 2-1/2 in.
Finish: HTC Polished Silver Ceramic-Metallic
Flange Thickness: 0.3125 in.
Gasket Or Seal Included: Yes
Head Style: Factory Profile
Head Type: Factory Heads

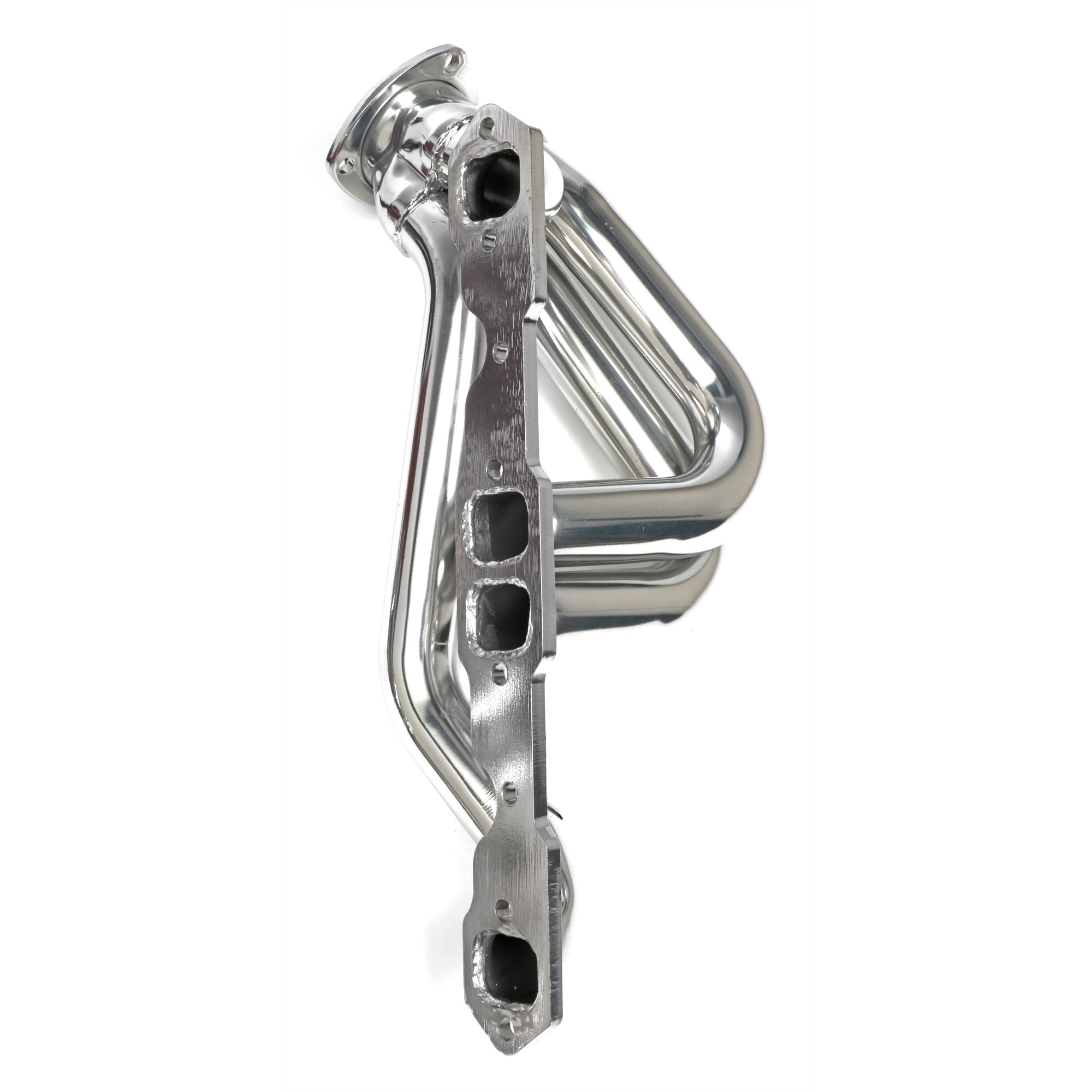

Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: HTC Polished Silver Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Rectangle
Header Style: Mid-Length Tube
Hedman Hedders Included: 69566
Installation Hardware Included: Yes
Kicked Out: No
Manual Transmission – Column: No
Manual Transmission – Floor: Yes
Material: Mild Steel
Motor Mounts Included: 9906
Mounting Hardware Included: Yes
O2 Provision: No
O2 Sensors Included: No

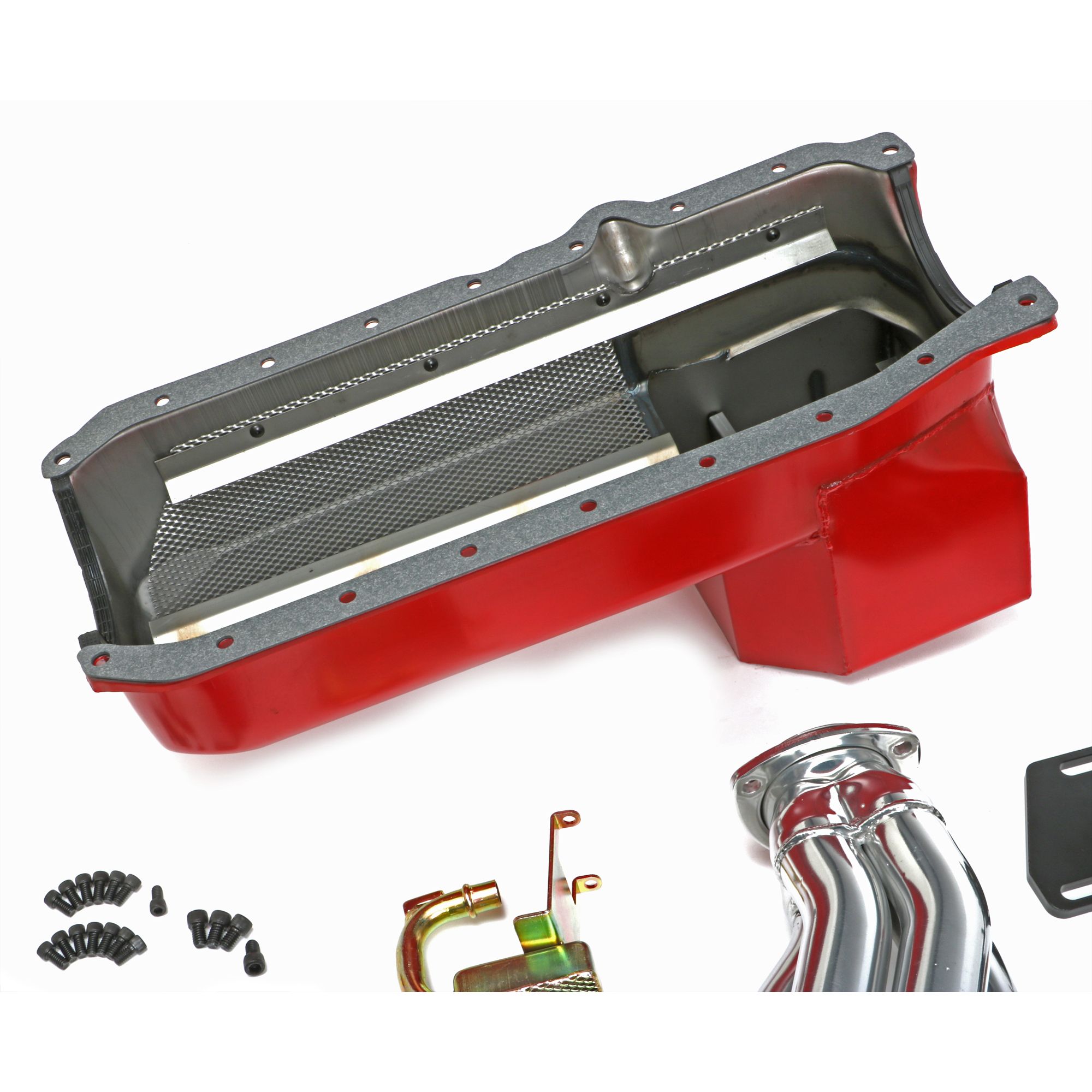

Oil Pan Capacity: 7 Qt. Capacity
Oil Pan Depth (in): 9.25 in.
Oil Pan Included: Yes
Oil Pan Material: Steel
Oil Pump Compatibility: Standard Volume Oil Pumps only. NOT For high volume oil pumps.
Oxygen Sensor Bung Included: No
Package Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Pick-up Connector Tube Diameter (O.D.): 5/8 in.
Pickup #: 2509
Pickup Included: Yes
Power Steering: Yes
Primary Tube Diameter (in): 1.75 in.
Primary Tube Gauge: 18g
Product Details: Engine swap kit for installing a 1986-00 SB Chevy engine into 1982-2004 2WD Chevy/GMC S10/S15 Trucks
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Head Flange Gasket: 27560
Sump Location: Rear
Sump Style: Wet Sump
Transmission Compatibility: Manual Transmission
Transmission Type: Automatic Transmission
Tube Diameter: 1-3/4 in.
Tuned: No
Vehicle Family: Chevy/GMC S10/S15 Family; 1982-04
Wheel Drive Type: 2WD
Windage Tray Included: Yes
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 27 x 14.5 x 21.25 inches
Weight: 52.65 PG
