Additional Attributes:
GTIN: 00086923420323
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: Yes
Baffled: No
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Collector Bolts Included: Yes
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)

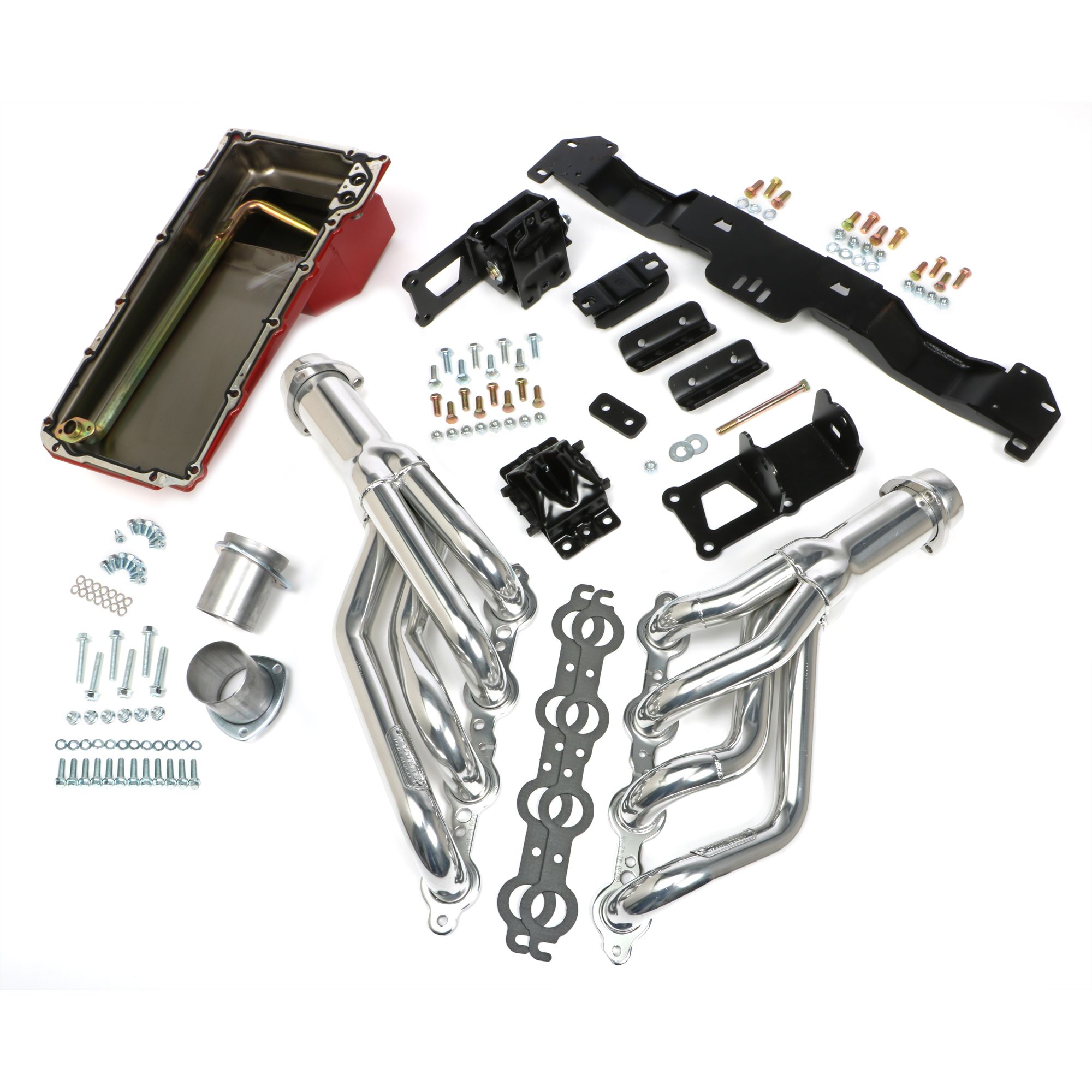

Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
Crank Shaft Wiper Included: No
Cylinder Head: Factory Style
Dipstick Port: No
Drain Plug Included: Yes
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Engine: Chevy LS Series
Exhaust System Dia: 3 in.
Finish: HTC Polished Silver Ceramic-Metallic
Flange Thickness: 0.375 in.
Gasket Or Seal Included: Yes
Head Type: Factory Heads
Header Fasteners Included: Yes
Header Finish: HTC Polished Silver Ceramic-Metallic
Header Material: Mild Steel
Header Style: Mid-Length Tube
Hedman Hedders Included: Yes
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Installation Hardware Included: Yes

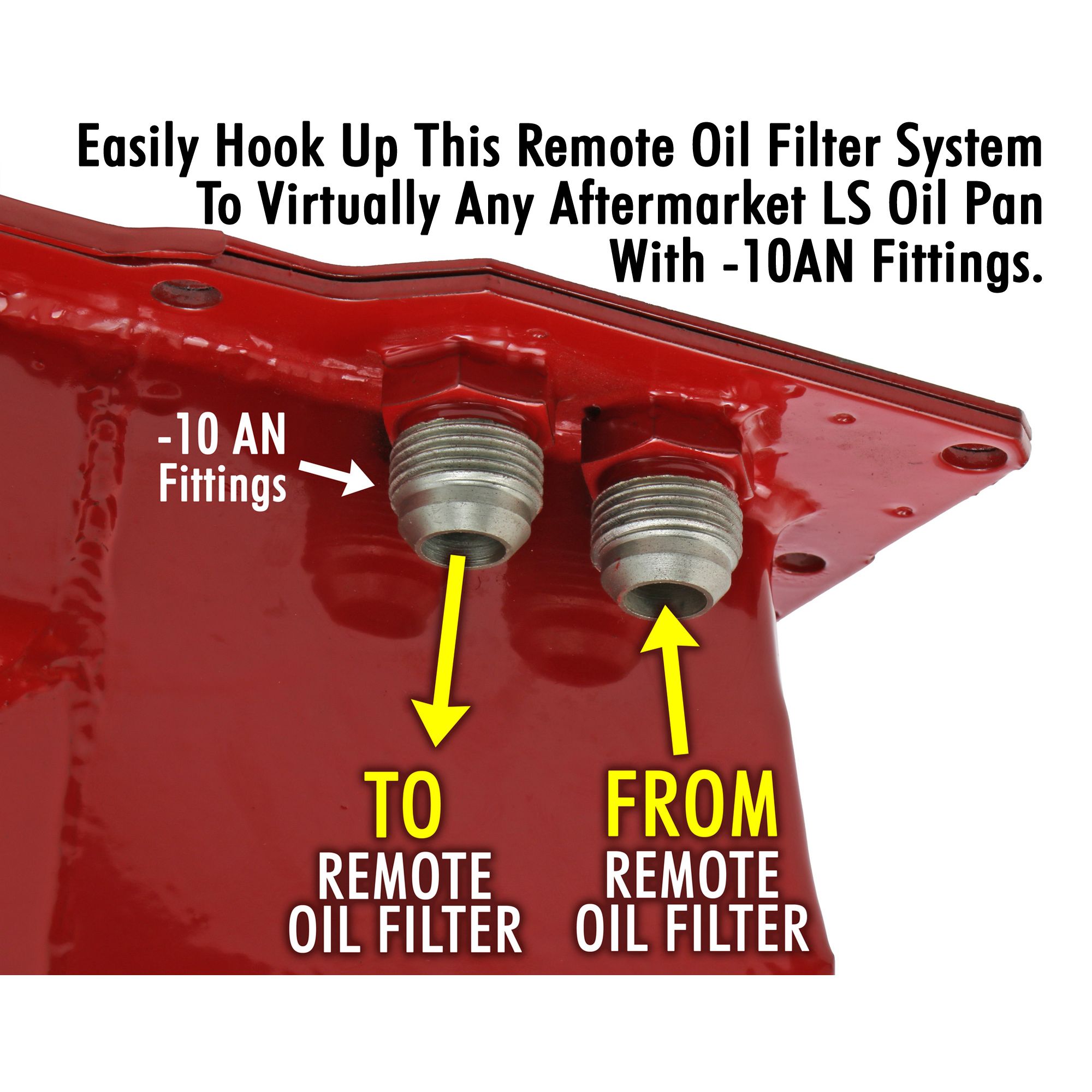

Installation Notes: Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter.
Kicked Out: No
Manual Transmission – Column: No
Manual Transmission – Floor: No
Motor Mounts Included: 4203
Mounting Hardware Included: Yes
O2 Provision: No
O2 Sensors Included: No
Oil Pan Bolts Included: Yes
Oil Pan Capacity: 5 Qt. Capacity
Oil Pan Depth (in): 2 in. at front of Pan; 6 in. at Rear Sump
Oil Pan Included: Yes
Oil Pan Material: Steel
Oxygen Sensor Bung Included: No
Package Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
Pickup #: 2522
Pickup Included: Yes
Power Steering: Yes
Primary Tube Diameter (in): 1.75 in.
Primary Tube Gauge: 16g
Product Details: Engine swap kit for installing an LS engine into 1975-81 Chevy Camaro and Pontiac Firebird
Product Type: Complete SWAP-IN-A-BOX Kits
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27470
Replacement Head Flange Gasket: Yes
Replacement Motor Mount Kit: 4203
Sump Dimensions: Driver: 4 3/4 in. x 3 in. x 8 1/4 in.; Passenger: 7 in. x 8 1/4 in.
Sump Location: Rear
Sump Style: Wet Sump
Transmission Compatibility: 4L60E

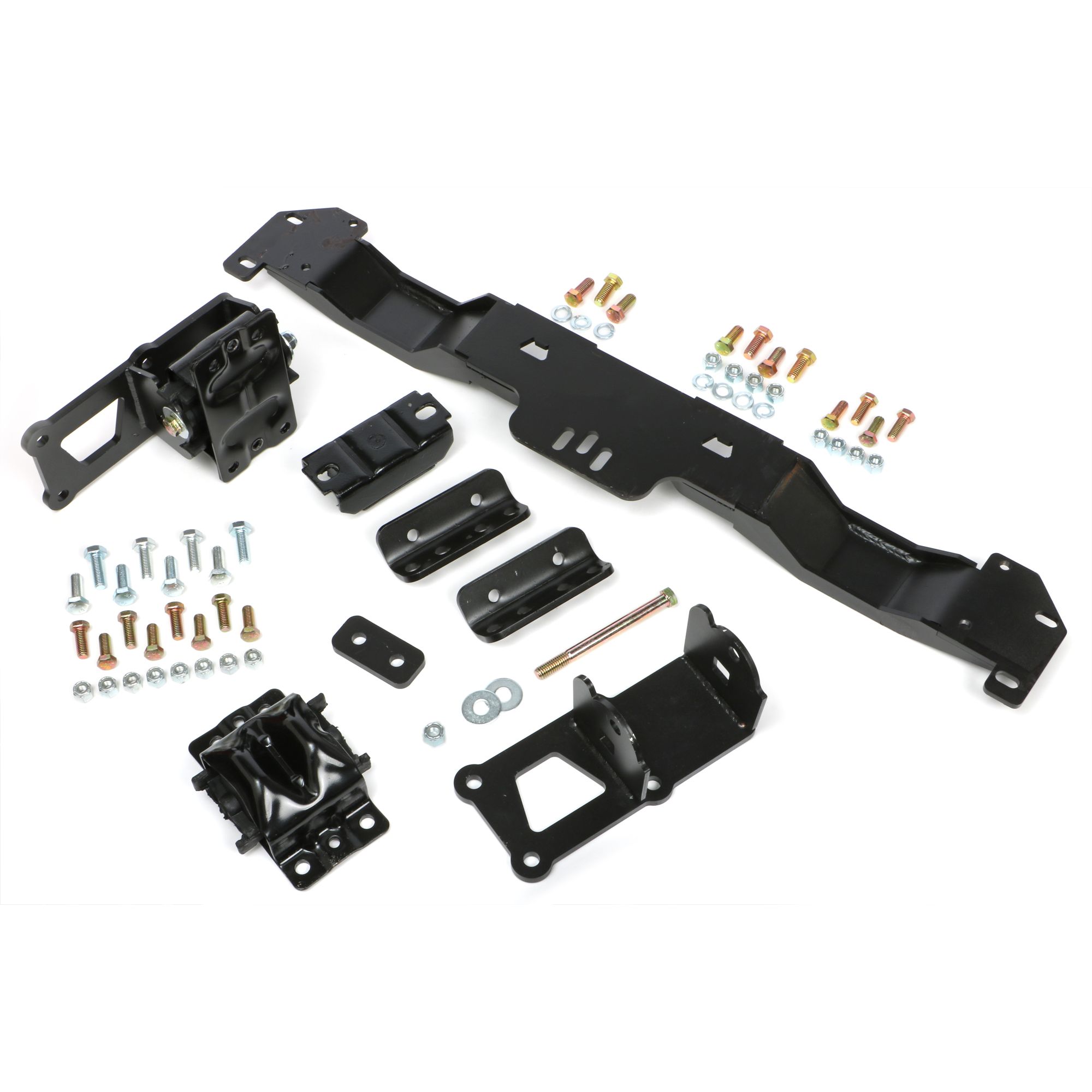

Transmission Mount Type: Crossmember
Transmission Mount/Crossmember Included: 6419
Transmission Notes: Not for use with 4L80E or 4L85E Transmissions.
Transmission Type: Automatic Transmission
Tube Diameter: 1-3/4 in.
Tuned: No
Variations: 42031, 42032, 42033.
Vehicle Family: F-Body (GM) 1975-81
Windage Tray Included: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No
Extended Information:
Emissions : 3
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 39 x 22.25 x 22 inches
Weight: 74 PG
