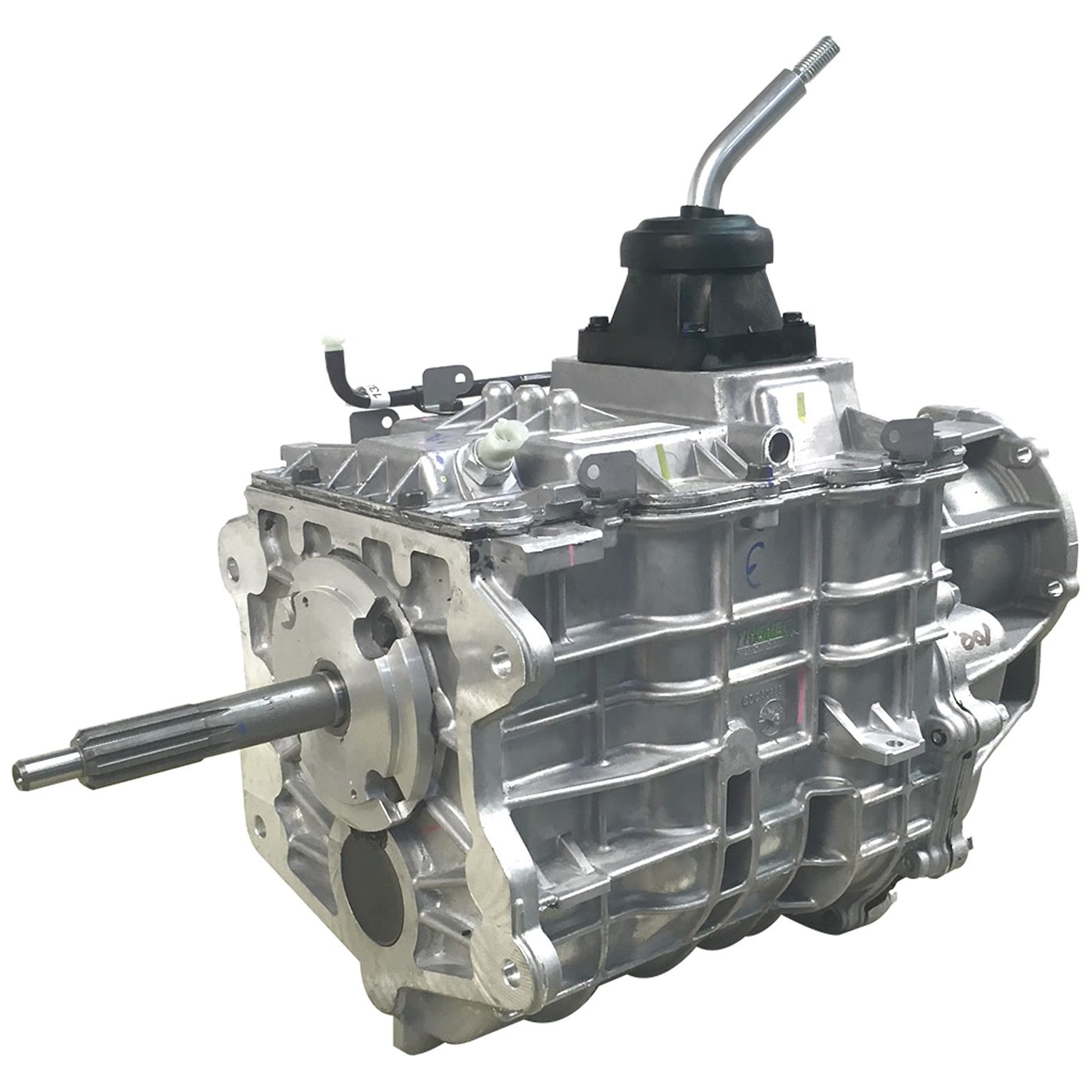

TREMEC TR-4050 4WD 5 Speed

$5,560.31

Transmission, Manual, Tremec TR-4050, 1-1/8 Inch 10 Spline, 4WD Vehicles

• Based on TR-4050 used in current OEM production.
• Die-cast aluminum case saves weight while offering considerable rigidity.
• All gears synchronized.
• Multiple shift locations provide design and installation flexibility.

SKU: JLHN-TDET 17341 Category: Manual Transmission Assembly

The TREMEC TR-4050 5-speed manual transmission is designed for longitudinal engine vehicles and is particularly suited for light and medium duty trucks. It includes a single overdrive and a light-weight aluminum housing All forward gears are fully synchronized and use a carbon friction material for improved shift quality. Tapered roller bearings are used to minimize noise, vibration and harshness (NVH) and improve efficiency. A standard six-bolt Power Take-Off (PTO) located on the right side of the transmission offers users the ability to run a variety of hydraulic accessories.

Additional Attributes:

GTIN: 00887753806581
Bell Housing Included: No
Case Material: Aluminum
Fifth Gear Ratio: 0.76:1
First Gear Ratio: 6.16:1
Forth Gear Ratio: 1.00:1
Input Shaft Diameter: 1.125
Input Shaft Quantity: 10
NOTE:: Dodge Diesel Applications please call for more information. 865-609-8187
Number of Gears: Five
Quantity: Sold individually.
Reverse Gear Ratio: 6.03:1
Second Gear Ratio: 3.11:1
Shifter Included: Yes
Third Gear Ratio: 1.71:1
Torque Capacity: 425
Yoke Included: No
