Universal Air-to-Air Race Intercooler Core

Introducing Mishimoto's line-up of Universal Race Intercooler Cores. Whether you?re looking for an intercooler to fit into a tight space, or you?re completing the build on your track toy, Mishimoto has the intercooler core for you. The Mishimoto Universal Race Intercooler Cores feature a robust bar-and-plate construction to help you maximize charged air heat dissipation, as well as improve durability. Our cores are shipped in a raw finish so they arrive at your doorstep ready for fabrication and custom finishing. Each of our cores are strictly quality controlled to ensure they can handle all of the boost you can throw at them. To back up our quality, our cores are covered by the Mishimoto Lifetime Warranty so that you know Mishimoto quality is being delivered straight to your door. The Mishimoto Universal Race Intercooler Cores feature a robust bar-and-plate construction to help you maximize charged air heat dissipation, as well as improve durability. Our Cores are shipped in a raw finish so they arrive at your doorstep ready for fabrication and powdercoating. Each of our cores are strictly quality controlled to ensure they can handle all of the boost you can throw at them. To back up our quality, our cores are covered by the Mishimoto Lifetime Warranty so that you know Mishimoto quality is being delivered straight to your door.

Additional Attributes:

GTIN: 00811580034404
Install Difficulty: N/A
SellingPoint01: Robust bar-and-plate construction
SellingPoint02: Designed for maximum flow and heat dissipation
SellingPoint03: Arrives ready for fabrication
SellingPoint04: Raw finish for endless powdercoating possibilities
SellingPoint05: Mishimoto Lifetime Warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A

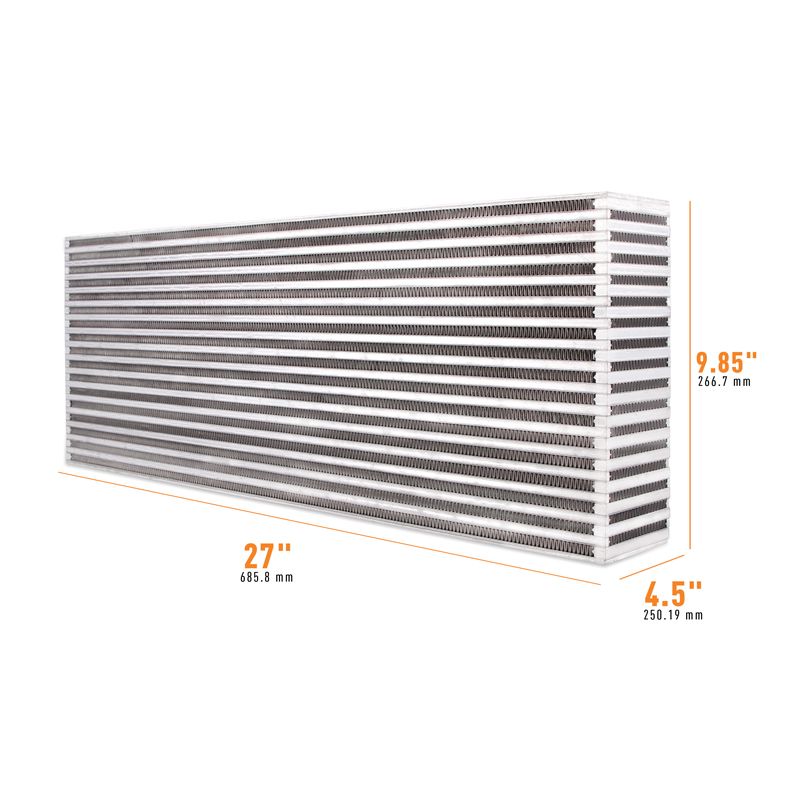

TechSpec Core Height (in): 9.85
TechSpec Core Length (in): 27
TechSpec Core Thickness (in): 4.5
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Mishimoto Universal Race Intercooler Core–Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 100
TechSpec Maximum Recommended Horsepower: 1000
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 9.85
TechSpec Overall Length (in): 27
TechSpec Overall Width (in): 4.5
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 30.2 x 16.5 x 5.5 inches
Weight: 18 PG
